TruDesign - Ball Valve | Manual | BSP Thread

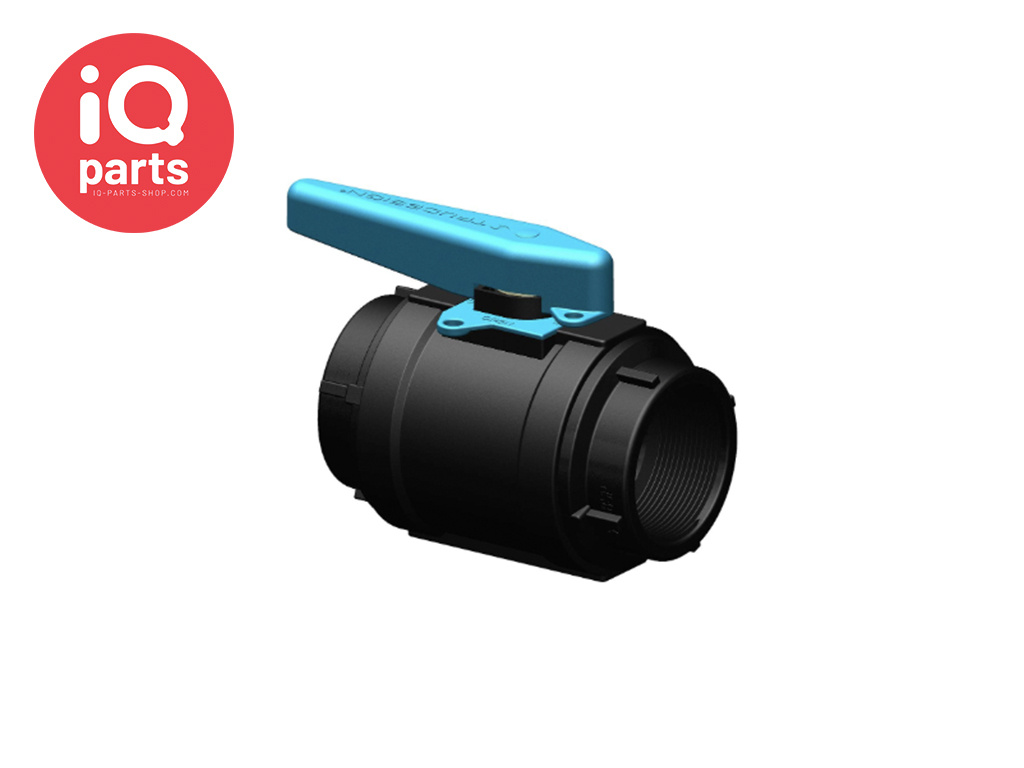

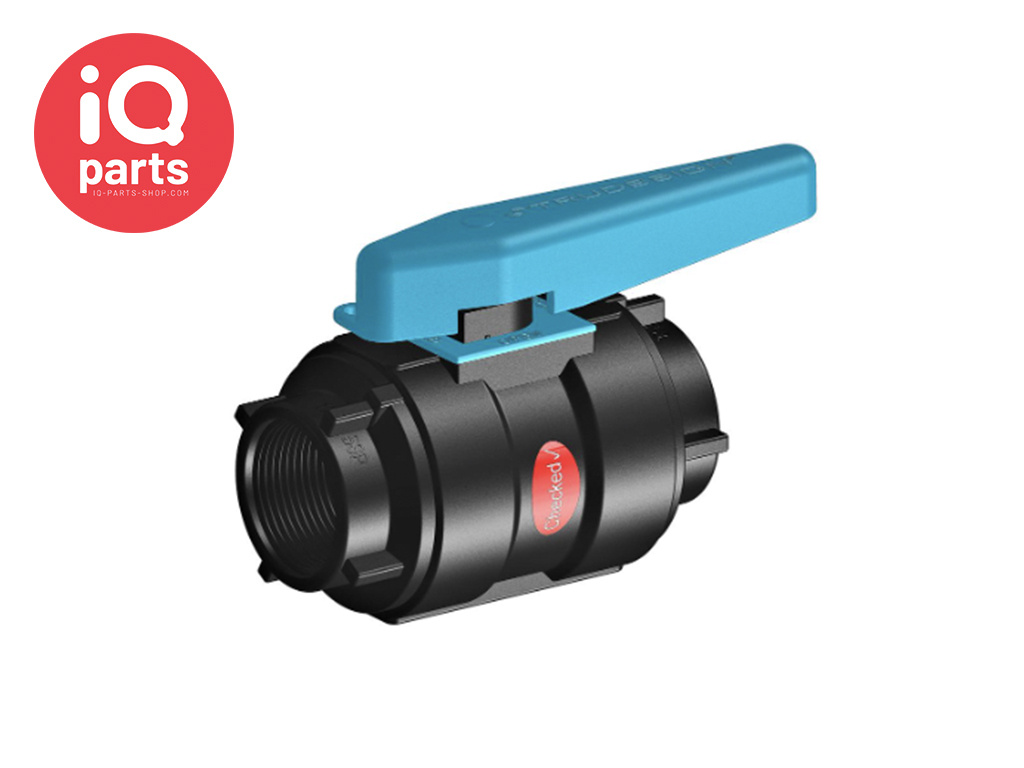

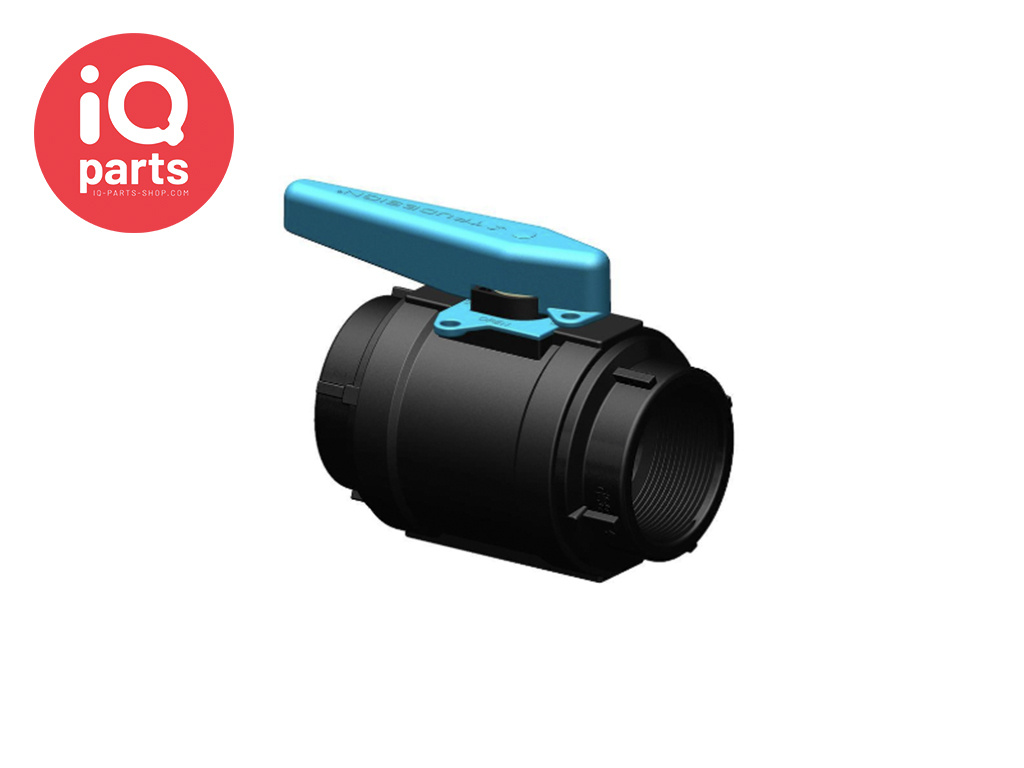

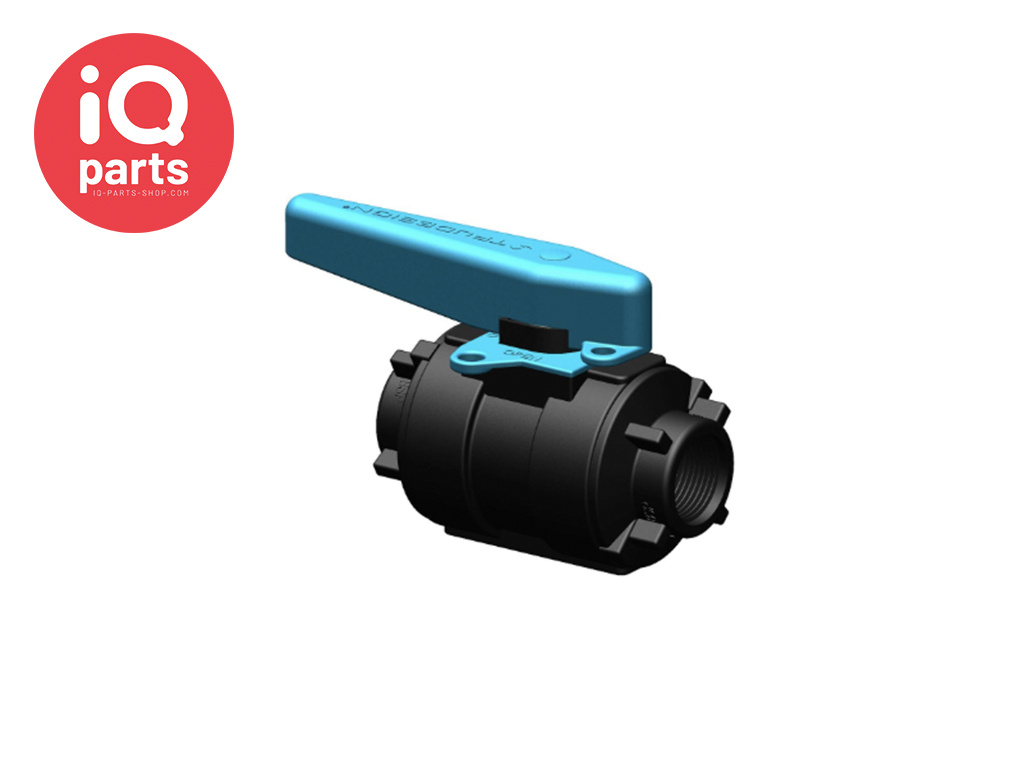

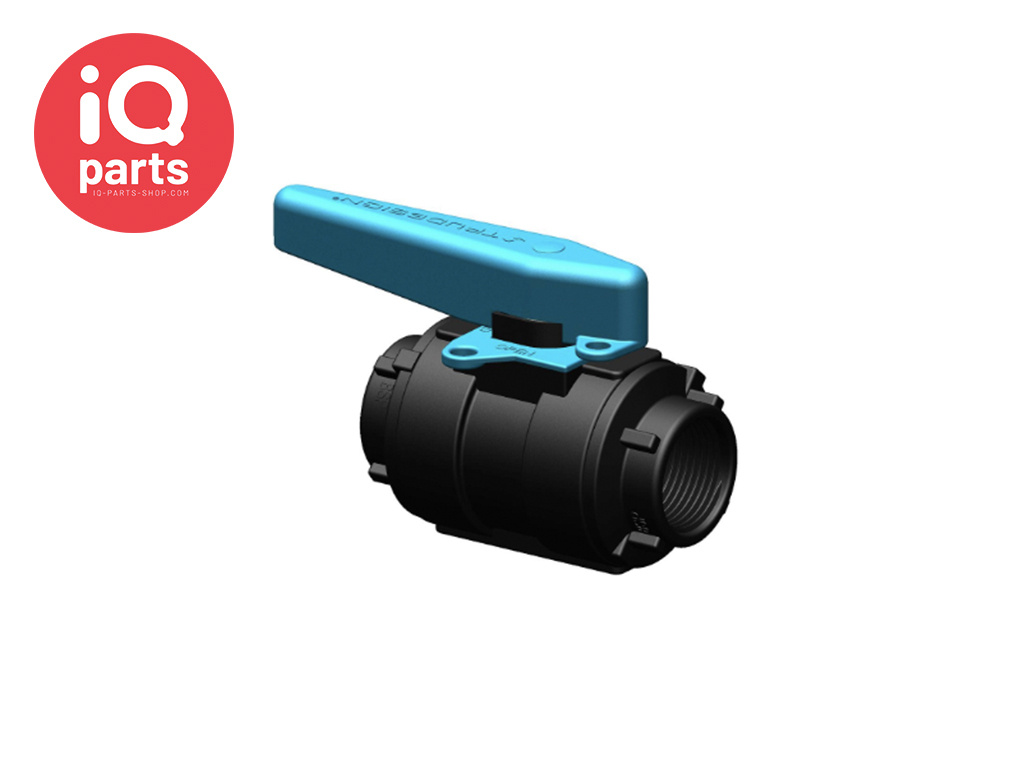

TruDesign Certified Ball Valves are designed and made in New Zealand for use in marine applications above and below the water line. The body of the Ball Valve is manufactured in glass-reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilize a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years. The Ball Valve is available in both BSP and NPS Parallel thread forms and can be locked in the closed position for use on toilet waste outlets.
Available in various sizes (thread connections):
- ½” BSP
- ¾” BSP
- 1” BSP
- 1¼” BSP
- 1½” BSP
- 2” BSP
- 3” BSP
Certificates:
Complies to ISO standard 9093:2021 by the International Marine Certification Institute and Type approved by Bureau VERITAS. Note: excludes ½” size
Meets the ABYC H-27 500Lb static load test for sizes 1" through 3". Note: TruDesign ABYC Load Bearing Collar is required for 1" size to comply
Features:
- Chemical Resistant. Unaffected by diesel, petrol, house-hold chemicals, and antifouling paints.
- Corrosion Free. Long life with no decreased performance due to corrosion or electrolysis.
- Large Operating Range. Suitable for all marine conditions from - 40°C to +110°C.
- Quality Finish. High quality surface finish, will not discolour with green film as similar bronze fittings do.
- Strong and Lightweight. Manufactured from a glass reinforced nylon composite - High strength without the weight.
- UV Resistant. Will not degrade or discolour from the sun’s ultraviolet rays.
The ball valve can be combined with numerous components, allowing you to create the exact connection you need:
- Straight, 90º, and 120º threaded connections. With hose connection, internal or external thread. With or without valve.
- Skin fittings
- Collars
- Aquavalve 3-way valves
- Mounting brackets for this ball valve

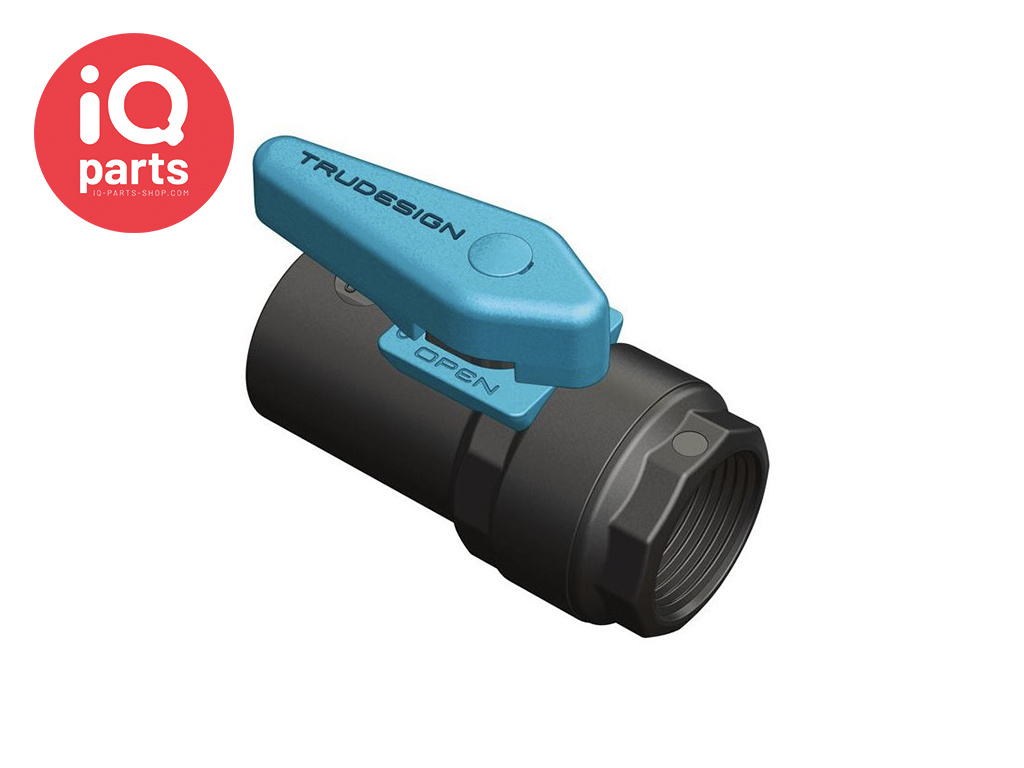

The ½" BSP and ¾" BSP ball valve is also available in a compact version.
CLICK HERE for the ball valve with a sensor, so you can see on the display whether the ball valve is open or closed. Ideal when the ball valve is installed in a difficult-to-reach location.
Trudesign supplies a wide range of products for the maritime sector. They are known for their high quality. You'll likely find many Tru Design products on your boat.
All products are manufactured in New Zealand using the latest, highly impact-resistant composite plastic materials. These are designed to meet the demands of the modern boating industry and comply with strict ISO marine standards.
A T-Handle is available separately. Click HERE
General product information:
Installation manual:
Product code:
90471 - 90276 - 90242 - 90240 - 90235 - 90472 - 91157 - 91371 - 91369
9421007121054 - 9421007121061 - 9421007121078 - 9421007121085 - 9421007121092 - 9421007121108 - 9421007124819 - 9421007125465 - 9421007125458
Specifications
| Material: | Nylon 6 Fiberglass reinforced - PTFE polymer |
| Max. Temperature: | -40°C to +110°C |
