TruDesign - Load Bearing Collar | For Ball Valve | ABYC standard
Brand:
TruDesign
| Article number: | TRU-90856 |
| EAN: | 9421007123287 |
| SKU: | 90856 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
TruDesign - Load Bearing Collar | For Ball Valve | ABYC standard

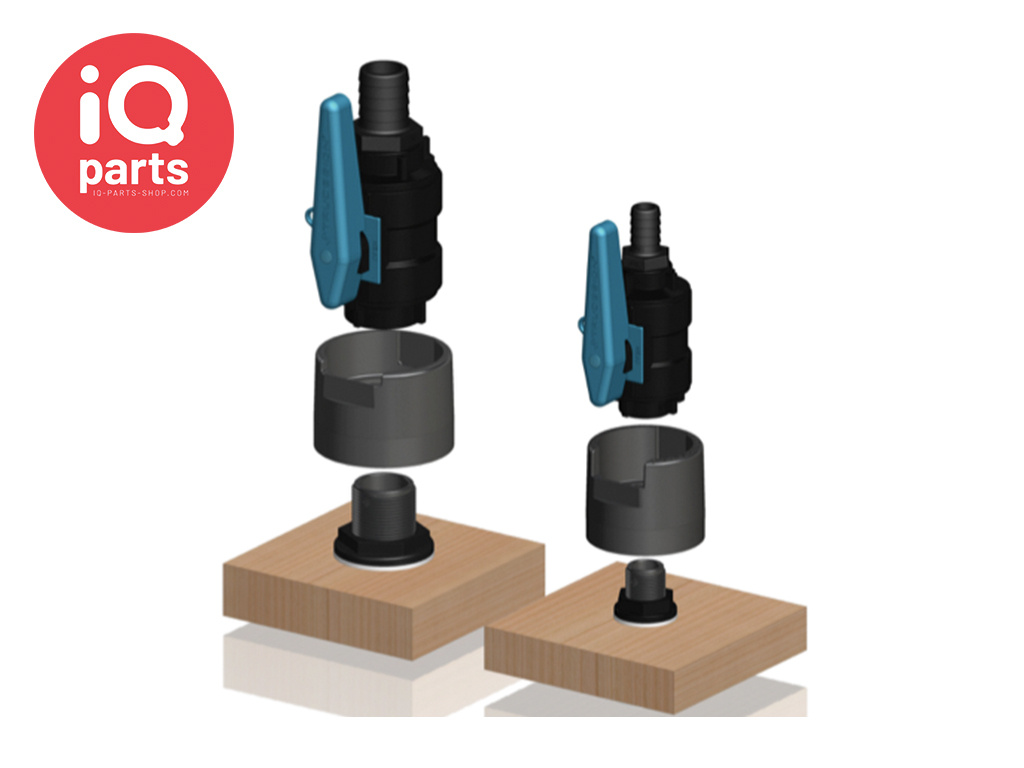

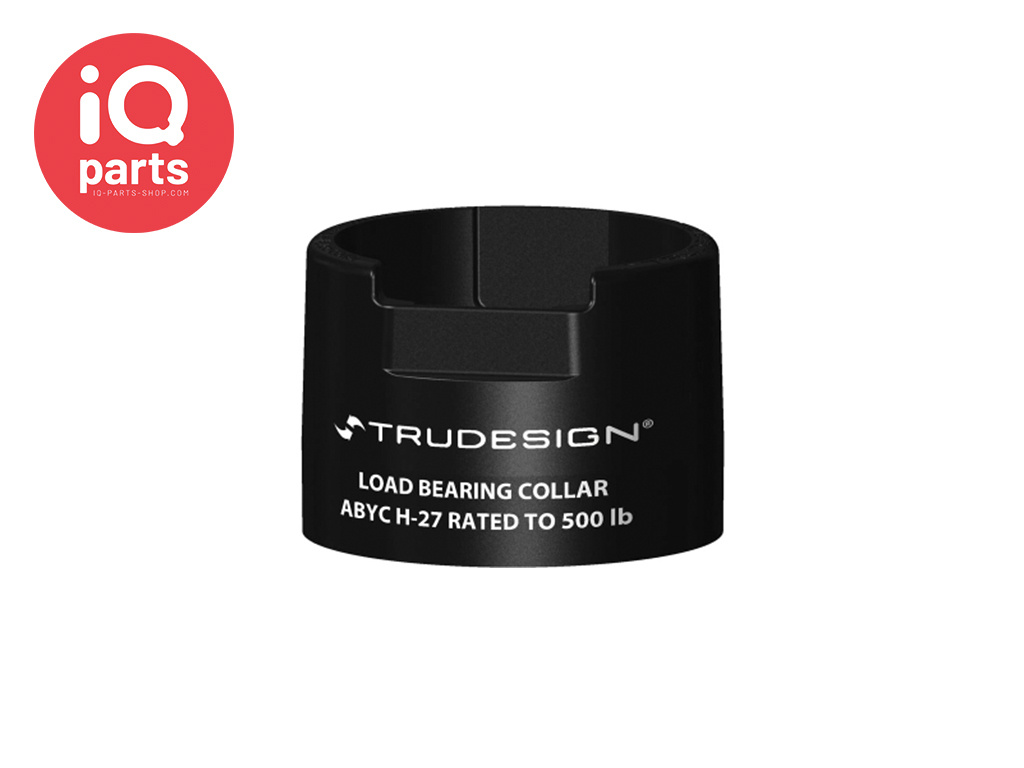

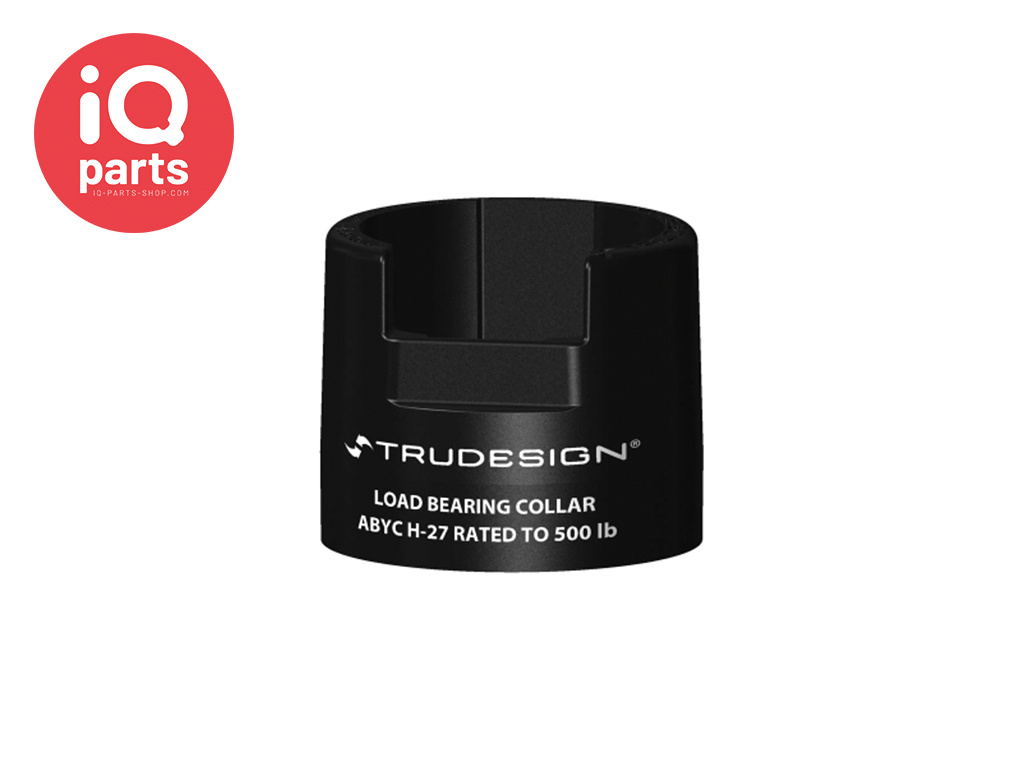

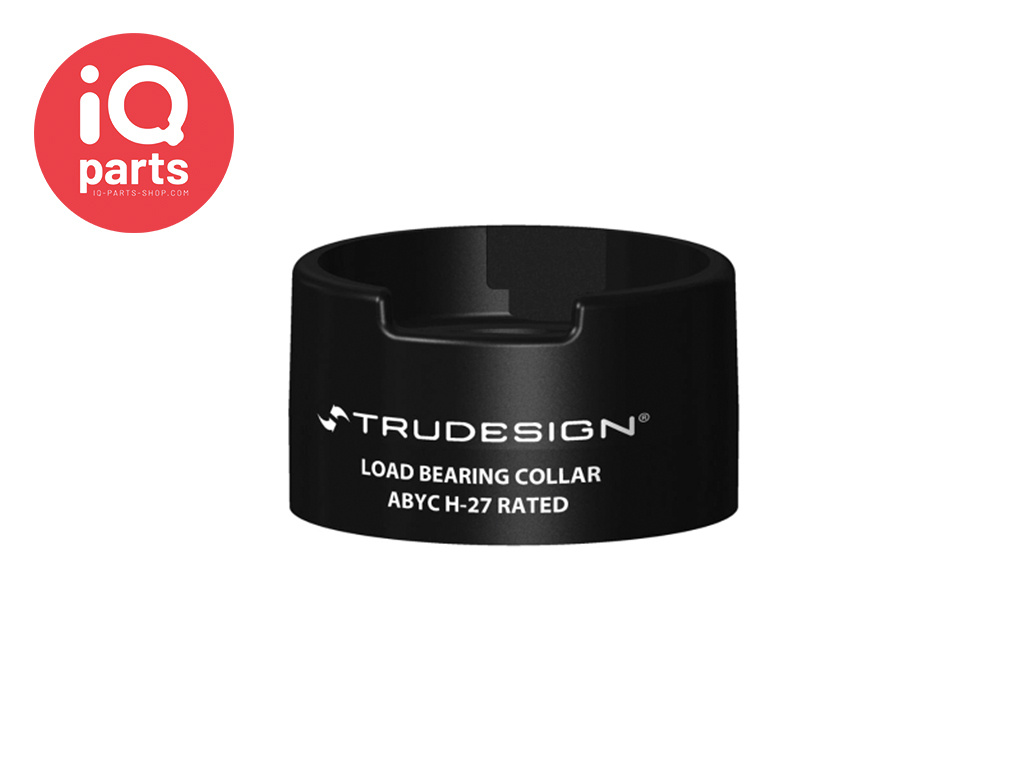

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves. With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds – complying with North American ABYC H-27 standards.
Note: TruDesign 1 1/4", 1 1/2" 2" Skin Fittings meet the requirements of H-27 500Lb standard (i.e. without a Large Collar installed). Adding a Large Collar to assemblies of this size increases the overall strength and protects the vulnerable exposed section of thread on the Skin Fitting.
Details:
- American ABYC H-27 – 500Lb static load test - TRUDESIGN Skin Fittings and Ball Valves meet the American ABYC H-27 – 500Lb static load test; Seacocks, Thru-Hull Fittings, and Drain Plugs – independently verified by IMANNA Laboratory Inc.
- 1” Thru Hull, Ball Valve and Tail assembly complies with the ABYC 500Lb load test only when used with the TruDesign ABYC collar
- ½” and ¾” do not comply with the ABYC load test standard
- Compact footprint
- No additional bolts or fasteners through or on to the hull
- Ability to retrofit to existing TruDesign assemblies
- Shrouded protection
- Fool-proof assembly - if not snug when tightened the Skin Fitting's length will need shortening. See info sheet
Available in 3 sizes:
- Small: for ½”, ¾” & 1”
- Medium: for 1¼” & 1½”
- Large: for 2”
- 3D printed: for 3" (No TruDesign)
Trudesign supplies a wide range of products for the maritime sector. They are known for their high quality. You'll likely find many Tru Design products on your boat.
All products are manufactured in New Zealand using the latest, highly impact-resistant composite plastic materials. These are designed to meet the demands of the modern boating industry and comply with strict ISO marine standards.
General product information:
Installation manual:
Product code:
90856 - 90857 - 90920 - 91160
9421007123287 - 9421007123294 - 9421007123645
Specifications
| Material: | Nylon 6 Fiberglass reinforced - PTFE polymer |
| Max. Temperature: | -40°C to +110°C |
