TruDesign - Ball Valve | Monitored | BSP Thread

Brand: TruDesign

| Create your own review

TruDesign TruDesign - Ball Valve | Monitored | BSP Thread

View specifications

€163,05 Incl. tax

€134,75 Excl. tax

* Excl. tax | Excl. Shipping costs

Now 0 in stock
Delivery time: 1 week after order date

Make a choice:

Add to cart

Add to wishlist

Add to comparison list

Article number:	TRU-90473
EAN:	9421007120354
SKU:	90473

2 year warranty
Delivery time: 1 week after order date

Share this product

Information

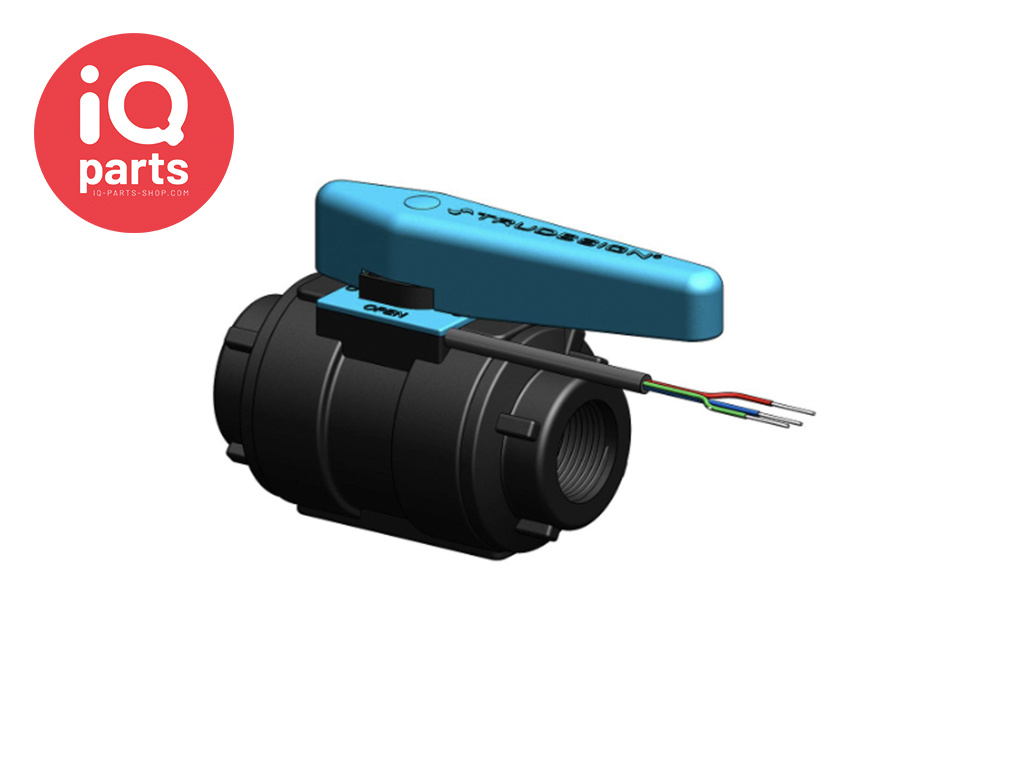

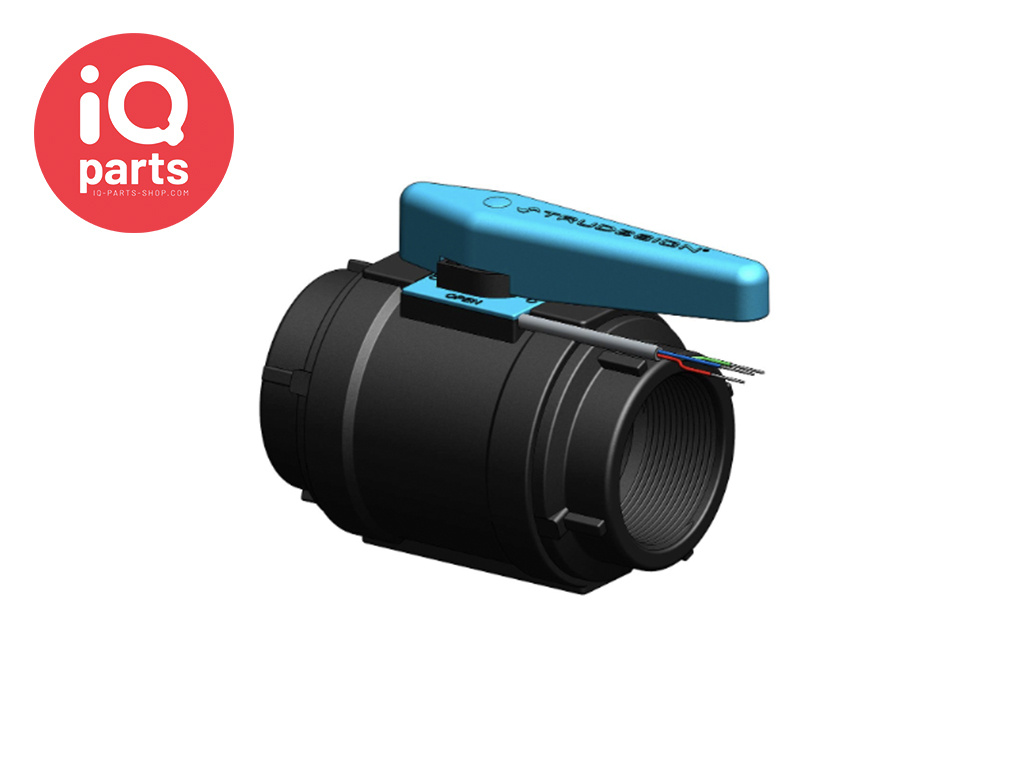

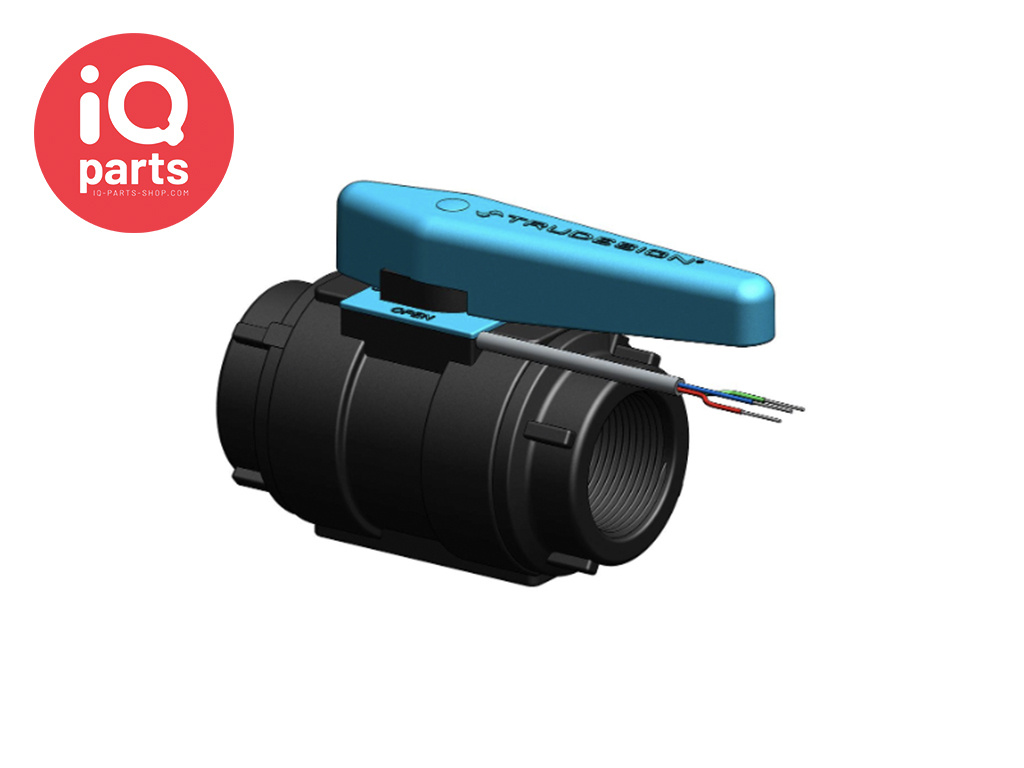

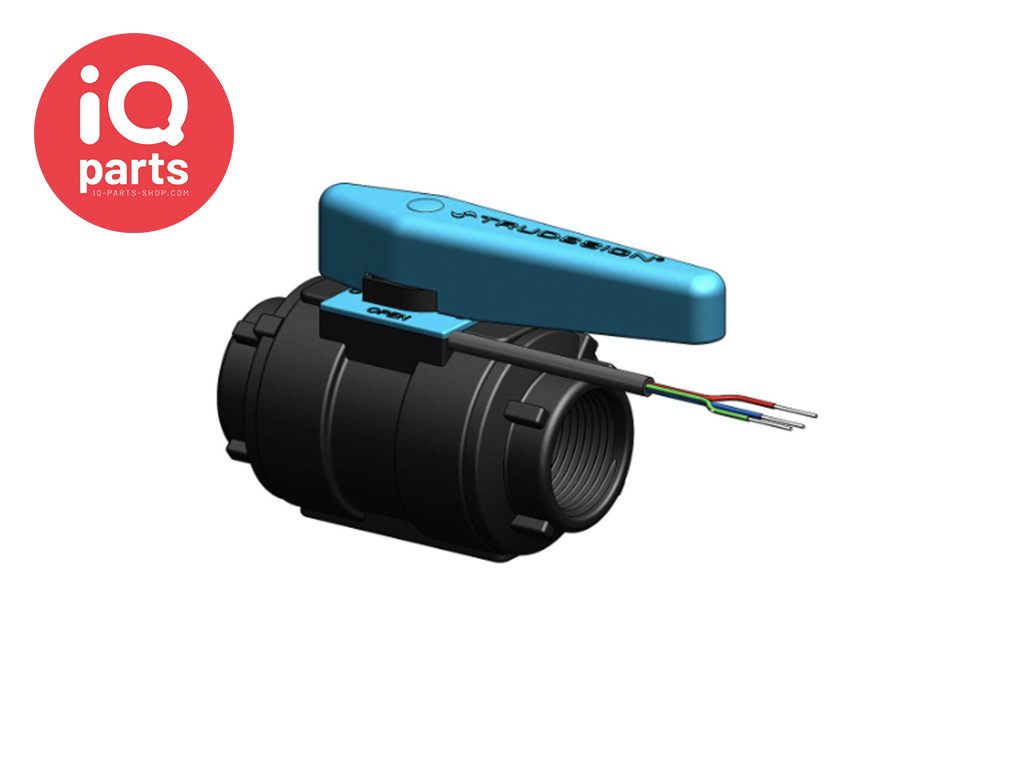

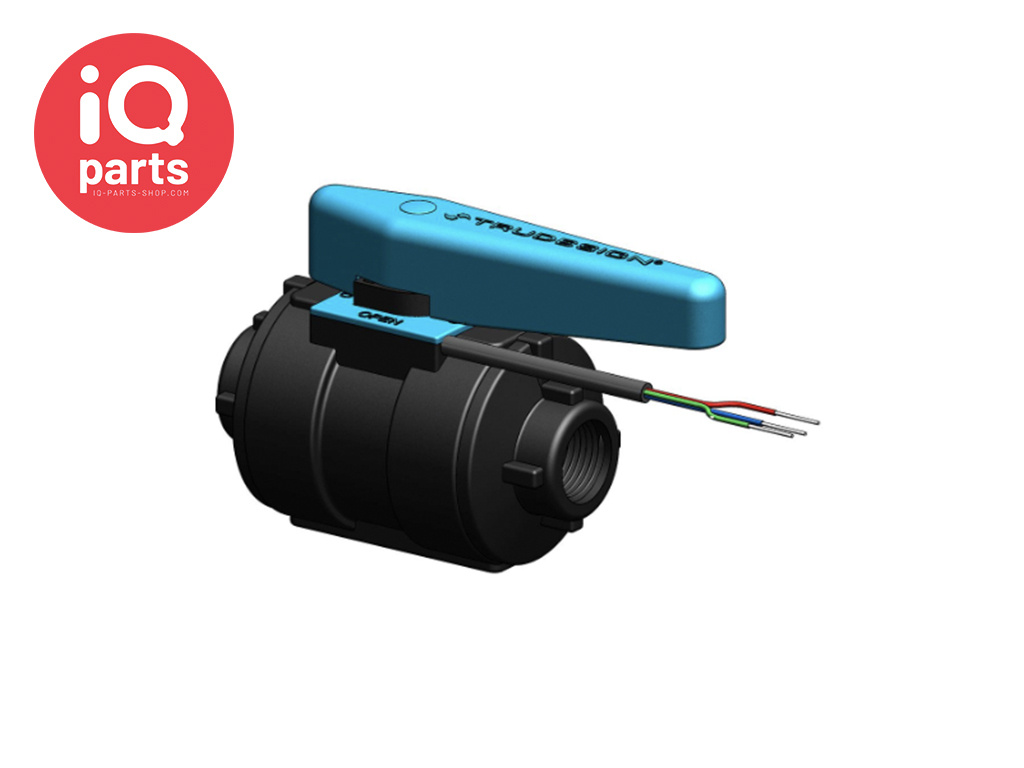

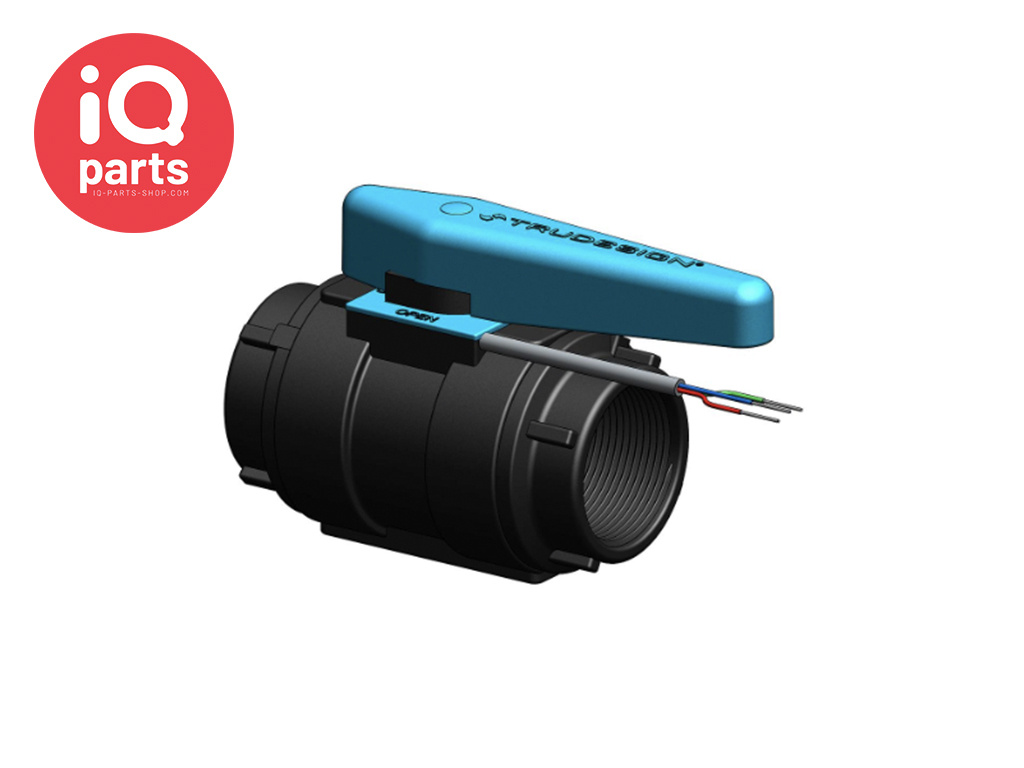

TruDesign - Ball Valve | Monitored | BSP Thread

TruDesign Certified Ball Valves are designed and made in New Zealand for use in marine applications above and below the water line.

They are ideal for controlling inlet and outlet water requirements. Position Monitoring allows remote monitoring of Ball Valve Position. The Position Monitoring circuit can also be used as part of an engine or generator start interlock to ensure these don’t start without cooling water available.

The body of the Ball Valve is manufactured in glass-reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilize a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years. The Ball Valve is available in both BSP and NPS Parallel thread forms and can be locked in the closed position for use on toilet waste outlets.

Available in various sizes (thread connections):

½” BSP
¾” BSP
1” BSP
1¼” BSP
1½” BSP
2” BSP

Certificates:

Complies to ISO standard 9093:2021 by the International Marine Certification Institute and Type approved by Bureau VERITAS. Note: excludes ½” size

Meets the ABYC H-27 500Lb static load test for sizes 1" through 3". Note: TruDesign ABYC Load Bearing Collar is required for 1" size to comply

Features:

Position Monitored - Able to be used as an engine interlock. Monitoring of multiple Ball Valve positions through the Panel Display
Chemical Resistant. Unaffected by diesel, petrol, house-hold chemicals, and antifouling paints.
Corrosion Free. Long life with no decreased performance due to corrosion or electrolysis.
Large Operating Range. Suitable for all marine conditions from - 40°C to +110°C.
Quality Finish. High quality surface finish, will not discolour with green film as similar bronze fittings do.
Strong and Lightweight. Manufactured from a glass reinforced nylon composite - High strength without the weight.
UV Resistant. Will not degrade or discolour from the sun’s ultraviolet rays.

The ball valve can be combined with numerous components, allowing you to create the exact connection you need:

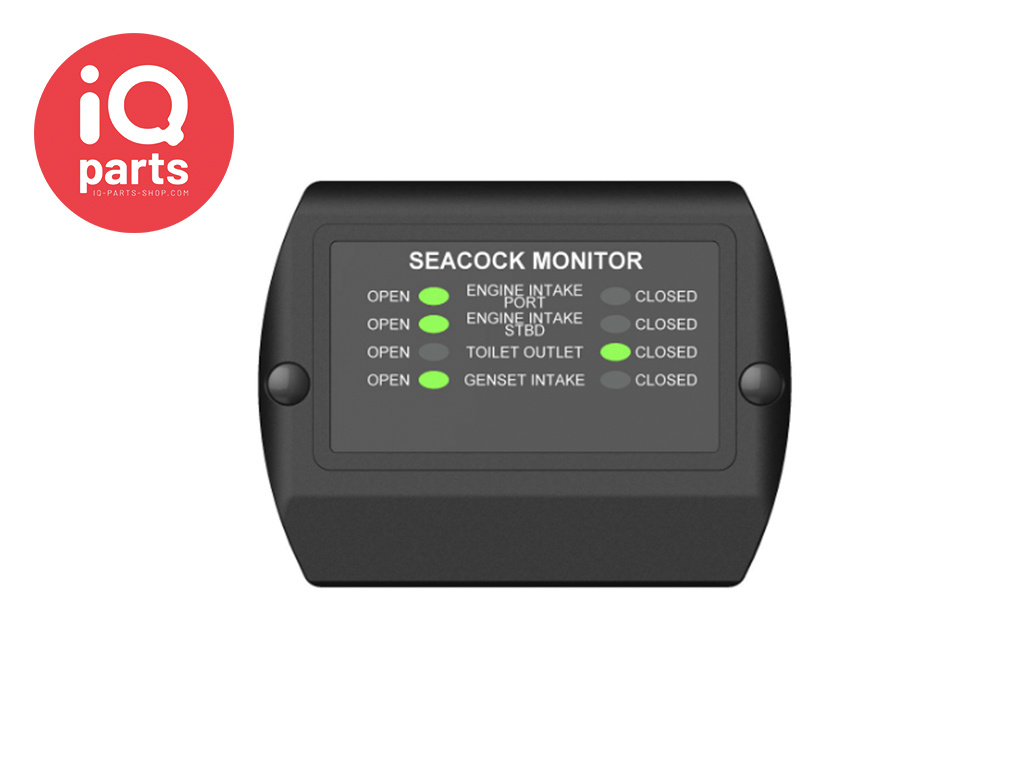

Panel Display Ball Valve
Straight, 90º, and 120º threaded connections. With hose connection, internal or external thread. With or without valve.
Skin fittings
Collars
Aquavalve 3-way valves
Mounting brackets for this ball valve

CLICK HERE for the ball valve without a sensor.

Trudesign supplies a wide range of products for the maritime sector. They are known for their high quality. You'll likely find many Tru Design products on your boat.

All products are manufactured in New Zealand using the latest, highly impact-resistant composite plastic materials. These are designed to meet the demands of the modern boating industry and comply with strict ISO marine standards.

A T-Handle is available separately. Click HERE
