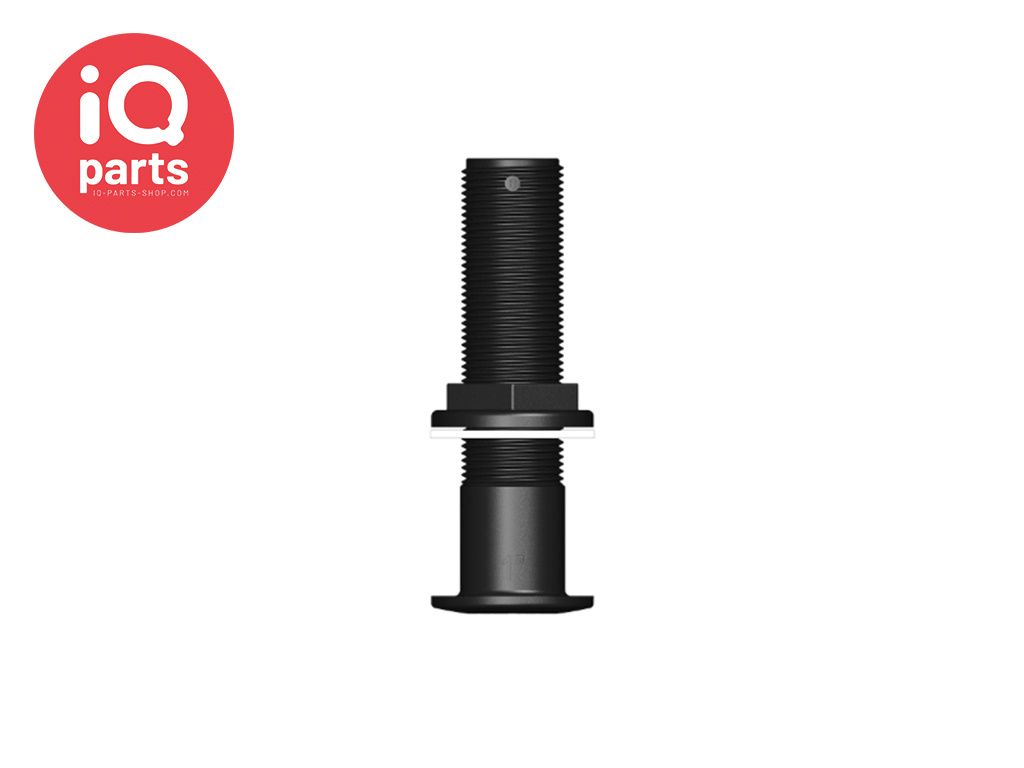

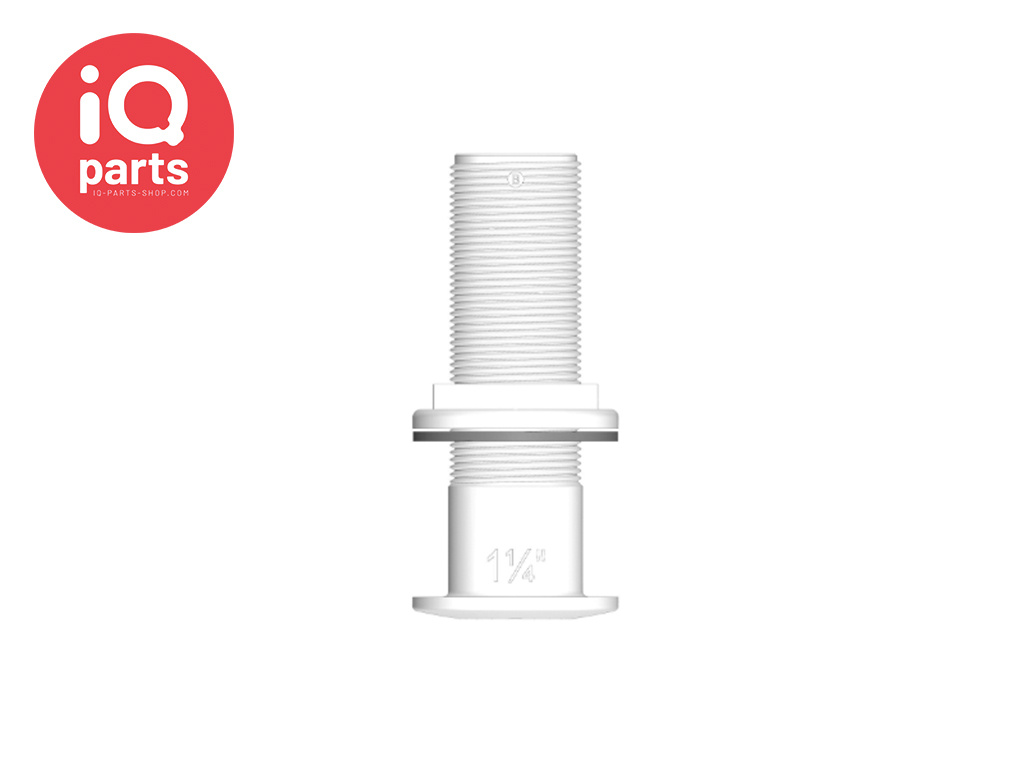

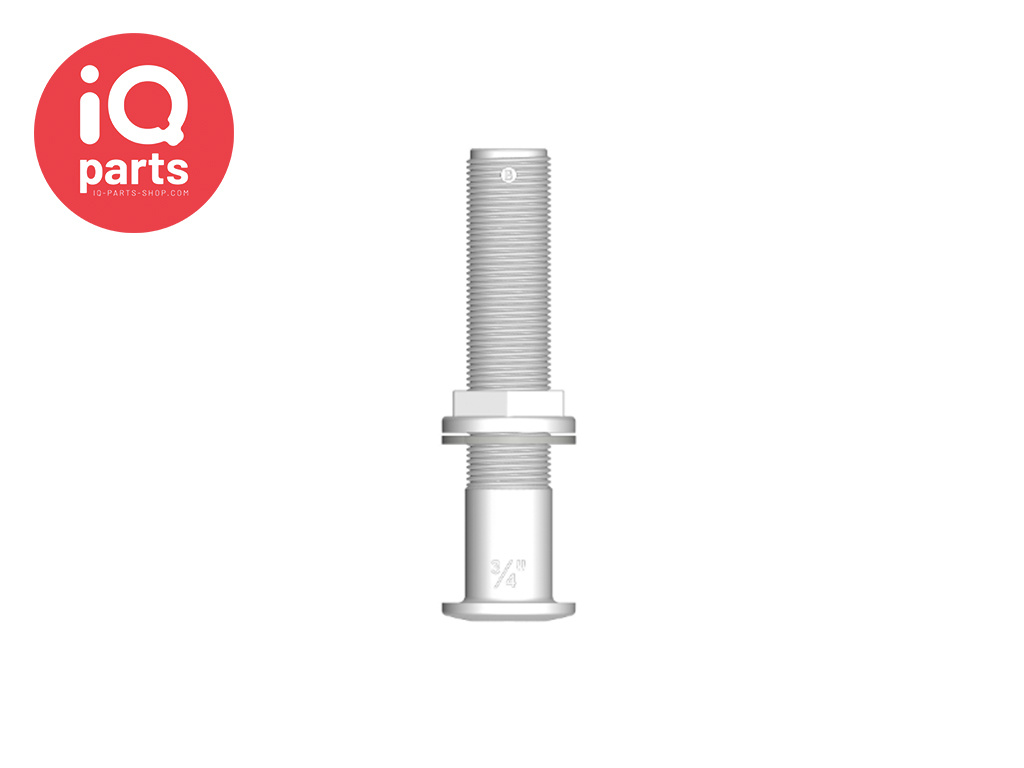

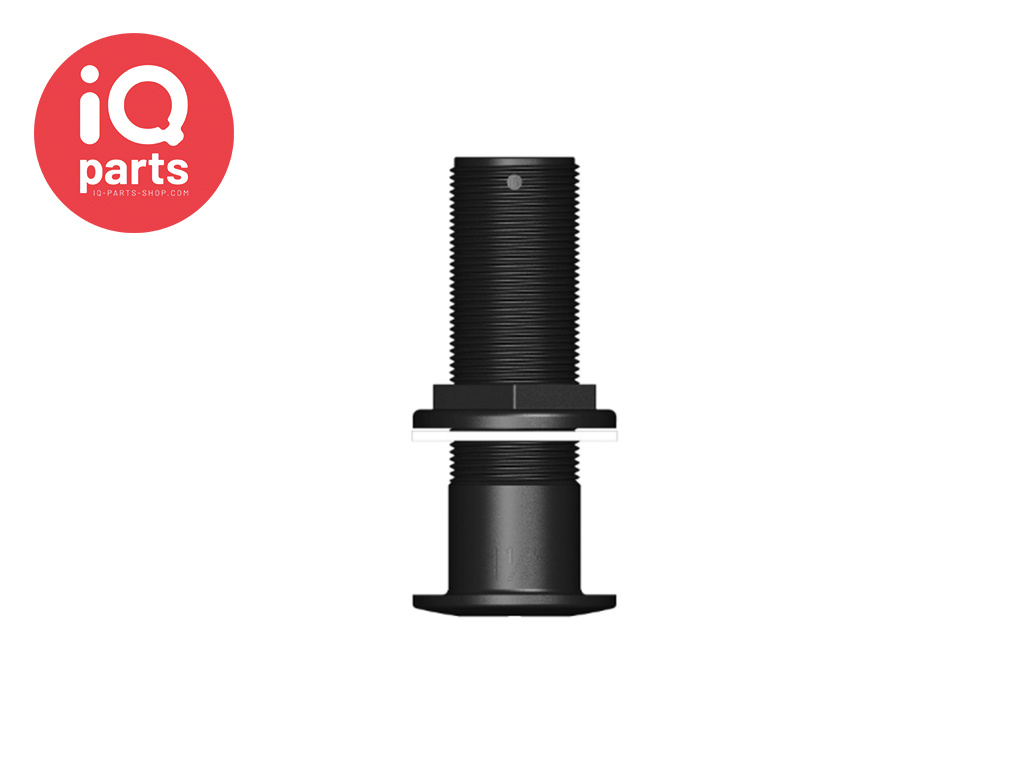

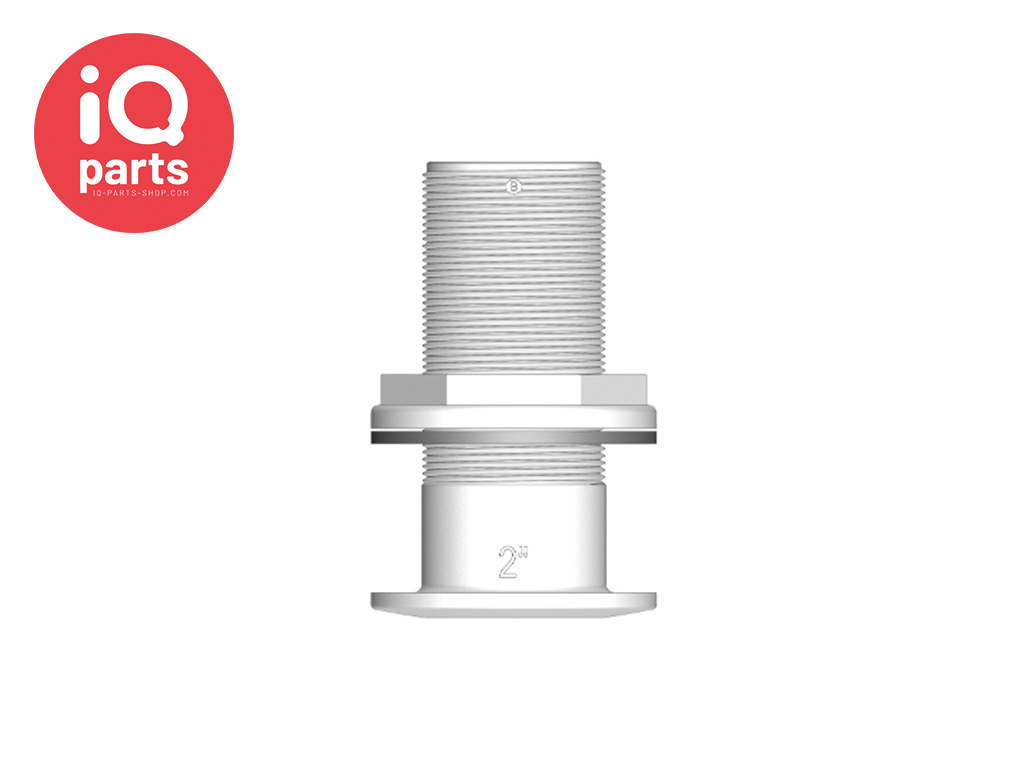

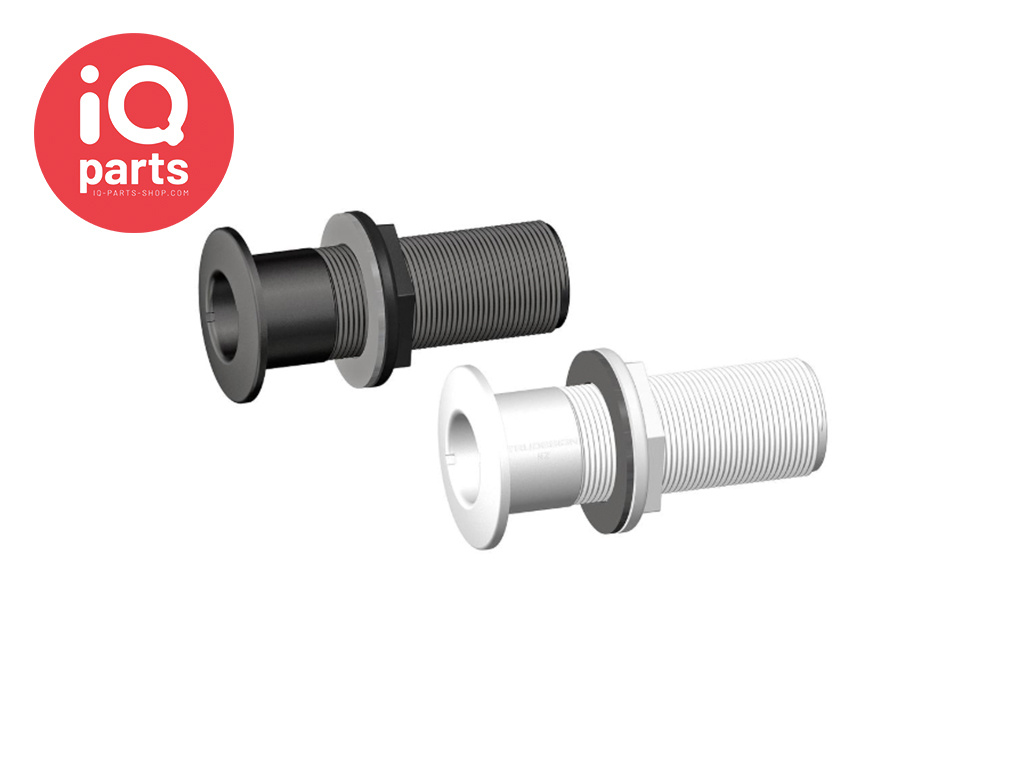

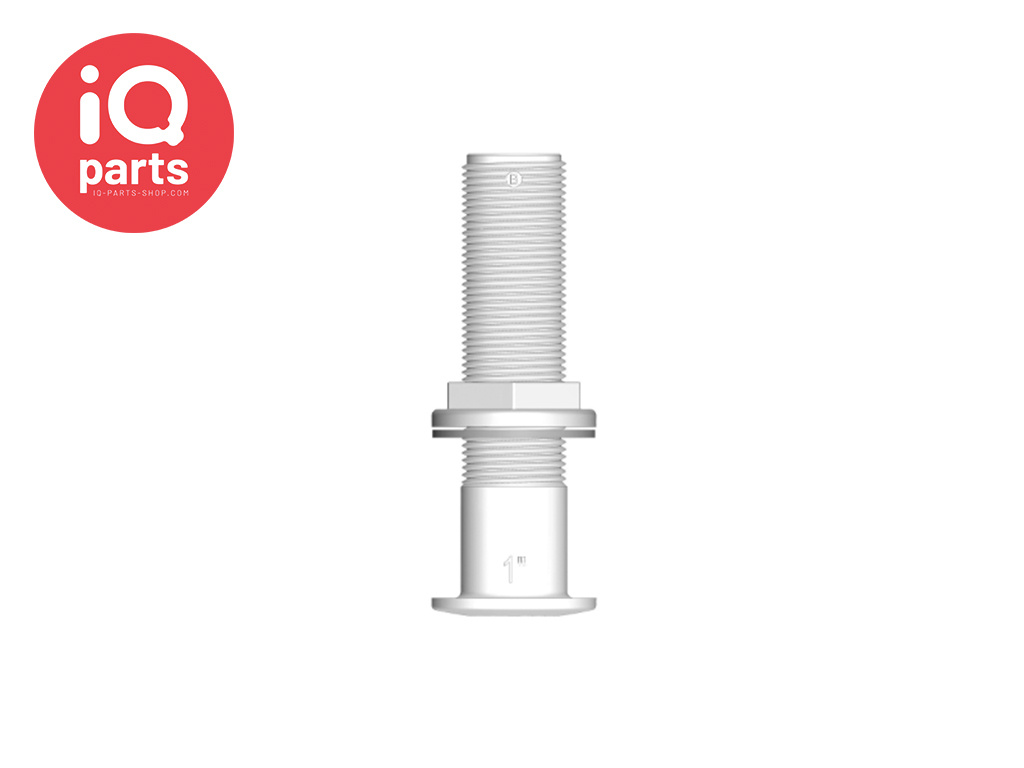

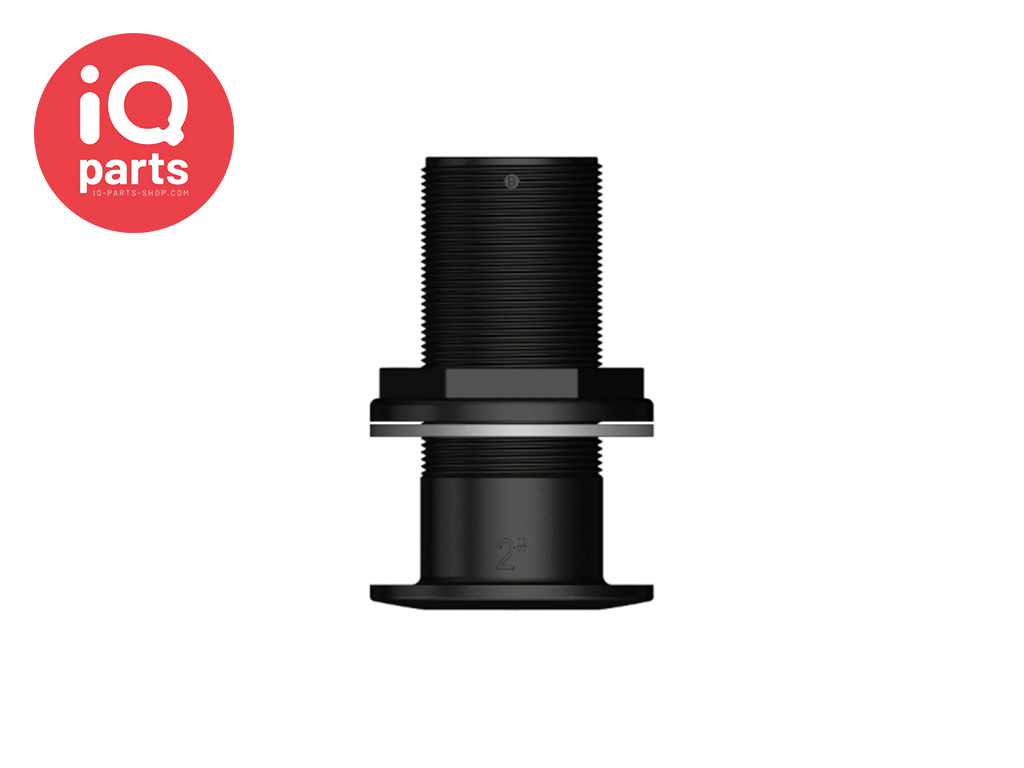

TruDesign - Skin Fitting Domed Long | BSP Male Thread | Nylon (Fiberglass reinforced)
Brand:
TruDesign
| Article number: | TRU-91077 |
| EAN: | 9421007124482 |
| SKU: | 91077 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
TruDesign - Skin Fitting Domed Long | BSP Male Thread | Nylon (Fiberglass reinforced)
Suitable for underwater use.
This Skin Fitting has a longer thread (140 mm) than the standard version. See the PDF for dimensions.
TruDesign range of Certified Skin Fittings designed and made in New Zealand, the Skin Fitting body and nut are moulded from a glass-reinforced nylon composite. High strength, high-modulus glass fibres provide dramatic strength, stiffness, toughness and dimensional stability. These properties allow a significant weight reduction over metallic fittings. TruDesign Skin Fittings eliminate the corrosion and electrical bonding problems associated with metallic fittings.
Cerificates:
- Complies to ISO standard 9093:2021 by the International Marine Certification Institute and Type approved by Bureau VERITAS. Note: excludes ½” size
- Meets the ABYC H-27 500Lb static load test for sizes 1" through 3". Note: TruDesign ABYC Load Bearing Collar is required for 1" size to comply
- TruDesign accepts no responsibility for Ball Valves or Skin Fittings which are not installed as per manufacturers instructions
Features:
- Extra-long length as required for larger hull-thickness vessels. Manufactured from a glass-reinforced Nylon composite – High strength, tough and light weight.
- Compatible with all hull types – Can be used on aluminium, steel, wood, composite & GRP hulls.
- Immune to corrosion & electrolysis – No corrosion breakages, increased safety.
- Chemical resistant – Unaffected by diesel, petrol, chemicals, and antifouling paints.
- U.V resistant – Will not degrade or discolour from the sun’s ultraviolet rays.
- Paintable – Paintable with all types of antifoul.

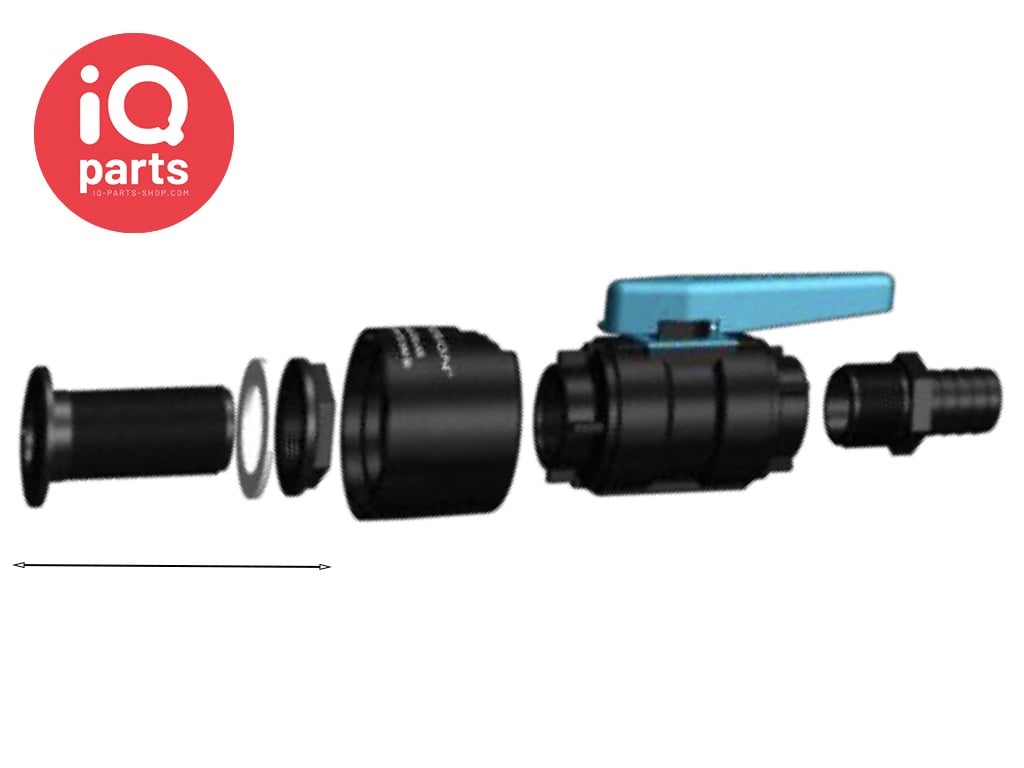

- Fits TruDesign Ball Valves and other parallel BSP threads.
- Large operating range – Suitable for all marine conditions from 40°C to +110°C
We recommend using adhesive sealants or glue for installation. See the installation manual for detailed installation information.
You can install the through-hull fitting with two people (one outside the boat, one inside).
CLICK HERE to order the free installation key for two-person installation.
Trudesign supplies a wide range of products for the maritime sector. They are known for their high quality. You'll likely find many Tru Design products on your boat.
All products are manufactured in New Zealand using the latest, highly impact-resistant composite plastic materials. These are designed to meet the demands of the modern boating industry and comply with strict ISO marine standards.
General product information:
Installation manual:
Product code:
91077 - 91078 - 91079 - 91080 - 91081 - 91160 - 91148 - 91149 - 91150 - 901151 - 901152 - 91170
9421007124482 - 9421007124499 - 9421007124505 - 9421007124512 - 9421007124529 - 9421007124727 - 9421007124734 - 9421007124741 - 9421007124758 - 9421007124765
Specifications
| Material: | Nylon 6 Fiberglass reinforced |
| Max. Temperature: | -40°C to +110°C |
