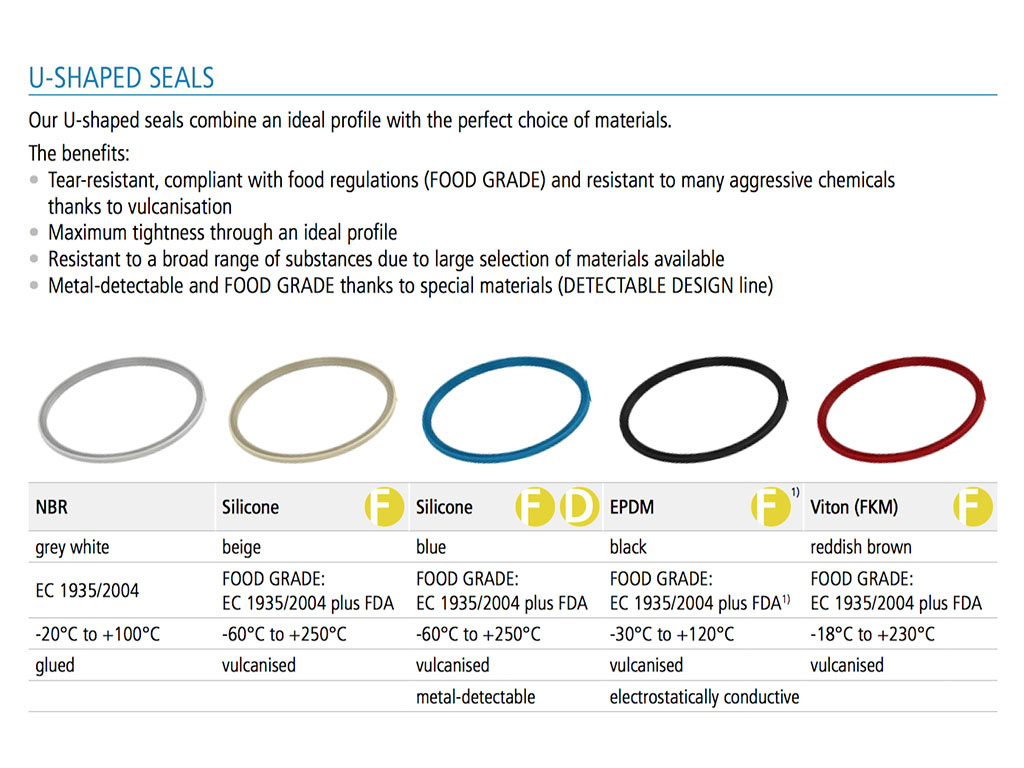

Jacob Connector seal/gasket NBR 1 mm

U-shaped seals must be ordered to match the wall thickness of the pipes to be connected.
U-shaped seals for 1 mm also to connect:
1 mm with 1.5 mm; 1 mm with 2 mm and 1.5 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm also to connect: 2 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm wall thicknesses are also used for connecting 3 mm wall thicknesses.
U-shaped seals made of EPDM are conductive for static electricity with piping made of
stainless steel and mild-steel galvanized and also with dissipative powder-coating.
The listed temperatures are permanent temperatures and can be exceeded for a short time.
U-shaped seals have to be tested by the user with regard to their sufficient resistance to the materials used.
Recommended U-shaped seals NBR and silicone (SI) for 2 mm pipework.



NBR 1mm product code:

100669517 - 100869517 - 101069517 - 101269517 - 101469517 - 101569517 - 101769517 - 102069517 - 102269517 - 102569517 - 102869517 - 103069517 - 103169517 - 103569517 - 104069517 - 104569517 - 105069517 - 105669517 - 106369517
