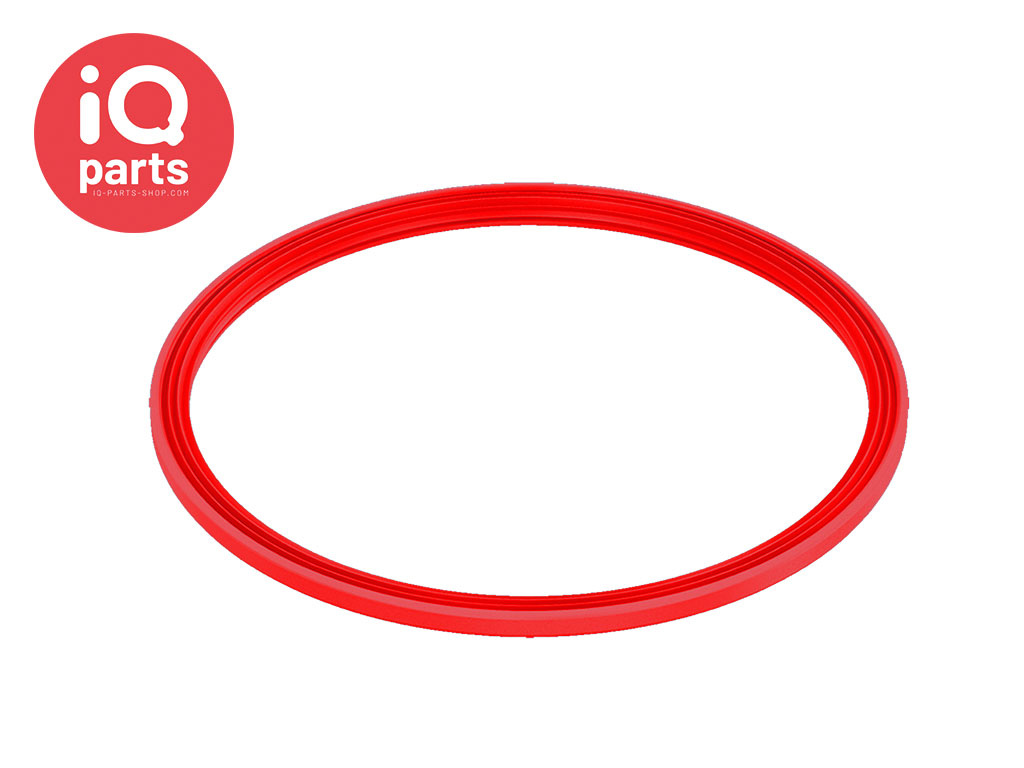

Jacob Connector seal/gasket FKM (Viton) 2 mm

U-shaped seals must be ordered to match the wall thickness of the pipes to be connected.
U-shaped seals for 1 mm also to connect:
1 mm with 1.5 mm; 1 mm with 2 mm and 1.5 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm also to connect: 2 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm wall thicknesses are also used for connecting 3 mm wall thicknesses.

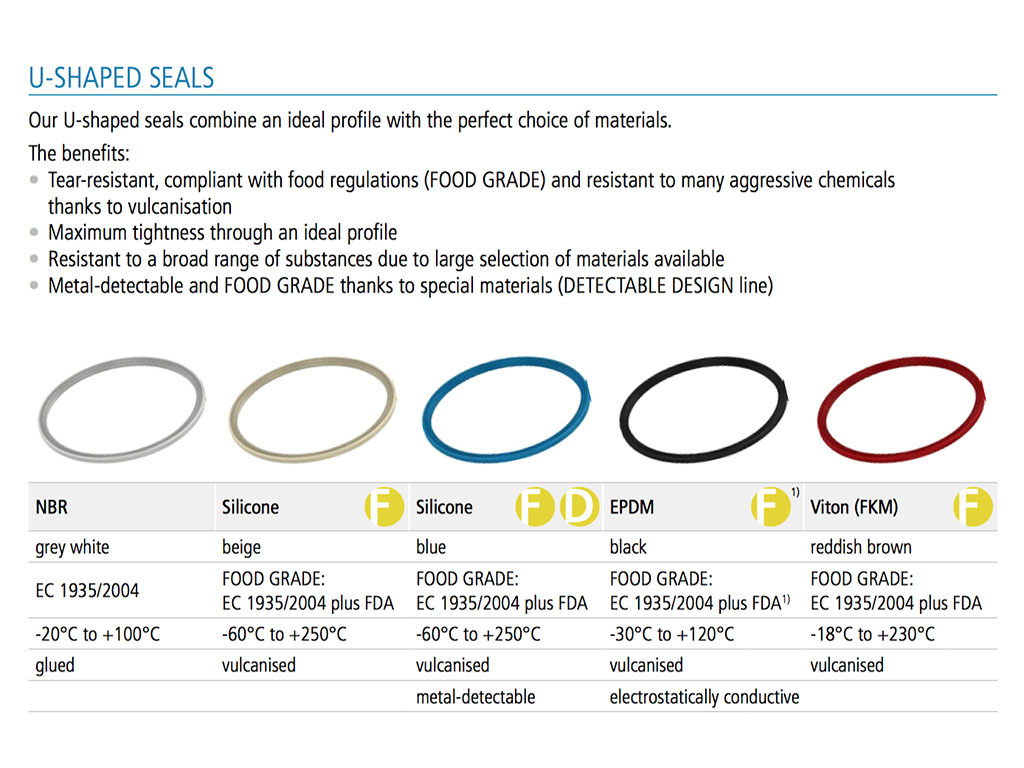

U-shaped seals made of EPDM are conductive for static electricity with piping made of
stainless steel and mild-steel galvanized and also with dissipative powder-coating.
The listed temperatures are permanent temperatures and can be exceeded for a short time.
U-shaped seals have to be tested by the user with regard to their sufficient resistance to the materials used.
Recommended U-shaped seals NBR and silicone (SI) for 2 mm pipework.



FKM 2 mm product code:

100893869 - 101093869 - 101293869 - 101493869 - 101593869 - 101793869 - 102093869 - 102293869 - 102593869 - 102893869 - 103093869 - 103193869 - 103593869 - 104093869 - 104593869 - 105093869 - 105693869 - 106393869
