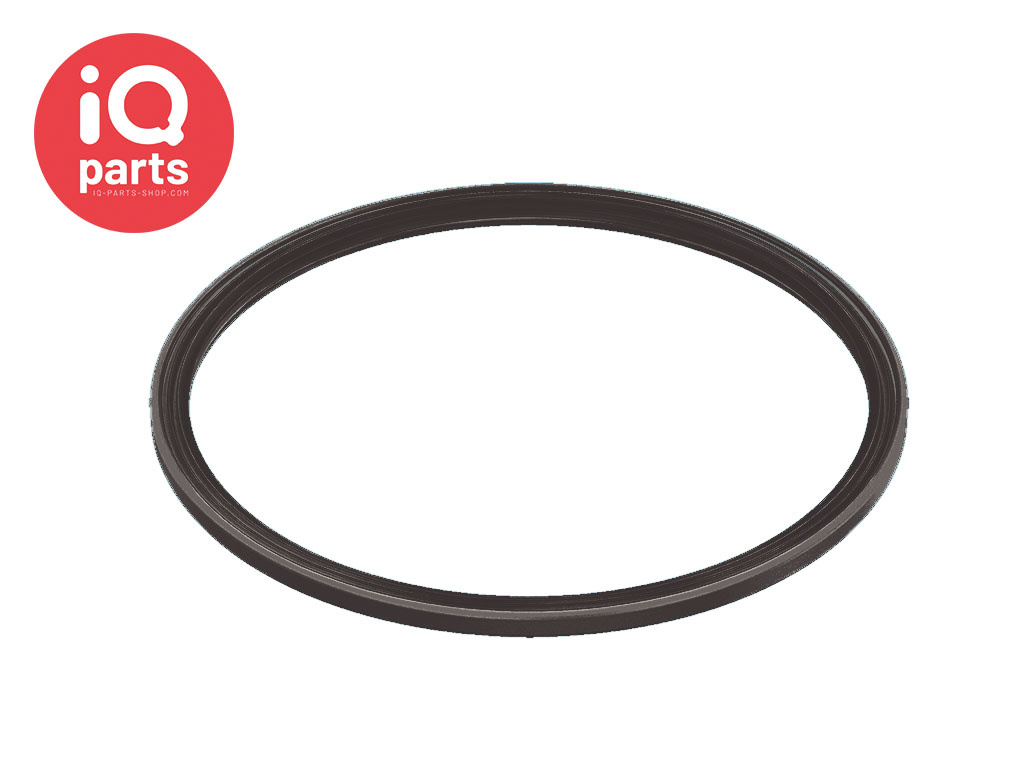

Jacob Connector seal/gasket EPDM 2 mm

U-shaped seals must be ordered to match the wall thickness of the pipes to be connected.
U-shaped seals for 1 mm also to connect:
1 mm with 1.5 mm; 1 mm with 2 mm and 1.5 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm also to connect: 2 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm wall thicknesses are also used for connecting 3 mm wall thicknesses.

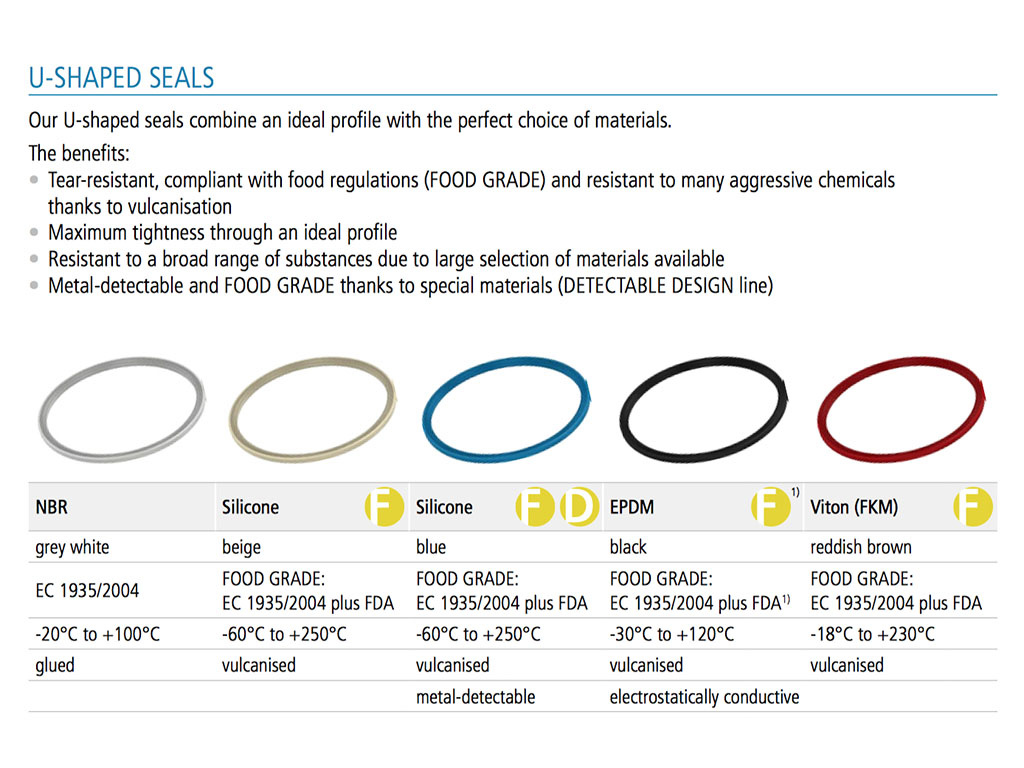

U-shaped seals made of EPDM are conductive for static electricity with piping made of
stainless steel and mild-steel galvanized and also with dissipative powder-coating.
The listed temperatures are permanent temperatures and can be exceeded for a short time.
U-shaped seals have to be tested by the user with regard to their sufficient resistance to the materials used.
Recommended U-shaped seals NBR and silicone (SI) for 2 mm pipework.



EPDM 2 mm productcode:

1008895259 - 1010895259 - 1012895259 - 1014895259 - 1015895259 - 1017795259 - 1020795259 - 1022895259 - 1025895259 - 1028895259 - 1030895259 - 1031895259 - 1035895259 - 1040895259 - 1045895259 - 1050895259 - 1056895259 - 1063895259
