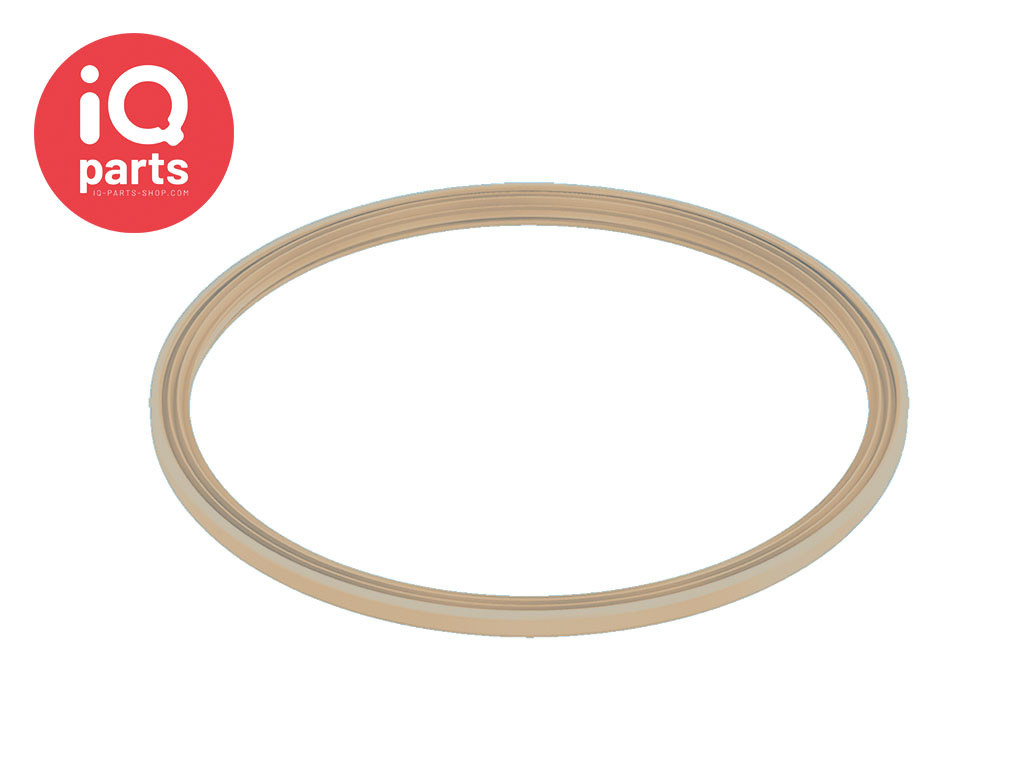

Jacob Connector seal/gasket Silicone Beige 1 mm

U-shaped seals must be ordered to match the wall thickness of the pipes to be connected.
U-shaped seals for 1 mm also to connect:
1 mm with 1.5 mm; 1 mm with 2 mm and 1.5 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm also to connect: 2 mm with 1.5 mm thick piping.
U-shaped seals for 2 mm wall thicknesses are also used for connecting 3 mm wall thicknesses.
U-shaped seals made of EPDM are conductive for static electricity with piping made of
stainless steel and mild-steel galvanized and also with dissipative powder-coating.
The listed temperatures are permanent temperatures and can be exceeded for a short time.
U-shaped seals have to be tested by the user with regard to their sufficient resistance to the materials used.
Recommended U-shaped seals NBR and silicone (SI) for 2 mm pipework.



Silicone beige 1mm productcode:

1006795109 - 1008795109 - 1010795109 - 1012795109 - 1014795109 - 1015795109 - 1017795109 - 1020795109 - 1022795109 - 1025795109 - 1028795109 - 1030795109 - 1031795109 - 1035795109 - 1040795109 - 1045795109 - 1050795109 - 1056795109 - 1063795109
