IQ-Parts Lineal Power Clamp - Galvanized - W1

With the Lineal Power Clamp you can easily convert the individual elements into the clamp in the desired diameter. Simply connect the individual elements together and create the clamp you want.

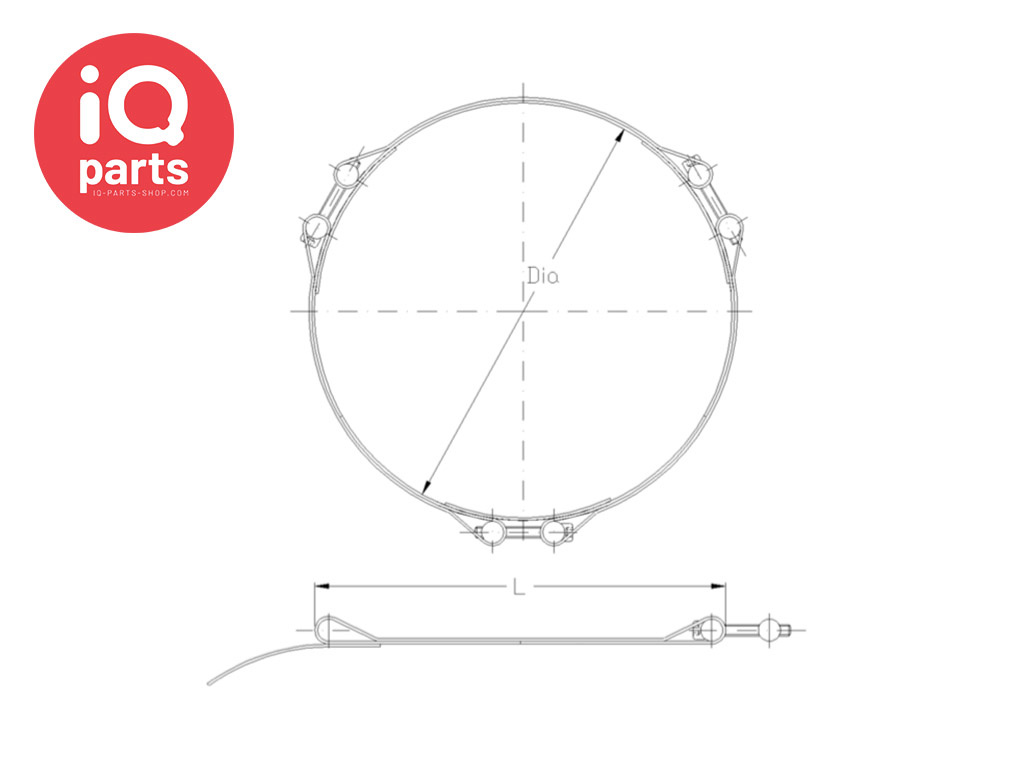

In the table below you can see which size Lineal you need and the number of that size, to get the desired minimum / maximum diameter. The elements are delivered straight to you. Bend them yourself to the desired radius and connect them together.

Properties:

Material: Galvanized steel (W1, Cr3)
Allen screw: M8 x 60, DIN 912, 8.8
Band: 25 mm wide, 1 mm thick, DIN 1623; Steel 12.03

Number Lineals	Lineal, Length in mm
	550		585		620		655		690		725		760		795
	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø	Min ø	Max ø
2	354	378	376	400	398	422	420	445	443	467	465	489	487	511	510	534
3	530	567	564	600	597	633	631	667	664	700	697	734	731	767	764	800
4	707	755	752	800	796	845	841	889	885	934	930	978	975	1023	1019	1068
5	884	994	939	1000	995	1056	1051	1111	1107	1167	1162	1223	1218	1279	1274	1334
6	1061	1133	1127	1200	1194	1267	1261	1334	1328	1401	1395	1468	1462	1534	1529	1601
7	1237	1322	1315	1400	1393	1478	1471	1556	1549	1634	1627	1712	1705	1790	1786	1868
8	1414	1511	1503	1600	1592	1689	1682	1778	1771	1868	1860	1957	1949	2046	2038	2135
9	1591	1700	1691	1800	1791	1900	1892	2001	1992	2101	2092	2201	2193	2302	2293	2402
10	1768	1889	1879	2000	1990	2111	2102	2223	2213	2334	2325	2446	2436	2557	2548	2669
11	1944	2077	2067	2200	2189	2323	2312	2445	2435	2568	2557	2690	2680	2813	2803	2936
12	2121	2266	2255	2400	2389	2534	2522	2668	2656	2801	2790	2935	2824	3069	3057	3203

Also available in W5 (SS 316Ti, AISI 316, 1.4404) quality.

Product code:

446251550 - 446251585 - 446251620 - 446251655 - 446251690 - 446251725 - 446251760 - 446251795 - 447251550 - 447251585 - 447251620 - 447251655 - 447251690 - 447251725 - 447251760 - 447251795

Specifications

Bolt:	M8 x 60
Bandwidth:	25 mm
Tightening torque (Maximum):	--
