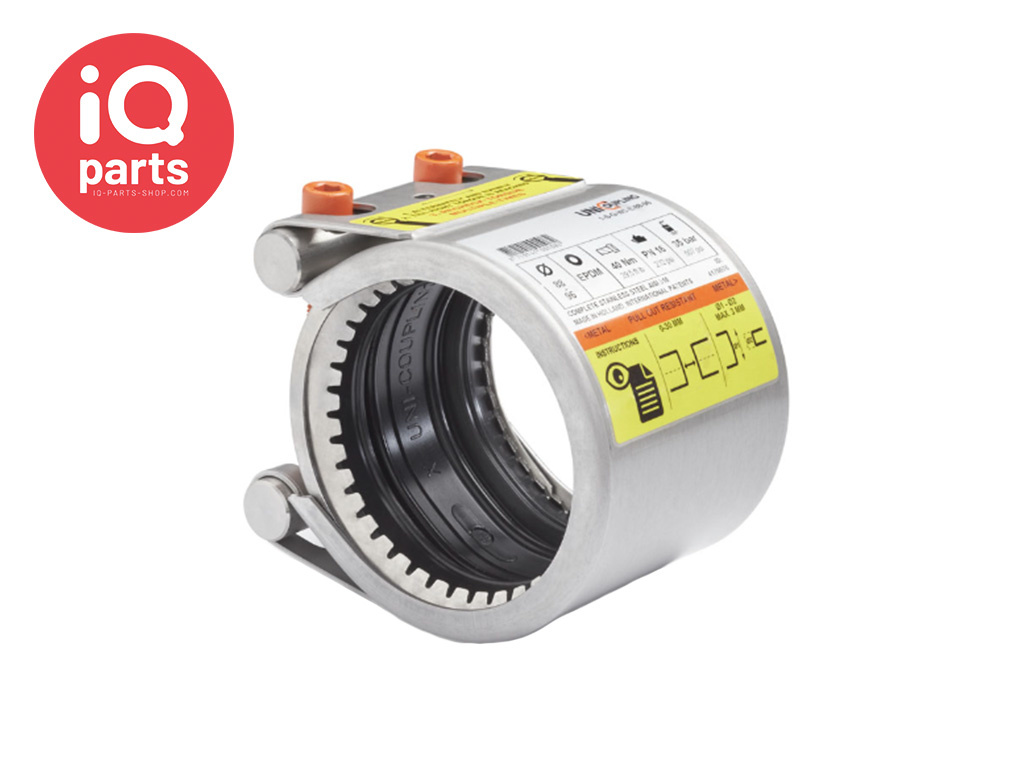

UNI-Coupling UNI-GRIP S | W5 | EPDM sealing
Brand:
UNI-Coupling
| Article number: | UNI-779764001 |
| SKU: | 779764001 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information
UNI-Coupling UNI-GRIP S | W5 | EPDM sealing | PN 16
The UNI-Grip S is used for a tensile-resistant metal-to-metal pipe connection. The special design of the conically stamped teeth ensures a very secure and strong axial connection. This eliminates the need for welding, flanges or branching, because the Grip S allows you to make a quick and safe pipe connection.
This pipe coupling can be applied to metal or cast iron pipes.The UNI-Grip S can be used for both new and used pipes.
The use of the ball-shaped conically stamped teeth improves anchoring on hard surfaces, such as thin-walled stainless steel or cast-iron pipes. Even with very strong vibrations or axial tensile forces.
The UNI-Grip is available in sizes from 21 mm to 750 mm.
Characteristics:
With EPDM sealing:
Available on request:
Advantages:
- Quality: W5
- Sealing: EPDM
- Temperature range: -30ºC to 125ºC
- Pressure: PN 16
- Tube material: Steel, cast iron
- Axial restraint
With EPDM sealing:
- All water qualities
- Waste water
- Air
- Solids
- Chemical products
Available on request:
- Silicone sealing
- Viton sealing
- Large diameters
Advantages:
- Progressive locking ensures a hassle-free and maintenance-free connection
- Reusable
- Shock resistant
- Space-saving connector
- Resistant to high vibration loads
Applications:
Also available in this range:
- Ship-building
- Offshore
- Mechanical engineering
- (Petro)chemical industry
- Sewerage works
Also available in this range:
- NBR sealing
- UNI-Plastgrip (plastic/plastic. Pull-resistant)
- UNI-Flex/UNI-Rep (plastic/metal, plastic/plastic, metal/metal. Not tensile)
- UNI-Combigrip (plastic/metal. Pull-resistant)
Productcode:
779764001 - 779764002 - 779764003 - 779764004 - 779764005 - 779764006 - 779764007 -779764008 - 779764009 - 779764010 - 779764011 - 779764012 - 779764013 - 779764014 -779764015 - 779764016 - 779764017 - 779764018 - 779764019 - 779764020 - 779764021 -779764022 - 779764023 - 779764024 - 779764025 - 779764026 - 779764027 - 779764028 -779764029 - 779764030 - 779764031
1-S-G-W5-E-19-21 - 1-S-G-W5-E-21-24 - 1-S-G-W5-E-25-29 - 1-S-G-W5-E-29-32 - 1-S-G-W5-E-33-36 - 1-S-G-W5-E-36-39 - 1-S-G-W5-E-39-43 - 1-S-G-W5-E-43-47,5 - 1-S-G-W5-E-47,5-52,5 - 1-S-G-W5-E-52,5-58 - 1-S-G-W5-E-58-64 - 1-S-G-W5-E-64-72 - 1-S-G-W5-E-72-80 - 1-S-G-W5-E-80-88 - 1-S-G-W5-E-88-96 - 1-S-G-W5-E-97-105 - 1-S-G-W5-E-104-112 - 1-S-G-W5-E-112-120 - 1-S-G-W5-E-122-130 - 1-S-G-W5-E-129-137 - 1-S-G-W5-E-137-145 - 1-S-G-W5-E-149-157 - 1-S-G-W5-E-157-165 - 1-S-G-W5-E-164-172 - 2-S-G-W5-E-172-185 - 2-S-G-W5-E-185-198 - 2-S-G-W5-E-198-211 - 2-S-G-W5-E-210-223 - 2-S-G-W5-E-221-234 - 2-S-G-W5-E-234-247 - 2-S-G-W5-E-247-260 - 2-S-G-W5-E-263-276 - 2-S-G-W5-E-277-290

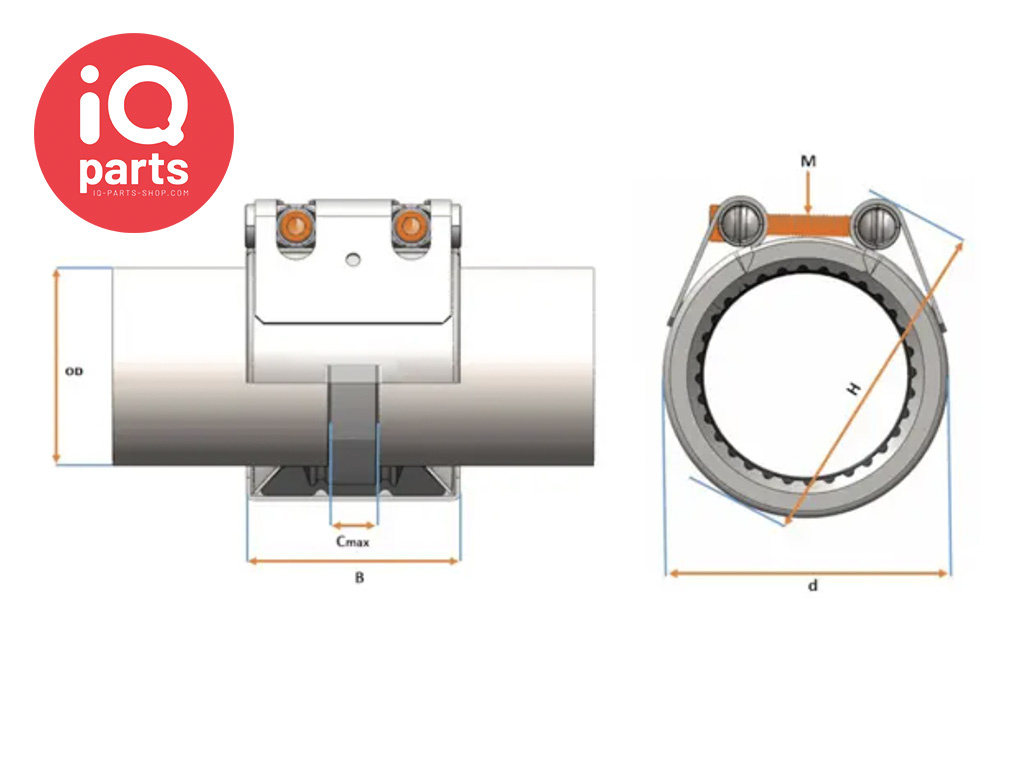

Specifications
| Bolt: | M6 - M8 - M10 - M12 - M16 |
| Bandwidth: | See PDF |
| Tightening torque (Maximum): | See PDF |
