Norres-Baggerman - Clamp 212 EC | Bridgeclamp | Worm screw | with grounding | W2
Brand:
Norres-Baggerman
| Article number: | NRS-212-0035-2878 |
| EAN: | 4049645026385 |
| SKU: | NRS-212-0035-2878 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information

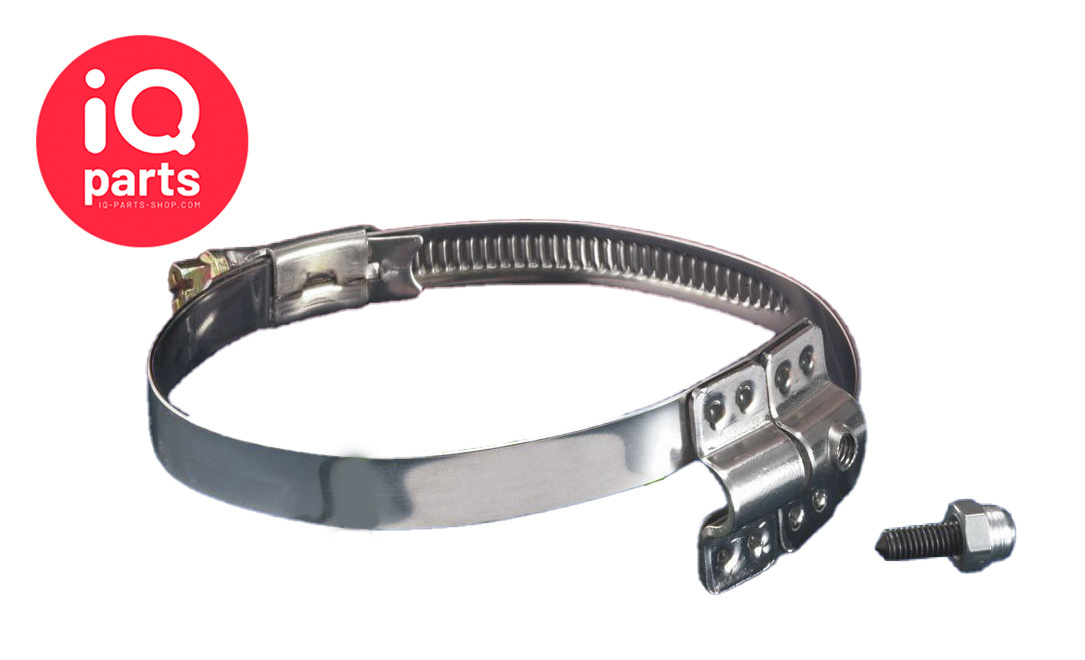

Norres-Baggerman - Clamp 212 EC | Bridgeclamp | Worm screw | with grounding | W2

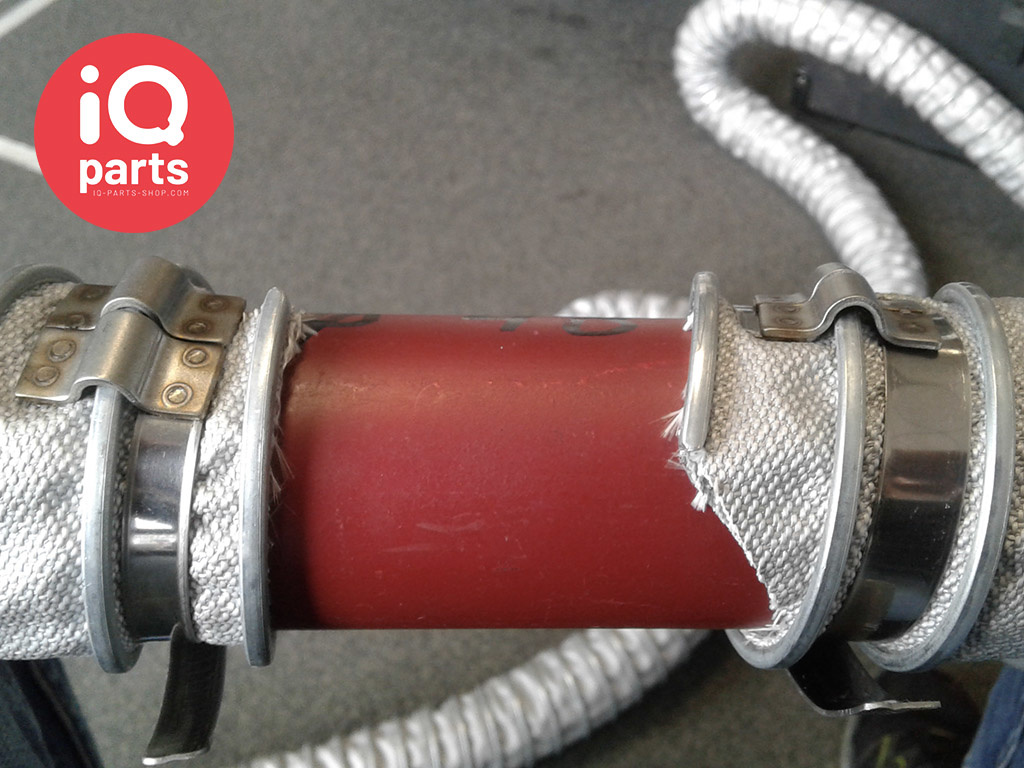

Bridge Clamp with integral grounding (via earth strip) for attaching externally corrugated spiral hoses
Properties:
- Grounding without exposing spiral and without damaging the hose
- practically leak-proof and secure clamping with special bridge geometry
- easily and quickly fitted
- re-usable
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Material:
- Quality: W2
- Width: 9 mm (35-55mm - 195-215mm) & 12 mm (245-265mm - 345-365mm)
- Clamp strip: stainless steel 1.4301 = AISI 304
- Screw: galvanised steel
- Body: stainless steel 1.4016 = AISI 430
- Bridge: stainless steel 1.4301 = AISI 304 (INOX)
- in accordance with DIN 3017
Suitable for hose:
- AIRDUC®: 341 + 345 + 363; 351 + 355 (FOOD / INOX FOOD-AS / HT / EC); 355 AS; 362 (FOOD / EC);
- TIMBERDUC®: 533 AS
Look at the PDF fort the right sizes of each hose.

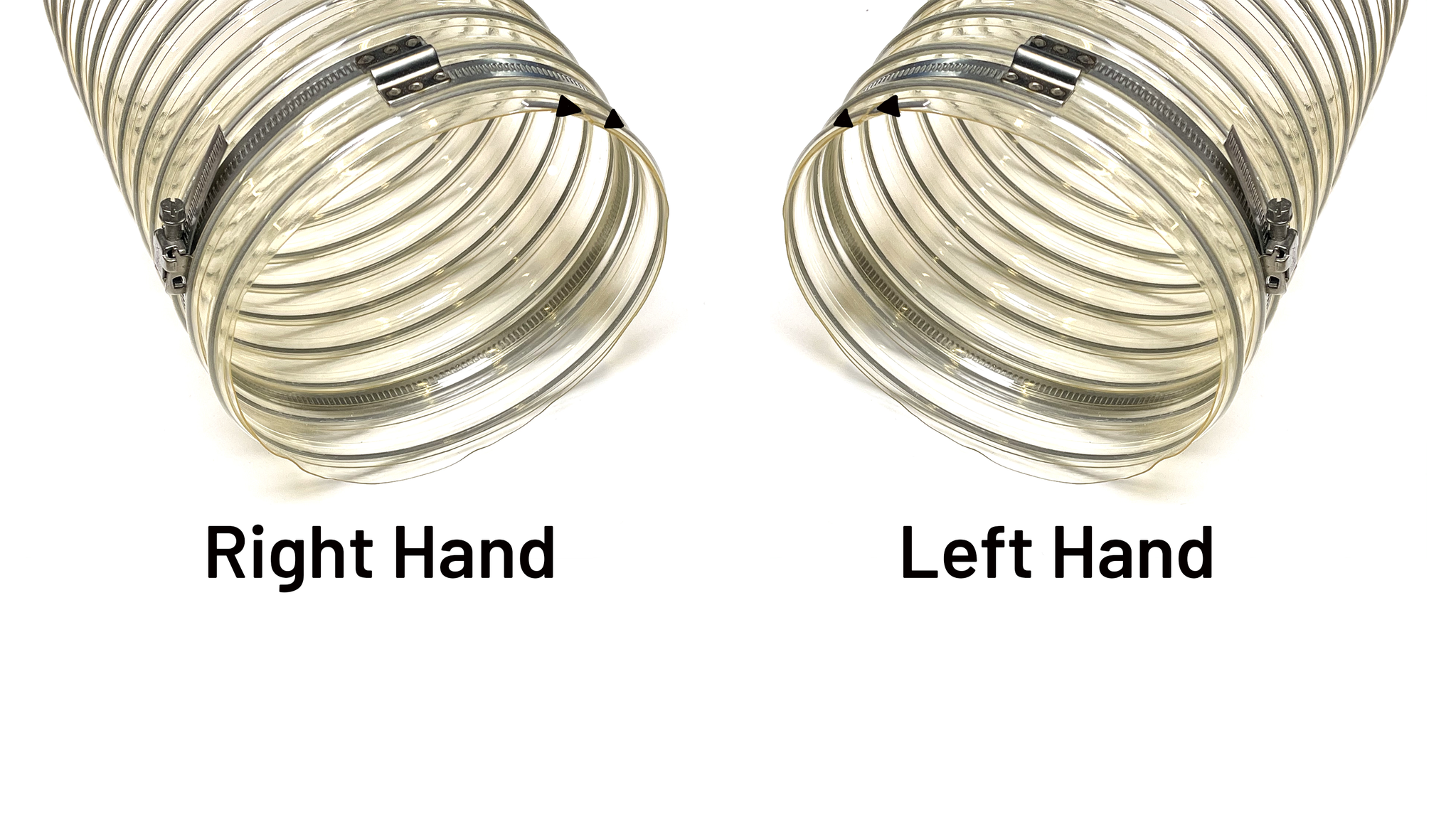

Select the desired diameter range from the menu at the top right. The clamp is supplied as standard for a right-handed spiral. A clamp for a left-handed spiral is available on request. (See photo)
Larger dimensions available on request, but also in stainless steel 304 and stainless steel 316.

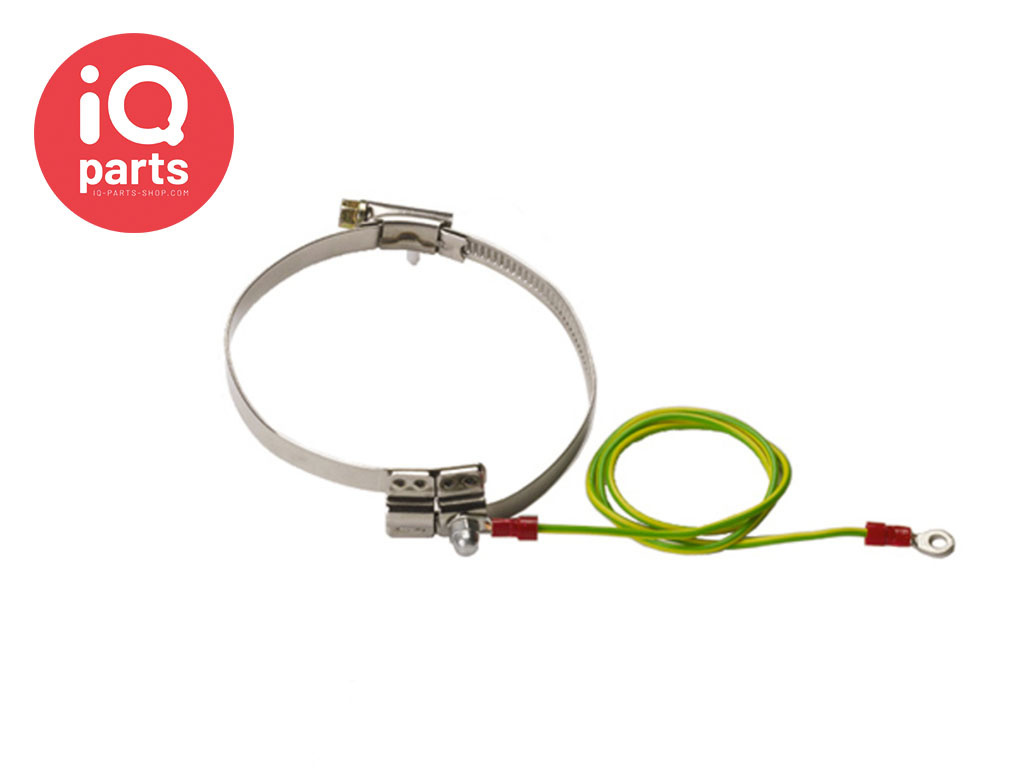

NOTE: The grounding wire is not included!
Product code:
212-0035-2878 - 212-0045-2878 - 212-0055-2878 - 212-0065-2878 - 212-0075-2878 - 212-0085-2878 - 212-0095-2878 - 212-0105-2878 - 212-0115-2878 - 212-0125-2878 - 212-0135-2878 - 212-0145-2878 - 212-0155-2878 - 212-0165-2878 - 212-0185-2878 - 212-0195-2878 - 212-0205-2878 - 212-0215-2878 - 212-0245-2878 - 212-0265-2878 - 212-0275-2878 - 212-0295-2878 - 212-0315-2878 - 212-0345-2878 - 212-0375-2878 - 212-0395-2878 - 212-0445-2878 - 212-0495-2878
11195181 - 11195196 - 11195197 - 11195199 - 11195200 - 11195201 - 11195202 - 11195223 - 11195224 - 11195225 - 11195226 - 11195227 - 11195229 - 11195230 - 11195232 - 11195244 - 11195245 - 11195247 - 11195248 - 11195249 - 11195250 - 11195251 - 11195252 - 11195253 - 11195255 - 11195256 - 11195257 - 11195258
EAN:
4049645028006 - 4049645027788 - 4049645028198 - 4049645028372 - 4049645027450 - 4049645026743 - 4049645027016 - 4049645027634 - 4049645027221 - 4049645026569 - 4049645028433 - 4049645028006 - 4049645027290 - 4049645026859 - 4049645027726 - 4049645027955 - 4049645028242 - 4049645026668 - 4049645026934 - 4049645028129 - 4049645027153 - 4049645027375 - 4049645028518 - 4049645027580 - 4049645026446 - 4049645027849 - 4049645027092 - 4049645028303
Specifications
| Bolt: | -- |
| Bandwidth: | 9 & 12 mm |
| Tightening torque (Maximum): | 3 Nm (Maximum) |
