Norres - Baggerman - Clamp 213 | Brückeschelle | Schnellspanner | W2

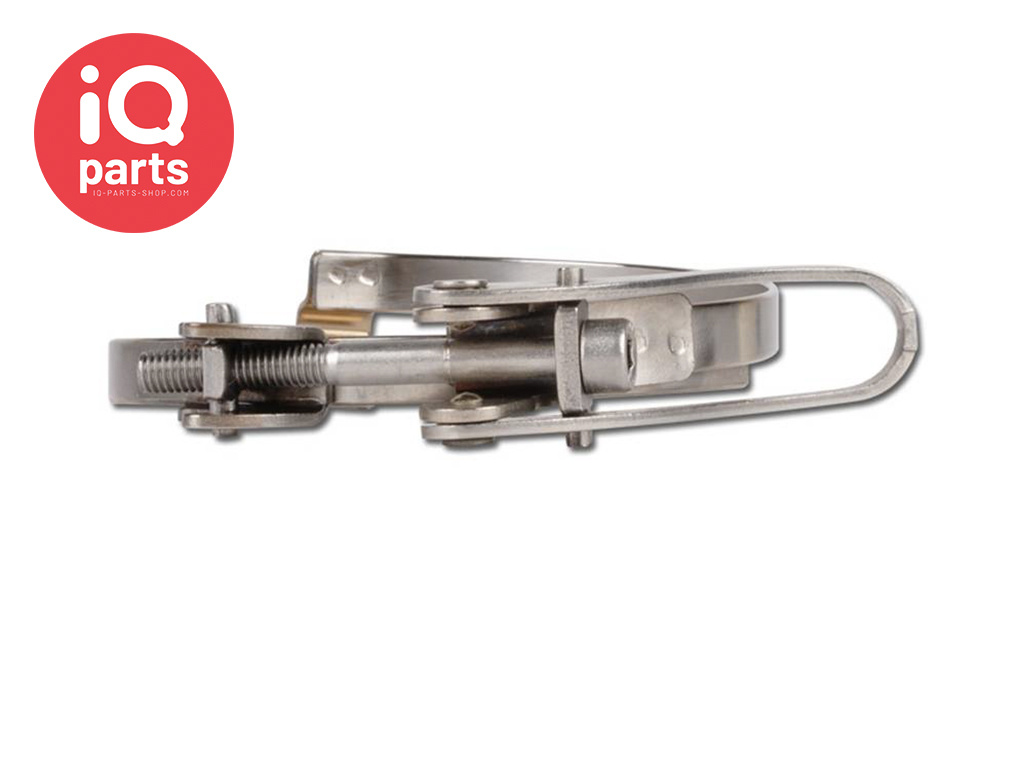

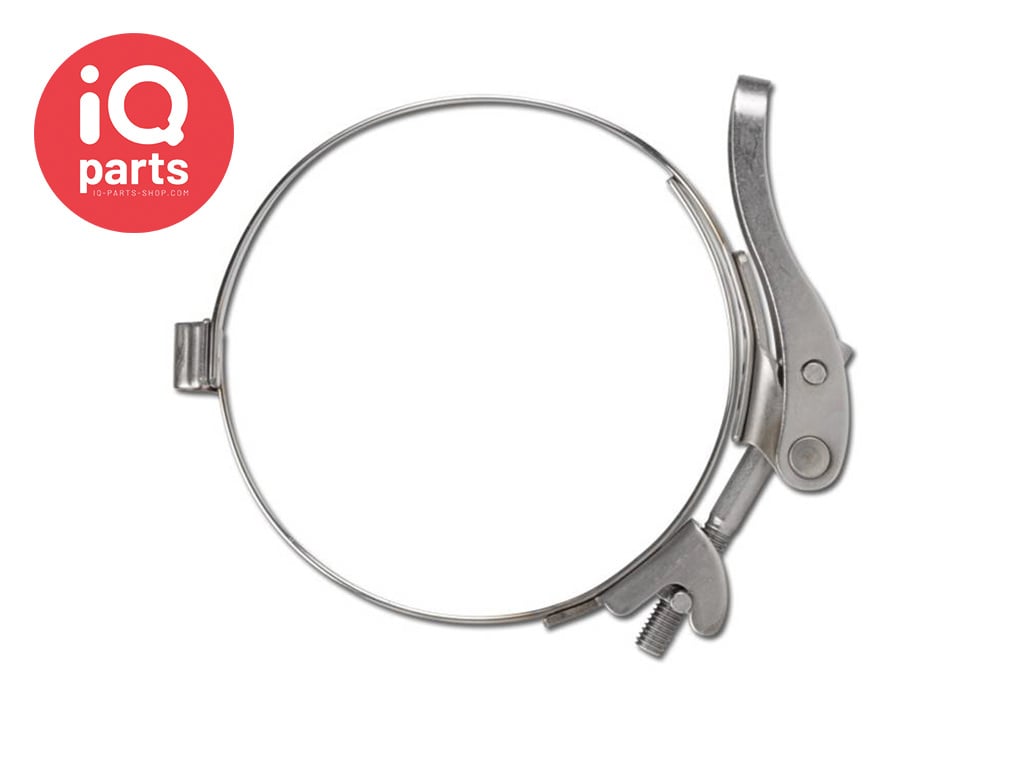

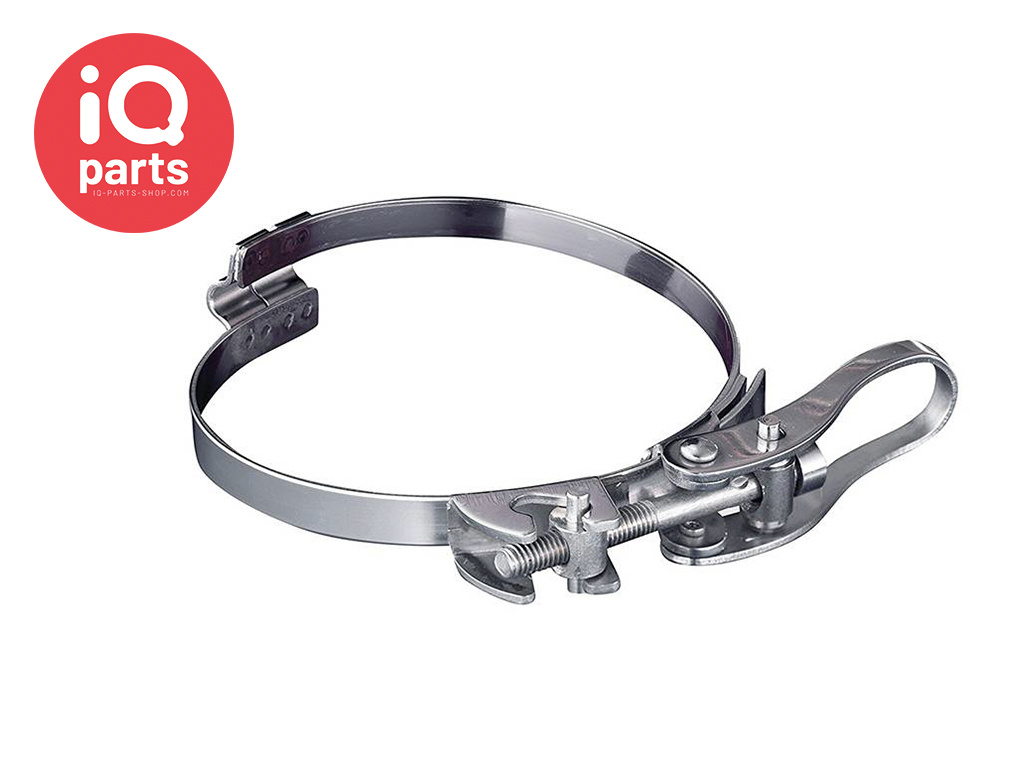

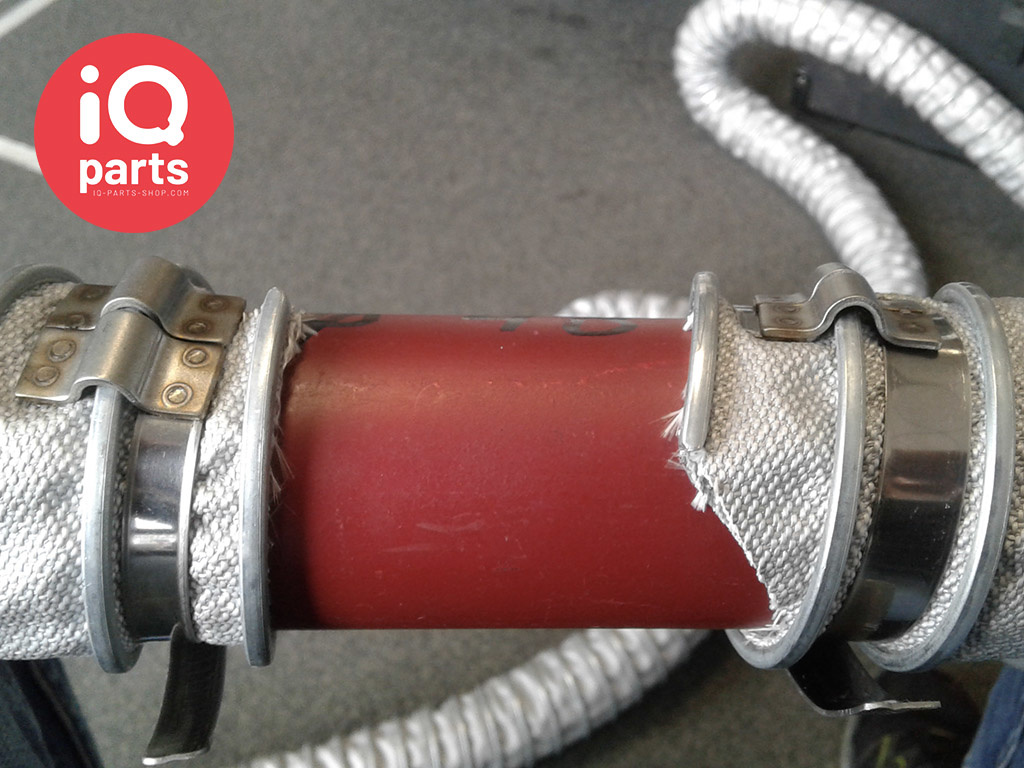

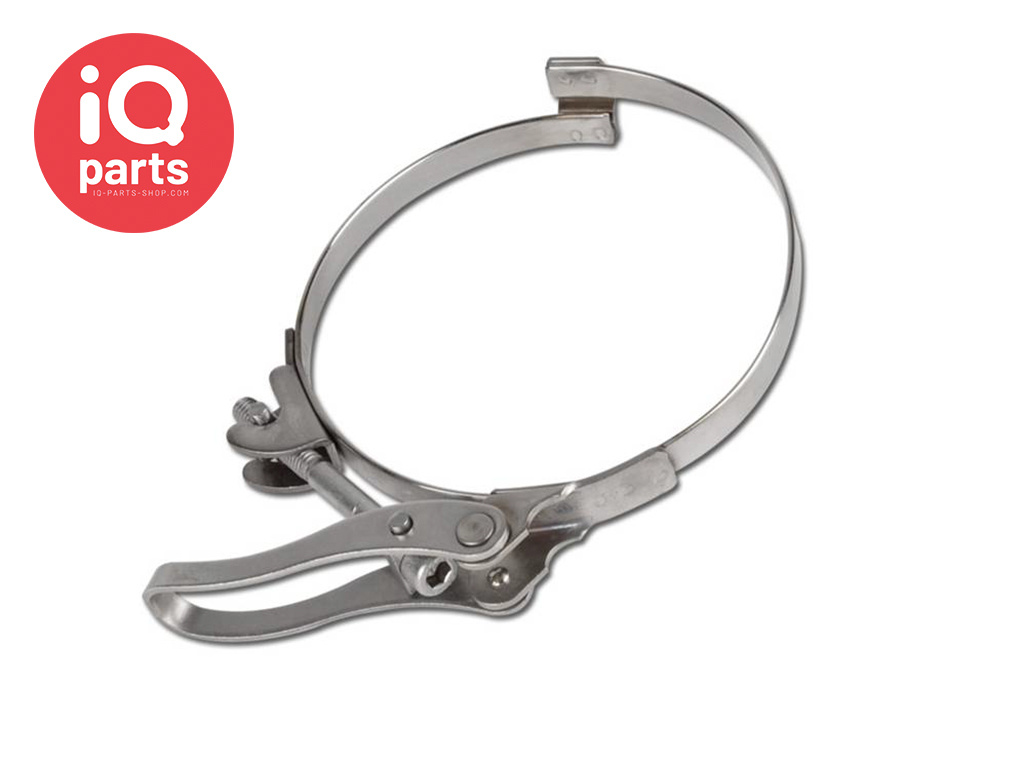

Bridge Clamp with quick-release closure for attaching externally corrugated spiral hoses

Properties:

practically leak-proof and secure clamping with special bridge geometry
easily and quickly fitted
re-usable
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH

Material:

Quality: W2

Width: 9 mm

Clamp strip: stainless steel 1.4016 = AISI 430
Clamp wire: stainless steel 1.4310 = AISI 301 (INOX)
Screw: stainless steel 1.4301 = AISI 304
Body: stainless steel 1.4016 = AISI 430

Suitable for hose:

AIRDUC^®: 341 + 345 + 363; 350 (AS /FOOD-AS / AS BLACK); 351 + 355 (FOOD / INOX FOOD-AS / HT / EC); 355 AS; 362 (FOOD / EC)
PROTAPE^®: 326 + 327 MEMORY; 330 (FOOD / AS BLACK / INOX FOOD -AS); 301 AS; 310 + 320 + 321; 322 EC; 332 SE
CP: 450 + 455 + 457 + 460 + 461 + 465 + 466 + 467 + 476 + 480 + 481 + 483 + 485 + 486 + 487; 450 + 461 PROTECT; 457 + 459 + 465 EC; 471 + 472 + 475 (INOX / INOX EC)
TIMBERDUC^®: 531 - 533 AS

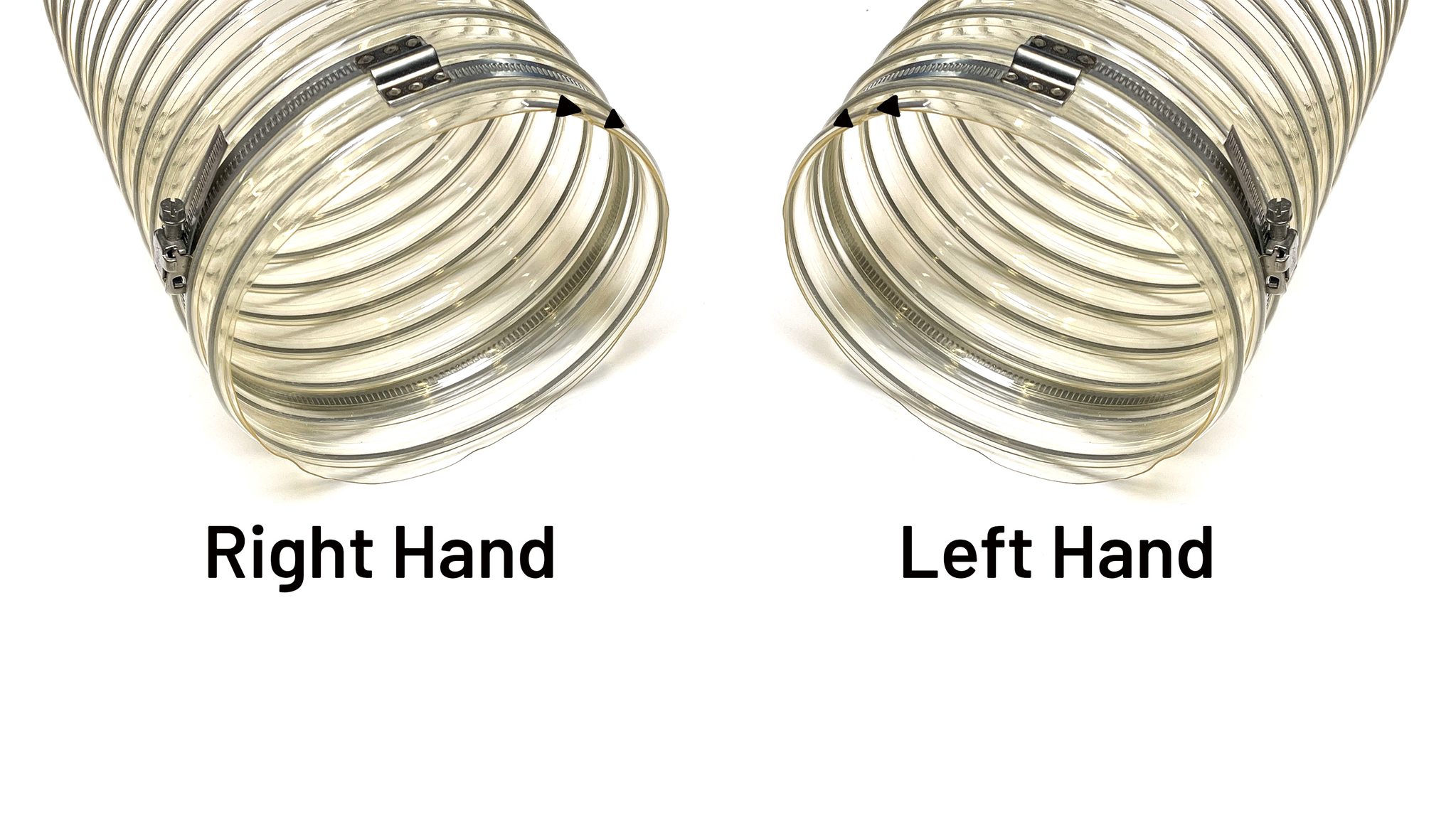

In the menu at the top right, select your desired diameter range and whether the clamp is for a clockwise or counterclockwise spiral.

(See photo)

EAN Numbers : 4049645028938 - 4049645028983 - 4049645029034 - 4049645029102 - 4049645029126 - 4049645029164 -4049645029218 - 4049645029225 - 4049645029256

Norres Numbers : 213-0060-0000, 213-0070-0000, 213-0075-0000, 213-0080-0000, 213-0090-0000, 213-0100-0000, 213-0110-0000, 213-0115-0000, 213-0120-0000, 213-0125-0000, 213-0130-0000, 213-0140-0000, 213-0150-0000, 213-0160-0000, 213-0170-0000, 213-0180-0000, 213-0190-0000, 213-0200-0000

Product code:

857942090050 – 857942090070 – 857942090075 - 857942090080 – 857942090090 – 857942090100 – 857942090110 – 857942090115 – 857942090120 – 857942090125 – 857942090130 – 857942090140 – 857942090150 – 857942090160 – 857942090175 – 857942090180 – 857942090200 – 857942090300 – 857942090400 - 857942090500

Specifications

Bolt:	--
Bandwidth:	9 mm
Tightening torque (Maximum):	--
