Norres-Baggerman - Clamp 212 | Bridgeclamp | Worm screw | W2
Brand:
Norres-Baggerman
| Article number: | ERK-11192427 |
| EAN: | 4049645026279 |
| SKU: | ERK-11192427 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
Norres-Baggerman - Clamp 212 | Bridgeclamp | Worm screw | W2

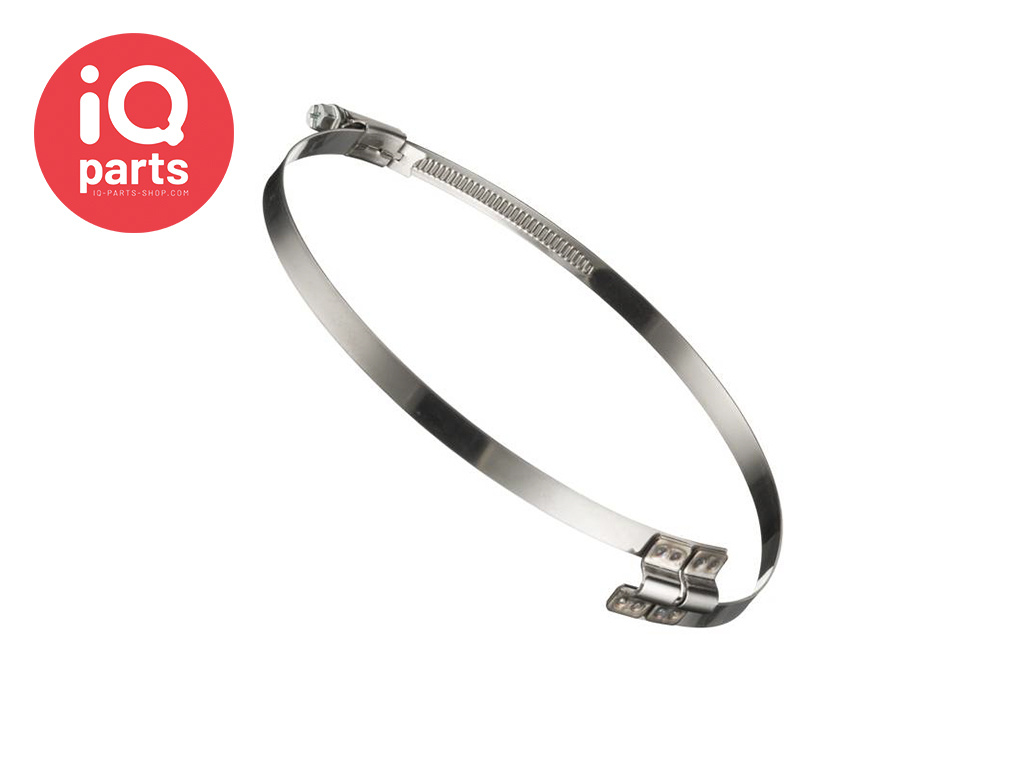

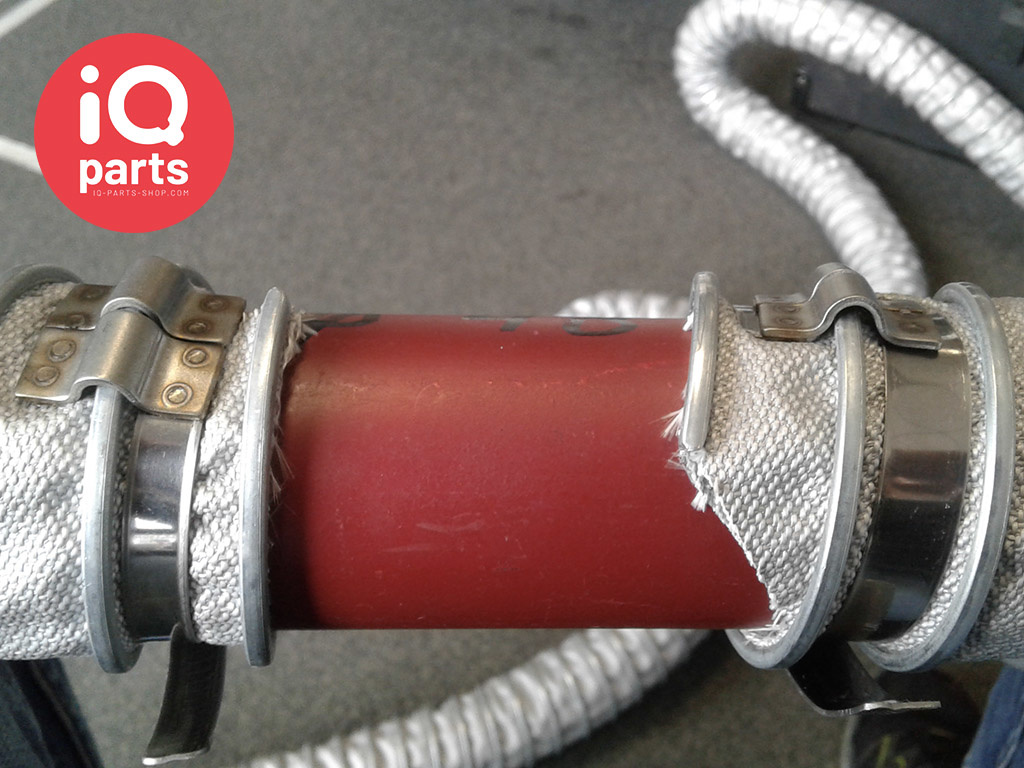

Bridge Clamp with Worm screw closure for attaching externally corrugated spiral hoses
Properties:
- practically leak-proof and secure clamping with special bridge geometry
- easily and quickly fitted
- re-usable
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Material:
Quality: W2
Width:
5 mm (9-19mm - 20-28mm)
9 mm (22-37mm - 195-215mm)
12 mm (205-225mm - 625-665mm)
- Clamp strip: stainless steel 1.4301 = AISI 304
- Screw: galvanised steel
- Body: stainless steel 1.4016 = AISI 430
- Bridge: stainless steel 1.4301 = AISI 304 (INOX)
- in accordance with DIN 3017
Suitable for hose:
- AIRDUC®: 341 + 345 + 363; 350 (AS/ FOOD-AS / AS BLACK); 351 + 355 (FOOD / INOX FOOD-AS / HT-PUR); 351 + 355 EC; 352 SE RAILWAY; 355 AS; 362 (FOOD / EC)
- PROTAPE®: 330 (FOOD / BLACK / INOX FOOD -AS); 301 AS; 310 + 320 + 321 + 326 + 327 + 332; 322 EC
Look at the PDF fort the right sizes of each hose.

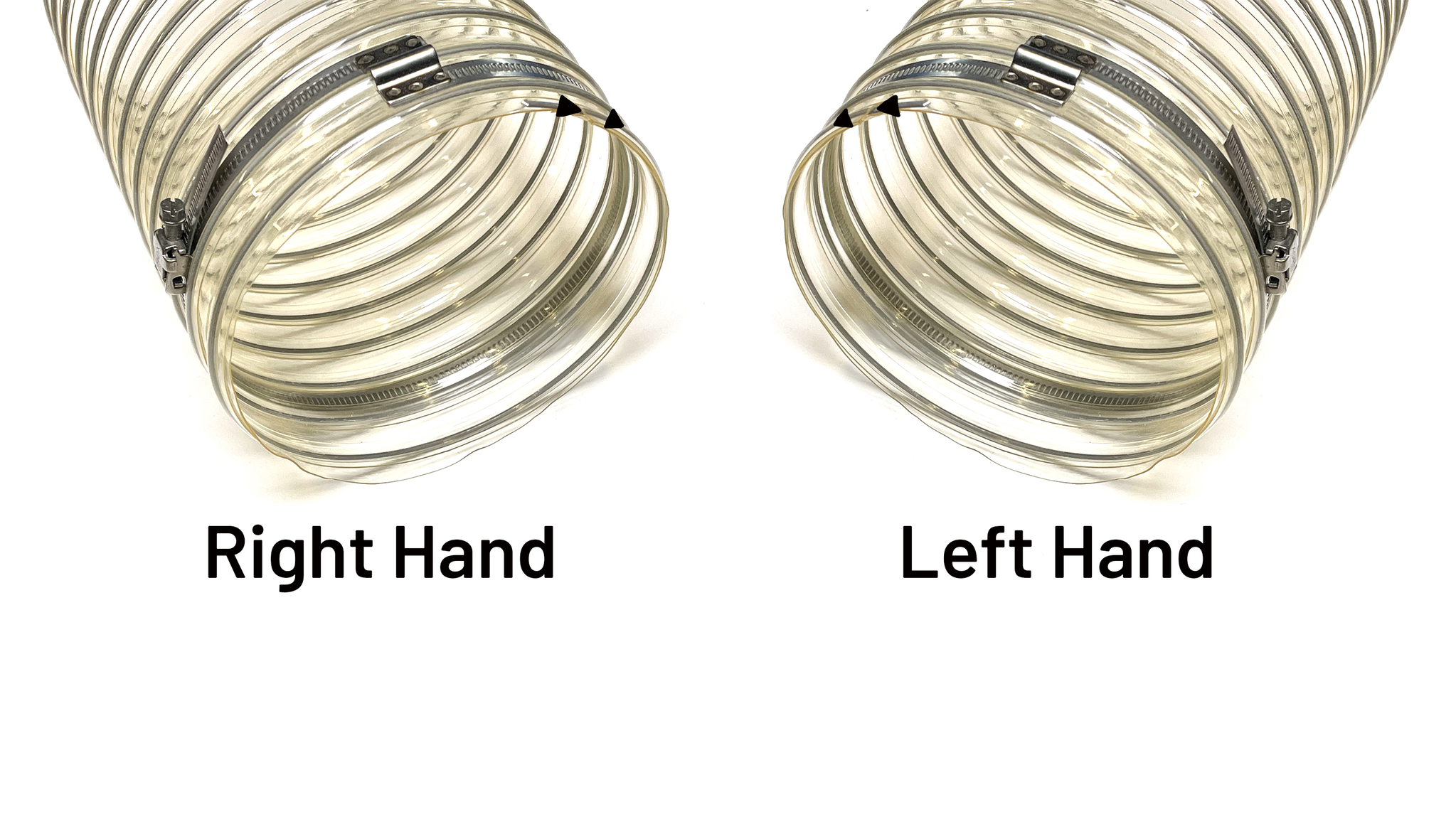

In the menu at the top right, select your desired diameter range and whether the clamp is for a clockwise or counterclockwise spiral. (See photo)
Larger dimensions available on request, but also in stainless steel 304 and stainless steel 316.
Manufacturer Number:
212-0009-0000 - 212-0013-0000 - 212-0017-0000 - 212-0020-0000 - 212-0027-0000 - 212-0035-0000 - 212-0040-0000 - 212-0045-0000 - 212-0055-0000 - 212-0065-0000 - 212-0075-0000 - 212-0085-0000 - 212-0095-0000 - 212-0105-0000 - 212-0115-0000 - 212-0125-0000 - 212-0135-0000 - 212-0145-0000 - 212-0155-0000 - 212-0165-0000 - 212-0175-0000 - 212-0180-0000 - 212-0185-0000 - 212-0195-0000 - 212-0205-0000 - 212-0215-0000 - 212-0245-0000 - 212-0255-0000 - 212-0265-0000 - 212-0275-0000 - 212-0295-0000 - 212-0305-0000 - 212-0315-0000 - 212-0345-0000 - 212-0365-0000 - 212-0375-0000 - 212-0395-0000 - 212-0445-0000 - 212-0495-0000 - 212-0505-0000 - 212-0545-0000 - 212-0625-0000
EAN:
4049645026279 - 4049645026293 - 4049645026347 - 4049645026385 - 4049645026484 - 4049645026583 - 4049645026682 - 4049645026781 - 4049645026873 - 4049645026965 - 4049645027030 - 4049645027115 - 4049645027184 - 4049645027245 - 4049645027313 - 4049645027399 - 4049645027474 - 4049645027542 - 4049645027658 - 4049645027740 - 4049645027801 - 4049645027894 - 4049645027986 - 4049645028020 - 4049645028082 - 4049645028150 - 4049645028228 - 4049645028280 - 4049645028334 - 4049645028419 - 4049645028488
Product code:
11192427 - 11192428 - 11192428 - 11192430 - 11192431 - 11171672 - 11192534 - 11192432 - 11192493 - 11192494 - 11192496 - 11192497 - 11192498 - 11192499 - 11192500 - 11192501 - 11192502 - 11192533 - 10016320 - 10016321 - 10016322 - 10016323 - 10016324 - 10016325 - 10016326 - 10016327 - 10016328 - 11171672 - 11142835 - 11142836 - 11142837
Specifications
| Bolt: | -- |
| Bandwidth: | 5 - 9 - 12 mm |
| Tightening torque (Maximum): | 3 Nm (Maximum) |
