Norma SVS Quick Release Clamp W4 (AISI304) Width 25 mm model "OE", with Eyelet Bolt

€37,54 Incl. tax
€31,03 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 Piece in stock
Delivery time: 1 week after order date
  • Buy 5 for €26,37 each and save 15%
  • Buy 10 for €24,82 each and save 20%
  • Buy 20 for €21,72 each and save 30%
  • Buy 50 for €18,62 each and save 40%
Article number: NOR-SVS-W4-OE-25
SKU: NOR-SVS-W4-OE-25
  • 2 year warranty
  • Delivery time: 1 week after order date
Information

Norma SVS snelsluitklem W4 (AISI304) "OE" Band Width 25 mm with Bridge (Overlap) and Eyelet Bolt


NORMACLAMP® SVS quick-release clamps feature a secure over-centre lever that can be opened and closed easily using one hand. This means that no special installation tools are required.
The closure for this lightweight range of products features a metric Eyelet bolt.
The SVS clamp features a bridge, which is ideal for clamping a hose type connection. The SVSP clamp has no bridge. There is a possibility to have a profile welded onto it.

NORMACLAMP® SVS and NORMACLAMP® SVSP clamps are produced with standardised band widths and materials.

The progressive ratio is 1 mm.

Up to a clamping diameter of 500 mm (on request larger sizes possible), the clamps are supplied in rolled-up form. With clamping diameters of 301 mm and up, they are supplied in stretched-out form.
If requested in the order, and assuming that an appropriate quantity is ordered, the closure can be fitted with an eyelet bolt as an alternative.
  • Equipped with the proven NORMA toggle locks
  • Band widths 15, 20, 25, 30 mm available
  • Material version W4 (AISI304 // V2A / 1.430)
  • Closure with eyelet bolt (OE) or cylinder screw (ZY)
  • Equiped with a rubber profile is possible
  • The use of special closures is possible
  • Enlargement of the clamping range by using screw thread clamps or joint bolt clamps
  • Also available in W1 quality (galvanized) minimum order 25 pieces per diameter
  • Other diameters or a rubber coating are possible on request!

Please note:
1. The diameter can be changed by +/- 2mm by adjusting the nut!
2. The passage and thread rollers from the closure are made of nickel-plated brass.
3. Also available without bridge (SVSP)Advantages at a glance

PLEASE NOTE: These clamps are custom made for you and therefore cannot be returned. Make sure you are sure of the size you want before ordering. Do you have any doubts? Please feel free to contact our Sales Department

Advantages at a glance
  • Closure can be opened and closed easily by hand
  • No installation tools required

Applications
  • Machine building
  • Chemical industry
  • Food and beverage industry
  • Railway industry
  • Building machines
  • Pump and filter

Download Normaclamp SVS OE & ZY


Our range of NORMACLAMP® SVS versions at a glance:


  • SVS: Quick-release clamp with bridge under the closing lever
  • SVSP: Quick-release clamp without bridge under the closing lever
  • SVS-S: Quick-release clamp with bridge under the closing lever and with hinge
  • SVSP-S: Quick-release clamp without bridge under the closing lever and with hinge

The above versions are available with an “OE” or “ZY” closure:
  • Model “OE”: Closure is with an eye bolt
  • Model “ZY”: Closure is with Allen screw

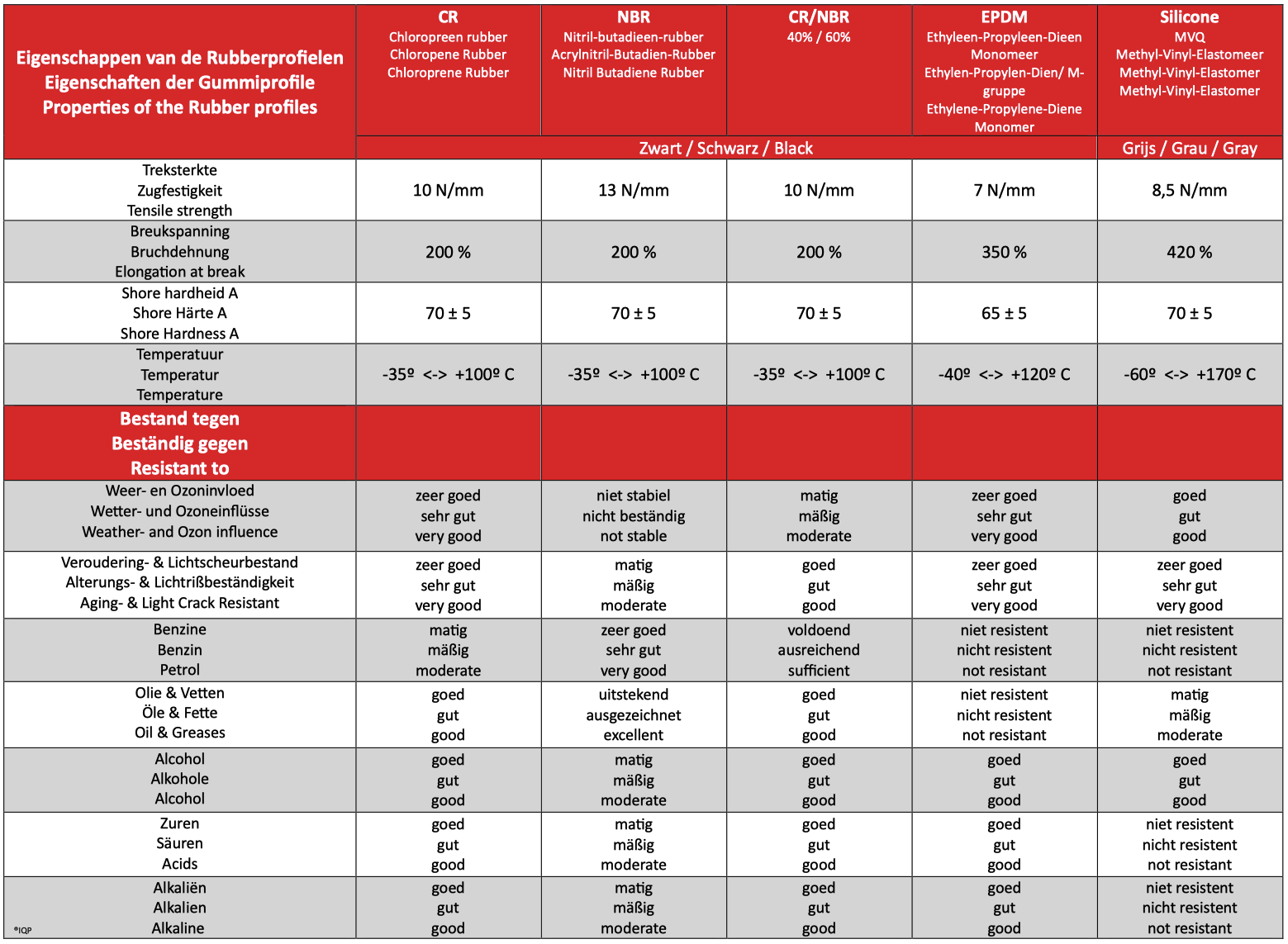

A rubber C-Profile can be ordered for all models, which provides damping in case of vibrations and protection of the pipes and hoses to be clamped.
Available bandwidths:
  • 20mm
  • 25mm
  • 30mm
Product code:
05651154090 - 05651204090 - 05651254090 - 05651154100 - 05651204100 - 05651254100 - 05651154110 - 05651204110 - 05651254110 - 05651154120 - 05651204120 - 05651254120 - 05651154130 - 05651204130 - 05651254130 - 05651154140 - 05651204140 - 05651254140 - 05651154150 - 05651204150 - 05651254150 - 05651154160 - 05651204160 - 05651254160 - 05651154170 - 05651204170 - 05651254170 - 05651154180 - 05651204180 - 05651254180 - 05651154190 - 05651204190 - 05651254190 - 05651154200 - 05651204200 - 05651254200 - 05651154210 - 05651204210 - 05651254210 - 05651154220 - 05651204220 - 05651254220 - 05651154230 - 05651204230 - 05651254230 - 05651154240 - 05651204240 - 05651254240 - 05651154250 - 05651204250 - 05651254250 - 05651154260 - 05651204260 - 05651254260 - 05651154270 - 05651204270 - 05651254270 - 05651154280 - 05651204280 - 05651254280 - 05651154290 - 05651204290 - 05651254290 - 05651154300 - 05651204300 - 05651254300 - 05651154310 - 05651204310 - 05651254310 - 05651154320 - 05651204320 - 05651254320 - 05651154330 - 05651204330 - 05651254330 - 05651154340 - 05651204340 - 05651254340 - 05651154350 - 05651204350 - 05651254350 - 05651154360 - 05651204360 - 05651254360 - 05651154370 - 05651204370 - 05651254370 - 05651154380 - 05651204380 - 05651254380 - 05651154390 - 05651204390 - 05651254390 - 05651154400 - 05651204400 - 05651254400 - 05651154410 - 05651204410 - 05651254410 - 05651154420 - 05651204420 - 05651254420 - 05651154430 - 05651204430 - 05651254430 - 05651154440 - 05651204440 - 05651254440 - 05651154450 - 05651204450 - 05651254450 - 05651154460 - 05651204460 - 05651254460 - 05651154470 - 05651204470 - 05651254470 - 05651154480 - 05651204480 - 05651254480 - 05651154490 - 05651204490 - 05651254490 - 05651154500 - 05651204500 - 05651254500
0565 1154 090 - 0565 1204 090 - 0565 1254 090 - 0565 1154 100 - 0565 1204 100 - 0565 1254 100 - 0565 1154 110 - 0565 1204 110 - 0565 1254 110 - 0565 1154 120 - 0565 1204 120 - 0565 1254 120 - 0565 1154 130 - 0565 1204 130 - 0565 1254 130 - 0565 1154 140 - 0565 1204 140 - 0565 1254 140 - 0565 1154 150 - 0565 1204 150 - 0565 1254 150 - 0565 1154 160 - 0565 1204 160 - 0565 1254 160 - 0565 1154 170 - 0565 1204 170 - 0565 1254 170 - 0565 1154 180 - 0565 1204 180 - 0565 1254 180 - 0565 1154 190 - 0565 1204 190 - 0565 1254 190 - 0565 1154 200 - 0565 1204 200 - 0565 1254 200 - 0565 1154 210 - 0565 1204 210 - 0565 1254 210 - 0565 1154 220 - 0565 1204 220 - 0565 1254 220 - 0565 1154 230 - 0565 1204 230 - 0565 1254 230 - 0565 1154 240 - 0565 1204 240 - 0565 1254 240 - 0565 1154 250 - 0565 1204 250 - 0565 1254 250 - 0565 1154 260 - 0565 1204 260 - 0565 1254 260 - 0565 1154 270 - 0565 1204 270 - 0565 1254 270 - 0565 1154 280 - 0565 1204 280 - 0565 1254 280 - 0565 1154 290 - 0565 1204 290 - 0565 1254 290 - 0565 1154 300 - 0565 1204 300 - 0565 1254 300 - 0565 1154 310 - 0565 1204 310 - 0565 1254 310 - 0565 1154 320 - 0565 1204 320 - 0565 1254 320 - 0565 1154 330 - 0565 1204 330 - 0565 1254 330 - 0565 1154 340 - 0565 1204 340 - 0565 1254 340 - 0565 1154 350 - 0565 1204 350 - 0565 1254 350 - 0565 1154 360 - 0565 1204 360 - 0565 1254 360 - 0565 1154 370 - 0565 1204 370 - 0565 1254 370 - 0565 1154 380 - 0565 1204 380 - 0565 1254 380 - 0565 1154 390 - 0565 1204 390 - 0565 1254 390 - 0565 1154 400 - 0565 1204 400 - 0565 1254 400 - 0565 1154 410 - 0565 1204 410 - 0565 1254 410 - 0565 1154 420 - 0565 1204 420 - 0565 1254 420 - 0565 1154 430 - 0565 1204 430 - 0565 1254 430 - 0565 1154 440 - 0565 1204 440 - 0565 1254 440 - 0565 1154 450 - 0565 1204 450 - 0565 1254 450 - 0565 1154 460 - 0565 1204 460 - 0565 1254 460 - 0565 1154 470 - 0565 1204 470 - 0565 1254 470 - 0565 1154 480 - 0565 1204 480 - 0565 1254 480 - 0565 1154 490 - 0565 1204 490 - 0565 1254 490 - 0565 1154 500 - 0565 1204 500 - 0565 1254 500
Specifications
Bolt: M6
Bandwidth: 25 mm
Tightening torque (Maximum): 80 N (Max.)
NORMA Norma SVS Quick Release Clamp W4 (AISI304) Width 25 mm model  "OE", with Eyelet Bolt
