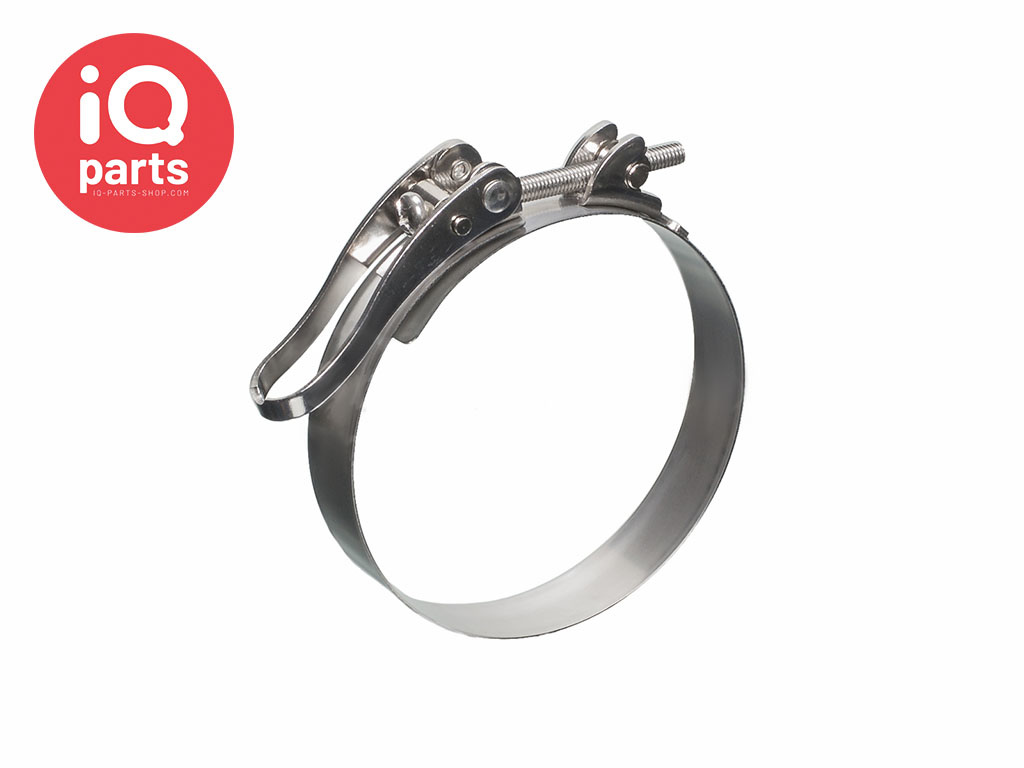

Norma SVS Quick Release Clamp W4 (AISI304) Width 25 mm model "ZY"

€61,20 Incl. tax
€50,58 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 Piece in stock
Delivery time: 1 week after order date
  • Buy 5 for €42,99 each and save 15%
  • Buy 10 for €40,46 each and save 20%
  • Buy 20 for €35,40 each and save 30%
  • Buy 50 for €30,35 each and save 40%
Article number: NOR-SVS-W4-ZY-25
SKU: NOR-SVS-W4-ZY-25
  • 2 year warranty
  • Delivery time: 1 week after order date
  • Customer service 09:00 - 17:00
Information

Norma SVS snelsluitklem W4 (AISI304) "ZY" Band Width 25 mm with Bridge (Overlap)


NORMACLAMP® SVS quick-release clamps feature a secure over-centre lever that can be opened and closed easily using one hand. This means that no special installation tools are required.
The closure for this lightweight range of products features a metric cylinder-head bolt.
The SVS clamp features a bridge, which is ideal for clamping a hose type connection. The SVSP clamp has no bridge. There is a possibility to have a profile welded onto it.
NORMACLAMP® SVS and NORMACLAMP® SVSP clamps are produced with standardised band widths and materials. The progressive ratio is 1 mm.
Up to a clamping diameter of 500 mm (on request larger sizes possible), the clamps are supplied in rolled-up form. With clamping diameters of 301 mm and up, they are supplied in stretched-out form.
If requested in the order, and assuming that an appropriate quantity is ordered, the closure can be fitted with an eyelet bolt as an alternative.
  • Equipped with the proven NORMA toggle locks
  • Band widths 15, 20, 25, 30 mm available
  • Material version W4 (AISI304 // V2A / 1.430)
  • Closure with eyebolt or cylinder screw

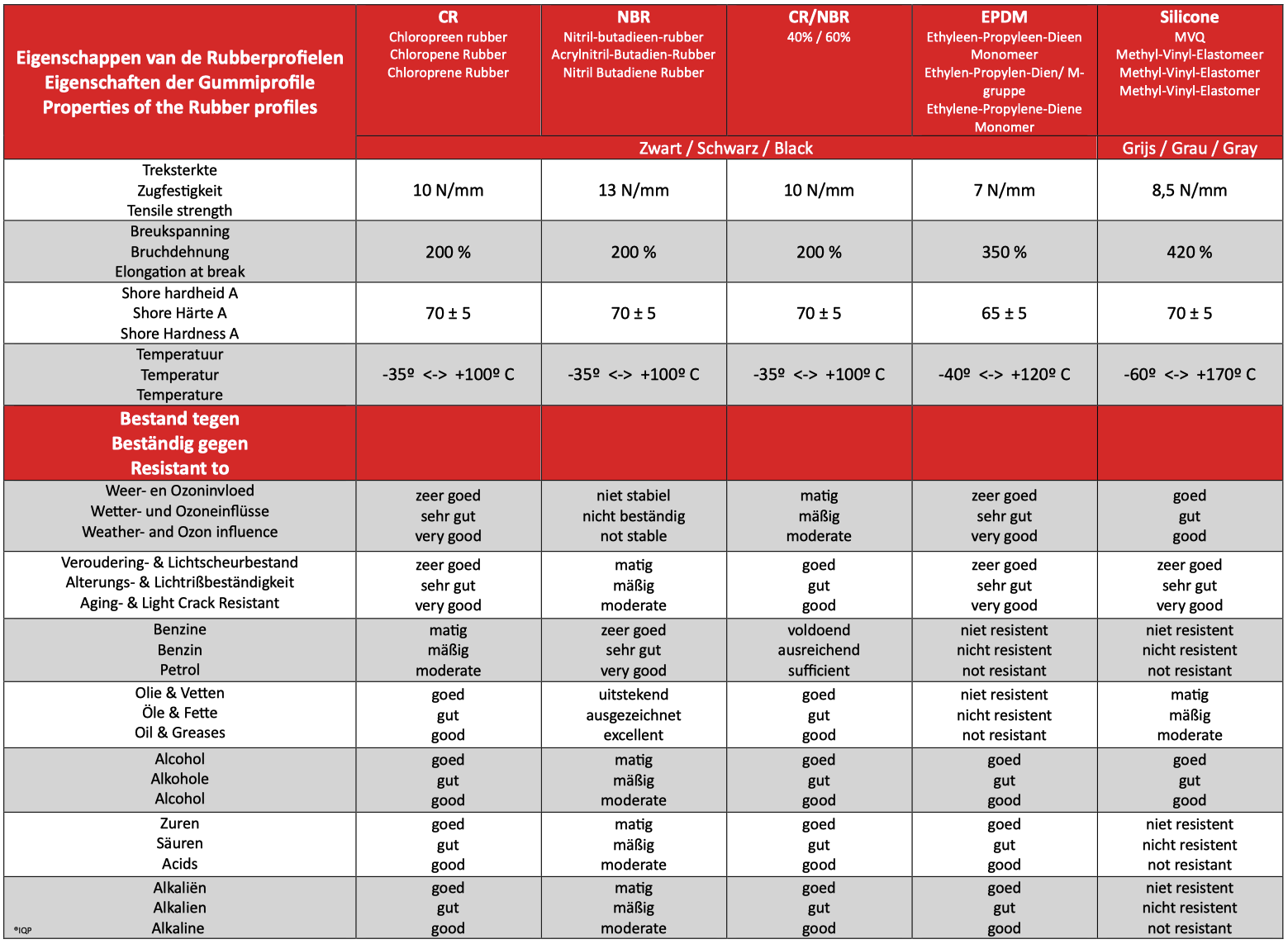

  • Equiped with a rubber profile is possible
  • The use of special closures is possible
  • Enlargement of the clamping range by using screw thread clamps or joint bolt clamps
  • Also available in W1 quality (galvanized) minimum order 25 pieces per diameter
  • Other diameters or a rubber coating are possible on request!

Please note:
1. The diameter can be changed by +/- 2mm by adjusting the nut!
2. The passage and thread rollers from the closure are made of nickel-plated brass.
3. Also available without bridge (SVSP)Advantages at a glance

PLEASE NOTE: These clamps are custom made for you and therefore cannot be returned. Make sure you are sure of the size you want before ordering. Do you have any doubts? Please feel free to contact our Sales Department

Advantages at a glance
  • Closure can be opened and closed easily by hand
  • No installation tools required

Applications

  • Machine building
  • Chemical industry
  • Food and beverage industry
  • Railway industry
  • Building machines
  • Pump and filter

Download Normaclamp SVS OE & ZY
Specifications
Bolt: M6 - ZY Quick Release
Bandwidth: 25 mm
Tightening torque (Maximum): 80 Nm (Max.)
NORMA Norma SVS Quick Release Clamp W4 (AISI304) Width 25 mm model  "ZY"
