CPC - PMC100412BSPT / PMCD100412BSPT | In-Line Coupling body | Polypropylene| 1/4" BSPT Pipe thread

€14,04 Incl. tax
€11,60 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-PMCD100412BSPT
SKU: PMCD100412BSPT
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

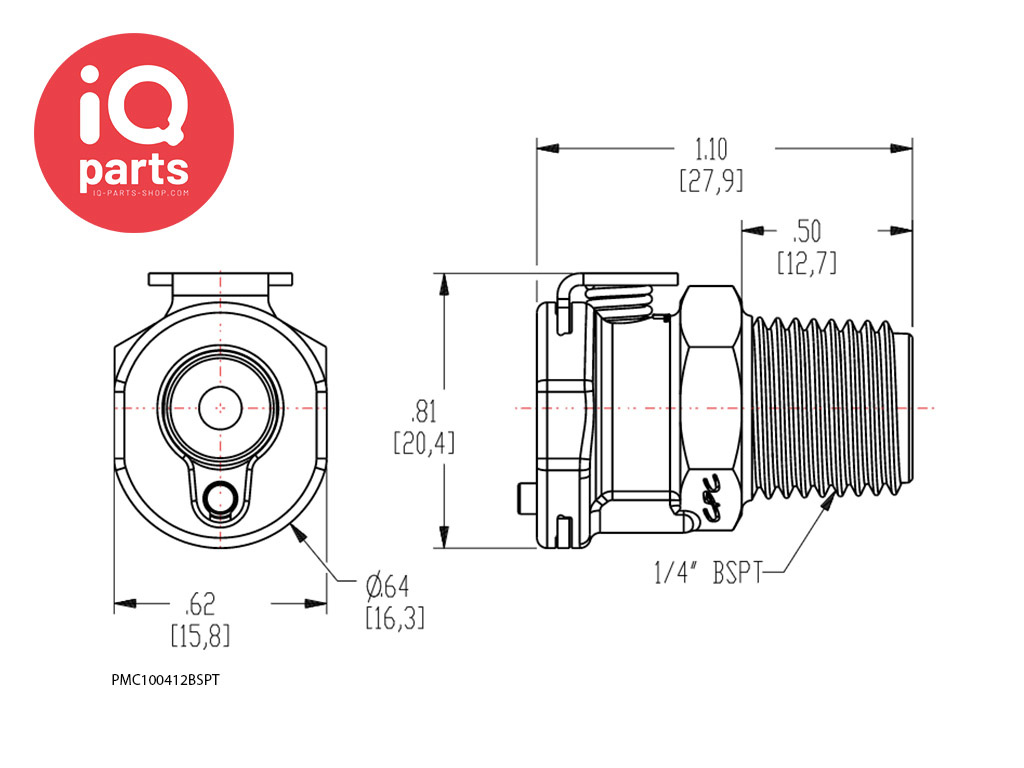

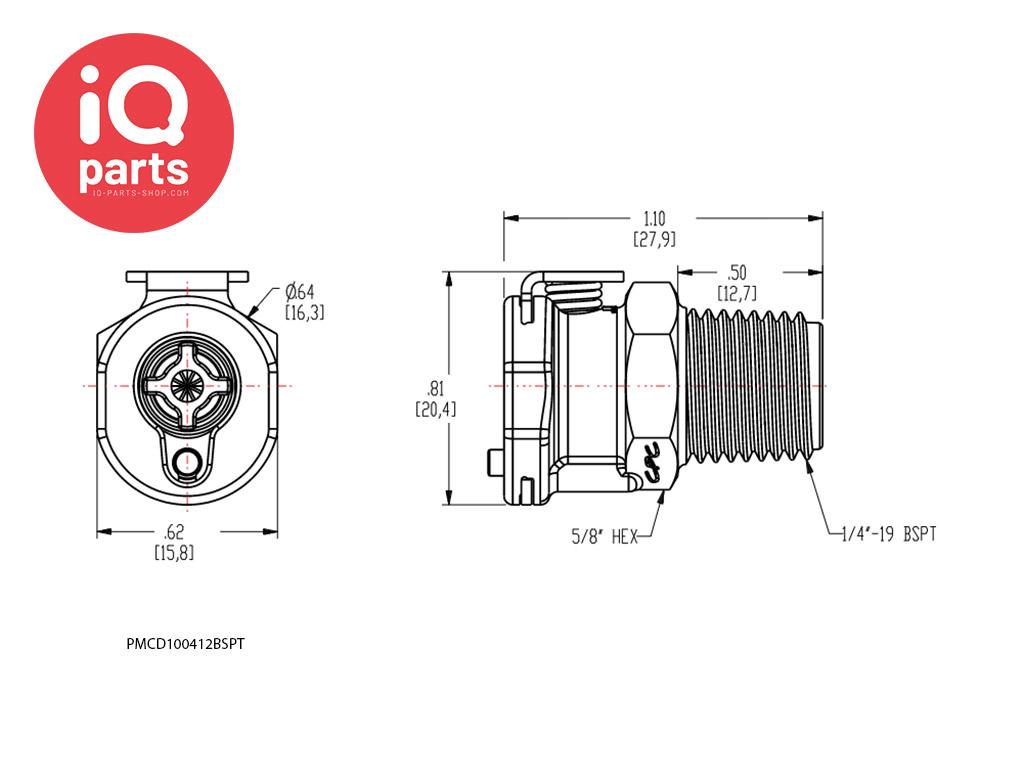

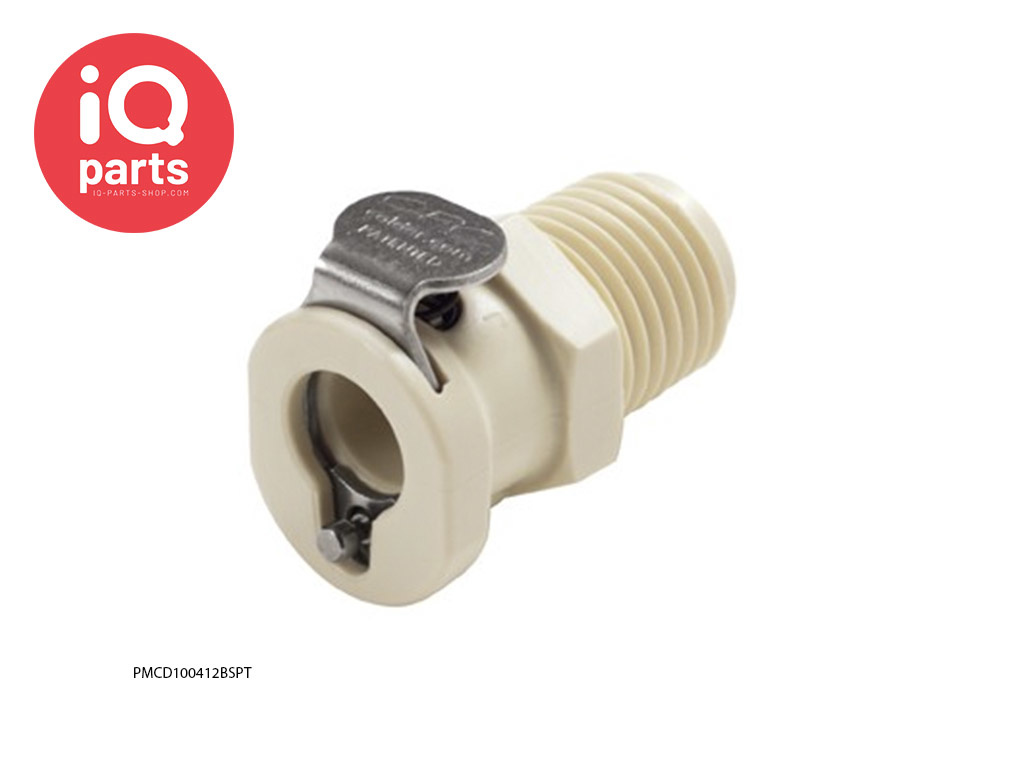

CPC - PMC100412BSPT / PMCD100412BSPT | In-Line Coupling body | Polypropylene| 1/4" BSPT Pipe thread


An in-line coupling of CPC from the PMC12 series with a 1/4" BSPT Pipe thread. This quick coupling (female) ensures a leak-free seal and is made of POLYPROPYLENE. This coupling is available with a valve (PMCD100412BSPT) and without a valve (PMC100412BSPT). (Choose at the top right at "Make a choice:")

Properties of the coupling from the PMC12 series:
  • Polypropylen
  • EPDM O-ring
  • Compatible
  • Click when connected
  • Great chemical resistance and gamma sterilizable
  • No leakage
  • Shorter assemblies, faster installation
  • Also mates with PMC and MC series couplings
  • Assurance of a reliable connection

Applications:
  • Microbiological examination equipment
  • Cleaning concentrates
  • Electroplating fluids
  • Sterilization equipment
  • Analysis of water pollutants

General information about the PMC12 series:
PMC12 Series Couplings have 1/8" flow and are used in a variety of general purpose applications. These quick disconnect couplings offer many of the same configuration options as acetal PMC couplings but the polypropylene material adds greater chemical resistance for more demanding applications. PMC12 couplings are also gamma sterilizable. The CPC Thumb Latch makes the PMC12 easier to use than designs with ball and sleeve connectors. Connect and disconnect with one hand and integral terminations make the PMC12 the choice for ease of use and manufacture.

These couplings offer the flexibility of multiple configurations and terminations and mate with PMC-serie,  MC-metal series and PMC12-serie polypropylene couplings. For more technical information, see the PDF.

  • Material: Polypropylene, thumb latch is stainless steel
  • Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: EPDM
  • Vacuum up to 8.3 bar (120 PSI)
  • Temperature range: 0ºC to 71ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 8,3 bar Vacuum
Temperature range: 0° C tot +71° C
Material: Polypropylene
Size: 1/8" flow
Connection: In-line coupling
Seal: EPDM
Hose connection: 1/4" BSPT Pipe Thread
Weight: --
CPC CPC - PMC100412BSPT / PMCD100412BSPT | In-Line Coupling body | Polypropylene| 1/4" BSPT Pipe thread
