CPC - PLM20004 / PLMD20004 | Coupling Insert | Acetal | PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID | Multi-Mount

€18,84 Incl. tax
€15,57 Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: 4 weeks
Article number: CPC-PLM20004
SKU: PLMD20004
  • 2 year warranty
  • Delivery time: 4 weeks
Information

CPC - PLM20004 / PLMD20004 | Coupling Insert | Acetal | PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID | Multi-Mount


This product is ON REQUEST. Please contact our sales department for prices and ordering conditions.

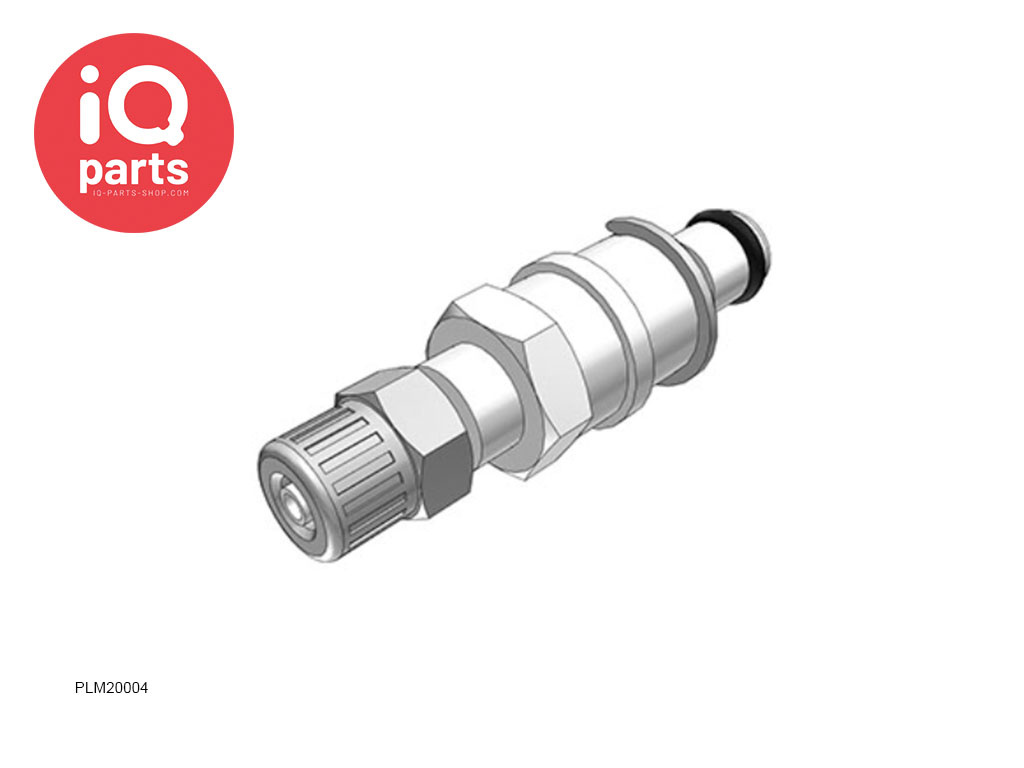

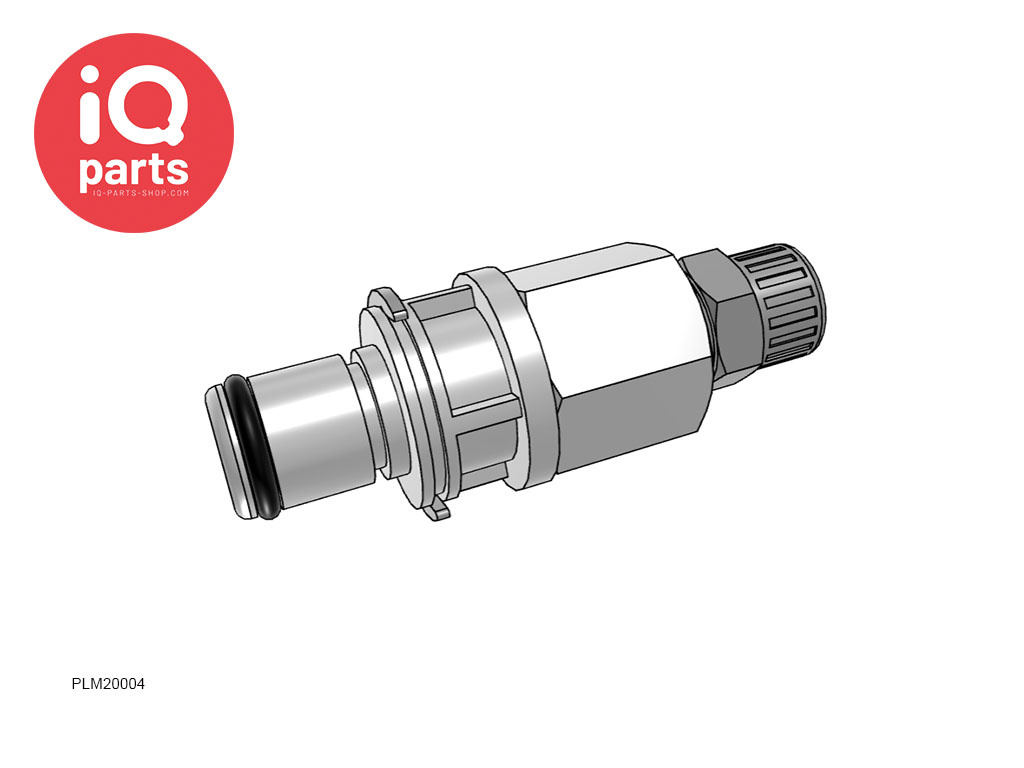

An in-line coupling insert of CPC from the Multi-Mount series with a PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID. This quick coupling (male) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (PLMD20004) or without a valve (PLM20004). (Choose at the top right at “Make a choice:”)

THIS COUPLING INSERT HAS A FLOW OF 1/4”

Multi-Mount couplings provide one easy-to-use coupling for connecting from three to five lines at once. Multi-mount couplings are available in a wide variety of materials including acetal and chrome-plated brass. Multi-mounts are keyed to prevent mismatched connections and can be configured with or without valves for maximum design flexibility.

This is how you assemble the Multi-Mount:
  • Determine the flow size and type of closure.
  • Order two "multiple mounting plates" (one for the coupling bodies and one for the coupling inserts) with the correct number of connection openings for your specific application (available with 3, 4 or 5 openings).
  • Order two "standard coupling bodies with thumb locks" for the 2 outer openings. (See the PMC and MC series for 1/8" flow and the PLC or LC series for 1/4" flow)
  • Order an appropriate number of "Coupling bodies without Thumb Locks" for the remaining inner openings (From the Multi-Mount series: PMM and MM series for 1/8” flow and PLM and LM series for 1/4” flow)
  • Order an appropriate number of "Coupling inserts" (From the Multi-Mount series: PMM and MM series for 1/8” flow and PLM and LM series for 1/4” flow)

You now only need to disconnect the outer 2 quick couplings with the thumb latch to disconnect the entire series.

Applications:
  • Floor cleaning equipment
  • Filtration of deionized water
  • Dosing systems
  • Automated Machines
  • Compression Therapy
  • Leak Detectors

Specifications:
  • Material: Acetal
  • Available in various sizes: from 3.2 mm to 9.5 mm ID, also in a 90º angle
  • Available with clamp ring coupling, hose barb or internal thread
  • With and without valve
  • Acetal valve, valve spring made of stainless steel 316 (W5)
  • Springs, pins and thumb lock: stainless steel
  • O-rings: Buna-N (NBR)
  • Pressure: Minimum: Vacuum, Maximum: 500 psi (Brass) and 240 psi (Acetal) per single coupling
  • Temperature range: -40ºF to 180ºF (-40ºC to 82ºC)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air
Operating Pressure: Minimum: Vacuum, Maximum: 500 psi (Brass) and 240 psi (Acetal) per single coupling
Temperature range: -40ºF to 180ºF (-40ºC to 82ºC)
Material: Acetal
Size: 1/4" flow
Connection: In-line Coupling Insert
Seal: Buna-N (NBR)

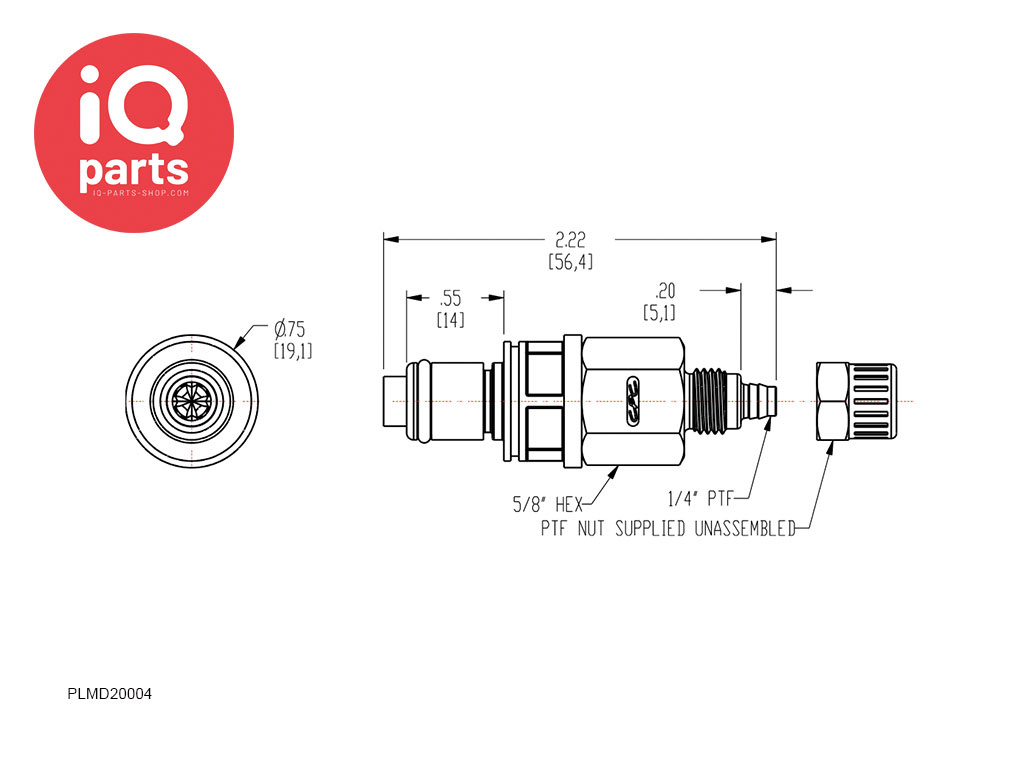

Hose connection: 6.4 mm (1/4") OD / 4.3 mm (0.17") ID
Weight: --
CPC CPC - PLM20004 / PLMD20004 | Coupling Insert | Acetal | PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID | Multi-Mount
