CPC - LCP103 / LCP104 / LCP105 | Multi-Mount plate

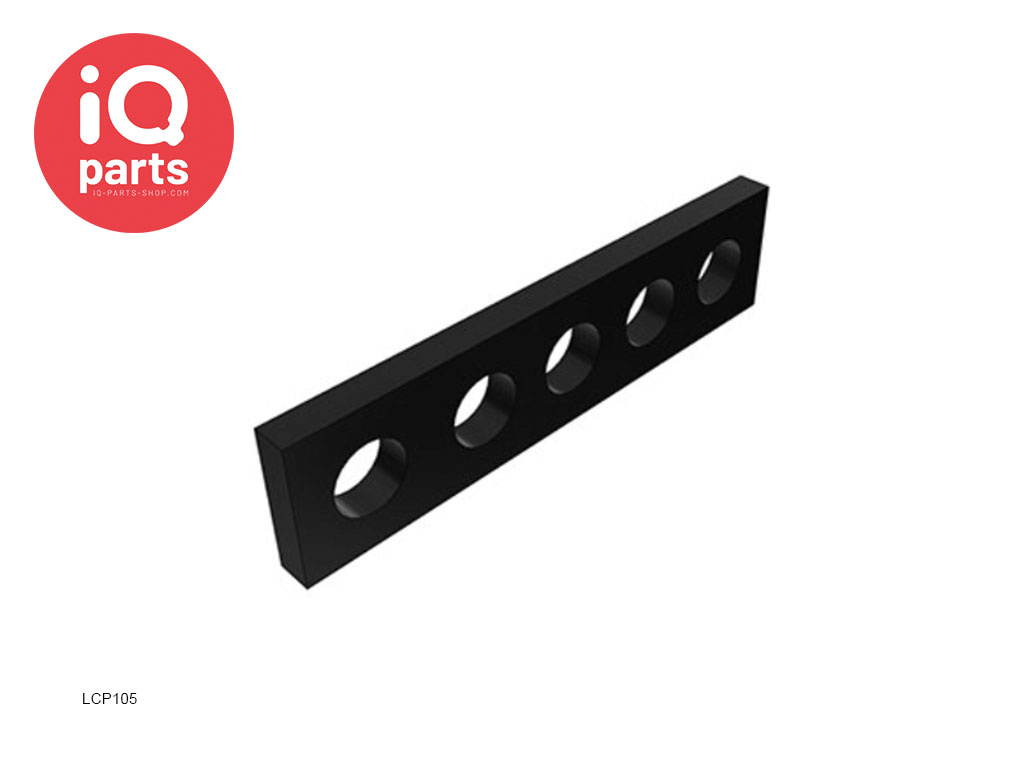

This Multi-Mount plate for 3, 4 or 5 couplings is made of anodized aluminum. You can mount the quick couplings from the CPC Multi-Mount series here.

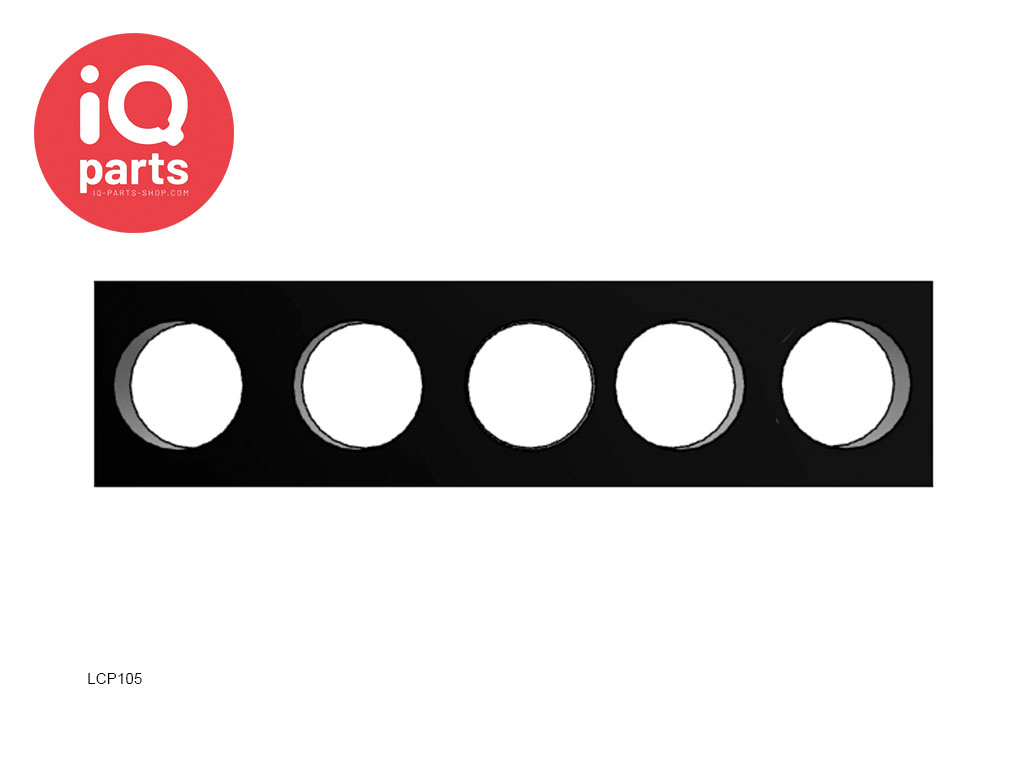

CPC has placed the first port in the Mounting Plate at a slightly greater distance, so that you can never mount the multi-coupling the wrong way around.
Please note that you need a mounting plate for both the couplings (female) and the plug-in nipples (male)?
Dimensions: (Length x Width x Thickness)
3 ports: 76,2 x 6.35 x 25.4 (3” x 1" x 0,25”)
4 ports: 85,09 x 6.35 x 25.4 (3.35” x 1" x 0,25”)
5 ports: 124,46 x 6.35 x 25.4 (4.9” x 1" x 0,25”)
(Choose at the top right at “Make a choice: the amount of Ports”)
THIS PLATE IS FOR COUPLINGS WITH A FLOW OF 1/4”
Multi-Mount couplings provide one easy-to-use coupling for connecting from three to five lines at once. Multi-mount couplings are available in a wide variety of materials including acetal and chrome-plated brass. Multi-mounts are keyed to prevent mismatched connections and can be configured with or without valves for maximum design flexibility.

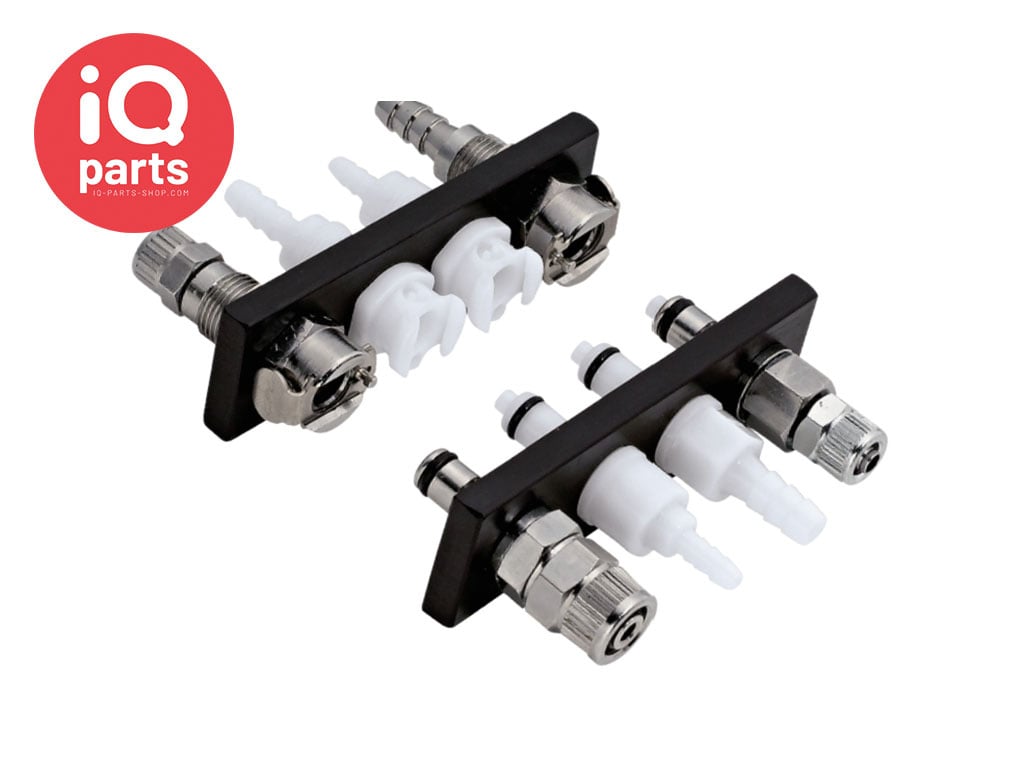

This is how you assemble the Multi-Mount:
- Determine the flow size and type of closure.
- Order two "multiple mounting plates" (one for the coupling bodies and one for the coupling inserts) with the correct number of connection openings for your specific application (available with 3, 4 or 5 openings).
- Order two "standard coupling bodies with thumb locks" for the 2 outer openings. See the PLC or LC series for 1/4" flow
- Order an appropriate number of "Coupling bodies without Thumb Locks" for the remaining inner openings from the Multi-Mount series PLM and LM series for 1/4” flow
- Order an appropriate number of "Coupling inserts" from the Multi-Mount series PLM and LM series for 1/4” flow
You now only need to disconnect the outer 2 quick couplings with the thumb latch to disconnect the entire series.
Specifications:
- Material: anodized aluminum
- Available in various sizes: More than 5 Ports are available on request
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | -- |
| Operating Pressure: | -- |
| Temperature range: | -40ºF to 180ºF (-40ºC to 82ºC) |
| Material: | anodized aluminum |
| Size: | 1/4" flow |
| Connection: | PLM & LM serie |
| Seal: | -- |
| Hose connection: | -- |
| Weight: | -- |
