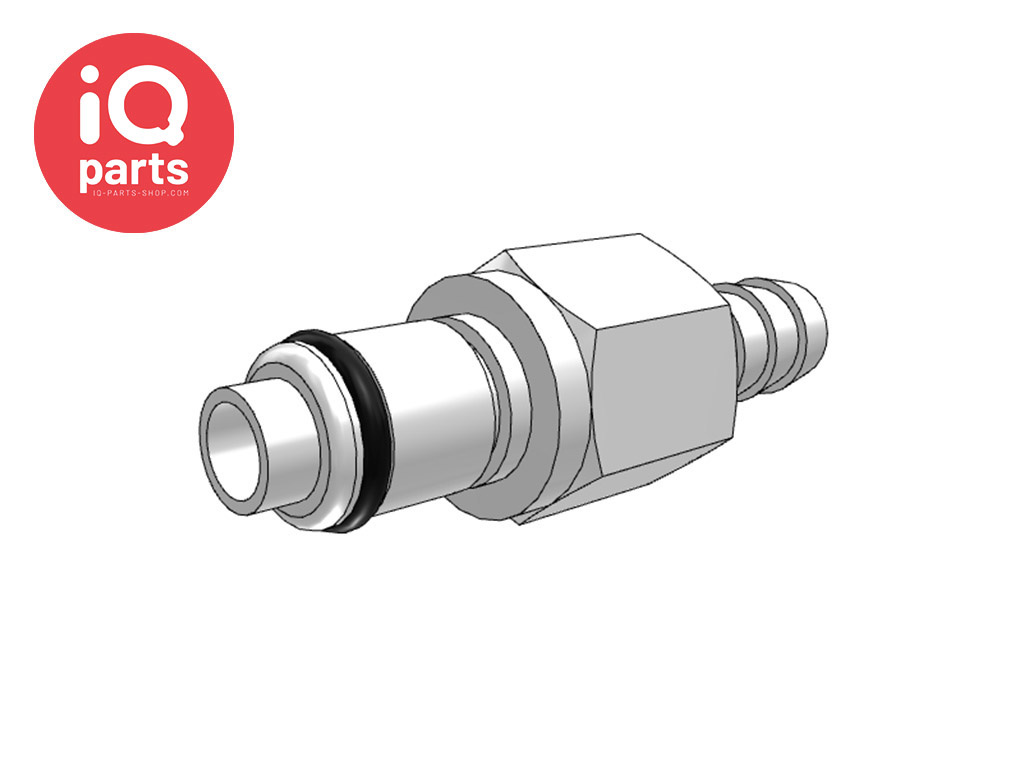

CPC - PLCD22005V | Coupling Insert | Acetal | Hose barb 7,5 - 8 mm
Brand:
CPC
| Article number: | CPC-PLCD22005V |
| SKU: | PLCD22005V |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - PLCD22005V | Coupling Insert | Acetal | Hose barb 7,5 - 8 mm
The connector PLCD22005V with shut-off valve and a hose connection for 7.5 to 8 mm fuel hose. The PLCD22005V has a VITON seal (FKM) and is therefore fuel resistant.
Suitable for the following and many other motorcycle models:
- Aprilia - Caponord
- BMW - HP2
- BMW - R1100
- BMW - R850
- BMW - K1200
- BMW - R1150
- BMW - R1200
- BMW - R900
- Ducati - 998
- KTM - 660 Rally Replica
- Moto Guzzi
General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | In-line hose barb |
| Seal: | Viton (FKM) |
| Hose connection: | 7,5 - 8 mm Inner diameter |
| Weight: | -- |
