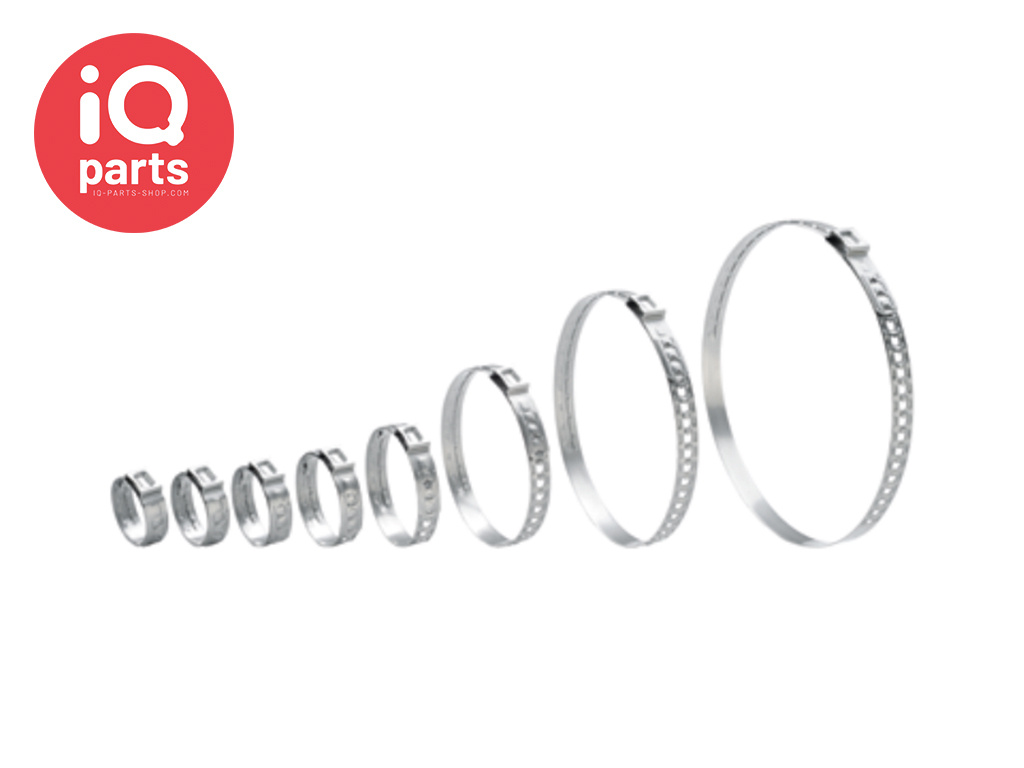

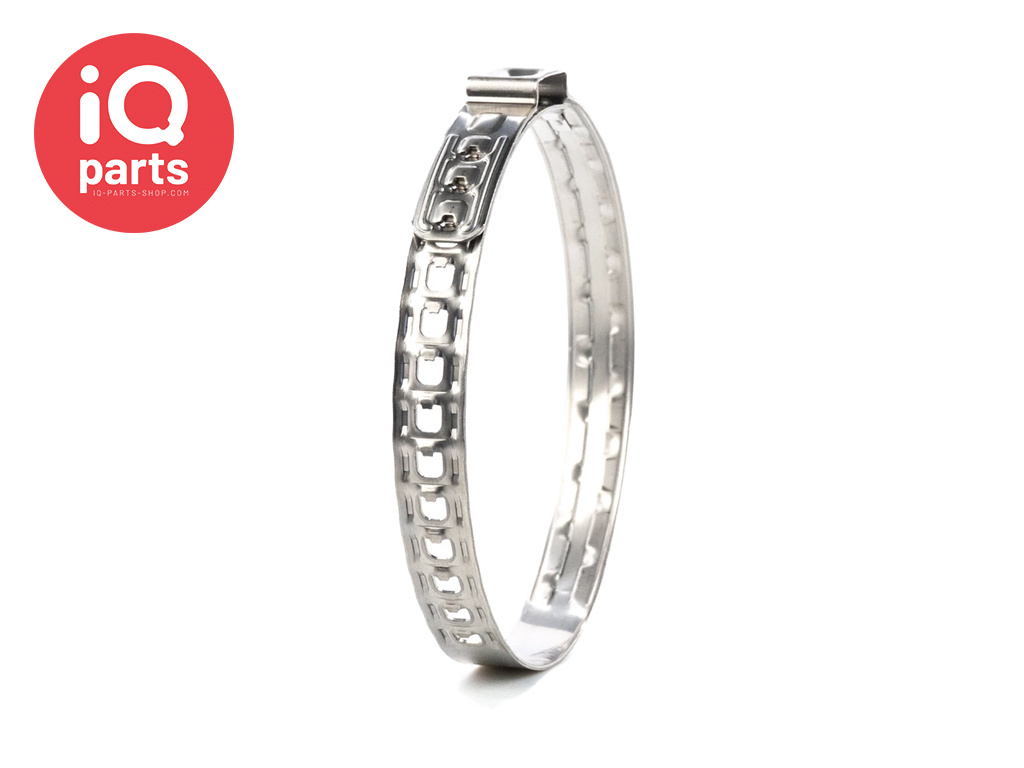

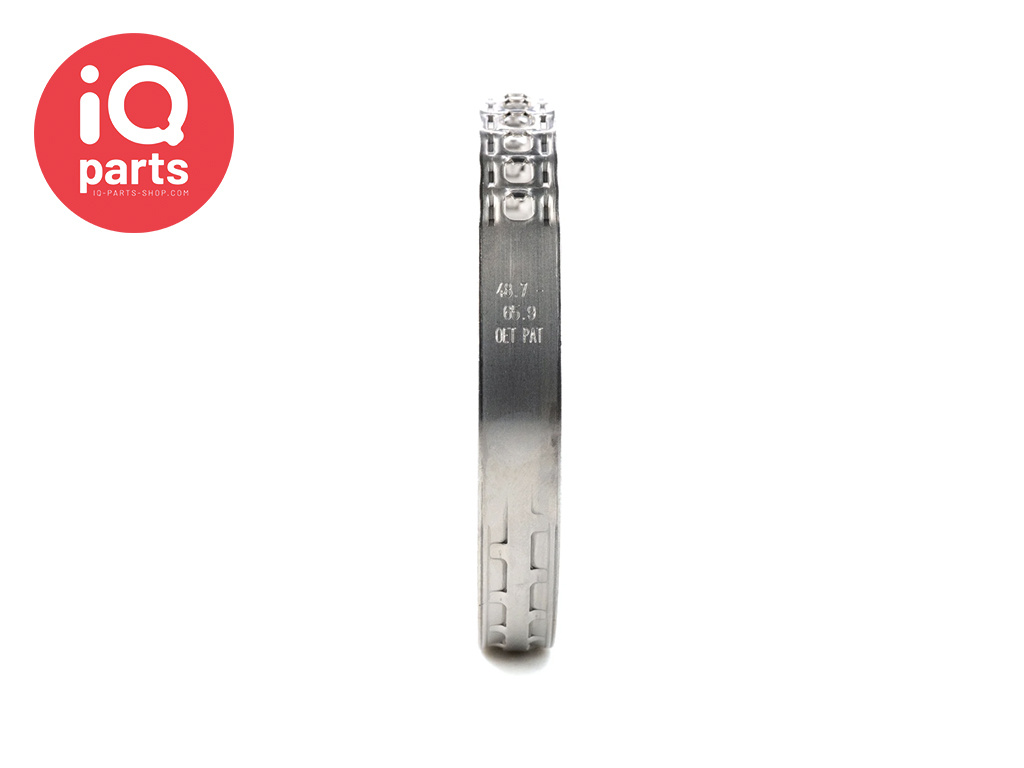

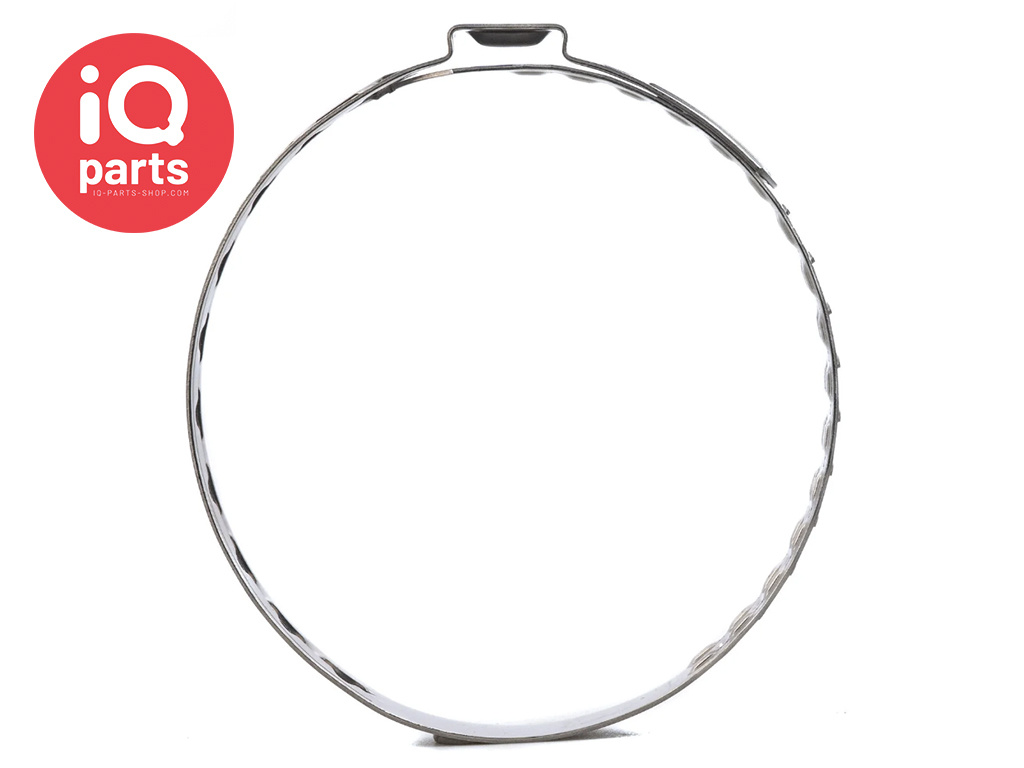

OETIKER - DualHook Adjustable Ear Clamps 259
| Article number: | OTK-25900000 |
| SKU: | 25900000 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Optimized interlock design: three dual hooks provide extra high force
- Waved band edge with dimples: enhances band strength and avoids risk of breakage
- Tongue-in-groove design: provides StepLess® feature for the whole adjustable range and a smooth sliding into the recess
- Burr-free strip edges: reduced risk of damage to parts being clamped
- Brand: Oetiker
- Material: Stainless steel, material no. 1.4301/ UNS
- Recommended closing force: 3800 N
- 9.0 mm width x 0.6 mm thickness
- Ear width: 10.7 mm
|
Clamp sizes |
1 |
2 |
3 |
4 |
|
Nominal diam. range (mm) |
21.1 - 24.5 |
25.9 - 27.6 |
29.0 - 30.7 |
32.1 - 37.3 |
|
Part no. |
25900000 |
25900001 |
25900002 |
25900003 |
|
Count pos. |
1 |
2 |
2 |
4 |
|
Delivery cond. (mm) |
24.5 |
25.9 |
29.0 |
33.9 |
|
Hook pos. 1 |
24.5 |
27.6 |
30.7 |
37.3 |
|
Hook pos. 2 |
|
25.9 |
29.0 |
35.6 |
|
Hook pos. 3 |
|
|
|
33.9 |
|
Hook pos. 4 |
|
|
|
32.1 |
|
Clamp sizes |
5 |
6 |
7 |
8 |
|
Nominal diam. range (mm) |
38.7 - 47.3 |
48.7 - 65.9 |
67.3 - 93.1 |
94.5 - 120.2 |
|
Part no. |
25900004 |
25900005 |
25900006 |
25900007 |
|
Count pos. |
6 |
11 |
16 |
16 |
|
Delivery cond. (mm) |
43.9 |
65.9 |
93.1 |
120.2 |
|
Hook pos. 1 |
47.3 |
65.9 |
93.1 |
120.2 |
|
Hook pos. 2 |
45.6 |
64.2 |
91.3 |
118.5 |
|
Hook pos. 3 |
43.9 |
62.4 |
89.6 |
116.8 |
|
Hook pos. 4 |
42.1 |
60.7 |
87.9 |
115.1 |
|
Hook pos. 5 |
40.4 |
59.0 |
86.2 |
113.4 |
|
Hook pos. 6 |
38.7 |
57.3 |
84.5 |
111.6 |
|
Hook pos. 7 |
|
55.6 |
82.7 |
109.9 |
|
Hook pos. 8 |
|
53.8 |
81.0 |
108.2 |
|
Hook pos. 9 |
|
52.1 |
79.3 |
106.5 |
|
Hook pos. 10 |
|
50.4 |
77.6 |
104.8 |
|
Hook pos. 11 |
|
48.7 |
75.9 |
103.1 |
|
Hook pos. 12 |
|
|
74.2 |
101.3 |
|
Hook pos. 13 |
|
|
72.4 |
99.6 |
|
Hook pos. 14 |
|
|
70.7 |
97.9 |
|
Hook pos. 15 |
|
|
69.0 |
96.2 |
|
Hook pos. 16 |
|
|
67.3 |
94.5 |
| Bolt: | -- |
| Bandwidth: | 9 mm |
| Tightening torque (Maximum): | -- |
