Mikalor P-Clip 12 mm W1 - SMS
Brand:
Mikalor
- Buy 100 for €0,55 each and save 15%
- Buy 500 for €0,46 each and save 30%
| Article number: | MKL-SL-W1-12-03.2-04.8 |
| SKU: | 03024990 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information

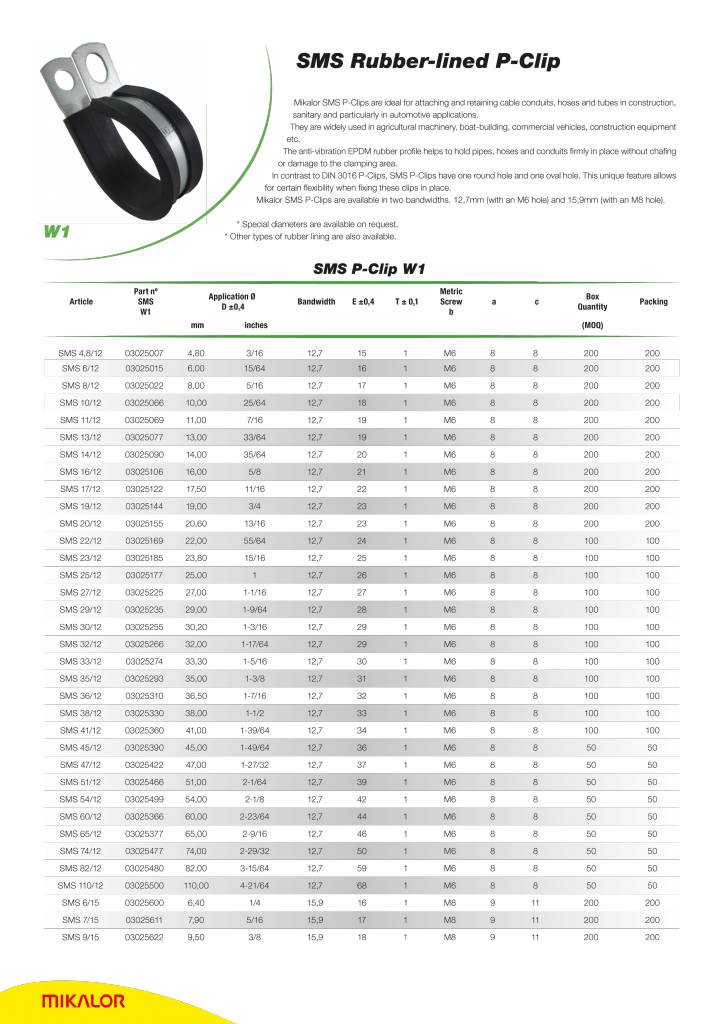

Mikalor P-Clips SMS 12 mm W1
SMS Rubber-lined P-Clip.
Mikalor SMS P-Clips are ideal for attaching and retaining cable conduits, hoses and tubes in construction, sanitary and particularly in automotive applications.
They are widely used in agricultural machinery, boat-building, commercial vehicles, construction equipment etc.

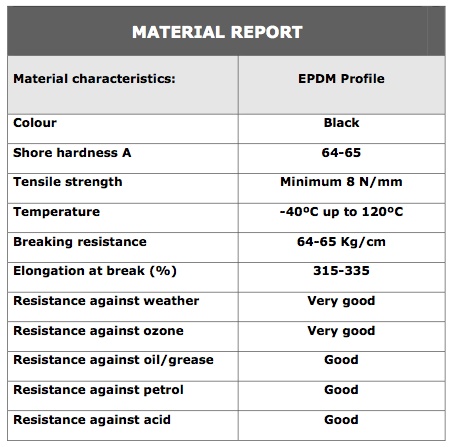

The anti-vibration EPDM rubber profile helps to hold pipes, hoses and conduits firmly in place without chafing or damage to the clamping area.
In contrast to DIN 3016 P-Clips, SMS P-Clips have one round hole and one oval hole. This unique feature allows for certain flexibility when fixing these clips in place.

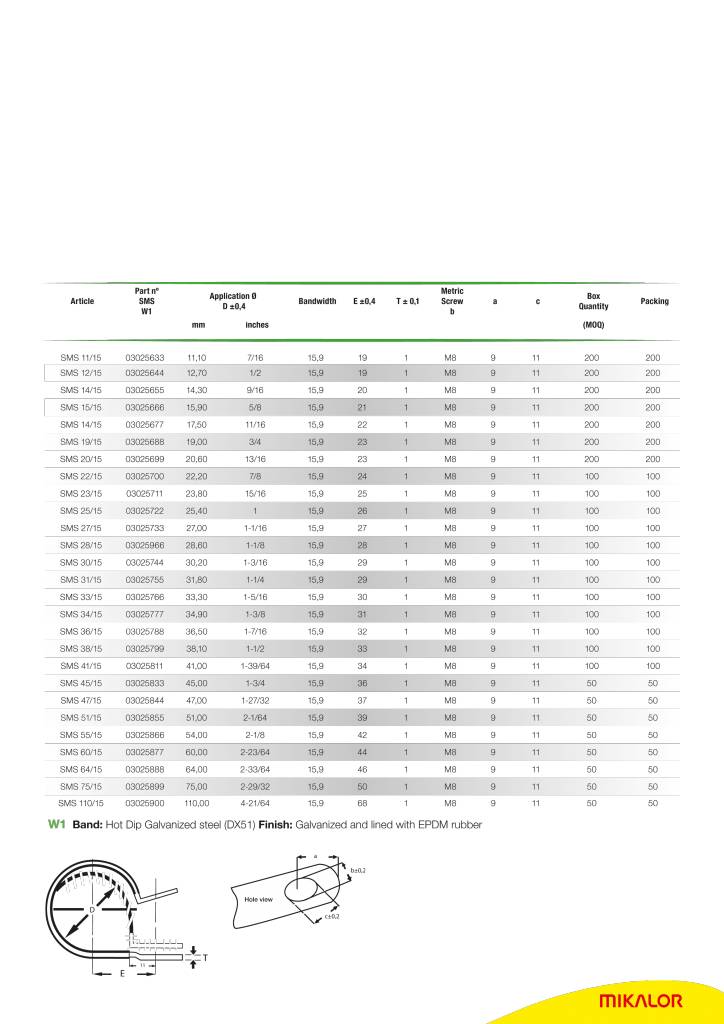

Mikalor SMS P-Clips are available in two bandwidths. 12,7mm (with an M6 hole) and 15,9mm (with an M8 hole).
They are widely used in agricultural machinery, boat-building, commercial vehicles, construction equipment etc.
The anti-vibration EPDM rubber profile helps to hold pipes, hoses and conduits firmly in place without chafing or damage to the clamping area.
In contrast to DIN 3016 P-Clips, SMS P-Clips have one round hole and one oval hole. This unique feature allows for certain flexibility when fixing these clips in place.
Mikalor SMS P-Clips are available in two bandwidths. 12,7mm (with an M6 hole) and 15,9mm (with an M8 hole).
The scope of delivery does not include bolts or nuts.
We recommend:
12mm band width: M5 bolt
15mm band width: M6 bolt
20mm band width: M8 bolt
* Other types of rubber lining are also available.
Certificates / Documentation:
Certificates and documentation are available for these products. If desired, you can order these together with your order.
We can offer:
- Certificate of Conformity (CoC)
- EN 10204 3.1 Inspection Certificate
Certificates must be requested at the time of ordering. Certificates requested after shipment may incur additional administrative costs and cannot always be provided retrospectively.
You will find the certificates at the bottom of the drop-down order menu at the top right of this page.
Generally, a subsequent order is significantly more expensive due to the administrative burden.
Product code:
03025007 - 03025015 - 03025022 - 03025066 - 03025069 - 03025077 - 03025090 - 03025106 - 03025122 - 03025144 - 03025155 - 03025169 - 03025185 - 03025177 - 03025225 - 03025235 - 03025255 - 03025266 - 03025274 - 03025293 - 03025310 - 03025330 - 03025360 - 03025390 - 03025422 - 03025466 - 03025499 - 03025840 - 03025500
EAN:
8426241437634 - 8426241415281 - 8426241433384 - 8426241427703 - 8426241438945 - 8426241433438 - 8426241434619 - 8426241437078 - 8426241433414 - 8426241429444 - 8426241433407 - 8426241438938 - 8426241439294 - 8426241427710 - 8426241438549 - 8426241429554 - 8426241433391 - 8426241433445 - 8426241433900 - 8426241427727 - 8426241439317 - 8426241415304 - 8426241433452 - 8426241415311 - 8426241439324 - 8426241433469 - 8426241439331 - 8426241427734 - 8426241436859 - 8426241433476 - 8426241439232
Specifications
| Bandwidth: | 12 mm |
| Rubber: | EPDM |
