Mikalor Bridge clamp ASFA-L | 9 mm | W2

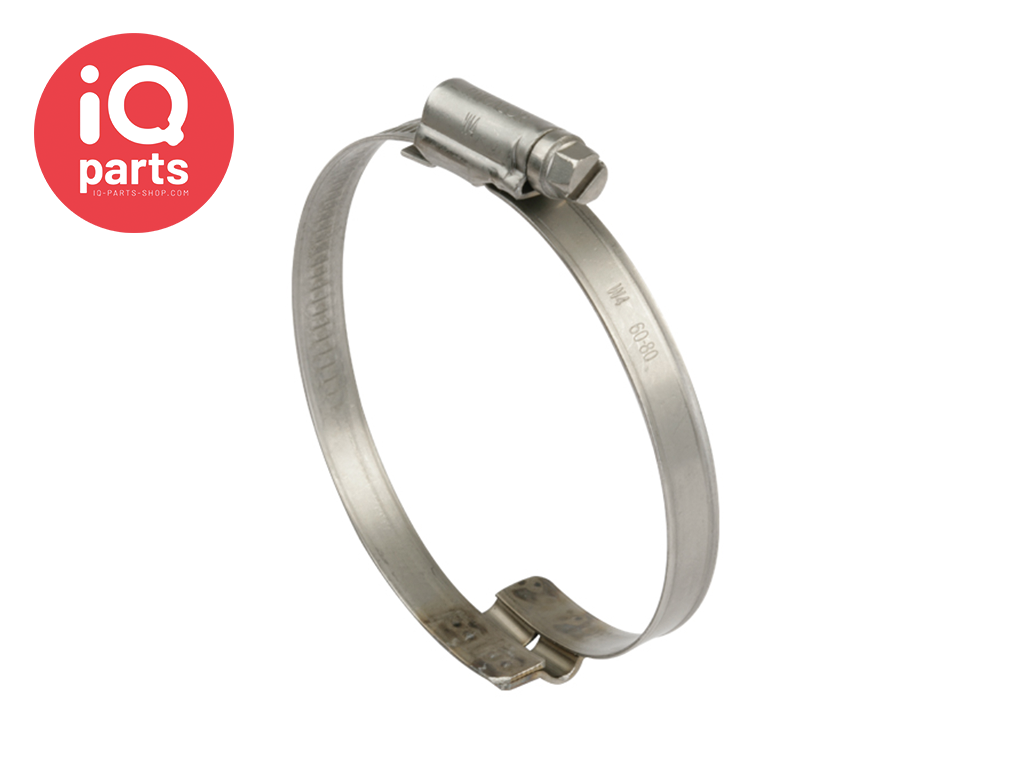

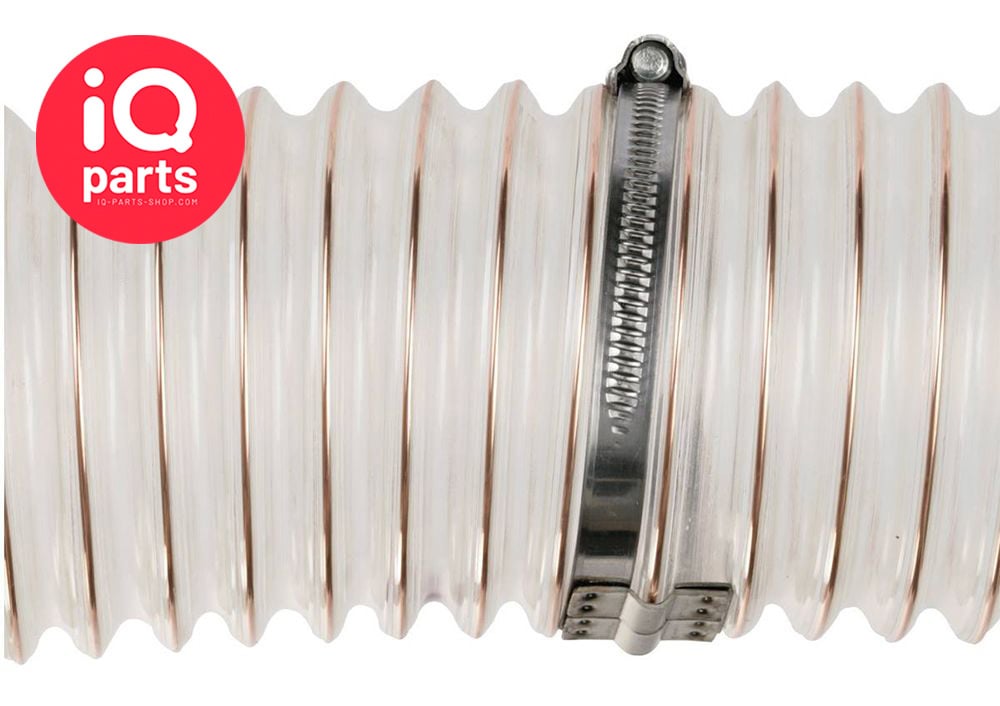

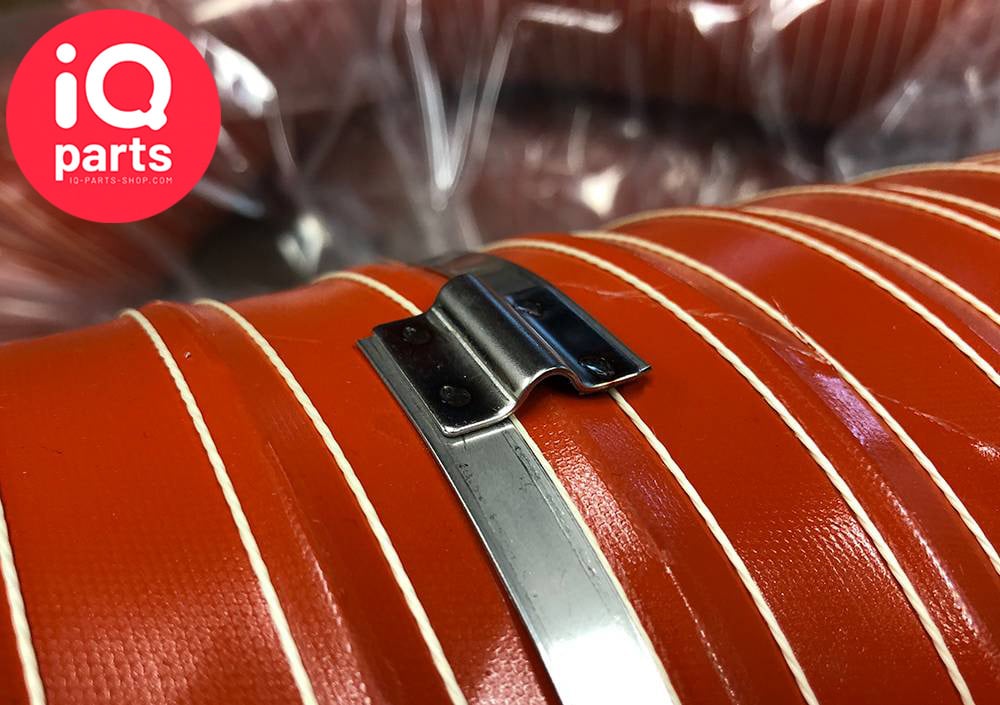

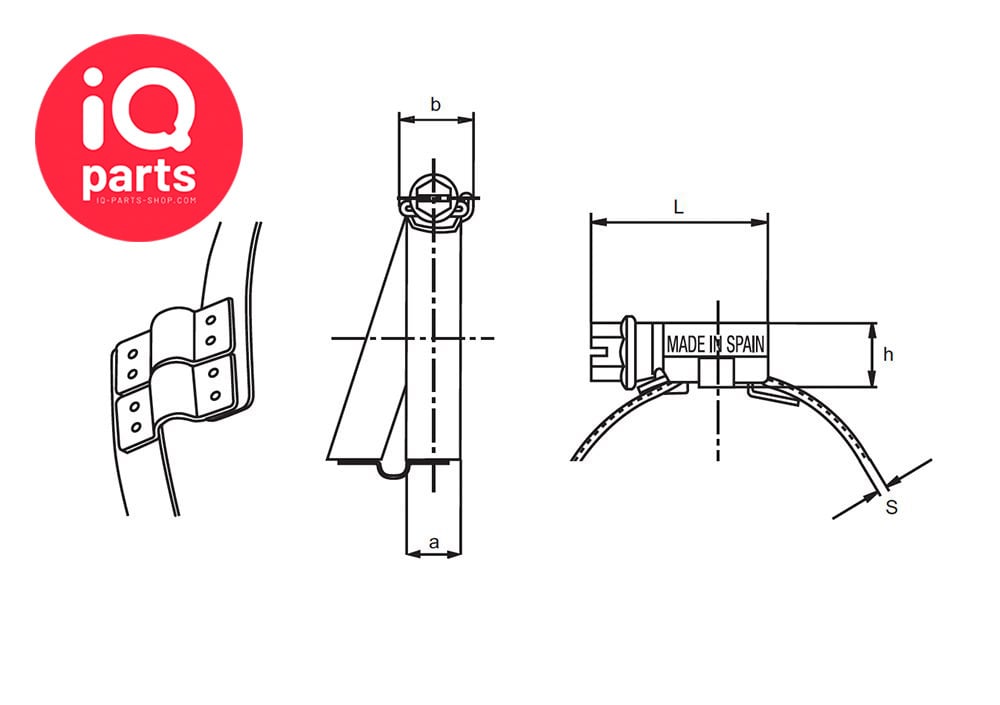

The Mikalor ASFA-L Bridge Clamp is a specially developed worm screw hose clamp that is suitable for extraction hoses and ventilation hoses that are provided with an outer spiral. The "bridge" installed in the clamp falls over the spiral, which perfectly seals the hose and hose clamp. There is no better solution.



Design according to DIN 3017. The stainless steel band is relatively thin and supple, yet strong, so that when tightening the clamp, it fits well around the circumference of the hose. The threads have been rolled cold in the outer circumference of the belt, so that the inside is completely flat. Moreover, the fastening of the housing to the belt is constructed in such a way that the inside of the belt is also hardly interrupted there. All this ensures a perfect connection to the hose circumference and a particularly good seal. To prevent damage to the hose, the belt edges have been turned outwards.

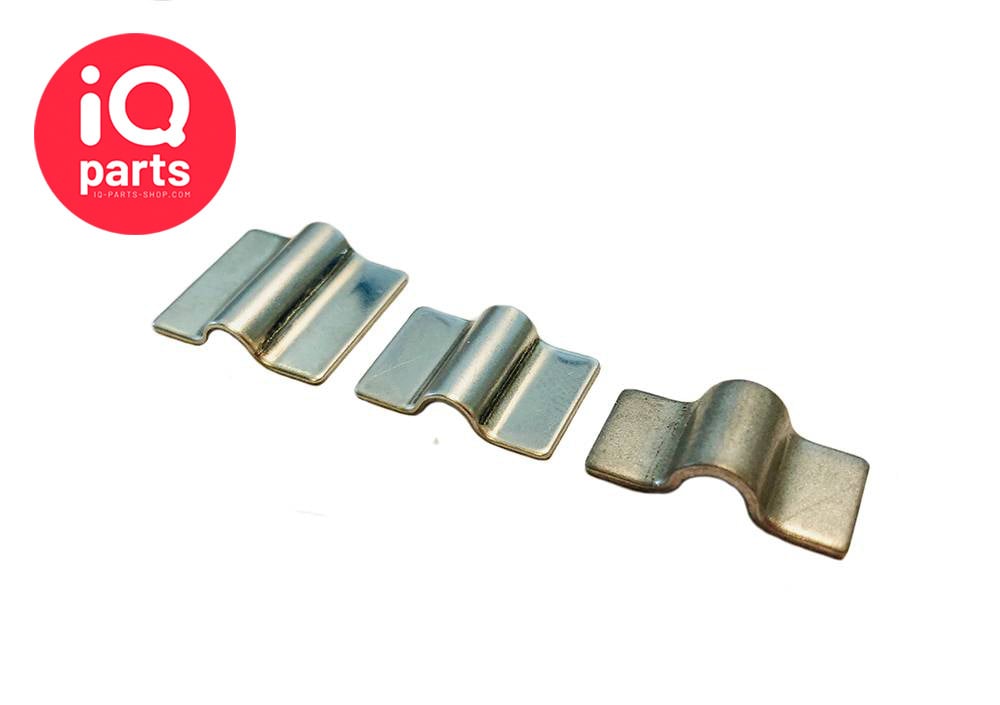

We have different sizes of bridges available, for a spiral diameter of Ø 4 and Ø 7 mm. Standard we use the bridge for a spiral diameter of Ø 4. If you have a thicker spiral on the hose, please contact us and we make a proposal for the right clamp with bridge.  The bridge clamp is supplied as standard with 1 bridge in sizes 32-50 mm to 140-160 mm.



The quality of this bridge clamp is W2, which means that the band is made of stainless steel (SS 430) and the housing and screw are made of galvanized steel.

We also offer the bridge clamp in W4 quality. In that case, all parts are made of stainless steel 304. Click HERE to go to the W4 bridge clamp.

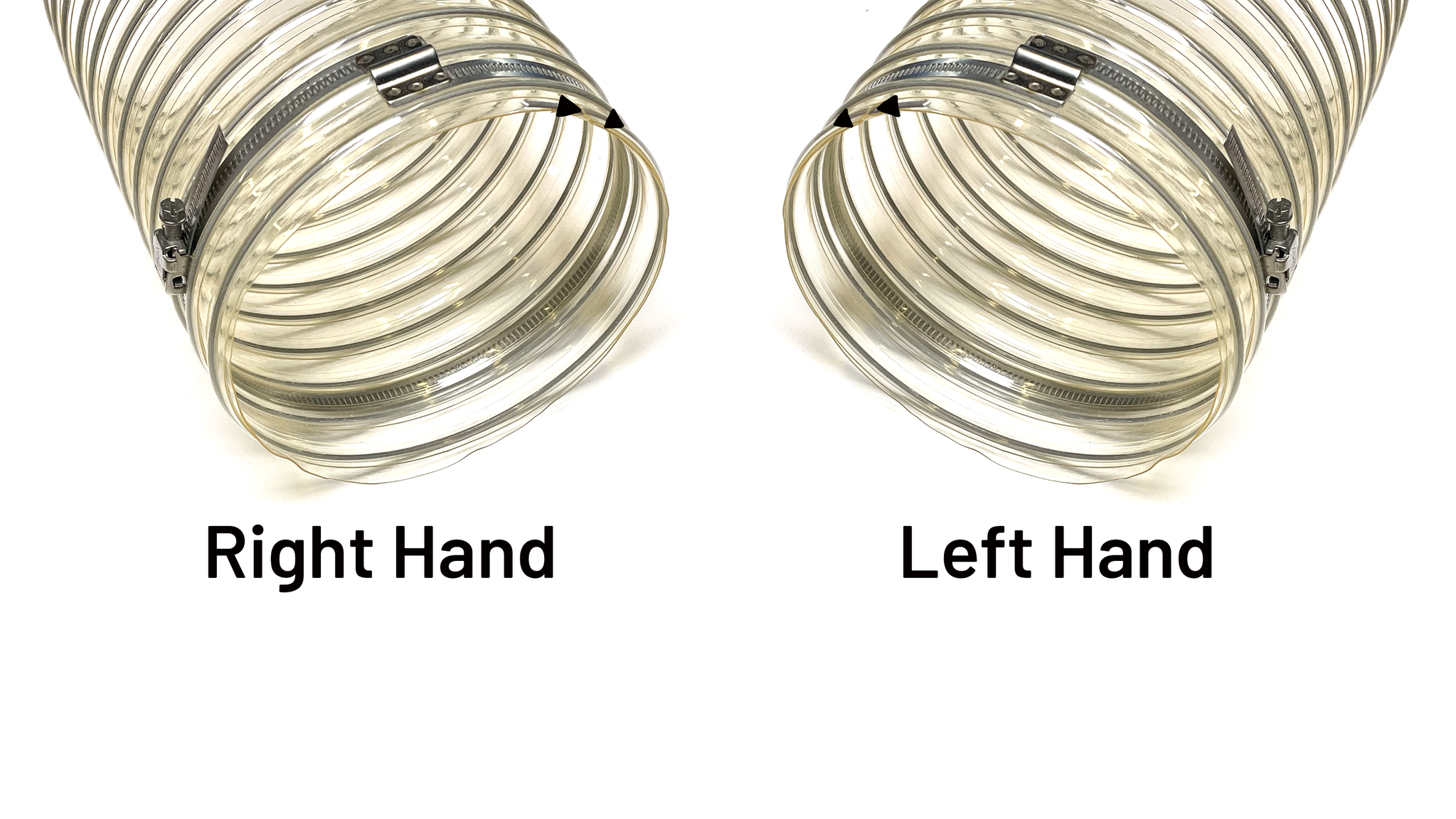

Most spiral hoses have a right-handed spiral and therefore require a right-handed bridge clamp. Look carefully at which direction the spiral of your hose rotates (see photo above) and choose the correct direction of rotation!!

• In W5 quality, Stainless Steel (AISI 316)
• Up to a diameter of 500 mm or larger.
• With an extra bridge section.

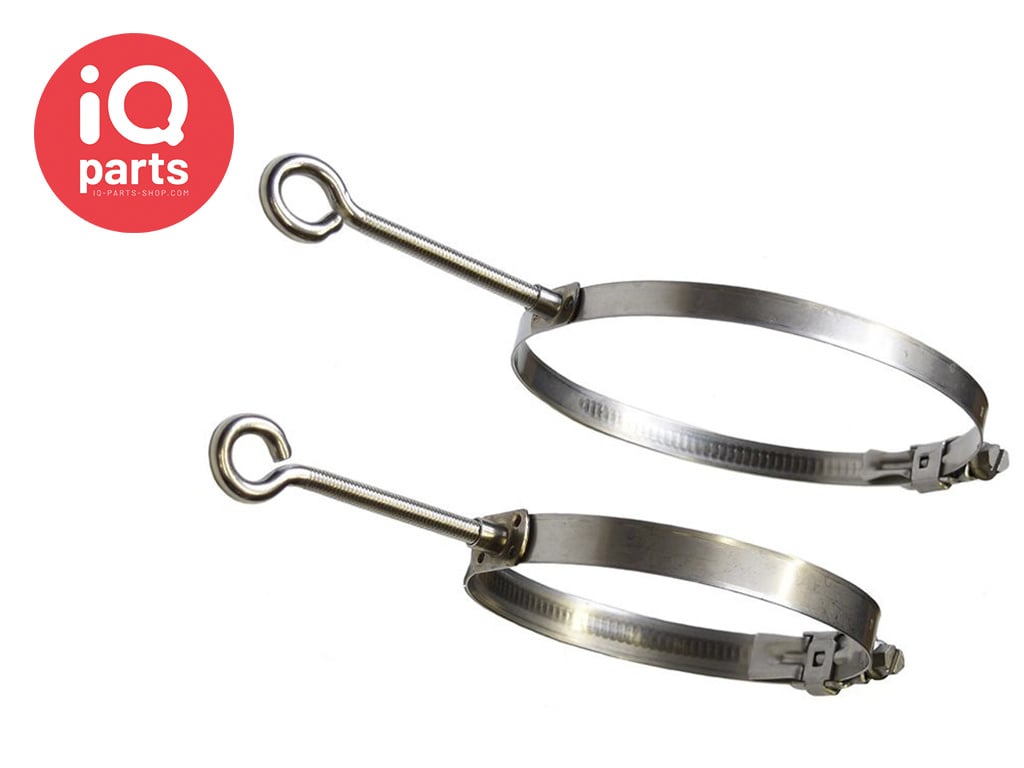

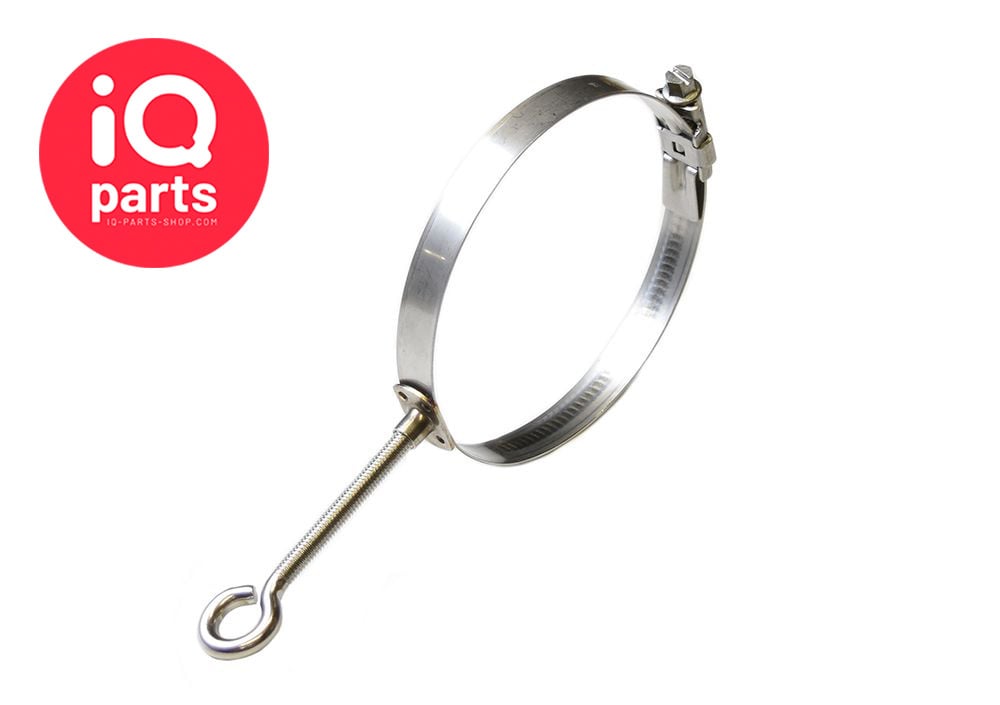

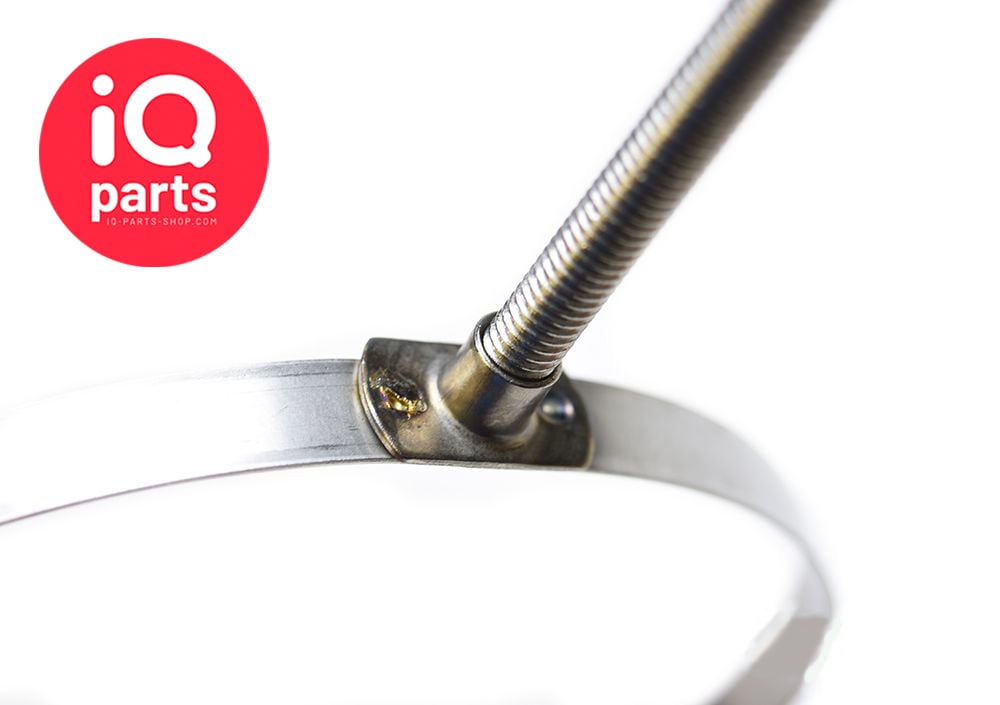

• With stainless steel hanging eye.
• With quick release.
• Equipped with M3 or M4 bolt for easy mounting to profile, wall etc.
• Equipped with Earth wire connection



All other versions are available on request.



Product code:

A1PD2540W2L - A1PD3045W2L - A1PD4060W2L - A1PD5070W2L - A1PD6080W2L - A1PD7090W2L - A1PD80100W2L - A1PD90110W2L - A1PD100120W2L - A1PD110130W2L - A1PD120140W2L - A1PD130150W2L - A1PD140160W2L
