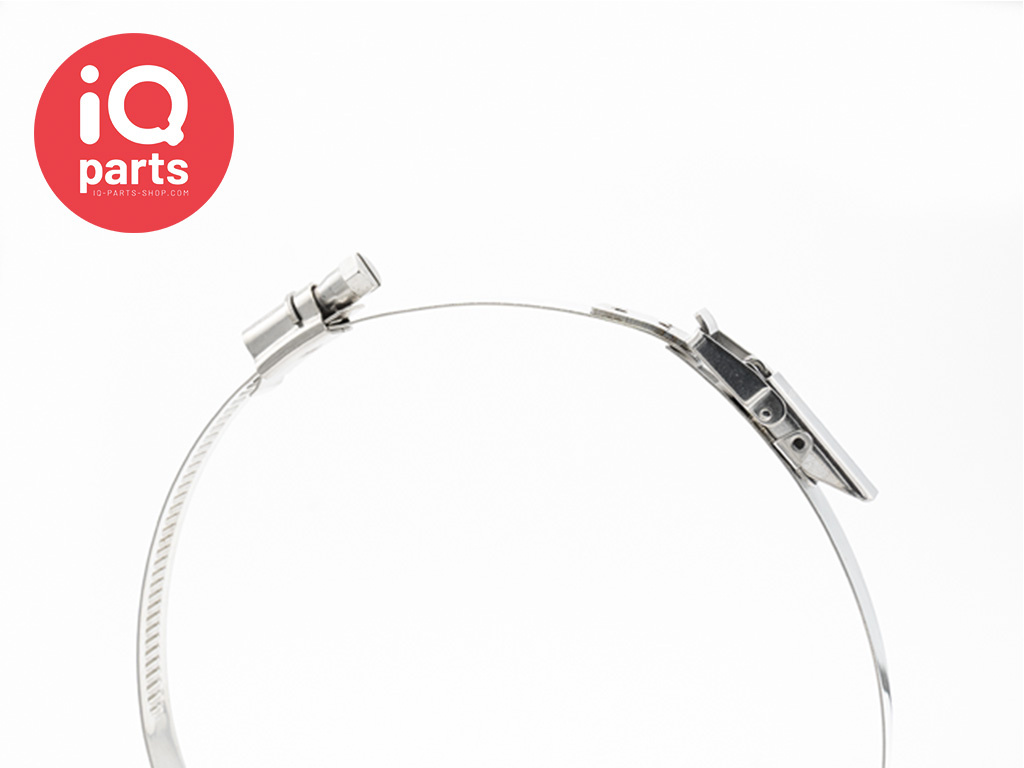

Ideal Maxi / Protex W5 - 20 mm wide Heavy-Duty Quick Release Clamp

€56,- €67,76 Incl. tax | €56,00 Excl. tax
(Unit price: €56,00 / Piece)
In stock
Delivery time: Orders before 14:00 same day shipment
Article number: IDL-MAX-W5-105-130-PTX
  • 2 years Guarantee
  • Delivery time: Orders before 14:00 same day shipment
Information

Ideal Maxi W5 (Stainless Steel AISI 316) - 20 mm wide Heavy-Duty hose clamp

New! Screw choice with with a six sided head SW13 mm, or: Hex Screw SW6 mm

Band dimensions;


Casing: Band thickness 1.50 mm

Selecting a 1.5-mm thick steel band gives you an IDEAL hose clamp with a secure connection of band and screw for transmitting high levels of force. In this way the best possible ultimate moments can be achieved with very little lost motion Combined with comparatively low friction and a worm-drive this gives rise to high clamping force.


Thread tapes: Band thickness 1.00 mm

Selecting a thickness of 1.00 mm allows the transmission of greater clamping force, which is derived from the particularly stable design of the engraved thread (which has been specially adapted to the special screw thread). At the same time, the materials selected ensure high elasticity and so are very well adapted to the shape of the external diameter of the hose.

Material quality;






W5



Band



:



Chrome-nickel steel material 1.4401





Casing



:



Chrome-nickel steel material 1.4401





Screw



:



Chrome-nickel steel material 1.4401





Screwhead shape



:



Slotted hexagon-head screw SW 13 mm

W5

All components made of Chrome-nickel-molybdenum steel (1.4401) (also known as V4A). Highest requirement as regards corrosion-resistance (sea-water proof). Difficult to magnetise.


Download PDF



Specifications
Bolt: SW 13 mm
Bandwidth: 20 mm
Tightening torque (Maximum): 18 Nm (Maximum)
Ideal Ideal Maxi / Protex  W5 - 20 mm wide Heavy-Duty Quick Release Clamp
