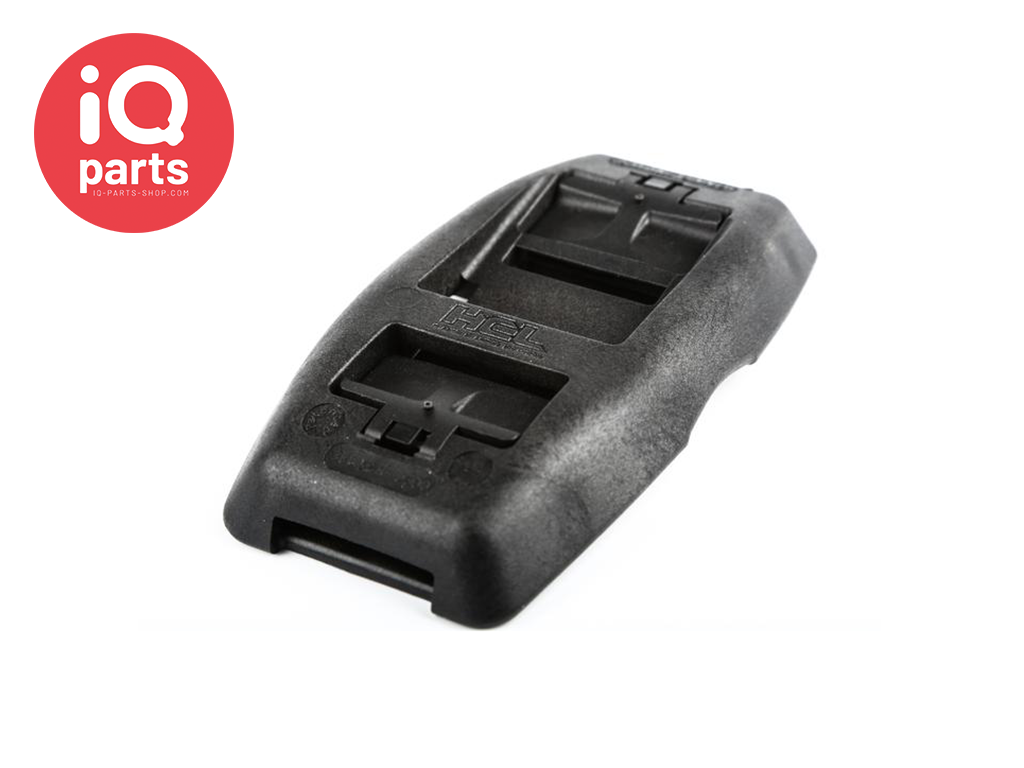

HCL Smart ® Band Hybrid Buckle 19 mm / POM
- Buy 25 for €4,60 each and save 20%
- Buy 100 for €4,03 each and save 30%
- Buy 250 for €3,45 each and save 40%
| Article number: | HCL-SB-BU-3/4-HY-POM |
| SKU: | SB-BU-3/4-HY-POM |
- 2 year warranty
- Delivery time: on request
- Customer service 09:00 - 17:00
HCL Smart ® Band Hybrid Buckle 19 mm / POM
Smart ® Band Hybrid | Low Profile Buckle to avoid snagging subsea | High Break strength up to 2344kgf (5166lbf) | choose long life material PA12 for 30+ years life | safe and easy to fit – no sharp edges | High speed pneumatic tools available providing less than 5 seconds per strap fitting time | comes in 100ft or 200ft reel lengths | can be cut to length with buckles pre-attached for larger volume inquiries | Very high retention force above 918kgf (1798lbf)
Smart ® Band Hybrid is HCL’s premium high strength composite polymer based band and buckle system. With a range of installation tools including the high speed 3000 pneumatic tool the Smart ® Band Hybrid is the ideal solution for many offshore & subsea applications including cable protection, Strake attachment & piggyback line installation
- Style: Hybrid
- Band Compatibility: 19mm POM
- Maximum system strength kgf / lbf: 1017 / 2238
- Minimum diameter mm / inch: 200.0 / 7.9
- Maximum temperature resistance °C / °F: 95 / 203
- Flammability Classification: HB
- Buckle height mm / inch: 14.8 / 0.58
- Buckle length mm / inch: 101.0 / 4.0
- Buckle width mm / inch: 55.0 / 2.17
- Material: POM
- Tool Compatibility: SM-FT-2000-19/SM-FT-1000-19/SM-FT-3000-19
