IQ-Parts - VCM12025 / VCMD12025 | Coupling Body | Panel mount | PTF Nut 4.0 mm (5/32") OD / 2.5 mm (0.10") ID

€30,98 Incl. tax
€25,60 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: IQ-Parts-VCMD12025
SKU: VCMD12025
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

IQ-Parts - VCM12025 / VCMD12025 | Coupling Body | Panel mount | PTF Nut 4.0 mm (5/32") OD / 2.5 mm (0.10") ID

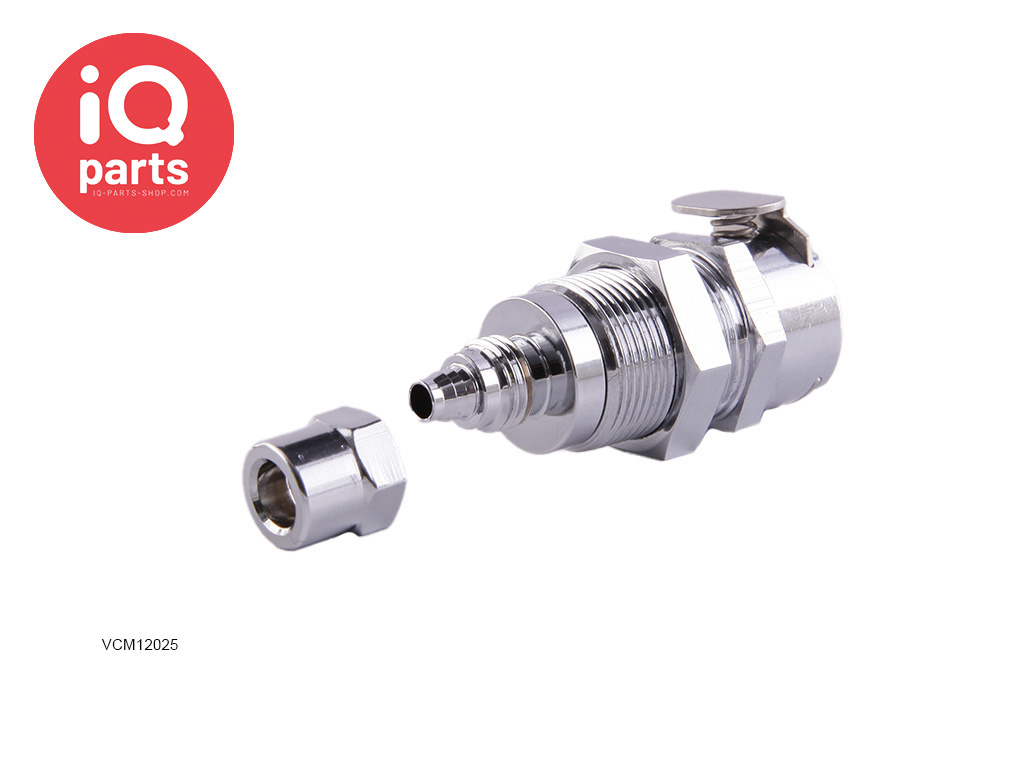

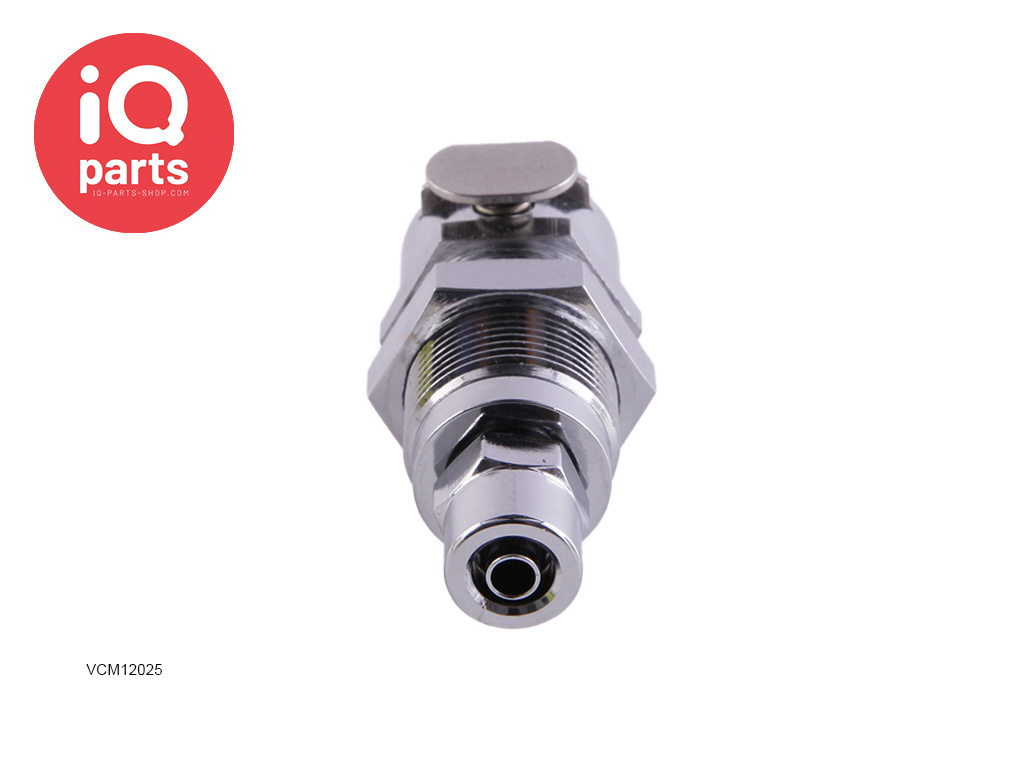

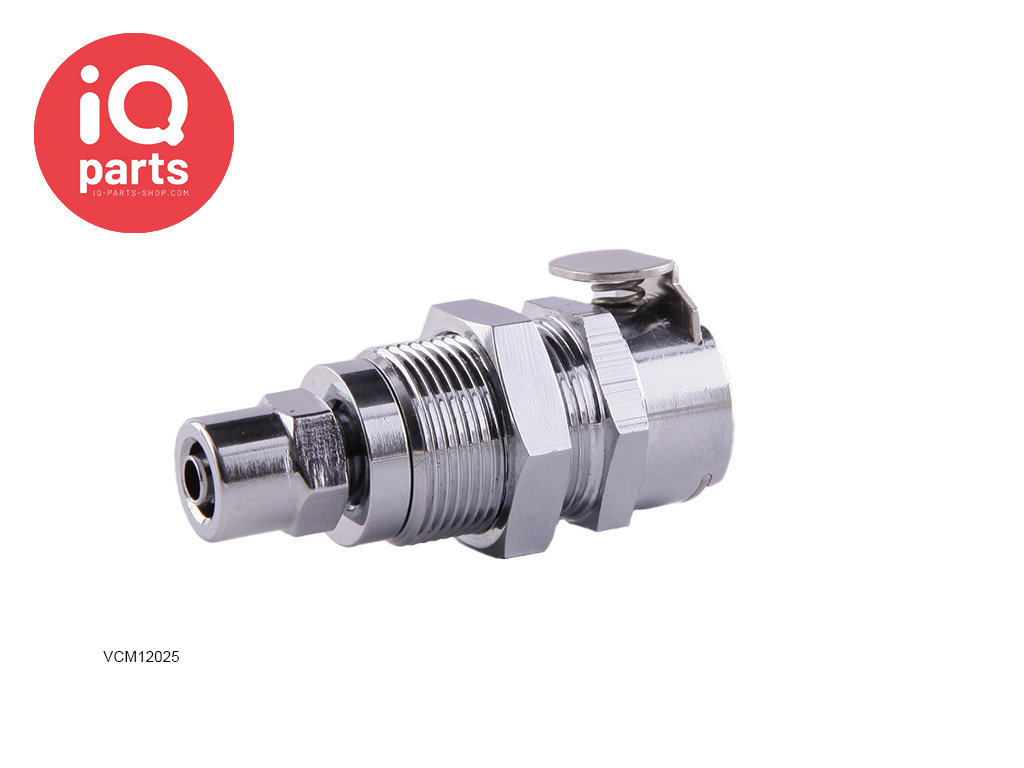

An in-line coupling of IQ-Parts from the VCM series with a 4.0 mm PTF Nut and suitable for panel mounting through the male thread and fastening nut.

IQ-Parts Ferruleless Polytube Fitting terminations (PFT) do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

This Coupling Body (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (VCMD12025) and without a valve (VCM12025). (Choose at the top right at "Make a choice:")

This coupling comes standard with a Buna-N (NBR) sealing ring, but

O-RING SELECTION IS A KEY DECISION in determining which connector will perform best in your specific application.Understanding the material characteristics and how they can be affected by both the media being transferred and the environment in which the connector is being used is important.

BUNA-N is the most common O-ring seal due to its solvent, oil and water resistance. Temperature range is -40°F to 250°F.

FKM (Viton) is best suited for applications where chemical and strong acid resistance and/or high temperatures are a requirement. The temperature range is -15°F to 400°F.

EPDM has excellent resistance to polar solvents. This O-ring is not compatible with petroleum. The temperature range is -70°F to 300°F.

SILICONE seals have good temperature resistance. The temperature range is -70°F to 400°F and with special compounds can reach 175°F to 450°F. Silicone can also be supplied with Class VI requirements for medical/bioprocessing applications.

CHOOSE WHICH O-RING YOU WANT AT THE TOP RIGHT

Properties of the coupling from the VCM series:
  • Brass Material
  • Chrome plating
  • Durable and able to withstand higher pressure and temperature
  • Attractive appearance
  • Versions rated to 204ºC
  • One-hand connection and disconnection
  • VCM mates with MC, PMC and PMC12 Series couplings of CPC

Possible Applications:
  • clean air systems
  • fermentation
  • papermaking
  • laser cooling systems
  • packaging systems
  • oxygen concentrator

Also very suitable for petrol systems with Viton O-sealing ring

General information about the VCM series:

IQ-Parts VCM Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the VCM Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the MC, PMC acetal and PMC12 polypropylene couplings of CPC. In addition, couplings are available that meet the requirements of the NSF standard.

For more technical information, see the PDF.

  • Material: Chrome-plated brass
  • Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: Buna-N (NBR)
  • Vacuum up to 17.3 bar (250 PSI)
  • Temperature range: -40ºC to 82ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]




Specifications
Medium: Liquid / Air
Operating Pressure: 17,3 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Chrome-plated brass
Size: 1/8" flow
Connection: In-line coupling
Seal: Choose at the top right
Hose connection: 4.0 mm (5/32") OD / 2,5 mm (0.10") ID
Weight: --
IQ-Parts IQ-Parts - VCM12025 / VCMD12025 | Coupling Body | Panel mount | PTF Nut 4.0 mm (5/32") OD / 2.5 mm (0.10") ID
