TruDesign - T- Connector | Threaded 1x Male / 2x Female | Nylon (Fiberglass reinforced) | BSP

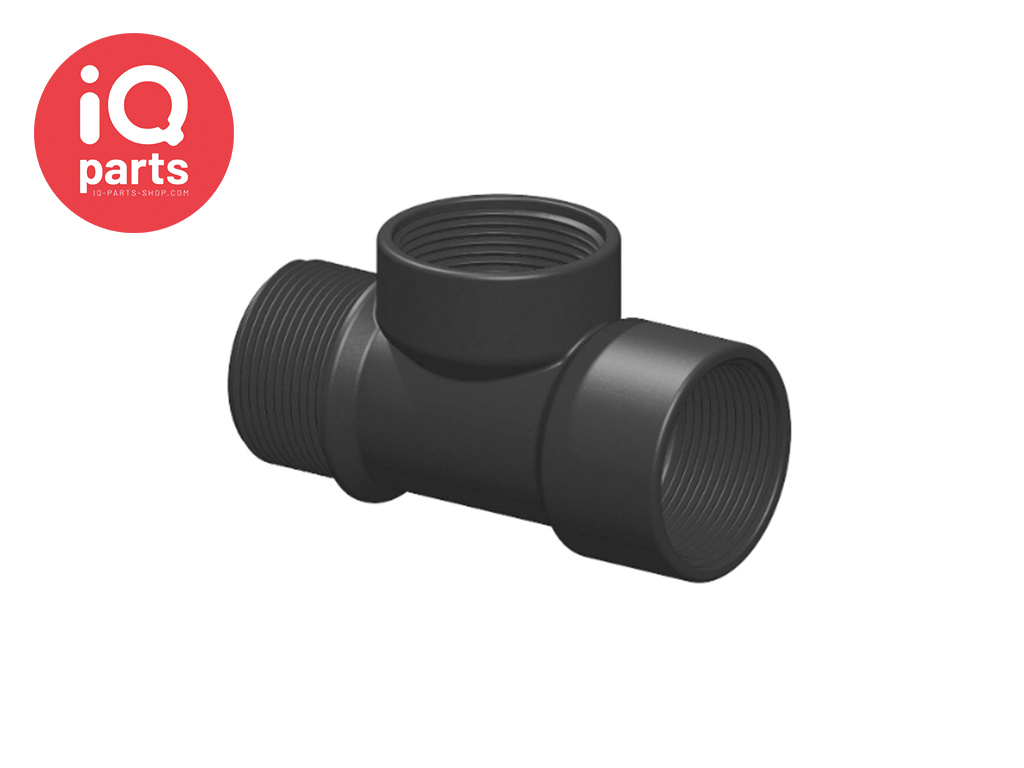

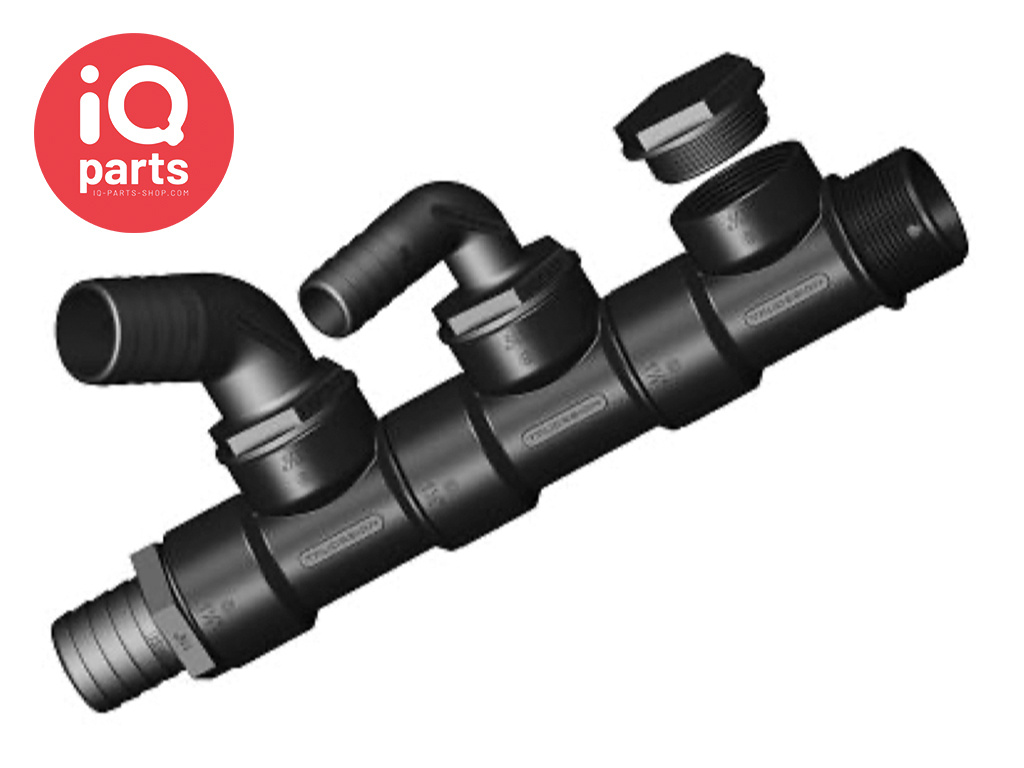

The 1½" Threaded T-Piece / Universal Manifold features 2x Female threads and 1x Male thread enabling them to be joined together to create manifolds - useful for multiple hose connections to a single Ball Valve & Thru-hull fitting. The centre female thread is shorter and designed for use with Aquavalve Tails (Straight, 90°, and 120°) giving the option of tail sizes from 19mm up to 38mm. The Plug, or Threaded Connector can also be used in the centre connection.



All Aquavalve Tails that are used with the T-Piece do not face-seal using the Red or Blue washer as they do when used in Aquavalves. Instead, use a suitable thread sealant or PTFE tape to seal threads. The 1½" Male and Female threads at each end are also parallel and are designed to seal through the use of a suitable sealant or PTFE tape allowing any orientation of the two joined parts. Do not over tighten!



The TruDesign connectors are molded from fiberglass-reinforced Nylon 6 composite.

This makes them strong, light, and rigid. A versatile connector for above the waterline.

The connectors are designed to be extremely resistant to high loads.



1½” Male Thread + 1½” Female Thread --> 1½” Female Thread BSP





We recommend using tape or glue for installation. See the installation manual for detailed installation information.



Trudesign supplies a wide range of products for the maritime sector. They are known for their high quality. You'll likely find many Tru Design products on your boat.

All products are manufactured in New Zealand using the latest, highly impact-resistant composite plastic materials. These are designed to meet the demands of the modern boating industry and comply with strict ISO marine standards.



General product information:



Installation manual:



Product code:

90893

9421007123539
