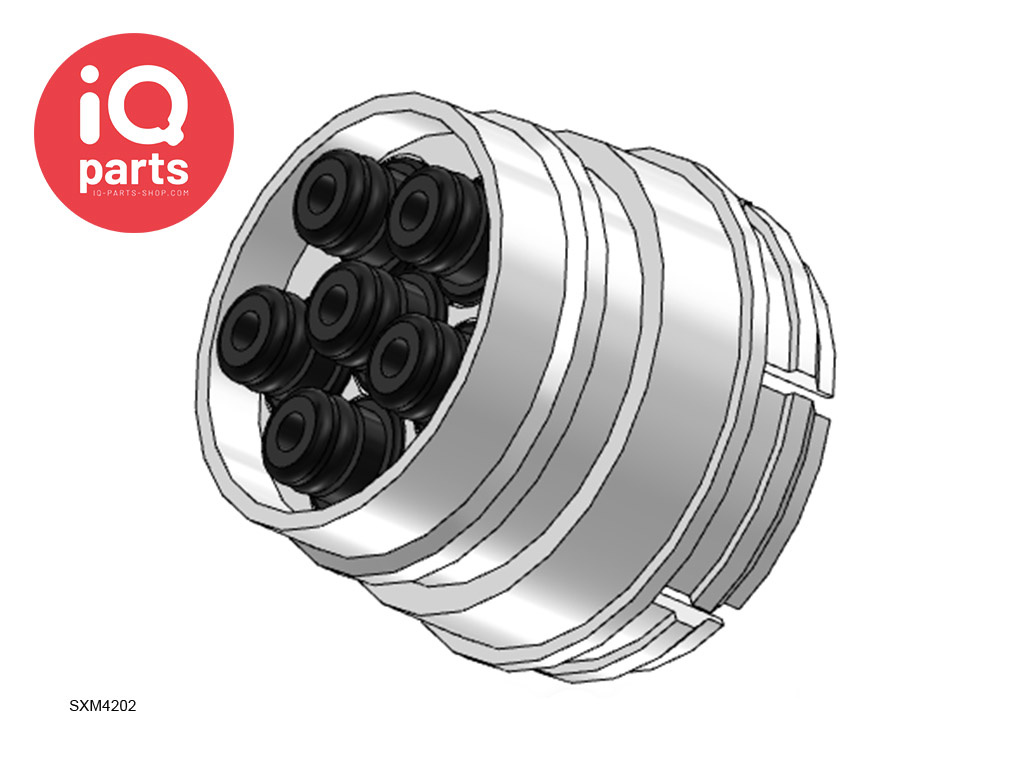

CPC - SXM4202 | Coupling Insert 6 tubes | Acetal | 3,2 mm (1/8") Hose barbs

€22,53 Incl. tax
€18,62 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-SXM4202
SKU: SXM4202
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information

CPC - SXM4202 | Coupling Insert 6 tubes | Acetal | 3,2 mm (1\8") Hose barbs


An in-line coupling of CPC from the Sixtube™ -series with 3,2 mm Hose barbs. This quick coupling (male) ensures a leak-free seal and is made of Acetal. This coupling is only available without a valve (SXM4202).

The Sixtube™ coupling provides one easy-to-use quick disconnect for up to six separate fluid lines. The Sixtube is available with valves on either side for maximum design flexibility. Featuring the CPC thumb latch, the Sixtube can disconnect up to six lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.

Characteristics and benefits:
  • Connect up to 6 hoses, quickly connect and disconnect.
  • Separate flows, pressure or vacuum in 1 coupling.
  • Coupling possible in one way, makes sure to connect the correct hoses
  • Includes 1 release button, one-hand operation for 6 hoses.

Materials:
  • Main components: Acetal (Also available in ABS and Polypropylene)
  • Valve: Acetal
  • Valve Spring: AISI 316 Stainless Steel (W5)
  • External springs and pin: Stainless Steel
  • 0-ring: Buna-N

Specifications:
  • Working pressure: vacuum up to 6,9 bar (100 PSI)
  • Operating Temperature: -40ºC to 82ºC (Acetal) and  0ºC to 82ºC (Polypropylene)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Chemicals
Operating Pressure: 6,9 bar Vacuum
Temperature range: -40° C to +82° C (Acetal) | 0° C to +82° C (Polypropylene)
Material: Acetal
Size: --
Connection: In-line Coupling Insert
Seal: BUNA-N (NBR, Nitrile Rubber)
Hose connection: 3,2 mm (1/8") Inner diameter
Weight: --
