CPC - SMF01 / SMFD01 | Coupling Body | Acetal | Hose Barb 1,6 mm (1/16")

€12,20 Incl. tax
€10,08 Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: 2 - 3 weeks
Article number: CPC-SMFD01
SKU: SMFD01
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information

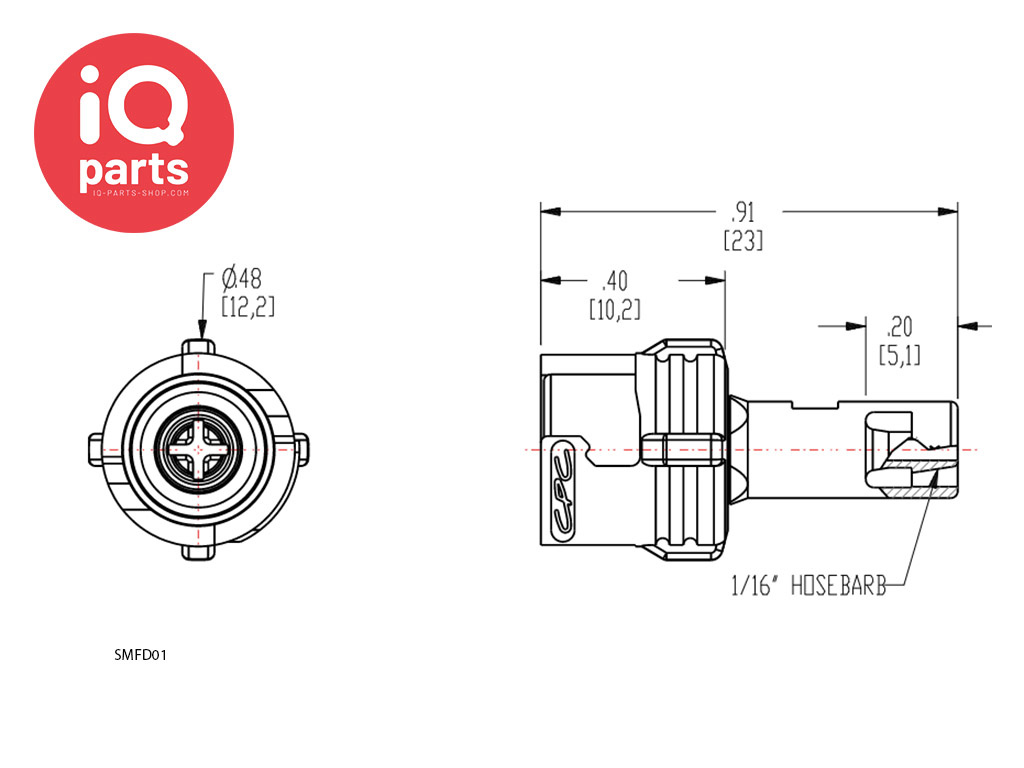

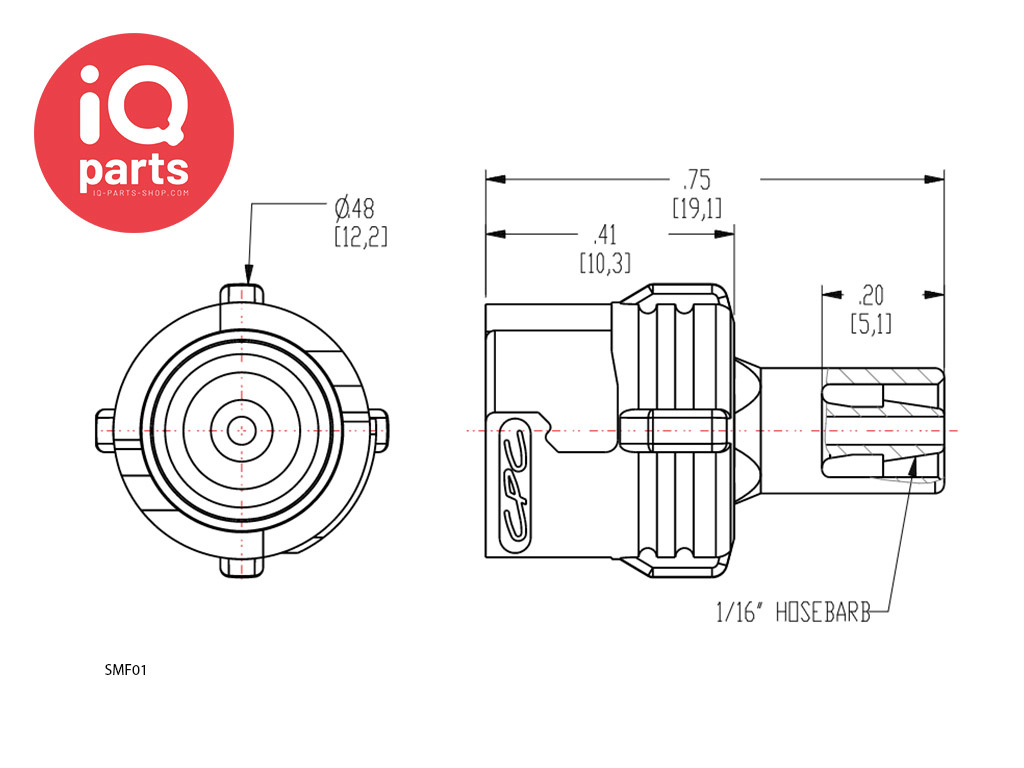

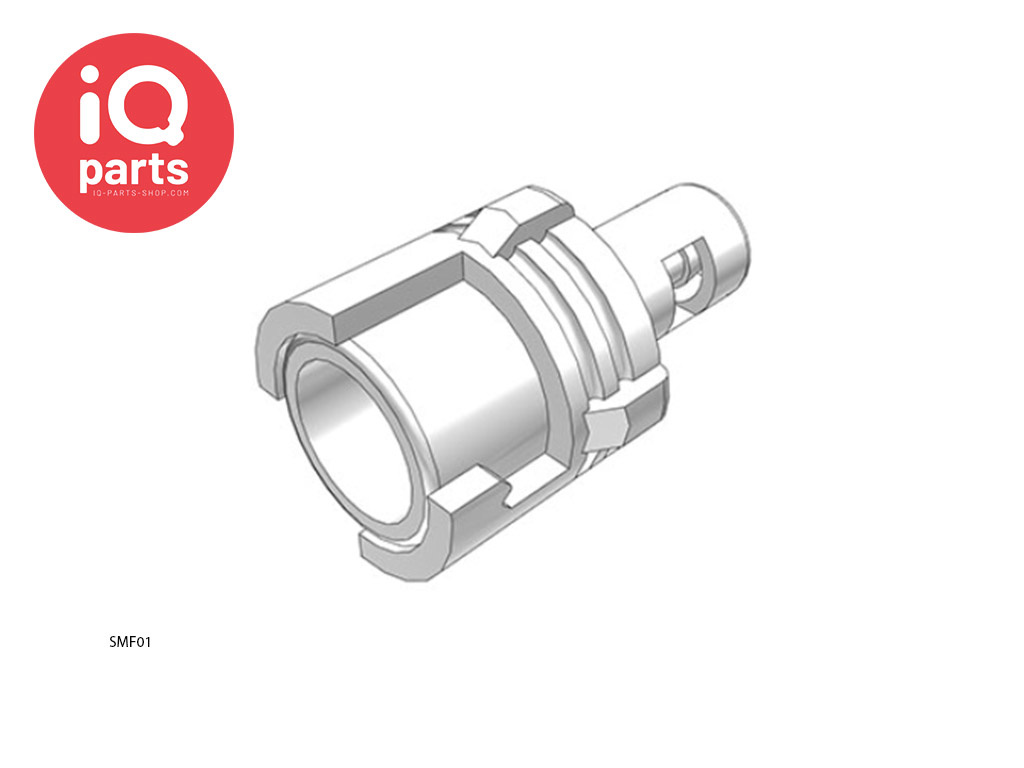

CPC - SMF01 / SMFD01 | Coupling Body | Acetal | Hose Barb 1,6 mm (1/16")


An in-line coupling body from CPC from the SMC series with a 1,6 mm hose barb. This quick coupling body (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (SMFD01) or without a valve (SMF01). (Choose at the top right at "Make a choice:")

On request also in Molded Black Acetal available ! (-MBLK)

Properties of the coupling from the SMC series:
  • The smallest couplings from CPC
  • Fast and secure twist-to-connect coupling
  • Freely rotation when connected
  • Available in various materials
  • Prevents kinking of the hoses
  • Cheap, safe and easy to expand

Applications:
  • Inkjet printers
  • Blood Pressure Cuffs
  • cool suits
  • gas chromatographs
  • Photo developers
  • particle counters

General information about the SMC series:
These twist-to-connect couplings provide a reliable and safer alternative to luer-type connections. They also allow the hoses to rotate freely when connected. This important feature prevents both kinked hoses and accidental disconnection during use.The SMC series is also available with optional RFID (Radio Frequency Identification) capability and in polycarbonate. For more technical information, see the PDF.
  • Available in various materials: ABS, Acetal, Chrome-plated brass, Polypropylene
  • Available in various sizes: from 1.6mm to 3.2mm and 5.0mm ID (1/16” to 1/8” ID)
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with hose barb, threaded connection (1\8 NPT) or Panel Mount
  • O-rings available in various materials (Buna-N for Acetal and ABS, EPDM for Polypropylene)
  • Vacuum up to 6.9 bar (100 PSI)
  • Temperature range: -40ºC to 82ºC (Acetal, Chrome-plated brass), 0ºC to 82ºC (Polypropylene), -40ºC to 71ºC (ABS)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air
Operating Pressure: 6,9 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Acetal
Size: --
Connection: In-line coupling
Seal: Buna-N (NBR)
Hose connection: 1,6 mm (1/16") Inner diameter
Weight: --
CPC CPC - SMF01 / SMFD01 | Coupling Body | Acetal | Hose Barb 1,6 mm (1/16")
