RTC Quick Coupling | Hose Barb | With valve | Type 090 | DN 09
Brand:
RTC
| Article number: | RTC-THCSK09009 |
| SKU: | 090.09 SHB 09 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
RTC Quick Coupling | Hose Barb | With valve | Type 090 | DN 09

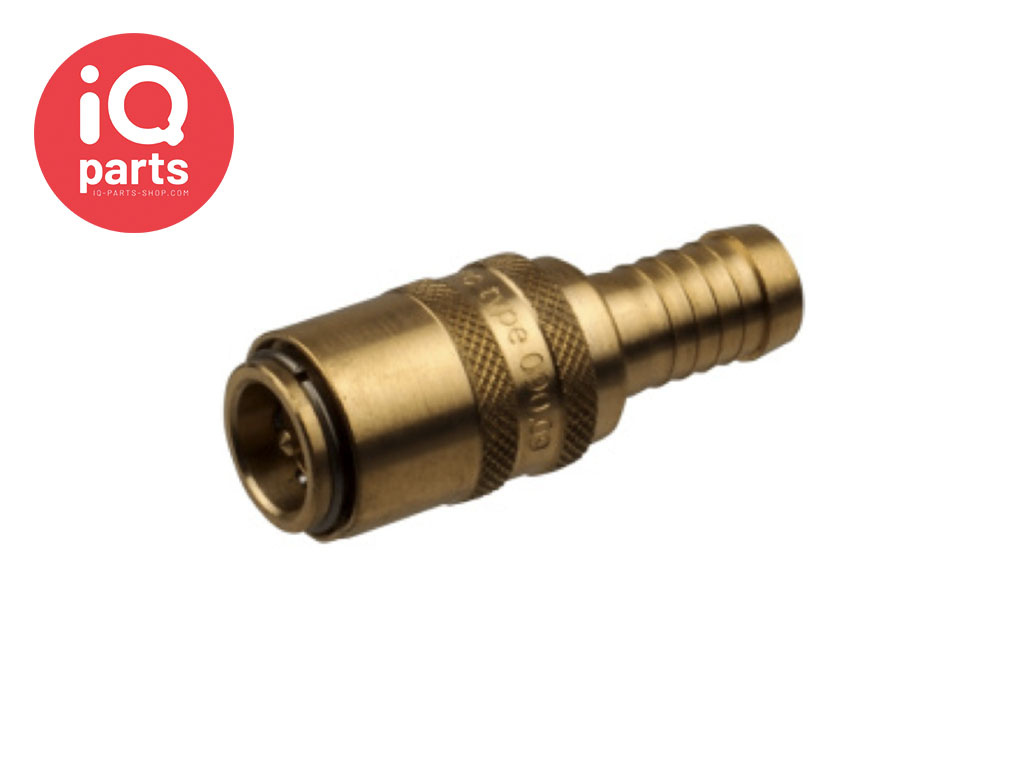

A straight quick coupling with standard or Push to connect hose barb and check valve with a flow of 9 mm for mounting on the machine side.
General description:
This quick coupling of RTC type 090 ensures a quick and safe connection of your (cooling) hoses. They are mainly used in machines with molds for cooling the moulds.

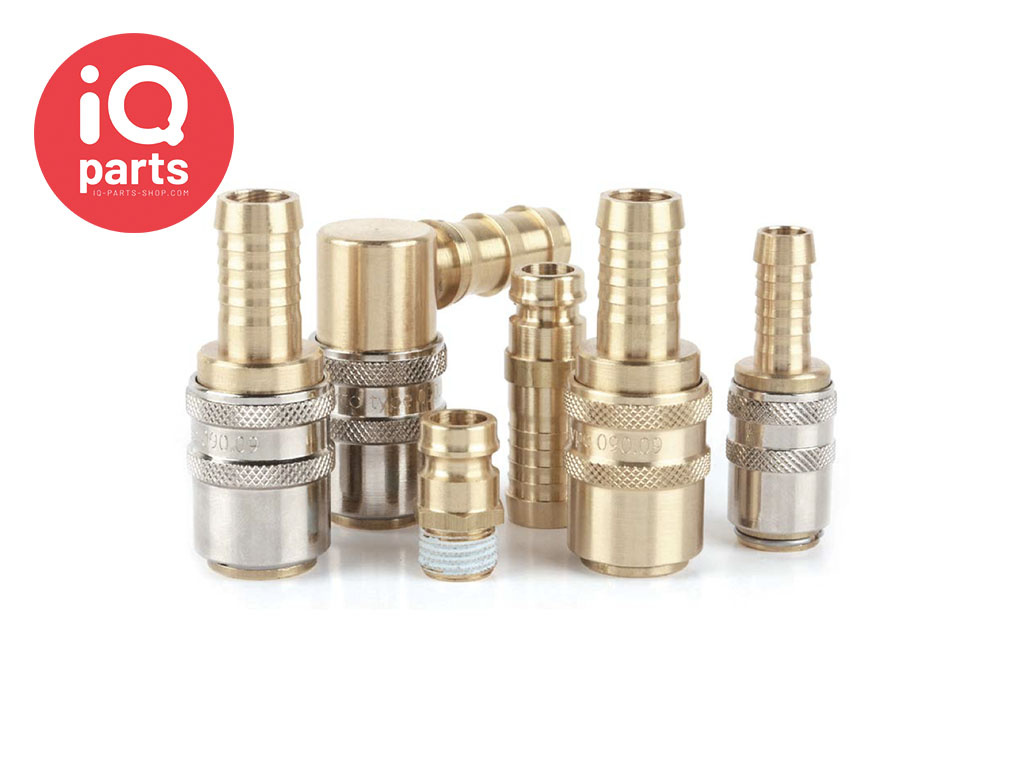

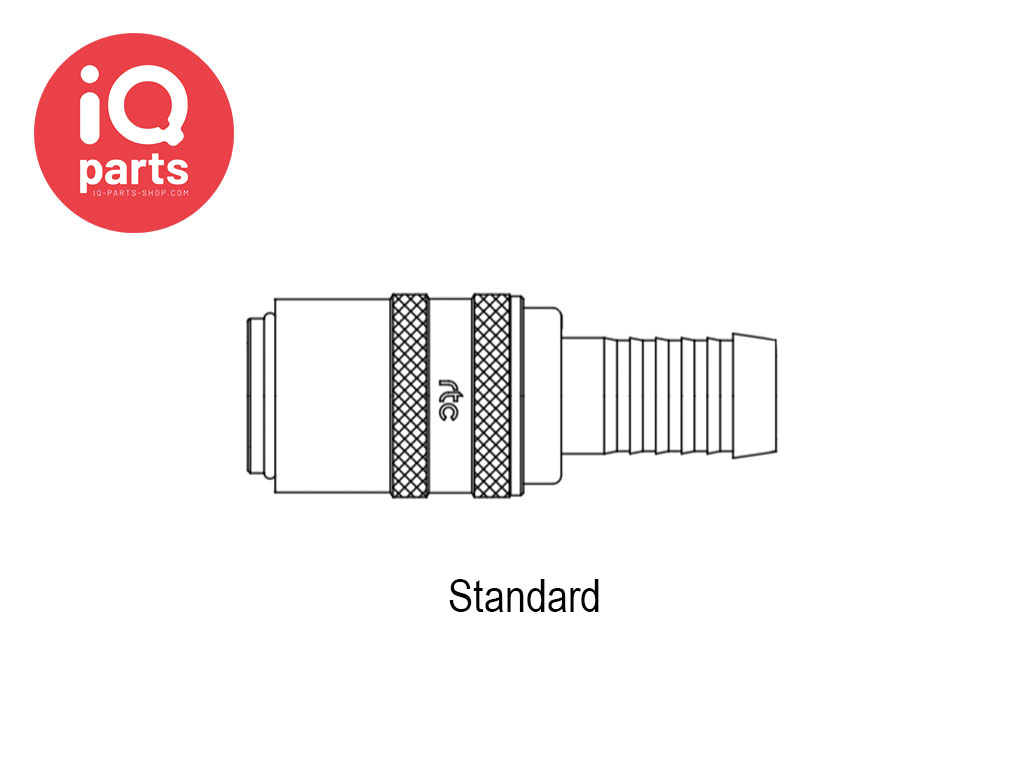

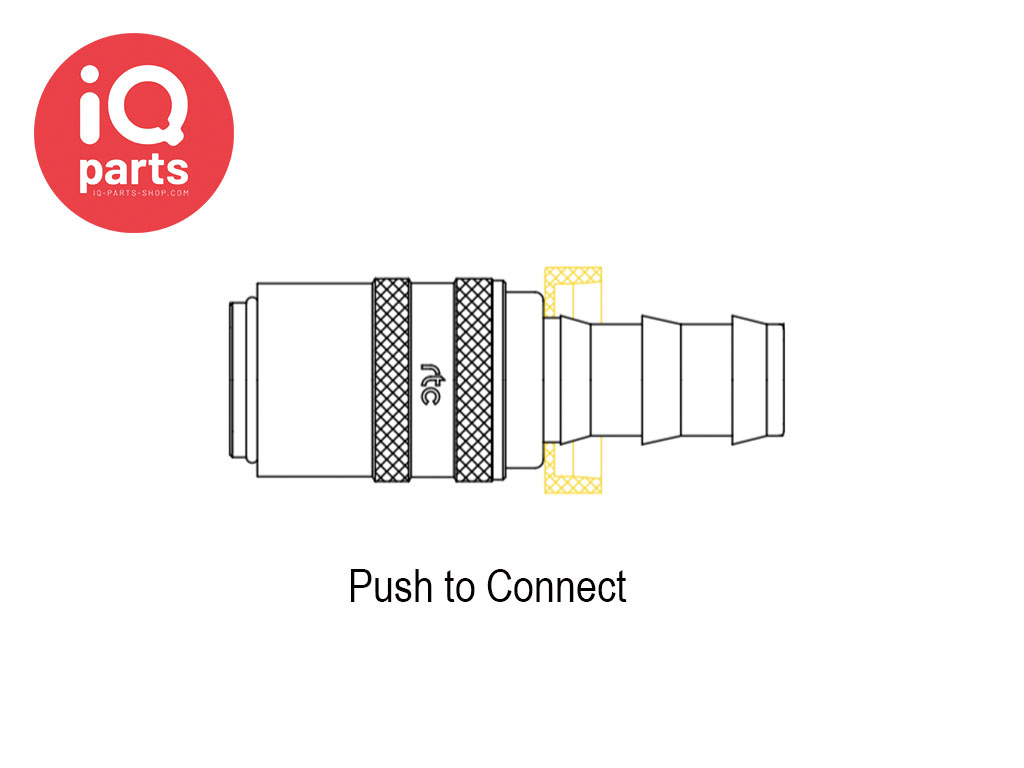

The couplings are available with a standard hose connection (use of a hose clamp is recommended), with a Push to connect hose barb for the use of Rubber hoses, PVC hoses, Polyurethane (PU) hoses and Nylon hoses or with a male or female thread.
When choosing a hose, make sure it matches the fitting size, pressure rating and material compatibility for the fluid being conveyed.
The couplings are also available without a check valve. CLICK HERE
Applications:
- Cold water
- Cooling water (mould)
- Thermal oil
- Liquids
Specifications:
- Interchangeable with, among others, HASCO, German profile
- Coupling on the machine side
- Plug-in nipple on the mold side
- Application: Mold coupling
- Media: hot/cold water, oil, LD steam
- Temperature -10° to 180°C
- Working pressure: 15 bar
- Clutch housing material: Brass
- Material sleeve without check valve: Nickel-plated brass
- Material sleeve with check valve: Brass
- Seal material: FPM (standard)
- Material balls and spring: stainless steel
- Plug-in nipple material: Brass
Options:
- External thread PTFE coated
- Disconnection protection (S)
- Stainless steel
Product code:
THCSK09009 - THCSK09010 - THCSK09013 - THCSK090FG10 - THCSK090FG13
090.09 SHB 09 - 090.09 SHB 10 - 090.09 SHB 13 - 090.09 SPB 10 - 090.09 SPB 13
Specifications
| Orifice: | DN 09 |
| Material: | Brass & SS |
| Sealing: | FPM (Other materials also available on request) |
| Air Pressure: | Max. 15 Bar |
