RTC Quick Coupling | Cylindrical female thread | With valve | Type 090 | DN 09
Brand:
RTC
| Article number: | RTC-THCSK090DG13 |
| SKU: | 090.09 SFB 13 |
- 2 year warranty
- Delivery time: 1 week after order date
Information

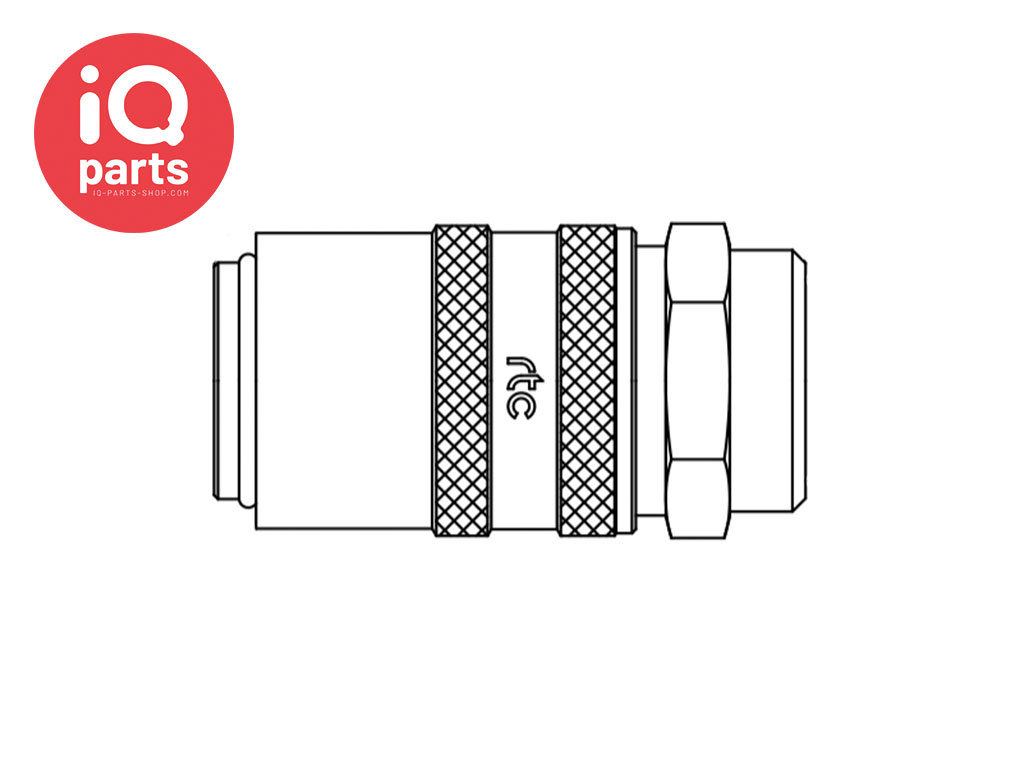

RTC Quick Coupling | Cylindrical female thread | With valve | Type 090 | DN 09
A straight quick coupling with Cylindrical female thread and check valve with a flow of 9 mm for mounting on the machine side.
General description:
This quick coupling of RTC type 090 ensures a quick and safe connection of your (cooling) hoses. They are mainly used in machines with molds for cooling the moulds.

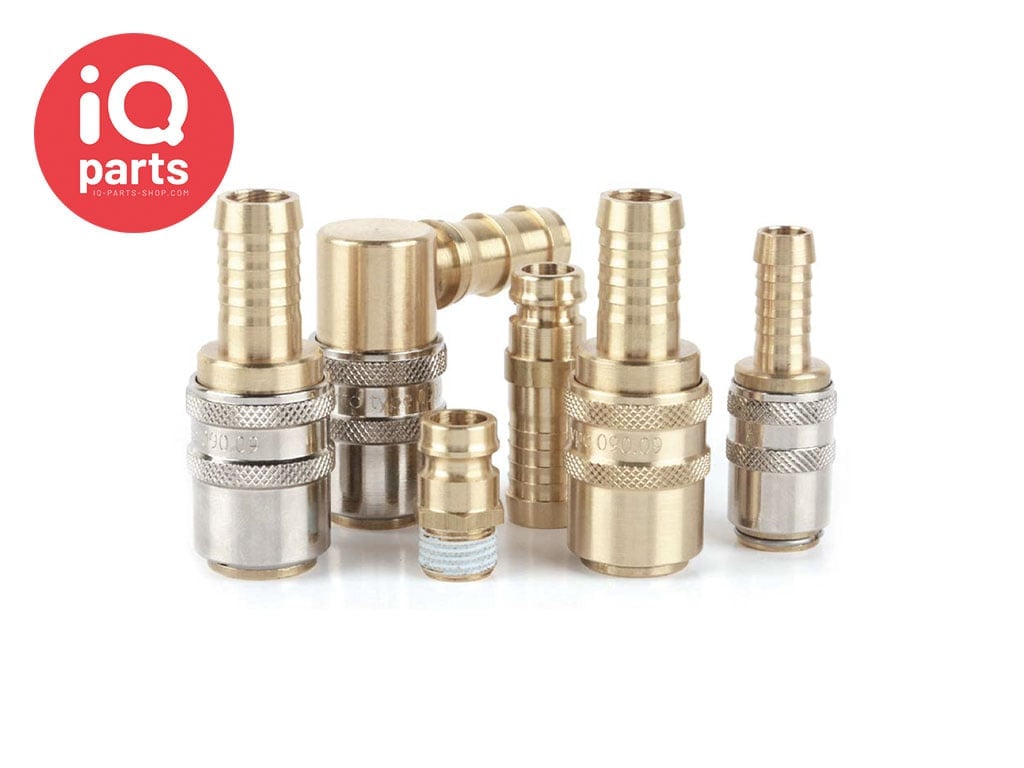

The couplings are available with a standard hose connection (use of a hose clamp is recommended), with a Push to connect hose barb for the use of Rubber hoses, PVC hoses, Polyurethane (PU) hoses and Nylon hoses or with a male or female thread.
When choosing a hose, make sure it matches the fitting size, pressure rating and material compatibility for the fluid being conveyed.
The couplings are also available without a check valve. CLICK HERE
Applications:
- Cold water
- Cooling water (mould)
- Thermal oil
- Liquids
Specifications:
- Interchangeable with, among others, HASCO, German profile
- Coupling on the machine side
- Plug-in nipple on the mold side
- Application: Mold coupling
- Media: hot/cold water, oil, LD steam
- Temperature -10° to 180°C
- Working pressure: 15 bar
- Clutch housing material: Brass
- Material sleeve without check valve: Nickel-plated brass
- Material sleeve with check valve: Brass
- Seal material: FPM (standard)
- Material balls and spring: stainless steel
- Plug-in nipple material: Brass
Options:
- External thread PTFE coated
- Disconnection protection (S)
- Stainless steel
Product code:
THCSK090DG13 - THCSK090DG17 - THCSK090DG21 - THCSK090DGM16
090.09 SFB 13 - 090.09 SFB 17 - 090.09 SFB 21 - 090.09 SFB 1615
The product photos shown are for illustrative purposes only and no rights can be derived from them. If you are unsure about the correct version or size, please refer to the attached PDF or contact our customer service.
Specifications
| Orifice: | DN 09 |
| Material: | Brass & SS |
| Sealing: | FPM (Other materials also available on request) |
| Air Pressure: | Max. 15 Bar |
