RTC Quick Coupling 90º | Cylindrical male thread | With valve | Type 090 | DN 09

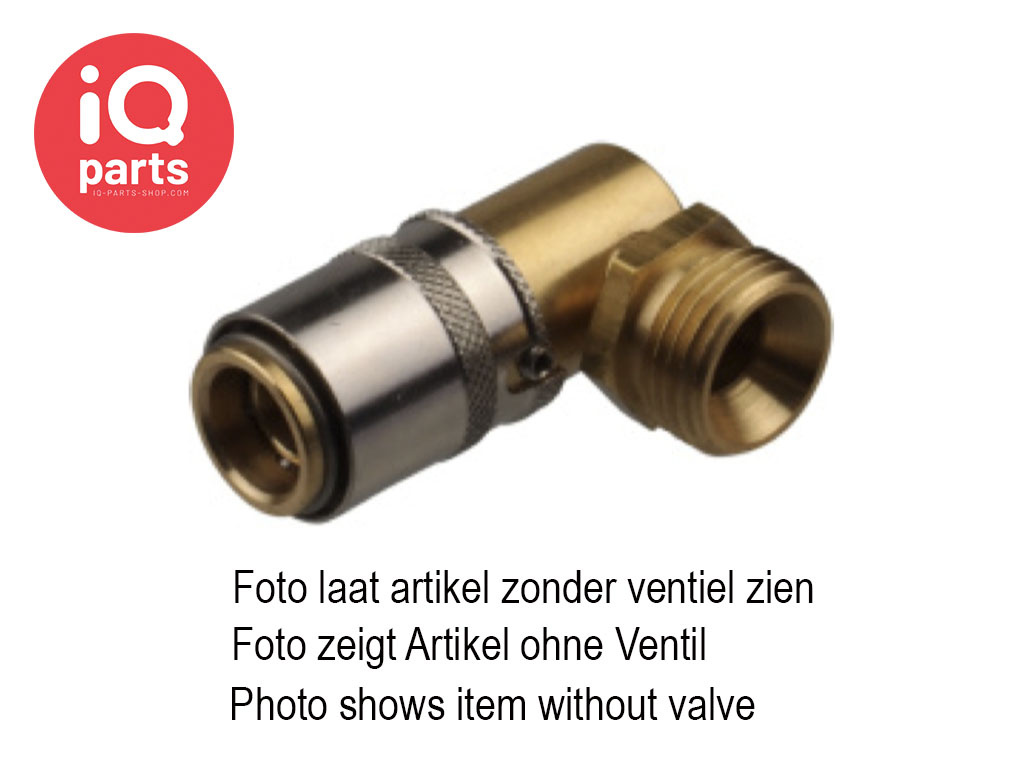

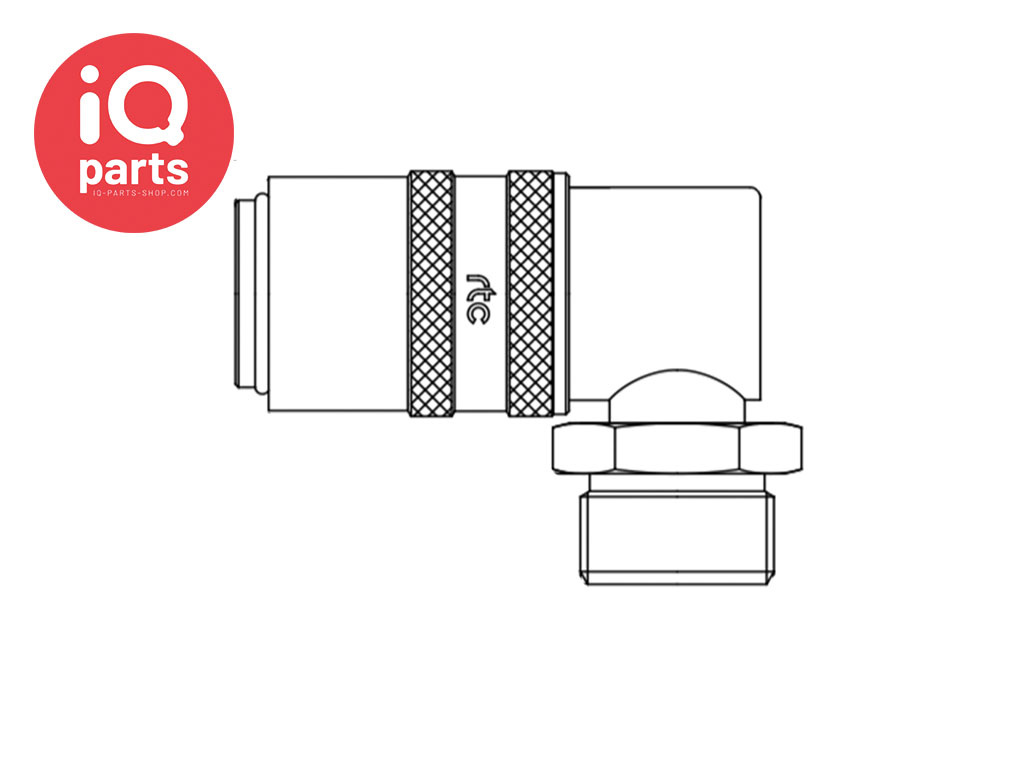

A 90º quick coupling with Cylindrical male thread and check valve with a flow of 9 mm for mounting on the machine side.

General description:

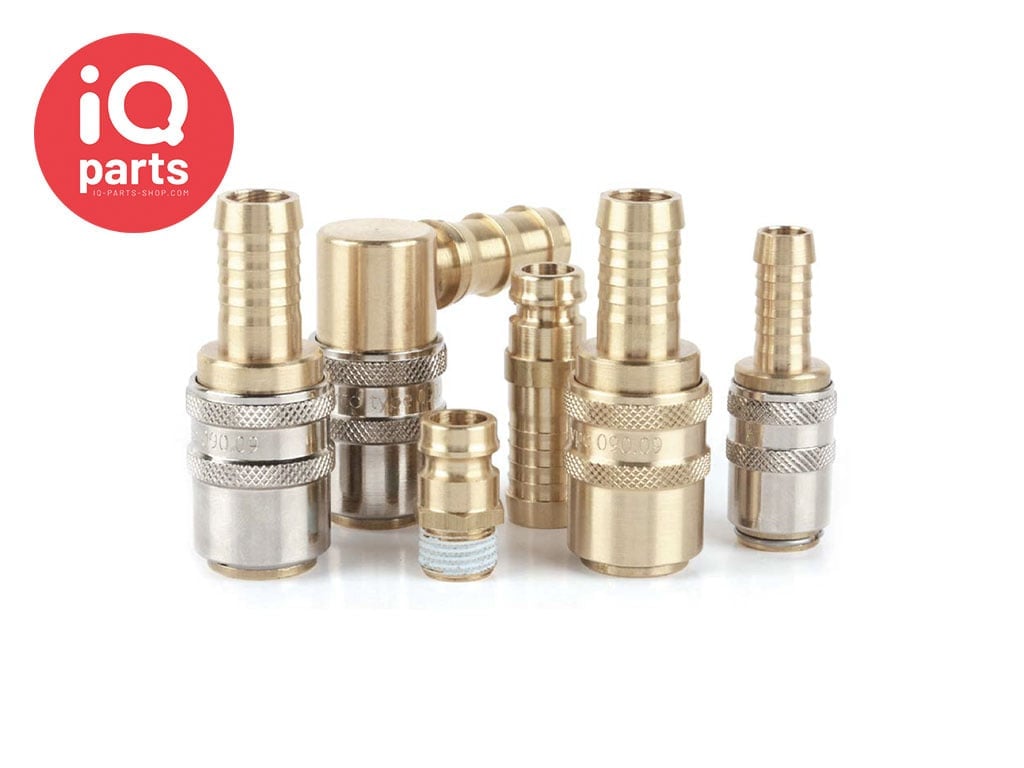

This quick coupling of RTC type 090 ensures a quick and safe connection of your (cooling) hoses. They are mainly used in machines with molds for cooling the moulds.

The couplings are available with a standard hose connection (use of a hose clamp is recommended), with a Push to connect hose barb for the use of Rubber hoses, PVC hoses, Polyurethane (PU) hoses and Nylon hoses or with a male or female thread.

When choosing a hose, make sure it matches the fitting size, pressure rating and material compatibility for the fluid being conveyed.

The couplings are also available without a check valve. CLICK HERE

Applications:

Cold water
Cooling water (mould)
Thermal oil
Liquids

Specifications:

Interchangeable with, among others, HASCO, German profile
Coupling on the machine side
Plug-in nipple on the mold side
Application: Mold coupling
Media: hot/cold water, oil, LD steam
Temperature -10° to 180°C
Working pressure: 15 bar
Clutch housing material: Brass
Material sleeve without check valve: Nickel-plated brass
Material sleeve with check valve: Brass
Seal material: FPM (standard)
Material balls and spring: stainless steel
Plug-in nipple material: Brass

Options:

External thread PTFE coated
Disconnection protection (S)
Stainless steel

Product code:

THCSK090E139 - THCSK090E179 - THCSK090E219 - THCSK090E169

090.09 SMB 13-90 - 090.09 SMB 17-90 - 090.09 SMB 21-90 - 090.09 SMB 1615-90

The product photos shown are for illustrative purposes only and no rights can be derived from them. If you are unsure about the correct version or size, please refer to the attached PDF or contact our customer service.
