CPC - PTC22010 | Coupling Insert 2 tubes | Acetal | 1.6 mm (1/16") Hose barbs
Brand:
CPC
| Article number: | CPC-PTC22010 |
| SKU: | PTC22010 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - PTC22010 | Coupling Insert 2 tubes | Acetal | 1.6 mm (1/16") Hose barbs

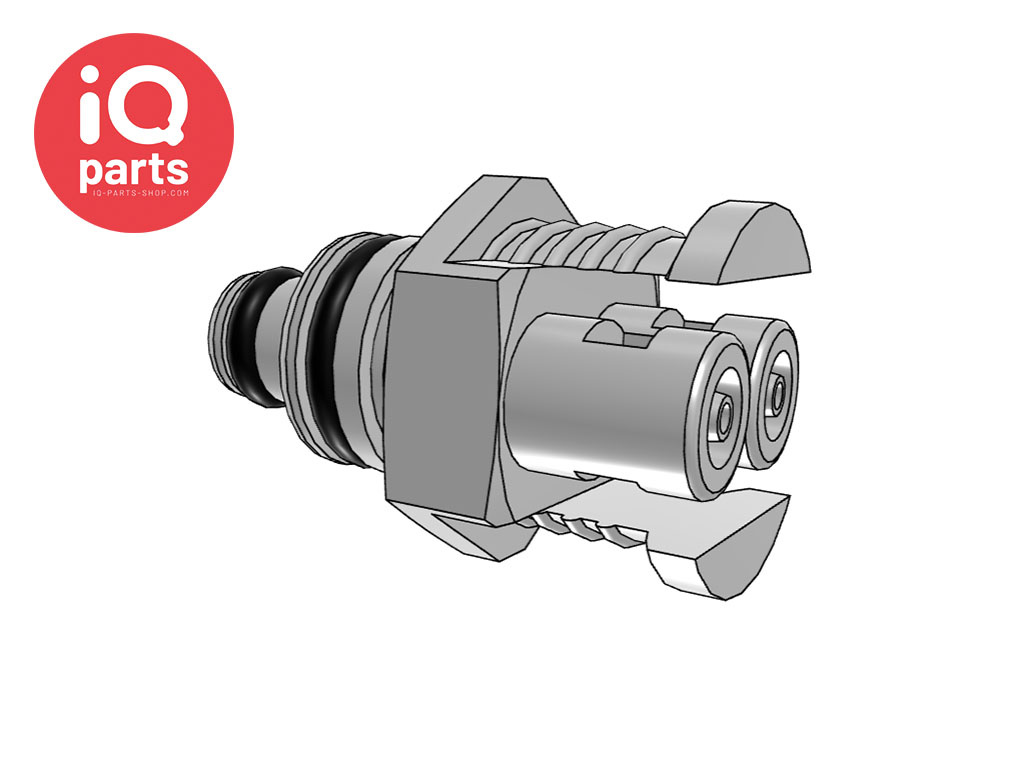

An in-line coupling of CPC from the Twin Tube™ -series with 1.6 mm Hose barbs. This coupling Insert (male) ensures a leak-free seal and is made of Acetal. This coupling is only available without a valve (PTC22010).
The Twin Tube™ coupling provides one easy-to-use quick disconnect for up to two separate fluid lines. Featuring the CPC thumb latch, the Twin Tube can disconnect up to two lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.
Characteristics and benefits:
- Connect up to 2 hoses, quickly connect and disconnect.
- Separate flows, pressure or vacuum in 1 coupling.
- Coupling possible in one way, makes sure to connect the correct hoses
- Includes 1 release button, one-hand operation for 2 hoses.
- With option for Panel mounting.
Materials:
- Main components: Acetal (Also available in ABS)
- External springs and pin: Stainless Steel
- 0-ring: Buna-N
Specifications:
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating Temperature: -40ºC to 82ºC
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Chemicals |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | -40º to 180º F (-40° C to +82° C) |
| Material: | Acetal |
| Size: | -- |
| Connection: | In-line Coupling Insert |
| Seal: | BUNA-N (NBR, Nitrile Rubber) |
| Hose connection: | 1.6 mm (1/16") Inner diameter |
| Weight: | -- |
