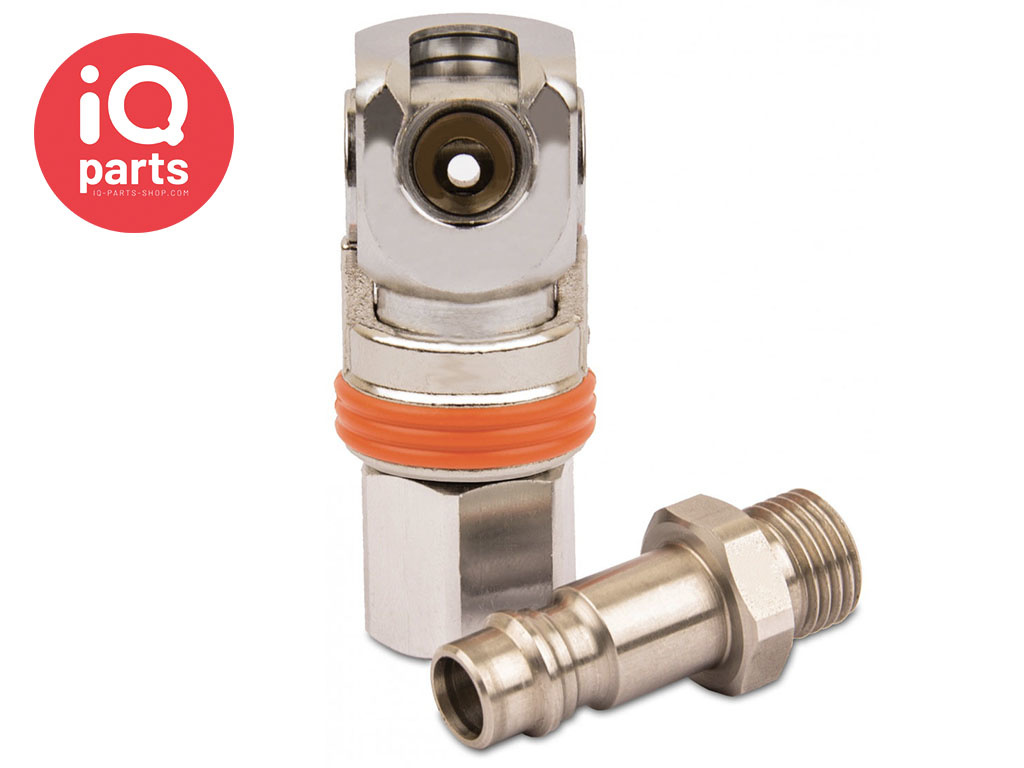

RTC Plug - BSP Female Thread SC Series M DN08 (formerly Oetiker)

€36,78 Incl. tax
€30,40 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 1 in stock
Delivery time: Delivery in 1 to 2 days
  • Buy 5 for €27,36 each and save 10%
  • Buy 10 for €25,84 each and save 15%
  • Buy 15 for €24,32 each and save 20%
Article number: OTK-25500423
SKU: 25500423
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
  • Customer service 09:00 - 17:00
Information

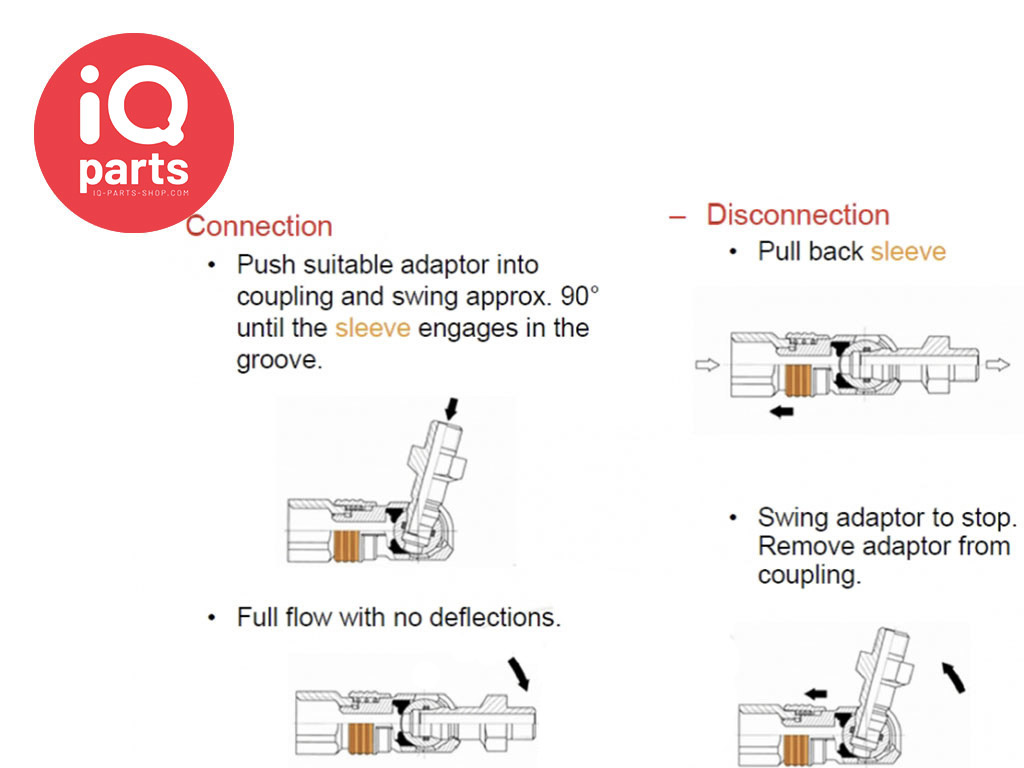

RTC (formerly Oetiker) Plug - BSP Female Thread SC Series M DN08, always connect and disconnect by kinking without danger


With full flow. No force required or loss of pressure in the system. Just a turn and the vent ensures that the hose is ventilated - thus rendering it harmless.

RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry. This coupling is particularly suitable for breathing air and fire brigade.

Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA

Features:
  • Full flow, no restrictions in the compressed air path
  • Optimum flow rate: More air and power on the tool
  • Safe disconnection in accordance with EN983 and ARBO
  • Ergonomic design: Easy to connect under pressure
  • No leakage due to 3-fold sealing
  • BBG Approval
  • Unwanted disconnection not possible
  • Economical to purchase and use
  • Compact dimensions
  • EN 139 and EN 270 Hose stem profile
  • Long profile, from compressor to belt
  • Easy to clean due to the free passage



Specifications

  • DN 08 - Breathing Air profile
  • Temperature range: -15 ° to + 100 ° C with NBR seals
  • Operating pressure: 0-25 bar Connection and disconnection up to 15 bar
  • Medium: Air
  • Coupling housing: Chrome-plated Brass
  • Roller: Brass, chrome-plated
  • Locking ring: Zinc, nickel plated
  • Connection piece Thread: Brass, chrome plated.
  • Plug nipples: Brass chrome plated
  • Option: NPT thread



Applications:

  • Breathing air
  • Fire brigade





Product code:

25500423 - 25500424 - 25500425

Specifications
Orifice: DN 08
Material: Chrome-plated Brass
Sealing: NBR
Air Pressure: Max. 25 Bar
RTC RTC Plug - BSP Female Thread SC Series M DN08 (formerly Oetiker)
