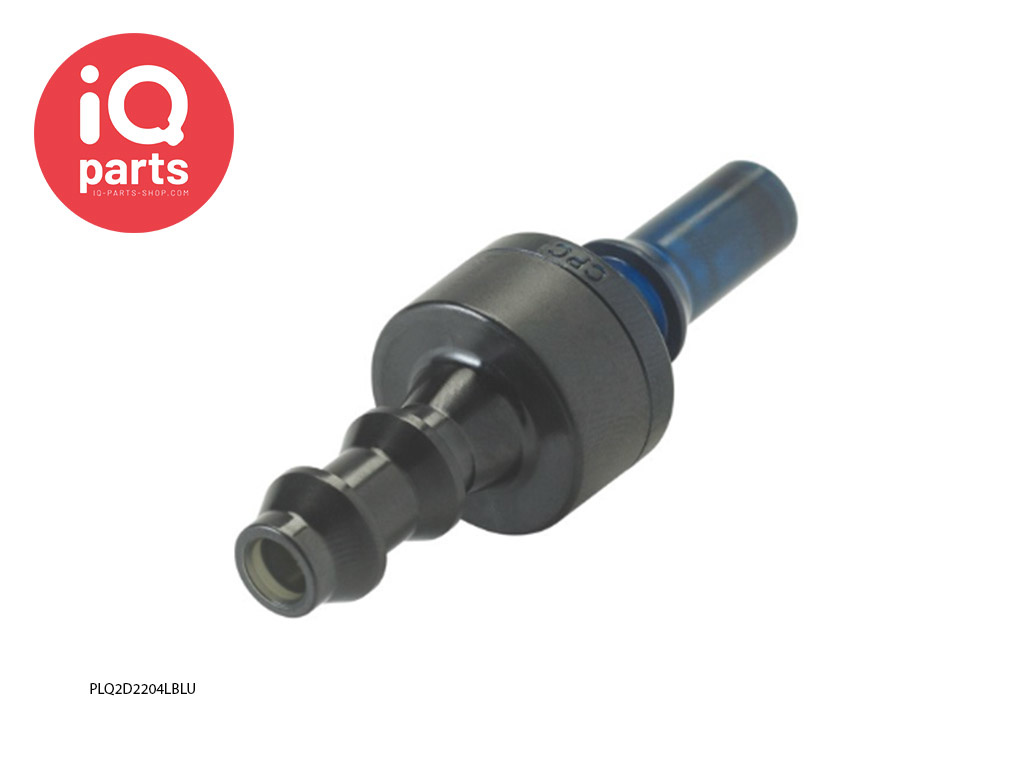

CPC - PLQ2D2204LBLU / PLQ2D2204LRED | Coupling Insert | Polyphenysulfon | Hose barb 6,4 mm (1/4")

€42,50 Incl. tax
€35,13 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: on request
Article number: CPC-PLQ2D2204LRED
SKU: PLQ2D2204LRED
  • 2 year warranty
  • Delivery time: on request
Information
CPC - PLQ2D2204LBLU / PLQ2D2204LRED | Coupling Insert | Polyphenysulfon | Hose barb 6,4 mm (1/4")

A In-line coupling Insert from CPC from the PLQ2 series with a 6.4 mm Push-Lock hose barb. This coupling Insert (male) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/warm (PLQ2D2204LRED) and Blue/cool (PLQ2D2204LBLU) color coding. (Choose at the top right at "Make a choice:")

Features of the couplings from the PLQ2 series:
  • Made of high quality PPSU material; Lightweight, durable and chemically compatible with common liquid coolants and UL94 VO flame retardant
  • Non-spill valve design; No drips when plugging in or unplugging
  • High flow-to-size ratio with low pressure drop; Increased cooling efficiency in small spaces
  • Ergonomic housing and locking design; Simple, intuitive one-handed operation
  • Audible click on connection; Offers connection guarantee
  • Barbed and threaded finish options; Meets mounting or hose connection preferences
  • Robust product testing (product tested up to 10,000 cycles); Reliability guarantee with proven dimensional stability
  • Color coding; Instant visual identification of the cooling lines

Possible applications:
  • Server cooling
  • Liquid cooling
  • Thermal management
  • Cooling systems
  • Equipment Construction

General information about the PLQ2 series:
The Everis PLQ2 Series liquid cooling connectors provide ultra-reliable, dripless connections and disconnections. Made of PPSU (Polyphenylsulfon), a high-performance thermoplastic, the Everis PLQ2 connector is lightweight, not susceptible to galvanic corrosion and rated UL94 V0 flame retardant. With an ergonomic thumb latch, Everis PLQ2 fittings are easy to use. They are purpose-built for liquid cooling of electronics applications and offer a high-flow capacity to optimize thermal management system performance. Everis PLQ2 quick disconnects use CPC-developed valve technology that is designed for long-term use with no spill upon disconnect.

  • Material: Polyphenylsulfone (PPSU)
  • Valve and release button: Polyphenylsulfone (PPSU)
  • Available with hose tail or male thread 1/4" SAE-4, G1/8"
  • Stainless steel valve spring
  • O-rings: EPDM
  • Working pressure: vacuum up to 8,3 bar (120 PSI)
  • Operating temperature: -40ºC tot 115ºC (-40ºF tot 240ºF)
  • Droplet Formation: <0.015 cc at ~ 0 bar and < 0.063 cc at ~ 13.8 bar per disconnect
  • Flow capacity: CV ~ 0.37 max
  • Lubricant: Krytox® PFPE (chemically neutral)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid Cooling
Operating Pressure: 8,3 bar Vacuum
Temperature range: –40° C tot +115° C
Material: Polyphenylsulfone (PPSU)
Size: 1/8" flow
Connection: In-line Coupling Insert
Seal: EPDM
Hose connection: 6,4 mm (1/4") Inner diameter
Weight: --
CPC CPC - PLQ2D2204LBLU / PLQ2D2204LRED | Coupling Insert | Polyphenysulfon | Hose barb 6,4 mm (1/4")
