CPC - PLC10006BSPT(NSF) / PLCD10006BSPT | Coupling body | Acetal | 3/8" BSPT Pipe thread
Brand:
CPC
| Article number: | CPC-PLCD10006BSPT |
| SKU: | PLCD10006BSPT |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - PLC10006BSPT / PLCD10006BSPT | Coupling body | Acetal | 3/8" BSPT Pipe thread

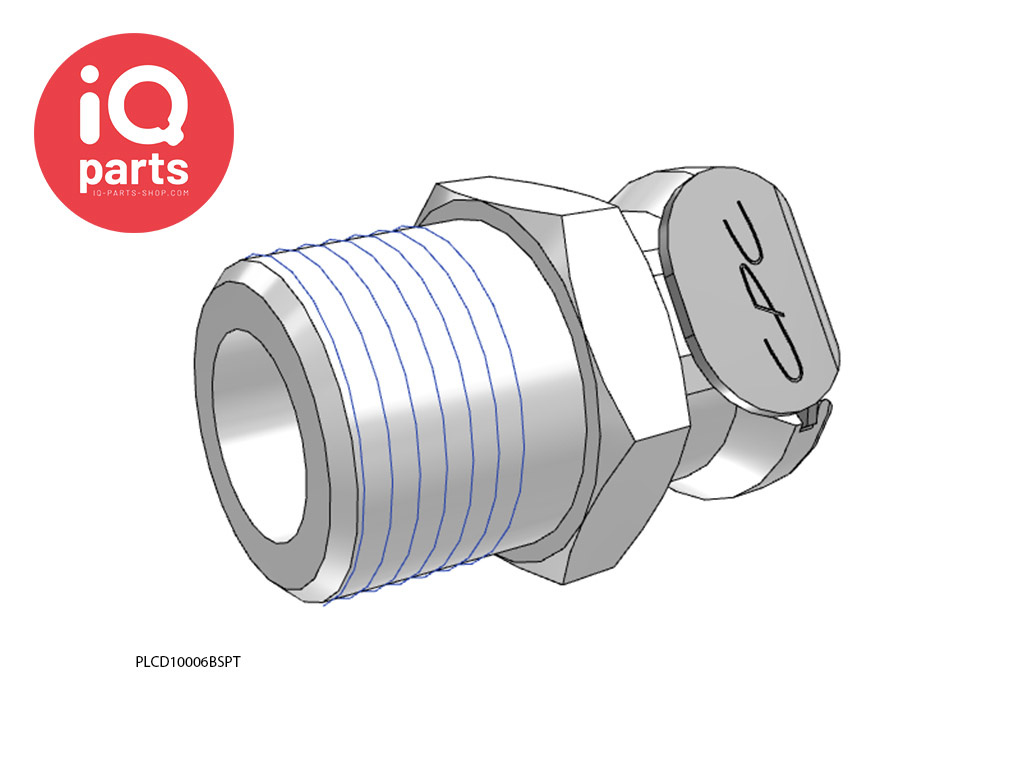

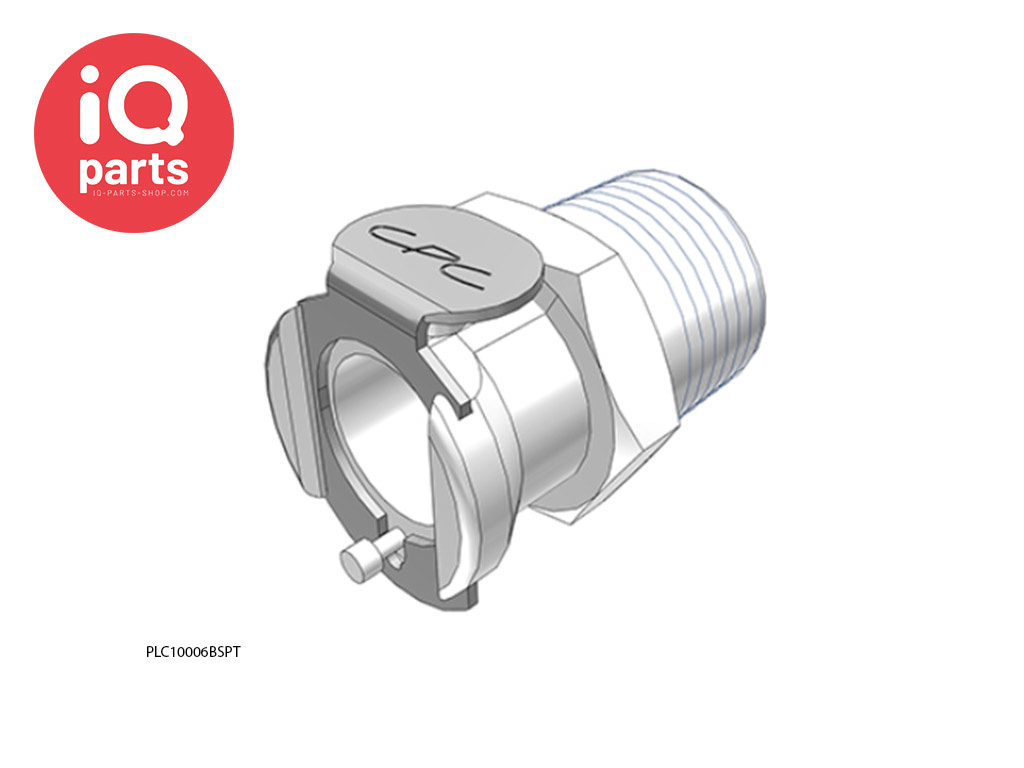

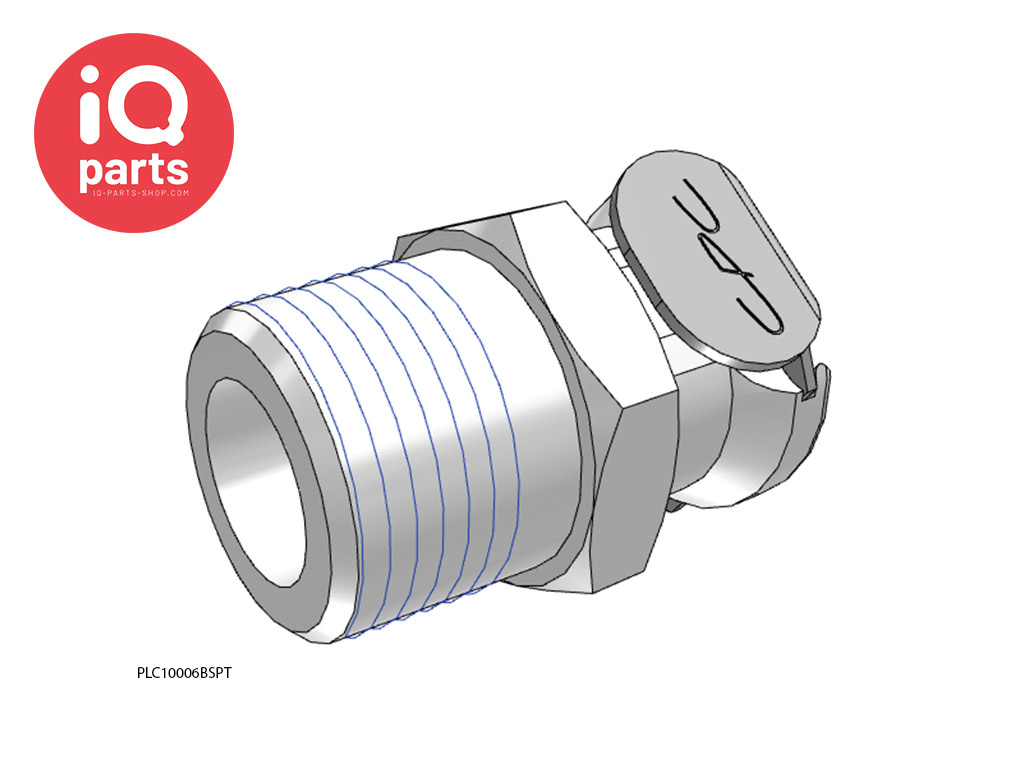

An in-line coupling of CPC from the PLC series with a 3/8" BSPT Pipe thread. This quick coupling (female) ensures a leak-free seal and is made of Acetal. This coupling is available with a valve (PLCD10006BSPT) and without a valve (PLC10006BSPT and PLC10006BSPTNSF). (Choose at the top right at "Make a choice:")
Properties of the coupling from the PLC series:
- Integral terminations
- Compatible
- Click when connected
- No leakage
- Shorter assemblies, faster installation
- Also mates with PLC12 and LC series couplings
- Assurance of a reliable connection
Applications:
- Floor cleaning equipment
- Filtration of deionized water
- Dosing systems
- Automated Machines
- Compression Therapy
- Leak Detectors
General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
The coupling PLC10006BSPTNSF is the original spare part for the shower hose of the outdoor showers in the Westfalia camper.
This coupling is the connection to the shower hose and you click it on the plug of the outdoor shower at the rear. The quick coupling with release button has a 3/8" male thread and therefore fits any standard shower hose. Because this is an original replacement part, you can easily connect your existing shower/shower hose to the coupling and the plug at the back.
This coupling has an FDA Buna-N (NBR) sealing ring. This makes the coupling suitable for the food industry and therefore also suitable for use in a shower facility.
You will find this CPC coupling in many Westfalia campers. These include the following models:
- Mercedes Vito/Viano Marco Polo
- Mercedes James Cook 1 / James Cook 2
- Ford Nugget / Big Nugget
- Nissan Michaelangelo
- VW/MAN Sven Hedin
- Fiat Amundsen
- VW Club Joker / City
- Mercedes-Jules/Kepler
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | Quick coupling |
| Seal: | Buna-N (NBR) or Buna-N (NBR) NSF/FDA certified |
| Hose connection: | 3/8" BSPT Pipe Thread |
| Weight: | -- |
