CPC - PLC1000612BSPT / PLCD1000612BSPT | Coupling body | Polypropylene | 3/8" BSPT Pipe thread
Brand:
CPC
| Article number: | CPC-PLCD1000612BSPT |
| SKU: | PLCD1000612BSPT |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information

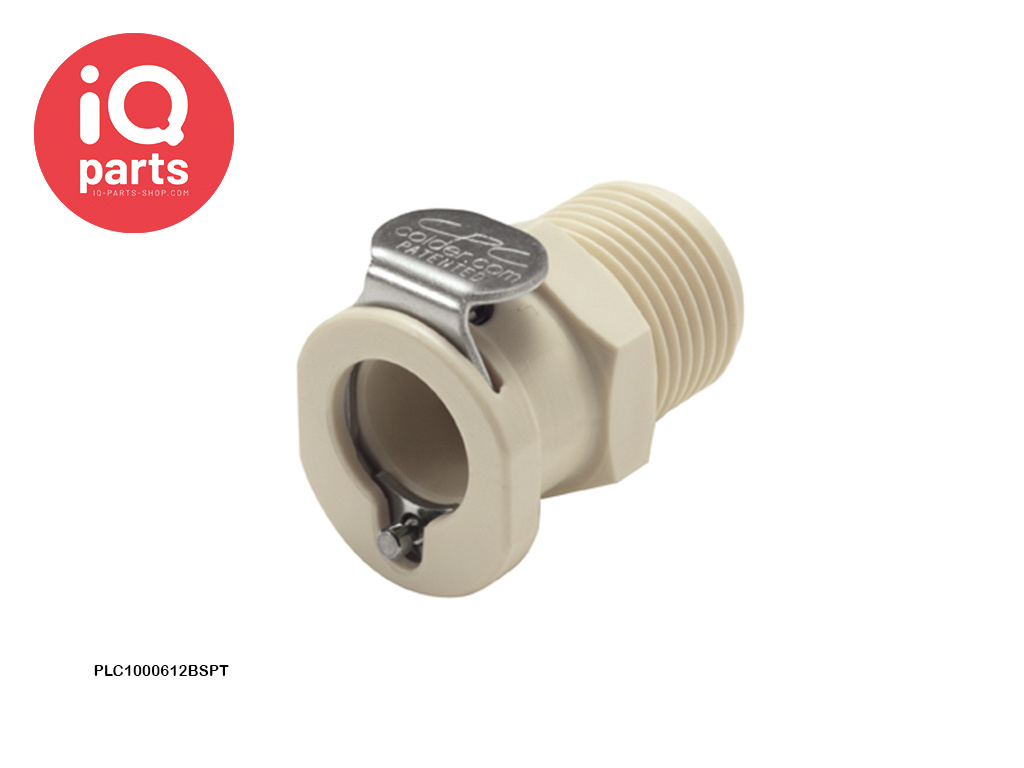

CPC - PLC1000612BSPT / PLCD1000612BSPT | Coupling body | Polypropylene | 3/8" BSPT Pipe thread
An Inline Coupling body of CPC from the PMC12 series with a 3/8" BSPT Pipe thread. This quick coupling body (female) ensures a leak-free seal, partly provided by a EPDM sealing ring and is made of POLYPROPYLENE. This coupling is available with valve (PLCD1000612BSPT) and without valve (PMC1000612BSPT). (Choose at the top right at "Make a choice:")
Properties of the coupling from the PLC12 series:
- Polypropylen
- EPDM O-ring
- Compatible
- Click when connected
- Great chemical resistance and gamma sterilizable
- No leakage
- Shorter assemblies, faster installation
- Also mates with PLC and LC series couplings
- Assurance of a reliable connection
Applications:
- Battery filling systems
- Disinfectants
- inkjet printer
- dosing pumps
- Pharmaceutical production
- Chemical processing in the semiconductor industry
General information about the PLC12 series:
PLC12 Series Couplings have 1/4" flow and are used in a variety of general purpose applications. These quick disconnect couplings offer many of the same configuration options as acetal PLC couplings but the polypropylene material adds greater chemical resistance for more demanding applications. PLC12 couplings are also gamma sterilizable. The CPC Thumb Latch makes the PLC12 easier to use than designs with ball and sleeve connectors. Connect and disconnect with one hand and integral terminations make the PLC12 the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Polypropylene, thumb latch is stainless steel
- Available in various sizes: from 6,4 mm (1/4') to 9,5 mm (3/8") ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: EPDM
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: 0ºC to 71ºC constant
The coupling PLC10006BSPT is the original spare part for the shower hose of the outdoor showers in the Westfalia camper, made of Polypropylen.
This coupling is the connection to the shower hose and you click it on the plug of the outdoor shower at the rear. The quick coupling with release button has a 3/8" male thread and therefore fits any standard shower hose. Because this is an original replacement part, you can easily connect your existing shower/shower hose to the coupling and the plug at the back.
This coupling has an FDA Buna-N (NBR) sealing ring. This makes the coupling suitable for the food industry and therefore also suitable for use in a shower facility.
You will find this CPC coupling in many Westfalia campers. These include the following models:
- Mercedes Vito/Viano Marco Polo
- Mercedes James Cook 1 / James Cook 2
- Ford Nugget / Big Nugget
- Nissan Michaelangelo
- VW/MAN Sven Hedin
- Fiat Amundsen
- VW Club Joker / City
- Mercedes-Jules/Kepler
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | 0° C tot +71° C |
| Material: | Polypropylene |
| Size: | 1/4" flow |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 3/8" BSPT Pipe thread |
| Weight: | -- |
