CPC - PLC1000412 / PLCD1000412 | Coupling body | Polypropylene | 1/4" NPT Pipe thread

€14,80 Incl. tax
€12,23 Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: 2 - 3 weeks
Article number: CPC-PLCD1000412
SKU: PLCD1000412
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

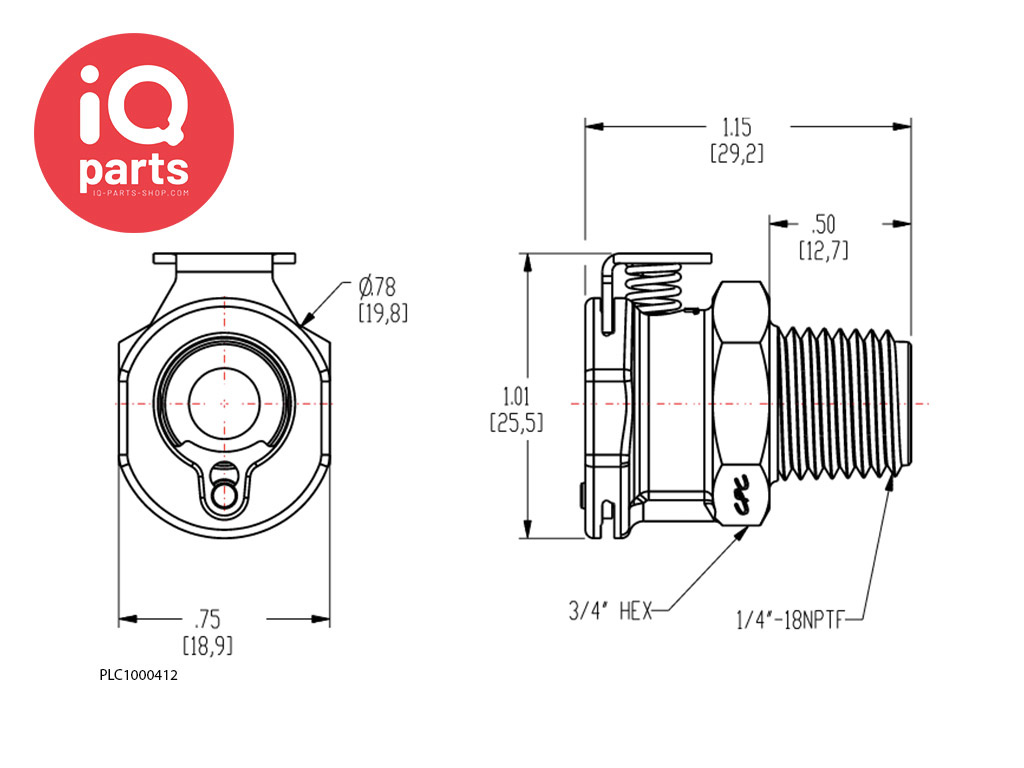

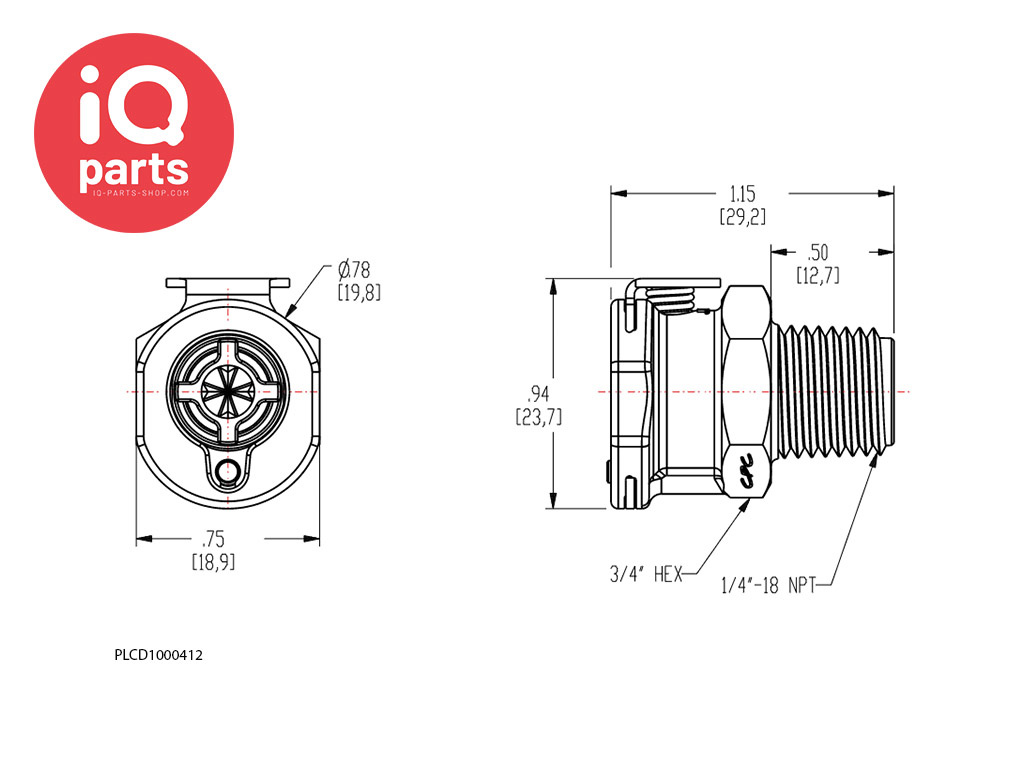

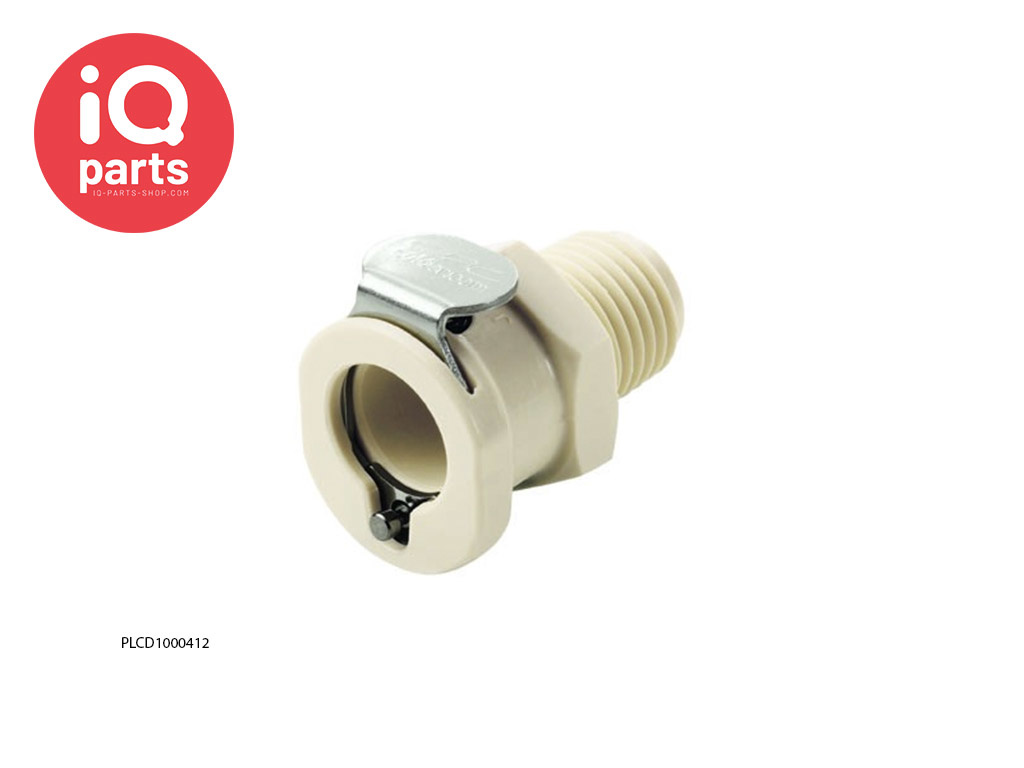

CPC - PLC1000412 / PLCD1000412 | Coupling body | Polypropylene | 1/4" NPT Pipe thread


An Inline Coupling body of CPC from the PMC12 series with a 1/4" NPT Pipe thread. This quick coupling body (female) ensures a leak-free seal, partly provided by a EPDM sealing ring and is made of POLYPROPYLENE. This coupling is available with valve (PLCD1000412) and without valve (PMC1000412). (Choose at the top right at "Make a choice:")

Properties of the coupling from the PLC12 series:
  • Polypropylen
  • EPDM O-ring
  • Compatible
  • Click when connected
  • Great chemical resistance and gamma sterilizable
  • No leakage
  • Shorter assemblies, faster installation
  • Also mates with PLC and LC series couplings
  • Assurance of a reliable connection

Applications:
  • Battery filling systems
  • Disinfectants
  • inkjet printer
  • dosing pumps
  • Pharmaceutical production
  • Chemical processing in the semiconductor industry

General information about the PLC12 series:
PLC12 Series Couplings have 1/4" flow and are used in a variety of general purpose applications. These quick disconnect couplings offer many of the same configuration options as acetal PLC couplings but the polypropylene material adds greater chemical resistance for more demanding applications. PLC12 couplings are also gamma sterilizable. The CPC Thumb Latch makes the PLC12 easier to use than designs with ball and sleeve connectors. Connect and disconnect with one hand and integral terminations make the PLC12 the choice for ease of use and manufacture.

These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie,  LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.

  • Material: Polypropylene, thumb latch is stainless steel
  • Available in various sizes: from 6,4 mm (1/4') to 9,5 mm (3/8") ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: EPDM
  • Vacuum up to 8.3 bar (120 PSI)
  • Temperature range: 0ºC to 71ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 8,3 bar Vacuum
Temperature range: 0° C tot +71° C
Material: Polypropylene
Size: 1/4" flow
Connection: In-line Coupling Body
Seal: EPDM
Hose connection: 1/4" NPT Pipe thread
Weight: --
CPC CPC - PLC1000412 / PLCD1000412 | Coupling body | Polypropylene | 1/4" NPT Pipe thread
