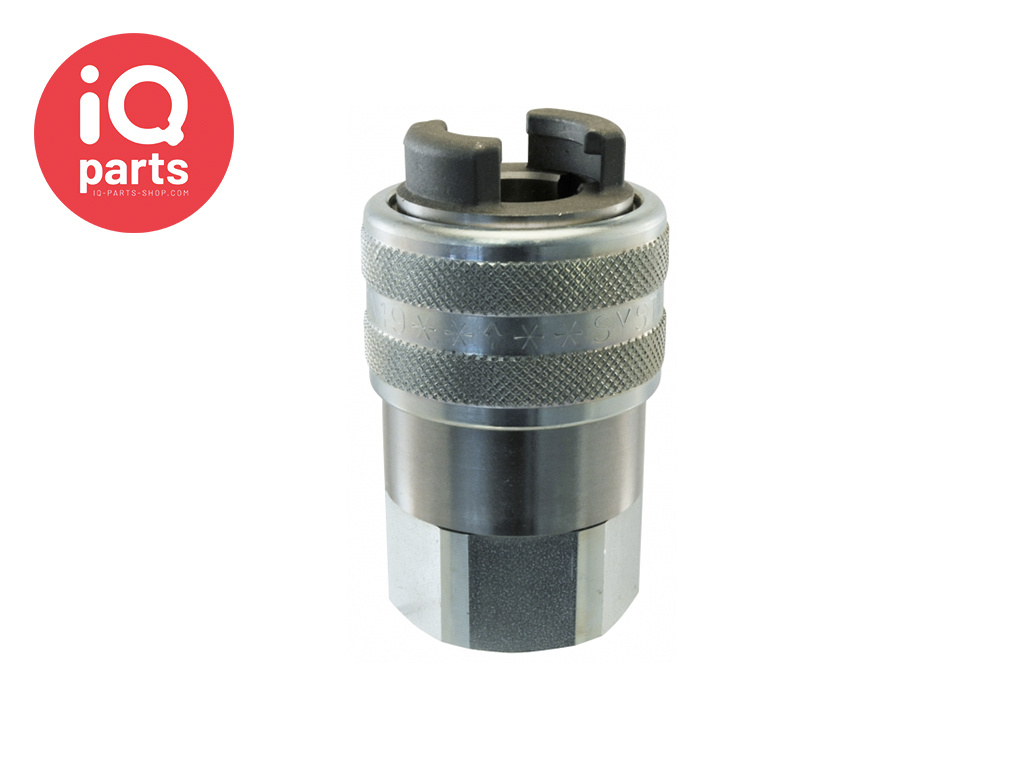

RTC - SVSR-19SS | Series SV | HD DN19 | Pneumatic Coupling
Brand:
RTC
| Article number: | OTK-30300641 |
| SKU: | 20300280 |
- 2 year warranty
- Delivery time: 6 - 8 weeks
Information
RTC - SVSR-19SS | Series SV | HD DN19 | Pneumatic Coupling
THIS WAS FORMERLY THE 'OETIKER' SV SAFETY COUPLING HEAVY DUTY SERIES DN19 STAINLESS STEEL 316
A heavy-duty safety coupling for industrial use. With a 2-stage release, you can disconnect the safety coupling by means of a sliding and turning movement.

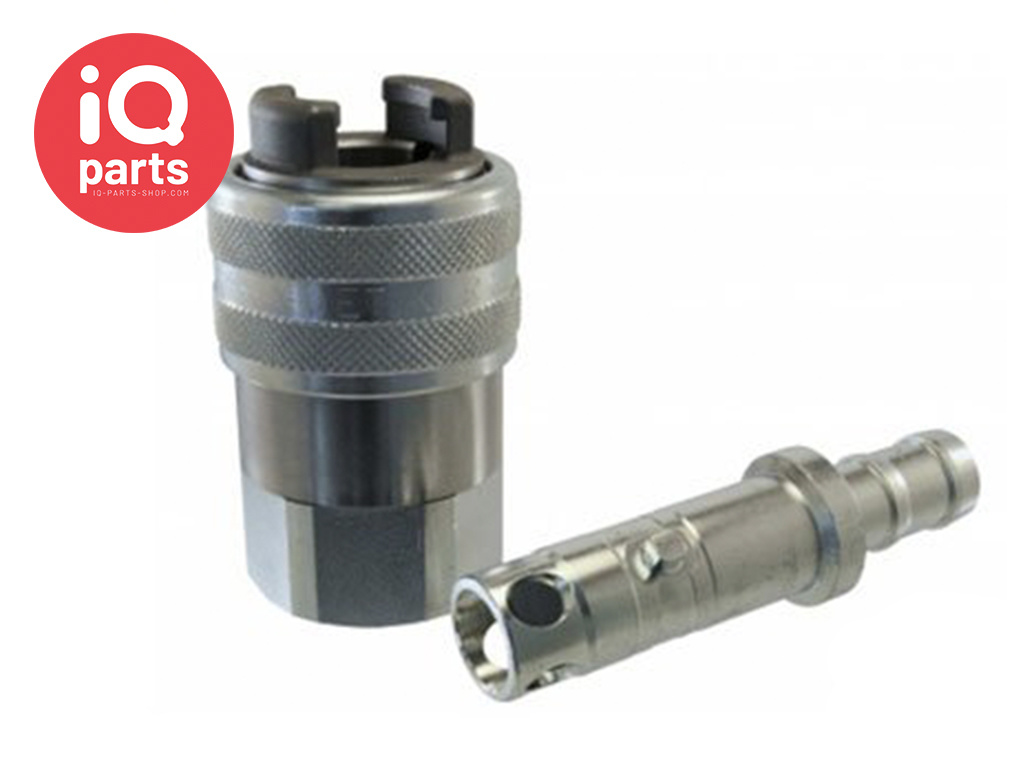

The coupling consists of:
- A coupling with internal thread (G3/4 and G1/1)

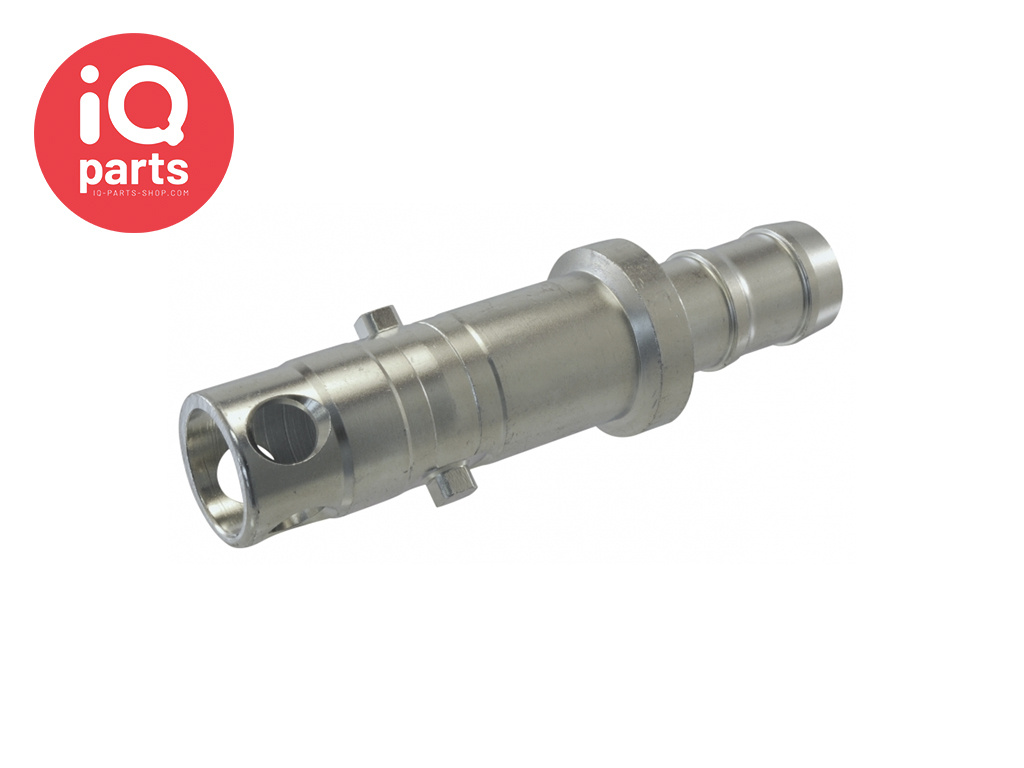

- Push-in nipple with hose barb (19 mm and 25 mm)

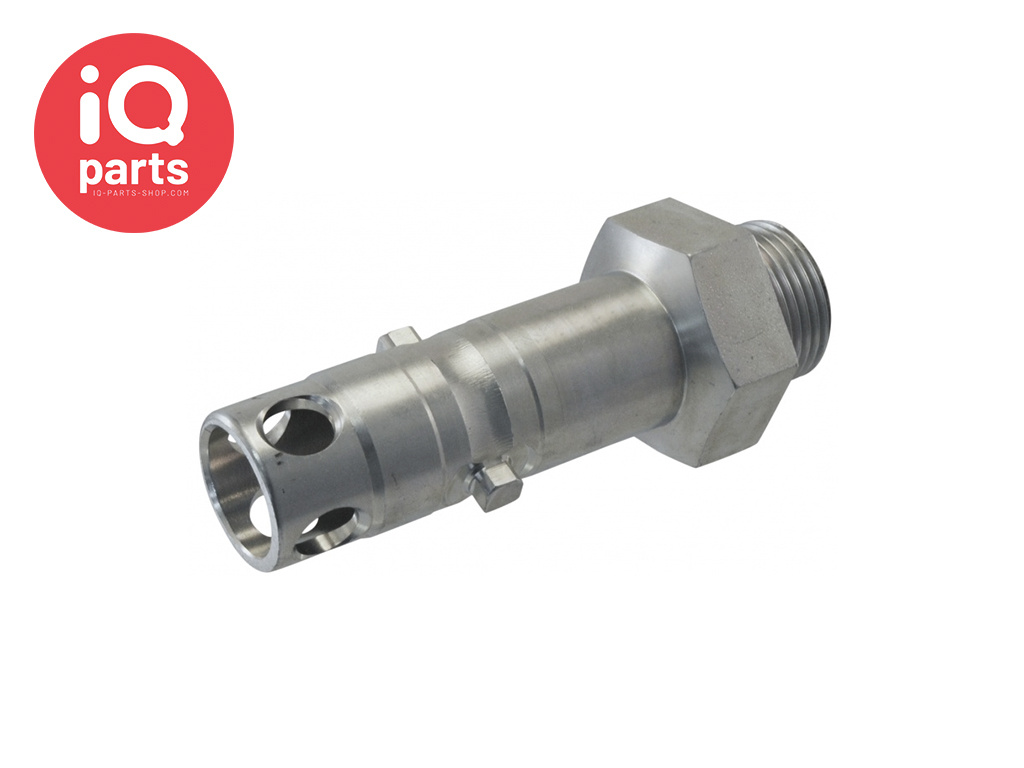

- Push-in nipple with external thread (G3/4 and G1/1)
- Self-closing push-in nipple with hose barb (19 mm and 25 mm)
Applications:
- Compressed air
- Gases
- Cold water
- Liquids
Specifications:
- Temperature range: -15° to +200°C (FPM seals)
- Working pressure: 0-25 bar
- Connection and disconnection up to 15 bar
- Suitable for vacuum up to 0.1 bar
- Coupling housing: Stainless Steel 316
- Sleeve: Stainless Steel 316
- Threaded connector: Stainless Steel 316
- Hose barb connector: Stainless Steel 316
- Push-in nipples: Stainless Steel 316
- Self-closing push-in nipple available
- Option: coupling without valve
- Option: NPT thread
- Option: FKM, FFKM or EPDM seals
- Option: EPDM and FKM seals compliant with FDA
(Contact our sales department for options)
Features
- Safe disconnection in accordance with EN983 and Occupational Health and Safety (ARBO)
- Extremely robust, long service life
- Push-in nipple must be rotated, easy and safe
- Ergonomic design: Easy to connect under pressure
- Push-in nipples permanently burr-free due to the use of hardened material
- No leakage due to triple sealing
- Economical to purchase and use
- Shut-off nipples available
- Suitable for compressed air, gases, and low-viscosity liquids
Product code:
30300641 – 30300642 – 35500279 – 35500280 – 35500281 – 35500282 – 35300219 – 35300218
The product photos shown are for illustrative purposes only and no rights can be derived from them. If you are unsure about the correct version or size, please refer to the attached PDF or contact our customer service.
Specifications
| Orifice: | DN 19 |
| Material: | Stainless Steel 316 |
| Sealing: | FPM |
| Air Pressure: | -0,1 - Max. 25 Bar |
