Oetiker Double / Twin Ear clamp Type 108 | W1 (Galvanised)
Brand:
Oetiker
| Article number: | OTK-10800000 |
| SKU: | 10800000 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information
Oetiker Double / Twin Ear clamp Type 108 | W1 (Galvanised)
OETIKER double hose clamps in closed design are manufactured as one-piece clamps, i.e. formed from separate pipe sections.
Material
- 108 steel, galvanized DIN 1.0338 or SAE 1008/1010
- Optional stainless steel DIN 1.4301 or UNS S30400
At a glance
- Parallel routing of hoses, cables, pipes or cable connections
- Parallel routing of uneven diameters and / or at different center distances
- Good edge rounding thanks to sliding sanding technology prevents damage to the material to be set up
- Fast, easy and safe assembly
- Robust design
Certificates / Documentation:
Certificates and documentation are available for these products. If desired, you can order these together with your order.
We can offer:
- Certificate of Conformity (CoC)
- EN 10204 3.1 Inspection Certificate
Certificates must be requested at the time of ordering. Certificates requested after shipment may incur additional administrative costs and cannot always be provided retrospectively.
You will find the certificates at the bottom of the drop-down order menu at the top right of this page.
Generally, a subsequent order is significantly more expensive due to the administrative burden.

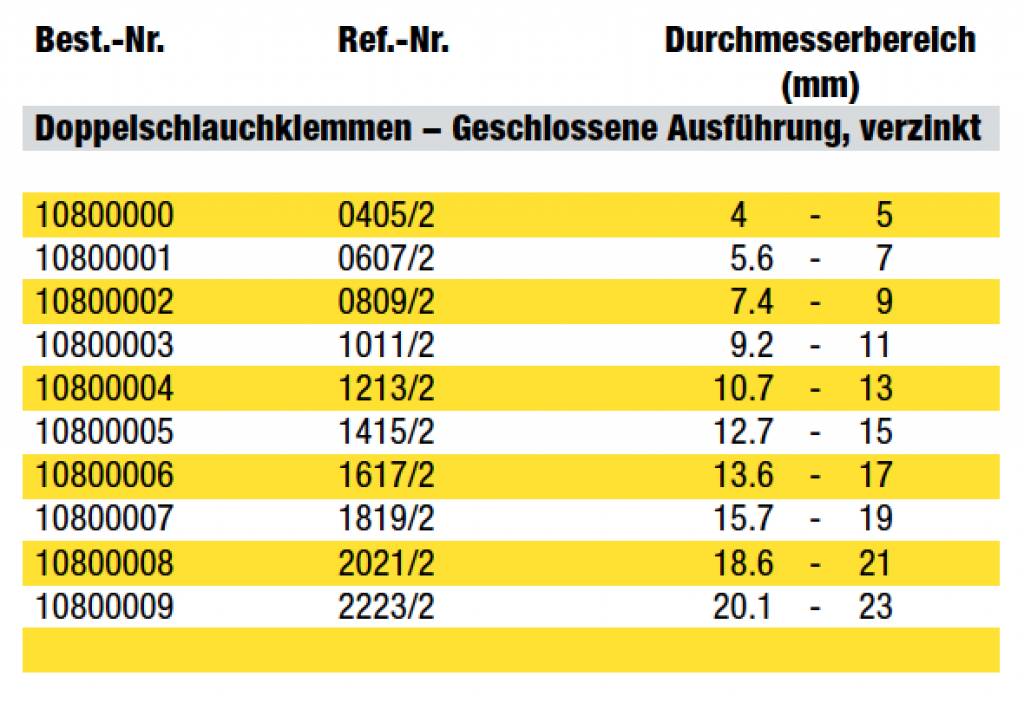

Product code:
10800000 - 10800001 - 10800002 - 10800003 - 10800004 - 10800005 - 10800006 - 10800007 - 10800000 - 10800009
Specifications
| Bolt: | -- |
| Bandwidth: | 3,5 / 5 / 6 / 7 / 7,5 / 8 / 8,5 / 9 / 10 mm |
| Tightening torque (Maximum): | -- |
