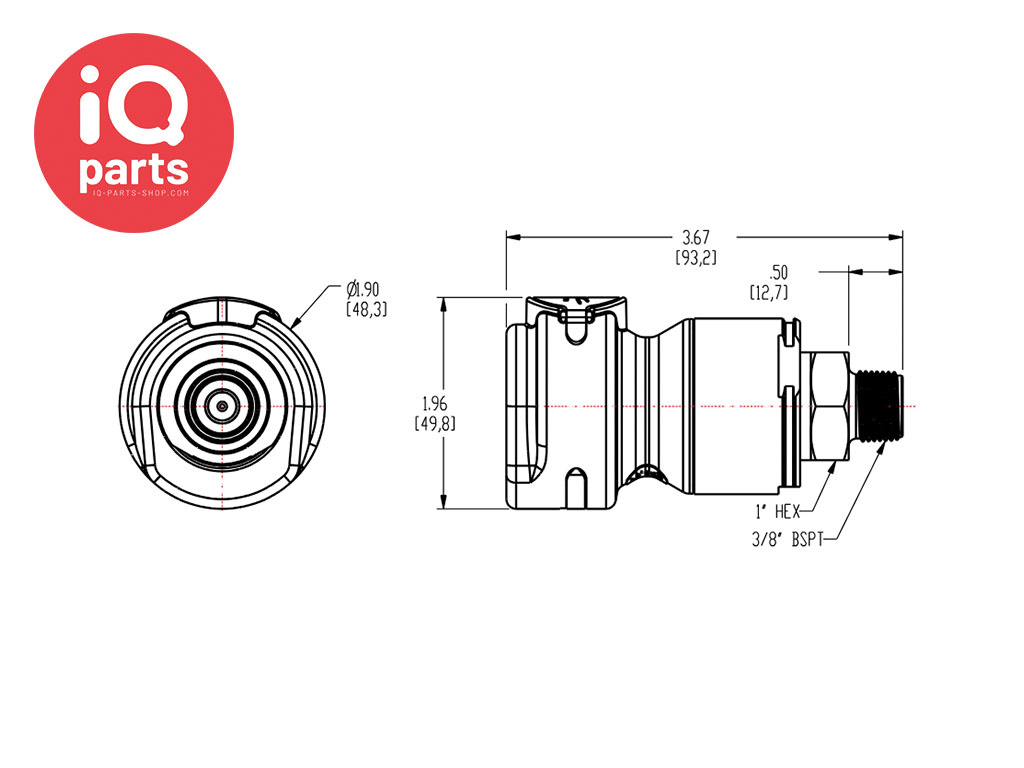

CPC - NSHD10006BSPT | NSH Coupling Body | Polypropylene | 3/8" BSPT male thread

€95,10 Incl. tax
€78,60 Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: 2 - 3 weeks
Article number: CPC-NSHD10006BSPT
SKU: NSHD10006BSPT
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information

CPC - NSHD10006BSPT | NSH Coupling Body | Polypropylene | 3/8" BSPT male thread PRICE ON REQUEST


The CPC coupling Body NSHD10006BSPT has a hose connection for 3/8" BSPT male thread. The CPC quick coupling has a valve. The material of the coupling is polypropylene and the sealing ring is made of EPDM. The connector to the plug has an internal dimension of ≈ 31 mm. You can combine this CPC quick coupling with all CPC NSH series connectors.

NSH Series couplings are general-purpose versions of our pressure-balanced, leak-free ChemQuik® CQG06 couplings. Molded polypropylene, EPDM seals and a 100% spring- and metal-free flow path provide broad chemical resistance, easy one-handed operation and exceptionally high flow capacity, allowing instant connection and disconnection, even under pressure. The anti-leak design of the NSH series prevents dripping, minimizes downtime and increases user safety.

Characteristics and benefits:
  • Non-spill design, Ultimate protection from chemicals and fumes
  • Pressure-balanced design, Failsafe disconnect, even under pressure; easy to reconnect at high pressure
  • Springless flow path design, Eliminates source of metallic contaminants
  • Optional color coding, Helps prevent accidental misconnects

Possible areas of application:
  • Industrial laundries
  • Battery filling systems
  • Deionized/ultrapure water
  • Chemical cleaning

Materials:
  • Main components and valve: Glass-filled polypropylene
  • Valve Spring: AISI 316 Stainless Steel (W5)
  • 0-ring: EPDM
  • Colour: Gray

Specifications:
  • Working pressure: vacuum up to 8,3 bar (120 PSI)
  • Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF)
  • Spillage: 0,03 ml per disconnection
  • Inclusion: 0,42 cc per connect

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 8,3 bar Vacuum
Temperature range: 0° C tot +49° C
Material: Polypropylene
Size: --
Connection: In-line Coupling Body
Seal: EPDM
Hose connection: 3/8" BSPT Pipe Thread
Weight: --
CPC CPC - NSHD10006BSPT  | NSH Coupling Body | Polypropylene | 3/8" BSPT male thread
