CPC - NS1D170212 | NS1 Coupling body | polypropylene | 3,2 mm (1/8") hose barb

€29,33 Incl. tax
€24,24 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-NS1D170212
SKU: NS1D170212
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

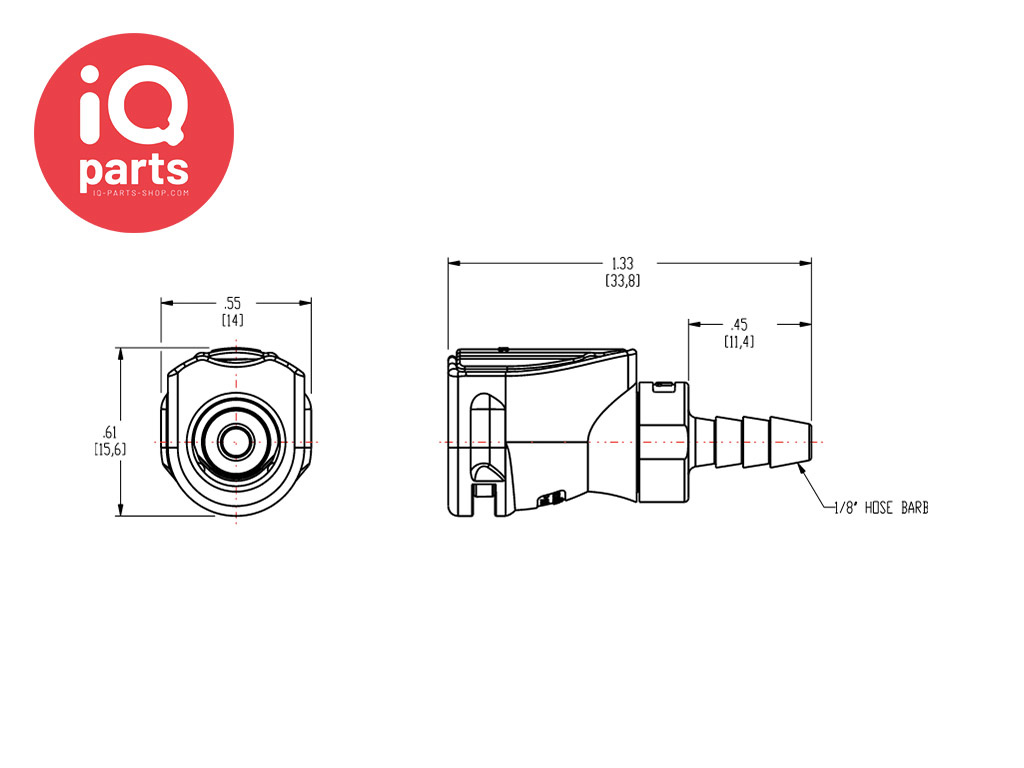

CPC - NS1D170212 | NS1 Coupling body | polypropylene | 3,2 mm (1/8") hose barb


This In-Line NS1 Series coupling body features a non-spill valve in a compact size, at a great price. The NS1D170212 coupling with 3,2 mm (1/8") hose barb. The coupling has a shut-off valve. The coupling material is polypropylene (PP) and the sealing ring is made of EPDM.

The Non-spill quick couplings of the NS1 series are characterized by unique product properties. Closed systems design can be disconnected drip-free thanks to the integrated non-leakage valves. A necessary pipe cleaning is therefore completely excluded. The NS1 quick coupling is currently the smallest, 100% non-drip, plastic quick coupling. Closed systems with hose diameters of 3.2 mm (1/8") or smaller can therefore be easily connected and disconnected. Even when connected, the hose can rotate freely without kinking or twisting. This also prevents an unwanted interruption of the media flow The NS1 series plastic quick coupler is therefore ideal for closed system applications. The ergonomics and user-friendliness also ensure easy operation when connecting and disconnecting.

Characteristics and benefits:
  • Non-spill design: Closed system for drip-free disconnect
  • Ultra low air inclusion; Minimizes contaminants, eliminates the need to purge air bubbles from the system
  • Rotating design; Allows tubing to move freely or relax without kinking or leaking
  • Chemically resistant material; Reliable strength and performance in a range of applications

Materials:
  • Main components and valve: Glass-filled polypropylene, PEEK®, polypropylene
  • Thumb latch: PEEK®
  • Valve Spring: AISI 316 Stainless Steel (W5)
  • 0-ring: EPDM
  • Colour: Gray

Specifications:
  • Working pressure: vacuum up to 1.0 bar (15 PSI)
  • Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF)
  • Spillage: <0.02 cc per disconnection at 15psi

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Chemicals
Operating Pressure: 1,0 bar Vacuum
Temperature range: 0° C tot +49° C
Material: Glas filled Polypropylene, PEEK®, polypropylene
Size: --
Connection: In-line coupling
Seal: EPDM
Hose connection: 3,2 mm (1/8") Inner diameter
Weight: --
CPC CPC - NS1D170212 | NS1 Coupling body | polypropylene | 3,2 mm (1/8") hose barb
