NORMAQUICK® V2 straight Quick Connector 0° NW19 - 19 mm, Adapter piece

€4,79 Incl. tax
€3,96 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 48 in stock
Delivery time: Delivery in 1 to 2 days
  • Buy 10 for €3,56 each and save 10%
  • Buy 25 for €3,17 each and save 20%
  • Buy 50 for €2,77 each and save 30%
Article number: NOR-7138164019
SKU: 7138164019
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
Information

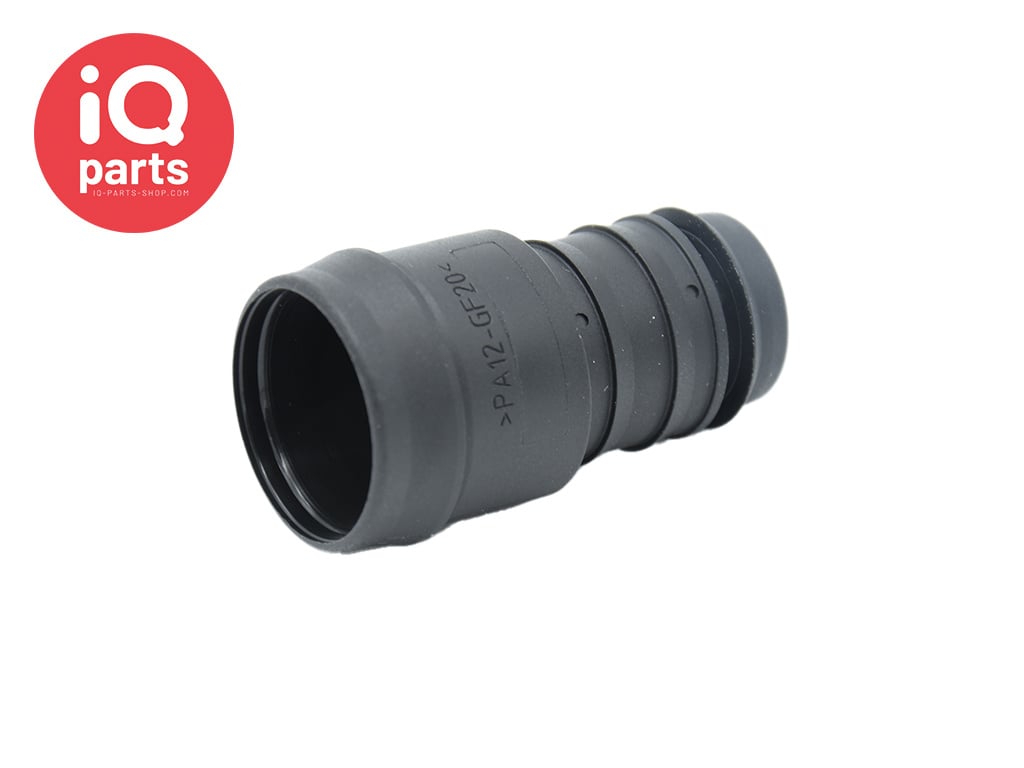

Normaquick® V2 Straight Quick Connector 0º NW19 - 19 mm hose connection, Adapter piece

V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in automotive industry. The connectors can be used for both line-to-line and line-to-device connections. V2 can be applied on both plastic and metal spigots. NORMAQUICK® V2 plug connections are available as standard in the connection variants 0°, 45°, 50° and 90°.

The advantages at a glance
  • Quick assembly time equaling cost reduction
  • Automated production, no human factor means less margin of error
  • No tools needed
  • Compact dimensions allowing ease of use in narrow spaces
  • An integrated seal provides optimal tightness
  • All seals can be visually checked, permitting safe assembly
  • Featuring extremely low permeation values





Technical drawing:

Product code:
07138164019 - 07137164019 - 07136164019 - 0713 8164 019 - 0713 7164 019 - 0713 6164 019
Specifications
Medium: Fuel tank ventilation, Ventilation and exhaust lines , Oil cooler lines, Vacuum brake line
Operating Pressure: Approx. 2,5 bar excess pressure
Temperature range: –40°C to +135°C, Short time up to +150°C (approx. 30 min.)
Material: Polyamide 6 with 30% glass fiber content or Polyamide 12 with 20% glass fiber
Size: NW19
Connection:
Seal: NBR, HNBR, FPM and FVMQ
Hose connection: 19 mm Inner diameter
Weight:
NORMA NORMAQUICK® V2 straight Quick Connector 0° NW19 - 19 mm, Adapter piece
