NORMAQUICK® S straight Quick Connector 0° NW3/8" - 9,5 mm

€9,98 Incl. tax
€8,25 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 95 in stock
Delivery time: Delivery in 1 to 2 days
  • Buy 10 for €7,43 each and save 10%
  • Buy 25 for €6,60 each and save 20%
  • Buy 50 for €5,78 each and save 30%
Article number: NOR-7158594010
SKU: 7158594010
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
  • Customer service 09:00 - 17:00
Information

NORMAQUICK® S straight Quick Connector 0º NW3/8" with 9,5 mm hose connection

The NORMAQUICK® S plug connectors made of plastic, are designed to connect media carrying lines on automobiles.

They are primarily developed for fuel applications and contain FPM and FVMQ sealing rings.

The connectors can be used for both line-to-line and line-to-device connections.
They are available as standard in connection variants 0°, 45° and 90°.

The advantages at a glance
  • Fast assembly without tools: time and cost savings
  • Robot mounting possible - automated processes
  • Compact design - can be used in extremely tight installation conditions
  • Integrated sealing - optimum tightness
  • The principle of the closing cone type S is protected against accidental opening and cannot be unlocked under pressure

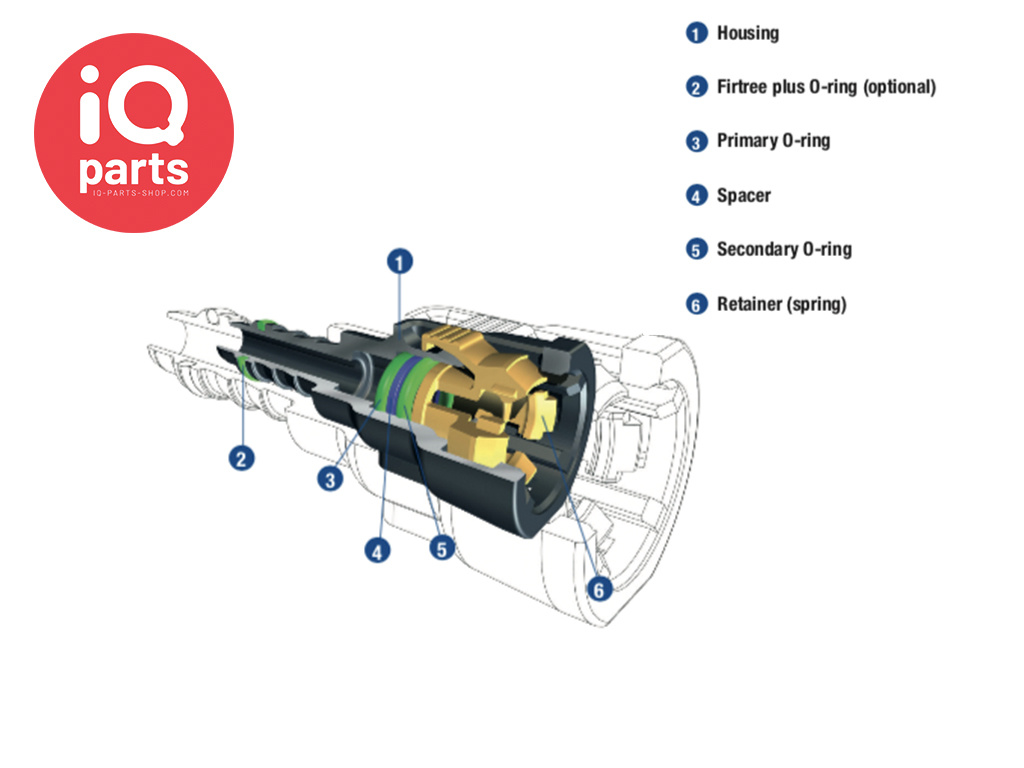

Technical drawing:


Product code:
07158594010 - 07157594010 - 07156594010 - 0715 8594 010 - 0715 7594 010 - 0715 6594 010
Specifications
Medium: Fuel, Oil cooler, Vacuum control, Coolant, DEF
Operating Pressure: Approx. 10 bar excess pressure
Temperature range: –40°C to +135°C, Short time up to +150°C (approx. 30 min.)
Material: Polyamide 6 or 12 with a glass fiber content between 20% and 50%
Size: NW3/8"
Connection:
Seal: FPM-FVMQ
Hose connection: 9,5 mm Inner diameter
Weight:
NORMA NORMAQUICK® S straight Quick Connector 0° NW3/8" - 9,5 mm
