NORMAQUICK® S Quick Connector 90° NW5/16" - 7,3 mm | EPDM O-ring
Brand:
NORMA
- Buy 10 for €7,40 each and save 10%
- Buy 25 for €6,99 each and save 15%
- Buy 50 for €6,58 each and save 20%
- Buy 100 for €5,75 each and save 30%
| Article number: | NOR-7158537008 |
| SKU: | 7158537008 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
NORMAQUICK® S Quick Connector 90º NW5/16" with 7,3 mm hose connection | EPDM O-ring
PLEASE NOTE: This variant is NOT suitable for fuel lines due to the EPDM O-ring!

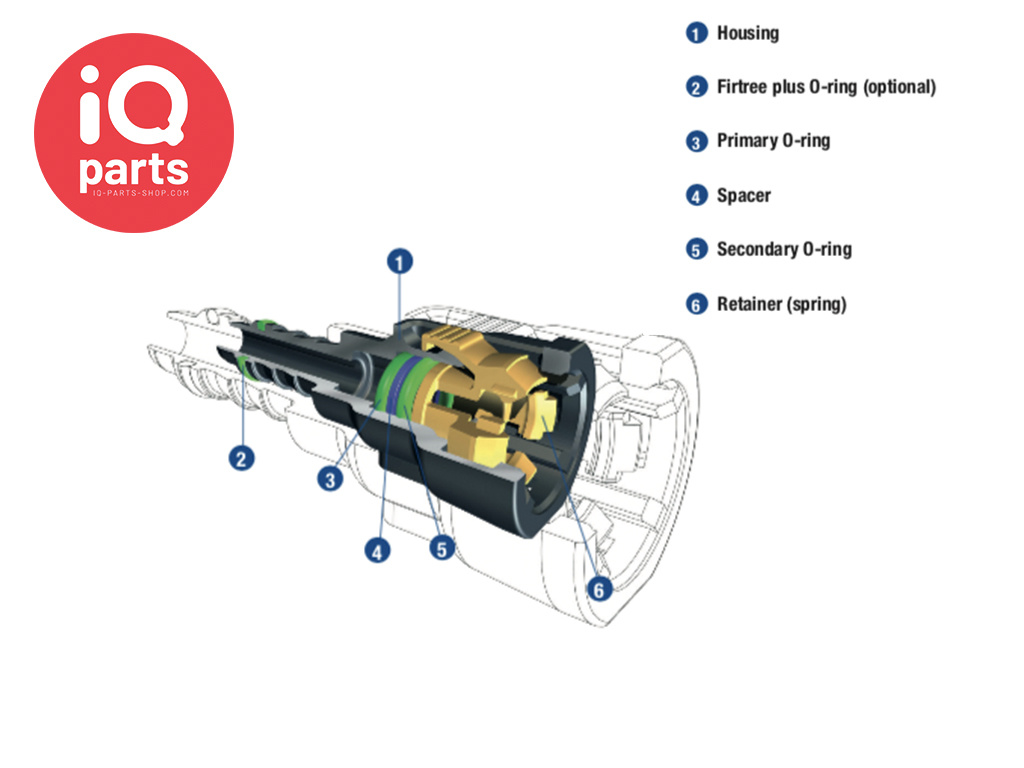

The NORMAQUICK® S plug connectors made of plastic, are designed to connect media carrying lines on automobiles. The connectors can be used for both line-to-line and line-to-device connections.
They are available as standard in connection variants 0°, 45° and 90°.
The advantages at a glance
- Fast assembly without tools: time and cost savings
- Robot mounting possible - automated processes
- Compact design - can be used in extremely tight installation conditions
- Integrated sealing - optimum tightness
- The principle of the closing cone type S is protected against accidental opening and cannot be unlocked under pressure
For the S couplings we recommend the associated stepless Oetiker ear clamps from the 167 series (CLICK HERE)
Technical drawing:
Product code:
07158537008 - 07157537008 - 07156537008 - 0715 8537 008 - 0715 7537 008 - 0715 6537 008
Specifications
| Medium: | Fuel, Oil cooler, Vacuum control, Coolant, DEF |
| Operating Pressure: | Approx. 10 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 or 12 with a glass fiber content between 20% and 50% |
| Size: | NW5/16" |
| Connection: | 90° |
| Seal: | EPDM |
| Hose connection: | 7,3 mm Inner diameter |
