NORMAQUICK® PS3 straight Quick Connector 0° NW06 - 10 mm
Brand:
NORMA
- Buy 10 for €6,47 each and save 10%
- Buy 25 for €5,75 each and save 20%
- Buy 50 for €5,03 each and save 30%
| Article number: | NOR-7028003006 |
| EAN: | 4043171742276 |
| SKU: | 7028003006 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information
NORMAQUICK PS3 straight Quick Connector 0° NW06 - 10 mm
PS3 “Push & Seal” plastic quick connectors are an ideal means for the secure connection of cooling water and heating hoses.
PS3 quick connectors are made from recyclable materials. For our standard versions we use polyamide 6.6 with 30% glass fiber content.
The standard material for the O-rings consists of peroxide-cured EPDM which is resistant to hot water. For PS3 quick connectors that are likely to be used in direct contact with coolants we recommend PA 6.6 with 30% glass fiber content that has been stabilized against heat and hydrolysis.
Please note that all PS3 quick connectors are delivered without spigot. However, we will be pleased to offer suitable VDA spigots for Line-to-Line connection on request.
The advantages at a glance:
- Snap assembly without tool – time and cost reduction
- Robot assembly possible – automated processes
- Compact structural dimensions – to be used in extremely narrow spaces
- Integrated seal – optimal tightness

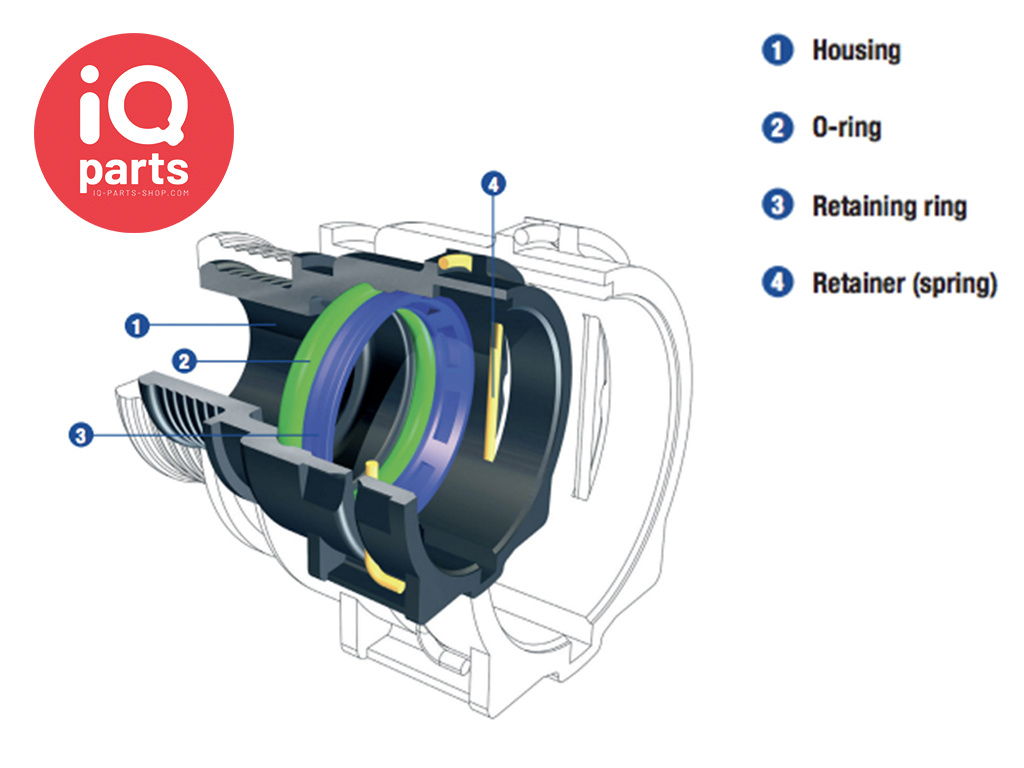

Technical drawing:
Product code:
0702 8003 006 - 07028003006 - 0702 7003 006 - 07027003006 - 0702 6003 006 - 07026003006 - 4043171742276
Specifications
| Medium: | Cooling Water |
| Operating Pressure: | 0–2 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6.6 with a glass fiber content of 30% |
| Size: | NW06 |
| Connection: | 0° |
| Seal: | EPDM / FPM-FVMQ |
| Hose connection: | 10 mm Inner diameter |
| Weight: |
