NORMA V-Profile clamps Type QRC | W4 (AISI 304)
Brand:
NORMA
| Article number: | NOR-06330577080 |
| SKU: | 04L 253 725 B |
- 2 year warranty
- Delivery time: 1 week
Information
NORMACONNECT® V-Profile clamps Type QRC | W4 (AISI 304)
The NORMACONNECT V-Profile band clamp Type QRC is one of the variants from the V-Profile series from Normaconnect®. The Type QRC is called an adjustable closure, which makes mounting even quicker and easier.
The NORMACONNECT® V-profile band clamps are reliable and time-saving connecting elements for industrial and automotive use. They are made to customer requirements and can be supplied with different profiles, belt widths and closure types.
The V-profile band clamps Type QRC can be ordered in any other desired diameter. Look for the minimum diameter and for the technical details in the PDF file below before ordering.
Other available closure type:
The V-profile band clamps Type QRC can be ordered in any other desired diameter. Look for the minimum diameter and for the technical details in the PDF file below before ordering.
Other available closure type:
- STC: Bolts and nut are pre-assembled.
- SVS: With lever, for quick assembly and disassembly.
Benefits at a glance:
- Low friction losses
- Robust precision components
- Consistently high material quality
- State-of-the-art automated production
- Very competitively priced
Applications:
- Automotive: connection turbocharger - catalytic converter
- Automotive: exhaust manifold
- Industry: bulk material container
- Industry: Bypass Filter Unit
Product method:
The method of the profile clamp is based on the principle of an inclined plane. This exerts circumferential force on the profile segments when the locking bolt is tightened. By means of the profile, the two halves of the flange are pressed against each other. The circumferential force applied is converted into a significantly higher axial force.
NORMACONNECT® V Profile Band Clamps are quick coupling elements for flanges and are an economical alternative to conventional bolted flange connections.
A detailed technical description can be found in the PDF below.The NORMACONNECT® V-profile band clamps are available in many different variants. Contact our customer service for the clamp you need!
Minimum order unit: 250 pieces
A detailed technical description can be found in the PDF below.The NORMACONNECT® V-profile band clamps are available in many different variants. Contact our customer service for the clamp you need!
Minimum order unit: 250 pieces
If not in stock, the delivery time is 8 - 10 weeks after order!
Product numbers, discription, OEM reference:
Scania, Scania CV AB:
0633 0580 077 - 0633 0575 097 - 0633 0574 103 - 0633 0571 124 - 0633 4633 146 - 0632 2632 219 - V-QRC 077 096 - V-QRC 097 099 - V-QRC 103 097 - V-QRC 124 094 - V-QRC 155 110/N4 - V-STC 219 101 - 1 439 822 - 1 439 825 - 1 445 398 - 1 431 701 - 1863832 - 6325535
MAN:
0633 0578 077 - 0632 4632 404 - V-QRC 077 869 - V-STC 404 P 015
BMW:
0633 0579 080 - V-QRC 080 897 - 1K0 253 725 B
Volkswagen AG, Audi AG, Seat S.A., Porsche AG, Bentley:
0633 0577 080 - 0633 3633 098 - 0633 2633 115 - 0633 1633 143 - 0633 1633 152 - 0633 2633 179 - 0633 1633 185 - V-QRC 080 2-0121 - V-QRC 098 917 - V-QRC 115 933 - V-QRC 143 101.D4 - V-QRC 152 124/B5 - V-QRC 179 101 D4 - V-QRC 185 124/B5 - 04L 253 725 B - 2H0 253 725 - 04L 131 455 A - 8J0 253 460 - 8W0 253 725 - Q67710 - 8W0 253 725 A
Volvo, Volvo Powertrain Corp:
0633 2633 082 - 0633 2633 108 - 0633 4633 131 - 0633 0572 152 - V-QRC 082 0885 - V-QRC 108 0884 - V-QRC 131 110/N4 - V-QRC 152 009 - 20592787 - 20592783 - 22576146 - 21029030
DAF Trucks NV:
0633 0576 085 - 0633 4633 155 - V-QRC 085 908 - V-QRC 155 015/P - 1696 140 - 1790342
Evobus GmbH:
0633 4633 112 - V-QRC 112 015/P - A 001 995 32 02
Iveco:
0633 4633 135 - V-QRC 135 015/P - 5801478451
Daimler AG:
0633 4633 145 - V-QRC 145 015/P - A 000 995 83 02
Tenneco GmbH:
0632 4632 317 - V-QRC 317 - 82406297

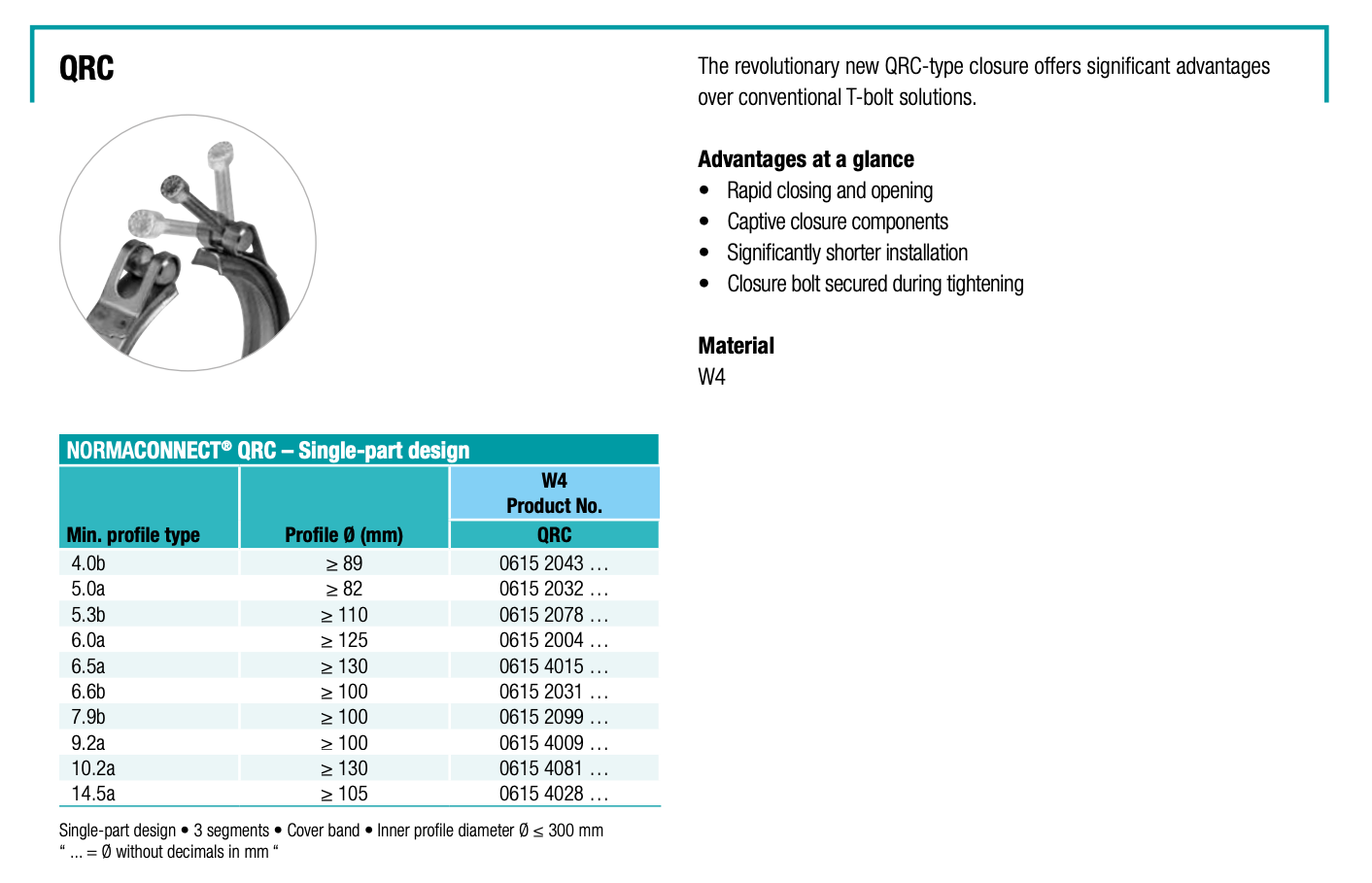

0615 2043 - 0615 2032 - 0615 2078- 0615 2004- 0615 4015- 0615 2031- 0615 2099- 0615 4009- 0615 4081- 0615 4028 - 06152043- 06152032- 06152078- 06152004- 06154015- 06152031- 06152099- 06154009- 06154081- 06154028
Product code:
06330580077 - 06330578077 - 06330579080 - 06330577080 - 06332633082 - 06330576085 - 06330575097 - 06333633098 - 06330574103 - 06332633108 - 06334633112 - 06332633115 - 06330571124 - 06334633131 - 06334633135 - 06331633143 - 06334633145 - 06334633146 - 06330572152 - 06331633152 - 06334633155 - 06332633179 - 06331633185 - 06322632219 - 06324632317 - 06324632404
0633 0580 077 - 0633 0578 077 - 0633 0579 080 - 0633 0577 080 - 0633 2633 082 - 0633 0576 085 - 0633 0575 097 - 0633 3633 098 - 0633 0574 103 - 0633 2633 108 - 0633 4633 112 - 0633 2633 115 - 0633 0571 124 - 0633 4633 131 - 0633 4633 135 - 0633 1633 143 - 0633 4633 145 - 0633 4633 146 - 0633 0572 152 - 0633 1633 152 - 0633 4633 155 - 0633 2633 179 - 0633 1633 185 - 0632 2632 219 - 0632 4632 317 - 0632 4632 404
Specifications
| Bolt: | M6 |
| Bandwidth: | Flange width 20 mm |
| Tightening torque (Maximum): | 6 NM |
