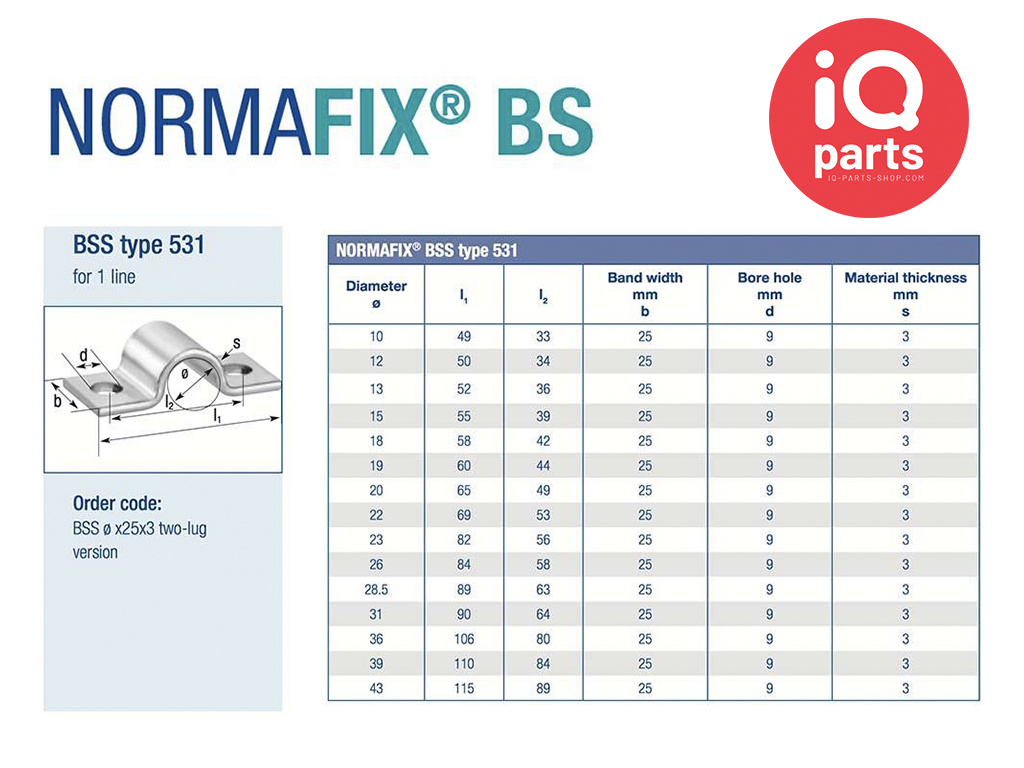

Normafix Pipe Fixing clips BSS Model 531 - W1 - for 1 Line

NORMAFIX® BS fixing clips enable pipes, cables and cable protection pipes to be attached to structures quickly and easily. They are suitable for all industrial applications which require a low-priced yet reliable attachment solution.

Fixing clip to DIN standard Heavy duty range (BSS)

• Thick layer surface protection
• Band widths: 25 mm
• Material thicknesses: 3 mm

Fixing clip to DIN standard Light range (BSL)

• Thick layer surface protection
• Band widths: 10 and 12 mm
• Material thicknesses: 1 and 1.5 mm



Fixing clip Standard range (BSN)

• Thick layer surface protection
• Band widths: 20 mm
• Material thicknesses: 2 mm



Fixing clip to DIN standard

• Thick layer surface protection
• Band widths: 16 till 40 mm
• Material thicknesses: 2 till 4 mm

Productcode:

05317000010 - 05317000012 - 05317000013 - 05317000015 - 05317000018 - 05317000019 - 05317000020 - 05317000022 - 05317000023 - 05317000026 - 05317000028 - 05317000031 - 05317000036 - 05317000039 - 05317000043
