CPC - MPC22006T39M | Coupling Insert | Polysulfone | 9,5 mm (3/8") Hose barb | Silicone

€0,- Incl. tax
€0,- Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: 2 - 3 weeks
Article number: CPC-MPC22006T39M
SKU: MPC22006T39M
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

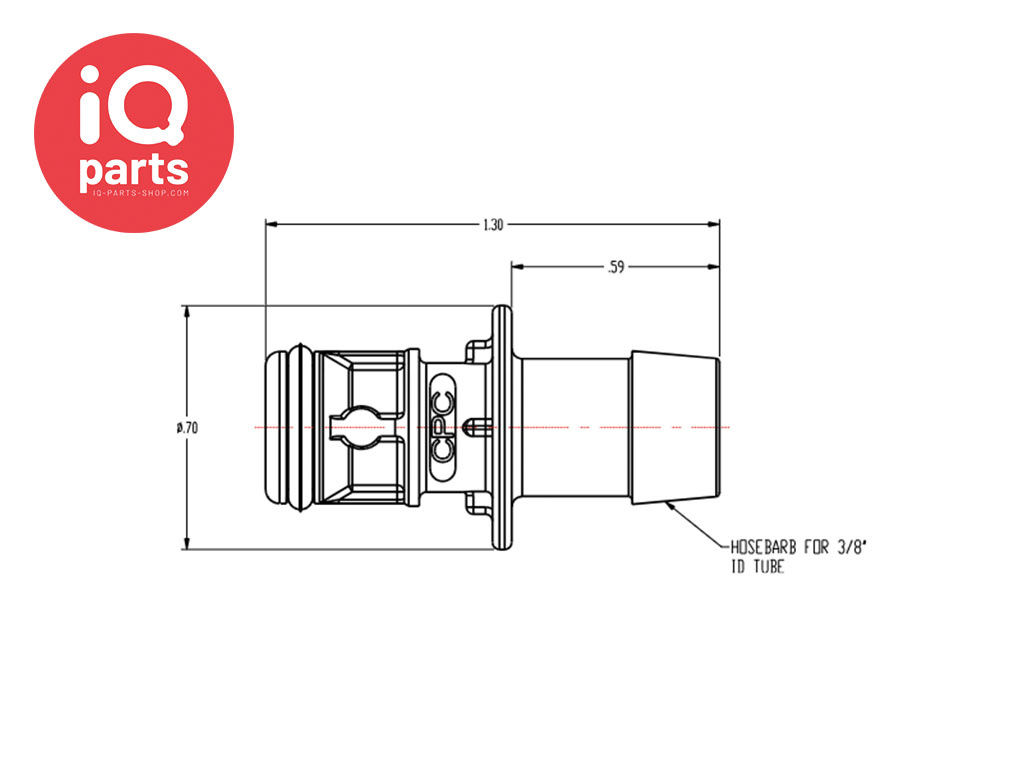

CPC - MPC22006T39M | Coupling Insert | Polysulfone | 9,5 mm (3/8") Hose barb | Silicone PRICE ON REQUEST


An in-line coupling Insert of CPC from the MPC series with a 9,5 mm Hose barb. This quick coupling (male) ensures a leak-free seal and is made of Polysulfone. This coupling is only available without a valve (MPC22006T39M).

This Coupling Insert comes with an O-ring made of Silicone, Platinum-cured, USP Class VI, ADCF.
You can combine this Insert with all coupling bodies of the MPC series.

Information about the MPC-serie
The MPC-series couplings add ease of use and security to critical fluid handling applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8" (3.2 mm), 1/4" (6.4 mm) and 3/8" (9.5 mm) tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.

Features and Benefits:
  • Ergonomic release button, easy to use even with gloves
  • USP Class VI materials meet biocompatibility requirements
  • Sterilizable: autoclavable, EtO, e-beam or gamma irradiation, Reusable and robust yet economically suitable for single use applications
  • Hose barb without welds, minimizes fluid turbulence
  • BSE/TSE-free material, meets ADCF requirements

Possible areas of application:
  • medical technology
  • biotechnology

Materials:
  • Polysulfone
  • O-ring: Silicone, Platinum-cured, USP Class VI, ADCF.
  • Also available in ABS and Polycarbonate
Specifications:
  • Vacuum to 60 psi, 4.1 bar
  • Temperature range: -40°F to 300°F (-40°C to 149°C)

Sterilization:
  • Gamma: Up to 50 kGy irradiation
  • Autoclave: Up to 270°F (132°C), 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 60 psi, 4.1 bar Vacuum
Temperature range: -40° F to +300° F (-40° C to +149° C)
Material: Polysufone
Size: 0,29"
Connection: In-line Coupling Insert
Seal: Silicone, Platinum-cured, USP Class VI
Hose connection: 9,5 mm (3/8") Inner diameter
Weight: --
