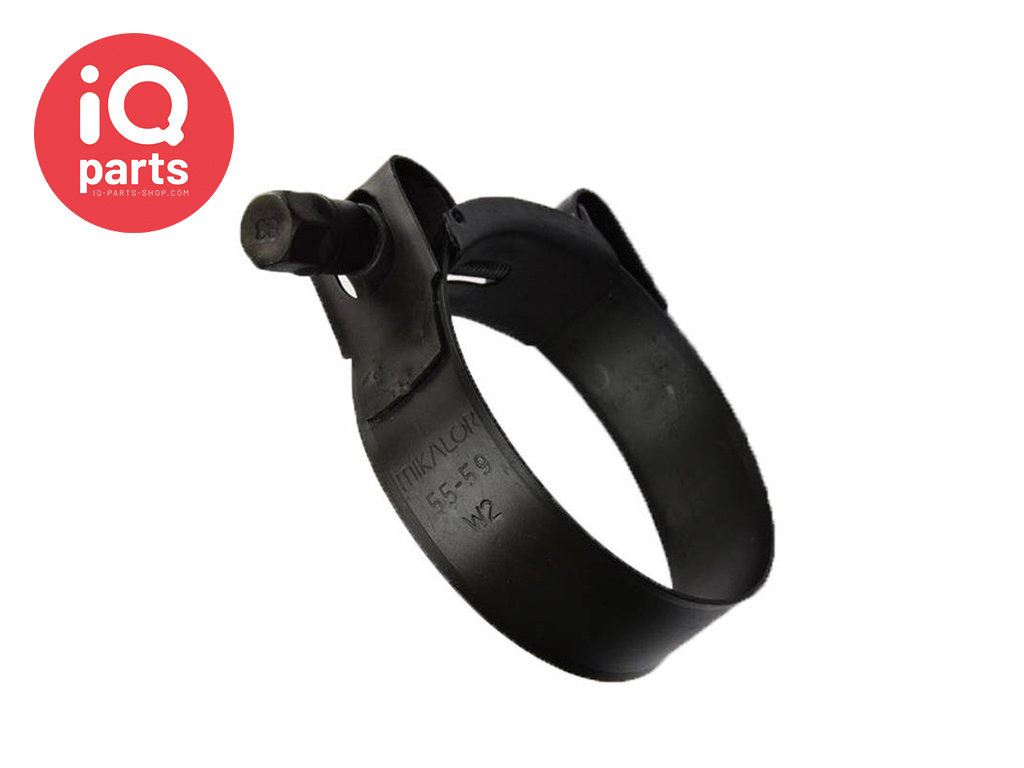

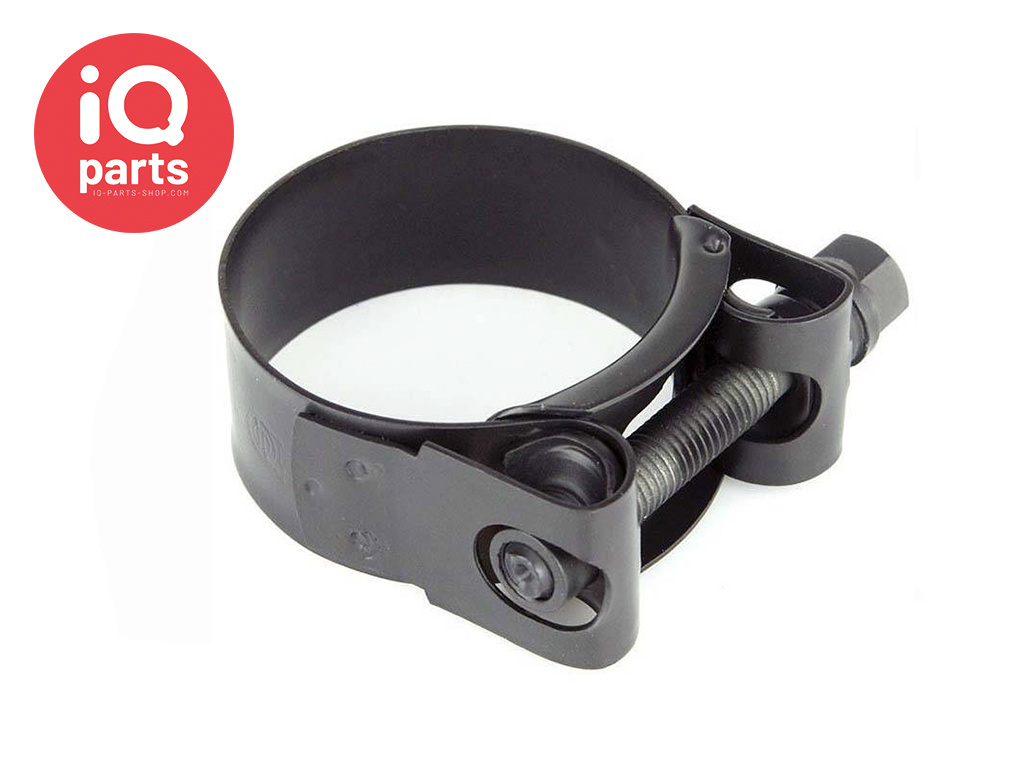

Mikalor Supra W2 Heavy-Duty Clamp / T-Bolt Clamp - Black
Brand:
Mikalor
| Article number: | MKL-S-W2-ZW-023-025 |
| SKU: | 73019041 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information
Mikalor Supra W2 Heavy-Duty Clamp / T-Bolt Clamp - Black
The Supra range is the natural evolution of the Super W1 Clamp. Due to its revolutionary swiveling bridge, Supra can be mounted in the most awkward applications without having to remove the hose. It can be opened up and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier.

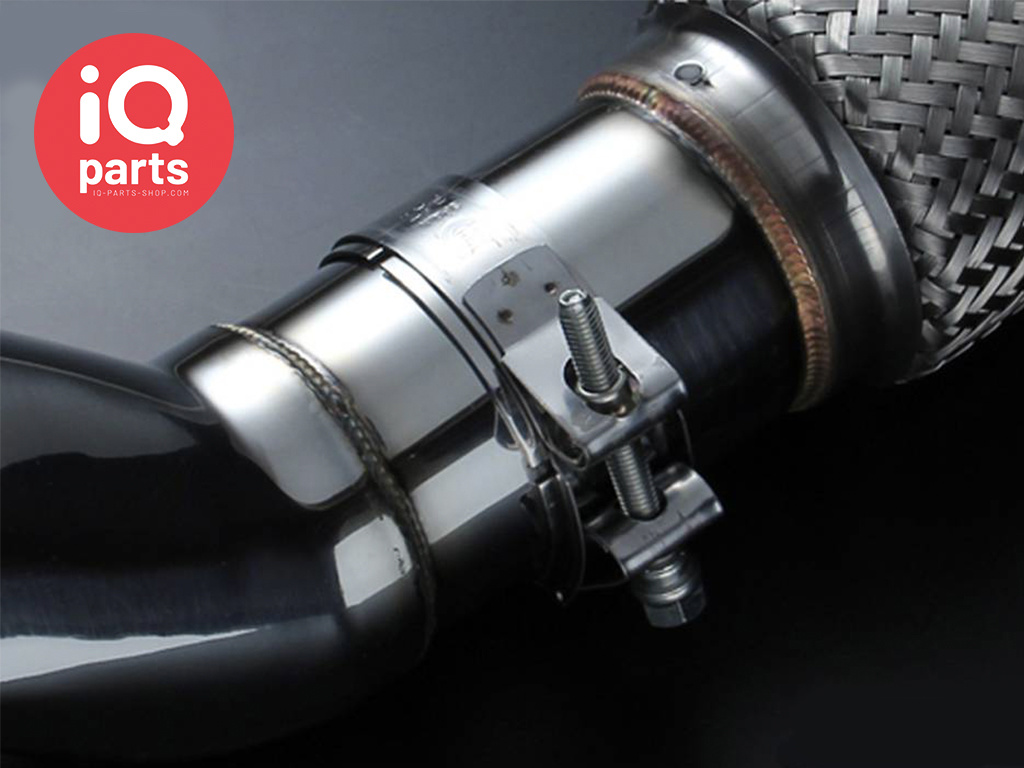

Thanks to the beveled edges, the hose is protected from damage. The Supra clamp complies fully with the RoHs directive EU 20032/95/EC dated 1st July 2006. The high-strength bolt, designed and manufactured by Mikalor specifically for this clamp, together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. This is the clamp of choice for professionals in the industrial hose, automotive and agricultural machinery sectors as well as in all industrial applications where an outstanding and above all reliable heavy-duty clamp is required.
Thanks to the beveled edges, the hose is protected from damage. The Supra clamp complies fully with the RoHs directive EU 20032/95/EC dated 1st July 2006. The high-strength bolt, designed and manufactured by Mikalor specifically for this clamp, together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. This is the clamp of choice for professionals in the industrial hose, automotive and agricultural machinery sectors as well as in all industrial applications where an outstanding and above all reliable heavy-duty clamp is required.
Material:
- Band is made of 304 stainless steel.
- Housing is made of galvanized steel.
Dimensions:
- 29-31 mm to 63-68 mm: Bolt = M7, Band width = 20 mm
- 68-73 mm to 73-79 mm: Bolt = M8, Band width = 25 mm
* Special dimensions are available on request.
* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Patented Worldwide.
Finish: Phosphated 2 x Delta Protekt KL-100 2 x Delta Seal GZ
The largest available diameter in black is 73-79 mm. Larger sizes are possible, however, with a minimum order quantity of 500 pieces per size and a delivery time of 8 weeks.
Certificates / Documentation:
Certificates and documentation are available for these products. If desired, you can order these together with your order.
We can offer:
- Certificate of Conformity (CoC)
- EN 10204 3.1 Inspection Certificate
Certificates must be requested at the time of ordering. Certificates requested after shipment may incur additional administrative costs and cannot always be provided retrospectively.
You will find the certificates at the bottom of the drop-down order menu at the top right of this page.
Generally, a subsequent order is significantly more expensive due to the administrative burden.
Product code: 73019041 - 73019071 - 73019080 - 73019098 - 73019100 - 73019119 - 73019127 - 73019135 - 73019143 - 73019151 - 73019160 - 73019178 - 73019186 - 73019194
550232 - 550234 - 550237 - 550240 - 550243 - 550247 - 550249 - 550254 - 550258 - 550263 - 550272
