NORMA FBS-C DIN 3021 Spring Band Hose Clamp W1 - 12 mm bandwidth

€0,- Incl. tax
€0,- Excl. tax
* Excl. tax | Excl. Shipping costs
Out of stock
Delivery time: on request
  • Buy 100 for €0,00 each and save 20%
  • Buy 500 for €0,00 each and save 30%
  • Buy 1000 for €0,00 each and save 40%
Article number: NOR-FBS-C-W1-12
SKU: NOR-FBS-C-W1-12
  • 2 year warranty
  • Delivery time: on request
Information

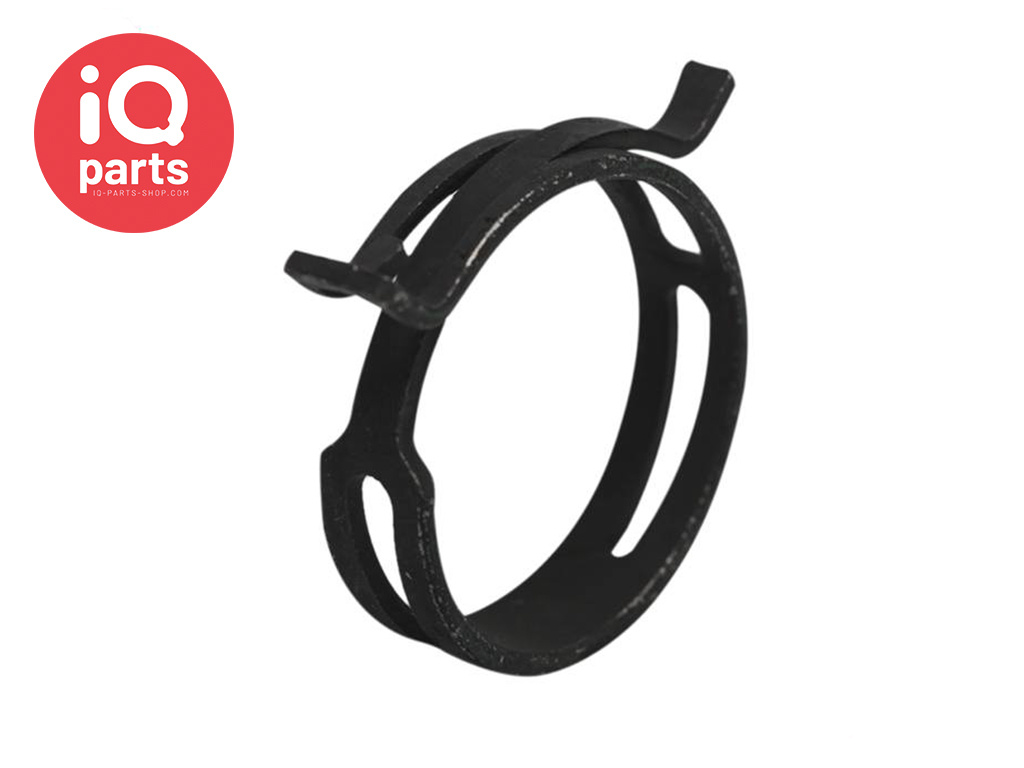

NORMACLAMP FBS-C DIN 3021 Spring Band Hose Clamp W1 - Bandwidth 12 mm



NORMACLAMP® FBS springband hose clamps are the perfect choice for hose spigot systems that are exposed to significant temperature fluctuations.

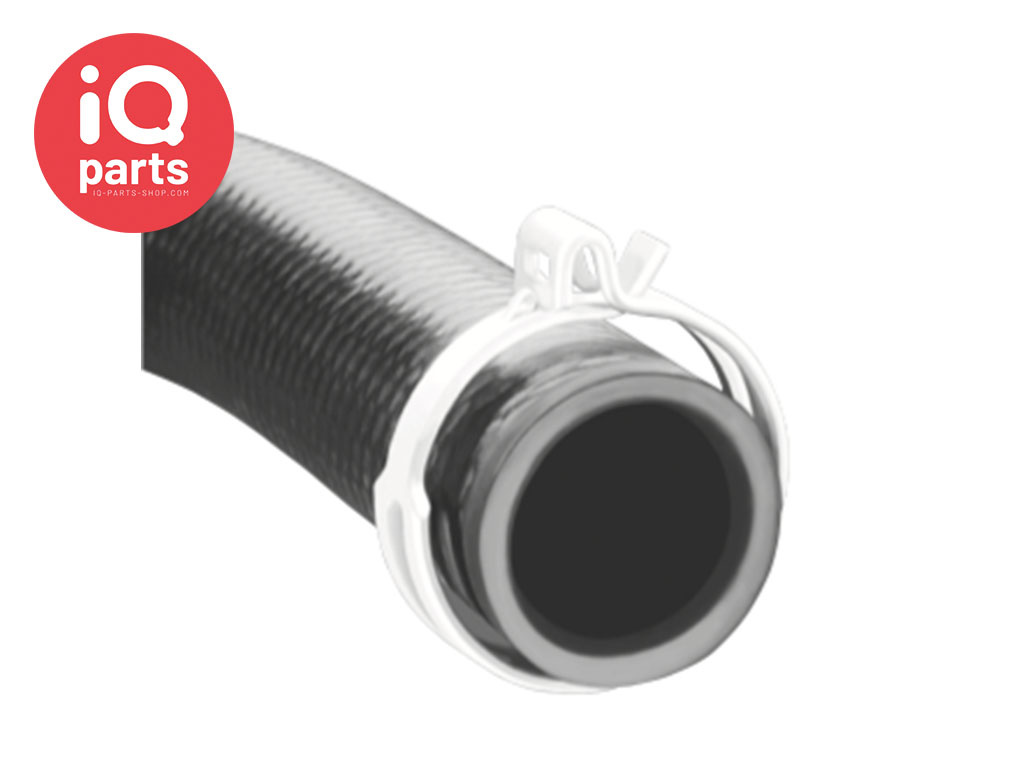

This FBS-C is a pre-opened clamp which is pre-positioned on the hose. The retaining mechanism for this version is an integral part of the clamp band.

Once installed, their dynamic spring properties ensure an automatic re-tensioning effect over long periods of time. Even at low temperatures, this mechanism still enables sufficiently high levels of radial clamping force to be achieved, which in turn ensures excellent sealing reliability.

With NORMACLAMP® FBS clamps even hoses that have a tendency to “creep” can be joined securely. Manual or pneumatic tools are used for professional installation.

The FBS series has 5 variants:

  • FBS: The standard Springband Hose Clamp
  • FBS-R: Space-saving Springband Hose clamp.
  • FBS-C: Pre-opened version secured with an integrated clip
  • FBS-MC: Pre-opened version secured with a metal clip
  • FBS-HC: Pre-opened version secured with a plastic clip



Advantages at a glance:

  • One-piece, bolt-free hose clamp
  • Even distribution of clamping force
  • Optimum roundness
  • Temperature resistance from –40 °C to 200 °C
  • Automatically re-tensions to accommodate temperature fluctuations
  • Clear traceability due to batch numbering
  • Visual control of nominal diameters by color codes
  • Corrosion resistance up to 720 h (According to DIN EN ISO 9227)

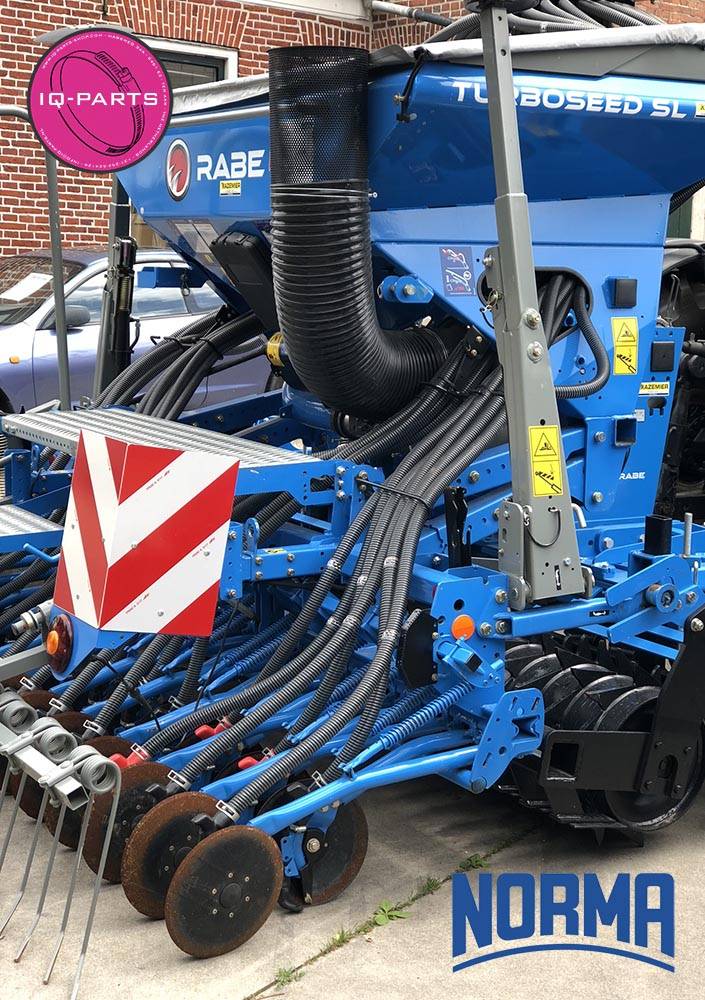

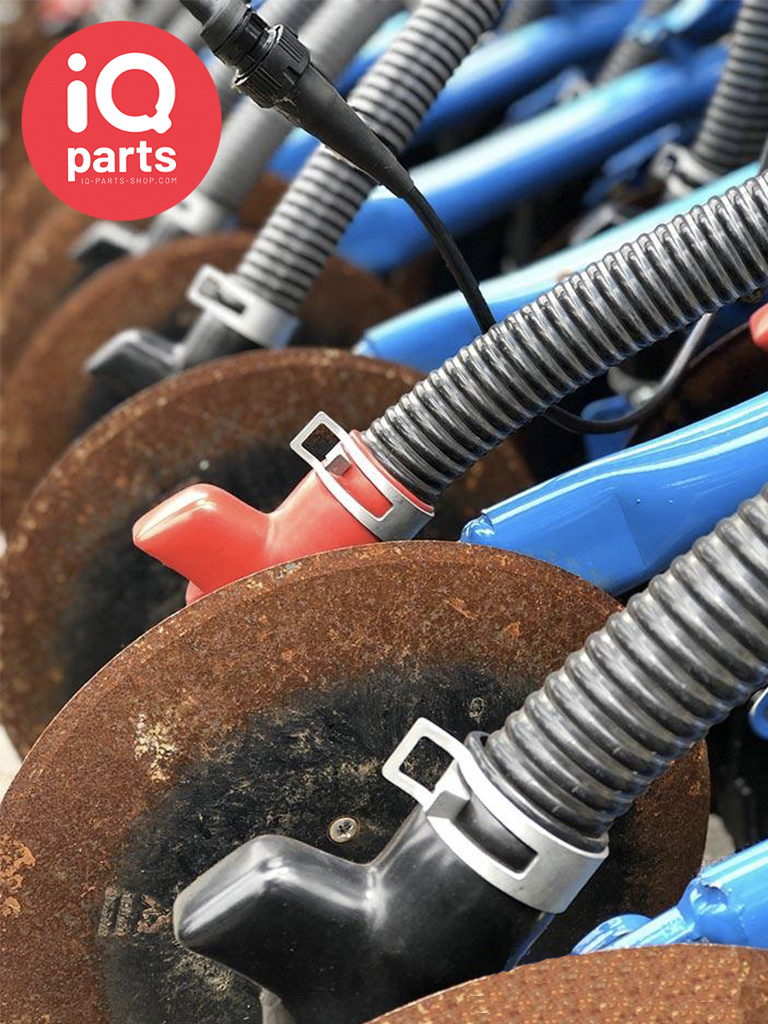

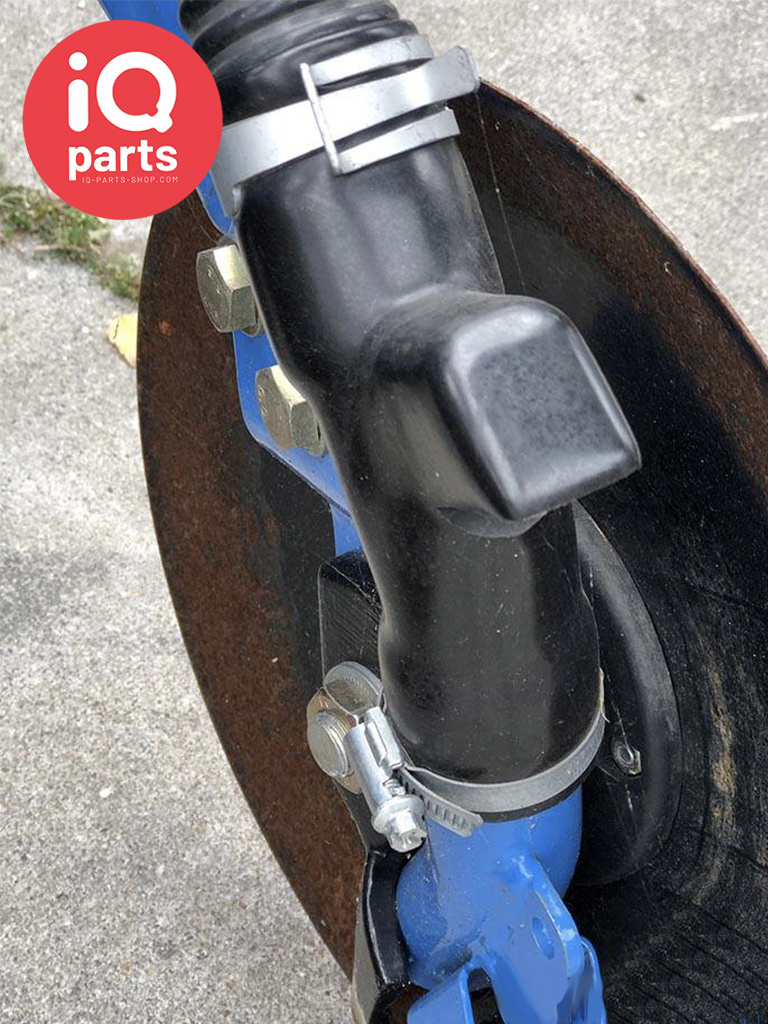

Applications:

  • Machine building
  • White goods
  • Agricultural machines
  • Engine manufacturing
  • Cooling and heating water circuits
  • Fuel vent system
  • Air ducts
  • Water and brine outlet lines



Download PDF





Product code:
01128024013 - 01128024014 - 01128024015 - 01128024016 - 01128024017 - 01128024018 - 01128024019 - 01128024020 - 01128024021 - 01128024022 - 01128024023 - 01128024024 - 01128024025 - 01128024026 - 01128024027 - 01128024028 - 01128024029 - 01128024030 - 01128024032 - 01128024035 - 01128024036 - 01128024038 - 01128024040 - 01128024042 - 01128024044 - 01128024046 - 01128024047 - 01128024050 - 01128024055 - 01128024060 - 01128074013 - 01128024014 - 01128024015 - 01128024016 - 01128024017 - 01128074018 - 01128074019 - 01128074020 - 01128074021 - 01128074022 - 01128074023 - 01128074024 - 01128074025 - 01128074026 - 01128074027 - 01128074028 - 01128074029 - 01128074030 - 01128074032 - 01128074035 - 01128074036 - 01128074038 - 01128074040 - 01128074042 - 01128074044 - 01128074046 - 01128074047 - 01128074050 - 01128074055 - 01128074060
0112 8024 013 - 0112 8024 014 - 0112 8024 015 - 0112 8024 016 - 0112 8024 017 - 0112 8024 018 - 0112 8024 019 - 0112 8024 020 - 0112 8024 021 - 0112 8024 022 - 0112 8024 023 - 0112 8024 024 - 0112 8024 025 - 0112 8024 026 - 0112 8024 027 - 0112 8024 028 - 0112 8024 029 - 0112 8024 030 - 0112 8024 032 - 0112 8024 035 - 0112 8024 036 - 0112 8024 038 - 0112 8024 040 - 0112 8024 042 - 0112 8024 044 - 0112 8024 046 - 0112 8024 047 - 0112 8024 050 - 0112 8024 055 - 0112 8024 060 - 0112 8074 013 - 0112 8024 014 - 0112 8024 015 - 0112 8024 016 - 0112 8024 017 - 0112 8074 018 - 0112 8074 019 - 0112 8074 020 - 0112 8074 021 - 0112 8074 022 - 0112 8074 023 - 0112 8074 024 - 0112 8074 025 - 0112 8074 026 - 0112 8074 027 - 0112 8074 028 - 0112 8074 029 - 0112 8074 030 - 0112 8074 032 - 0112 8074 035 - 0112 8074 036 - 0112 8074 038 - 0112 8074 040 - 0112 8074 042 - 0112 8074 044 - 0112 8074 046 - 0112 8074 047 - 0112 8074 050 - 0112 8074 055 - 0112 8074 060

EAN numbers:

2050003593113 - 2050003593120 - 2050003593137 - 2050003593144 - 2050003593151 - 2050003593168 - 2050003593175 - 2050003593182 - 2050003593199 - 2050003593205 - 2050003593212 - 2050003593229 - 2050003593236 - 2050003593243 - 2050003593250 - 2050003593267 - 2050003593274

Specifications
Bolt: --
Bandwidth: 12 mm
Tightening torque (Maximum): --
NORMA NORMA FBS-C DIN 3021 Spring Band Hose Clamp W1 - 12 mm bandwidth
